Black plate (398,1)
5. Slowly turn the lug wrench
counterclockwise until the spare tire
reaches the ground and the cable
becomes loose.
Spare tire
CAUTION
Do not loosen the cable too much as
this may cause damage to the spare
tire carrier.
6. Rotate the small lever on top of the
retaining plate and pull the retaining
plate out from the center hole of the
tire.
NOTE
A flat tire which has been removed from the
vehicle for repair cannot be carried in the
spare tire carrier. Secure the flat tire with the
flat tire belt in the cargo sub-compartment
(page 7-11).
7. If the temporary spare tire is not
reinstalled in the spare tire carrier,
tighten the spare tire carrier bolt
completely to wind up the spare tire
carrier cable.
WARNING
Always tighten the spare tire carrier
bolt completely tight and make sure
the spare tire is locked in the highest
position:
A loose spare tire carrier bolt is
dangerous. The cable could be cut
causing the spare tire to fall off. This
could result in someone being
seriously injured or even killed. Use a
lug wrench to tighten the carrier bolt
and make sure to tighten it until a
click sound is heard.
7-6
In Case of an Emergency
Flat Tire
CX-9_8Z66-EA-08F_Edition3 Page398
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F

Black plate (399,1)
To secure the spare tire
1. Place the tire with the outer side facing
upward, rotate the small lever on top of
the retaining plate and slide the
retaining plate through the center hole
of the tire.
Rotate the small lever into place.
Lever
NOTE
Secure the spare tire as shown below.
Spare tire
2. Raise the spare tire slowly in reverse
order of removal.
WARNING
Place the specialized temporary spare
tire in the spare tire carrier correctly:
Placing the specialized temporary
spare tire in the spare tire carrier
wrong side up or using any tire other
than the small temporary spare tire
designed for use with this vehicle is
dangerous. It will result in poor
attachment and insufficient ground
clearance in the spare tire carrier and
the danger of the tire falling off. This
could result in someone being badly
injured or even killed.
Always tighten the spare tire carrier
bolt completely tight and make sure
the spare tire is locked in the highest
position:
A loose spare tire carrier bolt is
dangerous. The cable could be cut
causing the spare tire to fall off. This
could result in someone being
seriously injured or even killed. Use a
lug wrench to tighten the carrier bolt
and make sure to tighten it until a
click sound is heard.
CAUTION
If you hear rattling from the spare
tire carrier while the vehicle is
moving, the spare tire carrier cable
may be cut.
Have it repaired at an Authorized
Mazda Dealer as soon as possible.
In Case of an Emergency
Flat Tire
7-7
CX-9_8Z66-EA-08F_Edition3 Page399
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F

Black plate (404,1)
If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf)107.8―147.0
(11.0―14.9, 79.6―108.4)
WARNING
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the
stud, which could cause the wheel to
slip off and cause an accident.
5. Open the cargo sub-compartment.
Refer to Cargo Sub-Compartment on
page 6-149.
6. Remove the cover.
7. Remove the belt for securing the flat
tire.
8. Return the third-row seatback to its
original position.
Refer to Fold the Third-Row Seat on
page 2-15.
9. Remove the tire blocks and store the
tools and jack.
10. Place the flat tire in the cargo sub-
compartment.
11. Thread the belt through the wheel as
shown in the figure, then attach the
belt clips to the attachment loop.
7-12
In Case of an Emergency
Flat Tire
CX-9_8Z66-EA-08F_Edition3 Page404
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F

Black plate (405,1)
NOTE
Attach location *1 of the belt to the attachment
loop on the right.
Buckle
Belt clips1
12. Pull the belt end to secure the flat tire.
13. Check the tire inflation pressure.
Refer to the specification charts on
page 10-6.
14. Have the flat tire repaired or replaced
as soon as possible.
WARNING
Do not drive with any tires that have
incorrect air pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
When you check the regular tires' air
pressure, check the spare tire, too.
NOTE
(With Tire Pressure Monitoring System)
A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used (page 5-29).
NOTE
To prevent the jack and tool from rattling, store
them properly.
In Case of an Emergency
Flat Tire
7-13
CX-9_8Z66-EA-08F_Edition3 Page405
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F

Black plate (413,1)

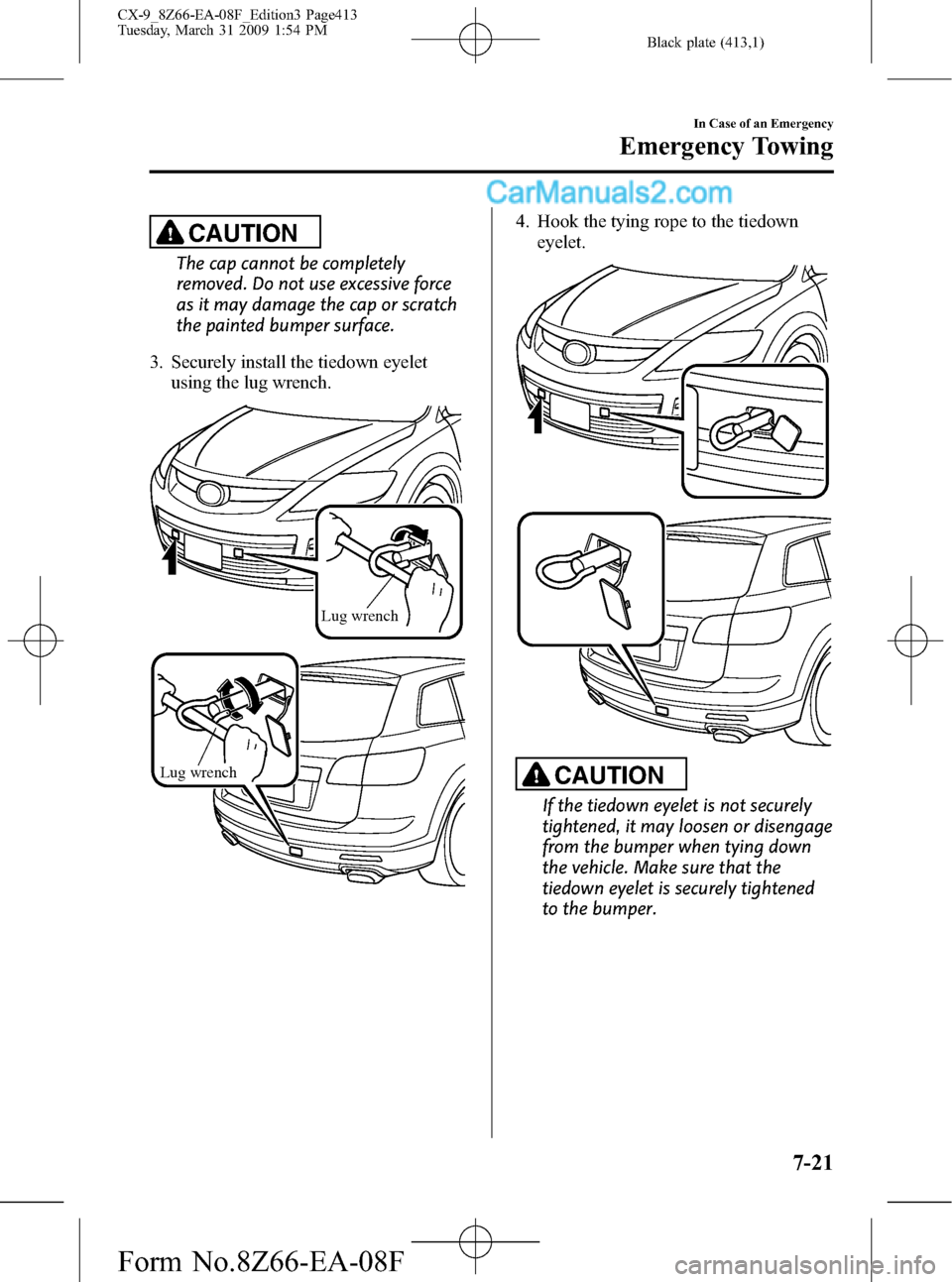

CAUTION
The cap cannot be completely
removed. Do not use excessive force
as it may damage the cap or scratch
the painted bumper surface.
3. Securely install the tiedown eyelet
using the lug wrench.
Lug wrench
Lug wrench
4. Hook the tying rope to the tiedown
eyelet.
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down
the vehicle. Make sure that the
tiedown eyelet is securely tightened
to the bumper.
In Case of an Emergency
Emergency Towing
7-21
CX-9_8Z66-EA-08F_Edition3 Page413
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F

Black plate (446,1)
Keep all flames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.
qBattery Maintenance
To get the best service from a battery:lKeep it securely mounted.lKeep the top clean and dry.lKeep terminals and connections clean,
tight, and coated with petroleum jelly
or terminal grease.
lRinse off spilled electrolyte
immediately with a solution of water
and baking soda.
lIf the vehicle will not be used for an
extended time, disconnect the battery
cables.
8-32
Maintenance and Care
Owner Maintenance
CX-9_8Z66-EA-08F_Edition3 Page446
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F

Black plate (533,1)
B
Bluetooth Hands-Free ..................... 6-116
Basic Bluetooth Hands-Free
Operation ................................. 6-120
Convenient Use of the Hands-Free
System ...................................... 6-124
Hands-Free Setting ................... 6-130
Mazda Bluetooth Hands-Free
Customer Service ..................... 6-137
Safety Certification .................. 6-137
When Bluetooth Hands-Free Cannot
be Used .................................... 6-136
Body Lubrication .............................. 8-27
Bottle Holder ................................... 6-147
Brake
Fluid ........................................... 8-23
Brakes
Anti-lock brake system (ABS) ..... 5-7
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Pad wear indicator ........................ 5-9
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-37
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops .................... 6-149
Cargo Sub-Compartment ................ 6-149
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-21
Center Console ................................ 6-149
C
Child Restraint
Child restraint precautions ......... 2-34
Installing child-restraint
systems ....................................... 2-38
LATCH child-restraint
systems ....................................... 2-45
Child Safety Locks for Rear Doors ... 3-30
Climate Control System ...................... 6-2
Gas specifications ...................... 10-5
Clock ............................................... 6-142
Coin Box ......................................... 6-148
Courtesy Lights ............................... 6-140
Cruise Control ................................... 5-19
Cup Holder ...................................... 6-146
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-41
Daytime Running Lights ................... 5-63
Defroster
Mirror ......................................... 5-69
Rear window .............................. 5-69
Dimensions ....................................... 10-5
Door Locks ....................................... 3-27
Driving In Flooded Area ................... 4-11
Driving on Uneven Road .................. 4-13
Driving Tips ........................................ 4-6
Automatic transaxle ................... 5-15
Break-in period ............................ 4-6
Driving in flooded area .............. 4-11
Driving on uneven road ............. 4-13
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-9
Winter driving ............................ 4-10
Index
11-3
CX-9_8Z66-EA-08F_Edition3 Page533
Tuesday, March 31 2009 1:55 PM
Form No.8Z66-EA-08F

Black plate (535,1)
I
Ignition
Keys ........................................... 3-21
Switch .......................................... 5-2
Illuminated Entry System ............... 6-139
Immobilizer System
(with Advanced Key) ........................ 3-50
Immobilizer System
(without Advanced Key) ................... 3-53
Indicator Lights ................................. 5-43
BSM OFF ................................... 5-57
Cruise ......................................... 5-57
Headlight high-beam .................. 5-56
Security ...................................... 5-55
Shift position .............................. 5-56
TCS OFF .................................... 5-57
TCS/DSC ................................... 5-56
Turn-signal/hazard warning ....... 5-58
Information Display ........................ 6-141
Ambient temperature display .... 6-142
Audio display ........................... 6-143
Climate control display ............ 6-143
Clock ........................................ 6-142
Information display functions ... 6-141
Trip computer ........................... 6-143
Instrument Cluster ............................. 5-38
Interior Care ...................................... 8-57
Interior Lights ................................. 6-139
J
Jump-Starting .................................... 7-16
K
Keyless Entry System ....................... 3-22
Keys .................................................. 3-21
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-63
Liftgate .............................................. 3-30
Light Bulbs
Replacement ............................... 8-37
Specifications ............................. 10-6
Lighting Control ............................... 5-60
Lubricant Quality .............................. 10-4
Luggage Compartment Light .......... 6-140
M
Maintenance
Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-17
Owner maintenance schedule ..... 8-16
Scheduled ..................................... 8-3
Map Lights ...................................... 6-140
Mirror Defroster ................................ 5-69
Mirrors
Outside mirrors .......................... 3-58
Rearview mirror ......................... 3-59
Money-Saving Suggestions ................ 4-6
Moonroof .......................................... 3-47
O
Odometer and Trip Meter .................. 5-39
Outside Mirrors ................................. 3-58
Overhead Console ........................... 6-148
Overhead Lights .............................. 6-139
Overheating ....................................... 7-14
Overloading ...................................... 4-12
P
Paint Damage .................................... 8-52
Index
11-5
CX-9_8Z66-EA-08F_Edition3 Page535
Tuesday, March 31 2009 1:55 PM
Form No.8Z66-EA-08F

Black plate (536,1)
P
Parking Brake ..................................... 5-6
Parking in an Emergency .................... 7-2
Power Door Locks ............................ 3-28
Power Liftgate ................................... 3-32
Power Outlet ................................... 6-152
Power Steering .................................. 5-16
Fluid ........................................... 8-24
Power Windows ................................ 3-37
Push-Starting ..................................... 7-18
R
Rear Coat Hooks ............................. 6-150
Rear Door Child Safety Locks .......... 3-30
Rear Entertainment System ............... 6-64
Before operation ......................... 6-76
Country code list ...................... 6-107
Language code list ................... 6-105
Sound output .............................. 6-82
Rear Window Defroster .................... 5-69
Rear Window Washer ....................... 5-68
Rear Window Wiper .......................... 5-68
Rearview Mirror ................................ 3-59
Recreational Towing ......................... 7-22
Registering Your Vehicle in A Foreign
Country ............................................. 9-19
Rocking the Vehicle ............................ 4-9
Roll-over ............................................. 4-8
S
Safety Defects, Reporting ................. 9-46
S
Seat Belt System
3-point type ................................ 2-23
Automatic locking ...................... 2-22
Belt minder ................................. 2-32
Center-rear lap/shoulder ............. 2-27
Emergency locking .................... 2-21
Extender ..................................... 2-31
Pregnant women ........................ 2-21
Pretensioner and load limiting .... 2-25
Seat belt precautions .................. 2-19
Warning light/beep ..................... 2-32
Seats
Front seat
(Electrically operated seats) ......... 2-5
Front seat
(Manually operated seats) ............ 2-2
Seat warmer ................................ 2-17
Second-row seats ....................... 2-10
Third-row seat ............................ 2-15
Second-Row Seats ............................ 2-10
Security System
Immobilizer system
(without advanced key) .............. 3-53
Immobilizer system
(with advanced key) ................... 3-50
Theft-deterrent system ............... 3-55
Service Publications .......................... 9-48
Shopping Bag Hook ........................ 6-150
Side Extension Sunvisors ................ 6-138
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speedometer ...................................... 5-39
Starting the Engine .............................. 5-4
Steering Wheel .................................. 3-58
Horn ........................................... 5-70
11-6
Index
CX-9_8Z66-EA-08F_Edition3 Page536
Tuesday, March 31 2009 1:55 PM
Form No.8Z66-EA-08F

Black plate (537,1)
S
Storage Compartments .................... 6-148
Armrest box ............................. 6-149
Cargo securing loops ................ 6-149
Cargo sub-compartment ........... 6-149
Center console .......................... 6-149
Coin box ................................... 6-148
Glove box ................................. 6-148
Overhead console ..................... 6-148
Rear coat hooks ........................ 6-150
Shopping bag hook .................. 6-150
Sunshade ........................................... 3-49
Sunvisors ........................................ 6-138
T
Tachometer ........................................ 5-40
Temporary Spare Tire ....................... 8-35
Theft-Deterrent System ..................... 3-55
Third-Row Seat ................................. 2-15
Tiedown
Hook .......................................... 7-20
Tire Information ................................ 9-26
Tire Pressure Monitoring System ...... 5-27
System error activation .............. 5-31
Tire pressure monitoring system
warning light .............................. 5-29
Tires and wheels ......................... 5-31
Tires
Flat Tire ........................................ 7-3
Inflation pressure ........................ 8-33
Replacement ............................... 8-34
Rotation ...................................... 8-34
Snow tires .................................. 4-10
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................. 4-10
Uniform tire quality grading system
(UTQGS) ................................... 9-24
T
Tool ..................................................... 7-3
Towing
Description ................................. 7-19
Emergency towing ..................... 7-19
Recreational towing ................... 7-22
Trailer towing
(Except Mexico) ......................... 4-14
Traction Control System (TCS) ........ 5-22
TCS OFF indicator light ............ 5-23
TCS OFF switch ........................ 5-24
TCS/DSC indicator light ............ 5-23
Trailer Towing .................................. 4-14
Trip Meter ......................................... 5-39
Turn and Lane-Change Signals ......... 5-63
V
Vanity Mirrors ................................. 6-138
Vehicle Information Labels ............... 10-2
Index
11-7
CX-9_8Z66-EA-08F_Edition3 Page537
Tuesday, March 31 2009 1:55 PM
Form No.8Z66-EA-08F
