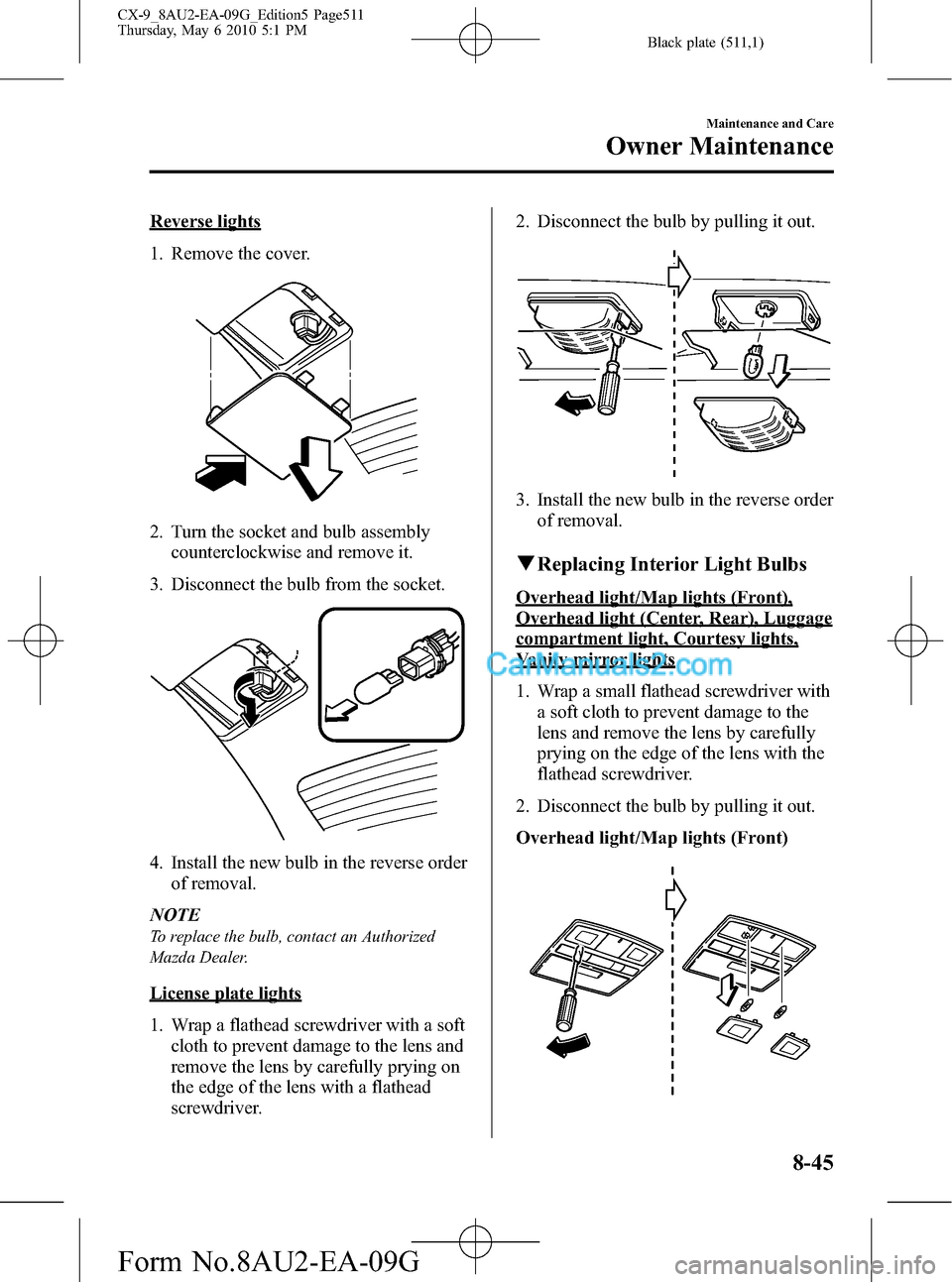

Reverse lights
1. Remove the cover.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
License plate lights
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens with a flathead
screwdriver.2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
qReplacing Interior Light Bulbs
Overhead light/Map lights (Front),
Overhead light (Center, Rear), Luggage
compartment light, Courtesy lights,
Vanity mirror lights
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
Overhead light/Map lights (Front)
Maintenance and Care
Owner Maintenance
8-45
CX-9_8AU2-EA-09G_Edition5 Page511
Thursday, May 6 2010 5:1 PM
Form No.8AU2-EA-09G

Black plate (512,1)
Overhead light (Center, Rear)
Luggage compartment light
Courtesy lights
Vanity mirror lights
3. Install the new bulb in the reverse order
of removal.
8-46
Maintenance and Care
Owner Maintenance
CX-9_8AU2-EA-09G_Edition5 Page512
Thursday, May 6 2010 5:1 PM
Form No.8AU2-EA-09G

Black plate (513,1)
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing fuses located behind the
glove compartment
If an electrical system is inoperative,
inspect the fuses located behind the glove
compartment.
1. Turn off the ignition switch and other
switches.
2. Open the glove compartment.
3. Remove the cover.
Fuse
4. Pull the fuse straight out with the fuse
puller provided on the fuse block
located in the engine compartment.
5. Inspect the fuse and replace it if it's
blown.
NormalBlown
Maintenance and Care
Owner Maintenance
8-47
CX-9_8AU2-EA-09G_Edition5 Page513
Thursday, May 6 2010 5:1 PM
Form No.8AU2-EA-09G

Black plate (514,1)
6. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the ROOM circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover or the
relay box cover.
Fuse block
Relay box
3. If any fuse but the MAIN fuse is
blown, replace it with a new oneof the
same amperage rating.
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
8-48
Maintenance and Care
Owner Maintenance
CX-9_8AU2-EA-09G_Edition5 Page514
Thursday, May 6 2010 5:1 PM
Form No.8AU2-EA-09G

Black plate (515,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 MAIN 150 A For protection of all circuits
2 ENGINE 20 A Transaxle control system
3 R HEATER 40 A Heater
4 P.SEAT R 30 A Power seat (RH)
í
5 HEATER 50 A Heater
6 IGKEY2 40 A For protection of various circuits
7 FAN130 A
íCooling fan
40 Aí
8 P.SEAT L 40 A Power seat (LH)í
9 DEFOG 30 A Rear window defroster
10 BTN 40 A For protection of various circuits
11 FUEL PUMP 30 A Fuel pump
12 IGKEY1 30 A For protection of various circuits
13 FOG 15 A Fog lights
í
14 ABS (SOL) 30 A ABS solenoid
15 D/L 25 A Power door locks
16 ROOM 15 A Overhead light
Maintenance and Care
Owner Maintenance
8-49íSome models. CX-9_8AU2-EA-09G_Edition5 Page515
Thursday, May 6 2010 5:1 PM
Form No.8AU2-EA-09G

Black plate (516,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
17 OUTLET CTR 15 A Accessory socket (Center)
18 OUTLET RR 15 A Accessory socket (Rear)
19 AC PWR 15 A Moon roof
í, DC/AC inverter
20 S.WARM 15 A Seat warmerí
21 A/C MAG 10 A Air conditioner
22 BOSE 25 A Audio system (Bose®Sound System-equipped model)í
23 FAN230 AíCooling fan
40 Aí
24 ABS 50 A ABS
25 IG COIL 25 A Ignition system
26 H/L LOW L 15 A Headlight-left (Low beam)
27 H/L LOW R 15 A Headlight-right (Low beam)
28 H/L HIGH 20 A Headlight-high (High beam)
29 HAZARD 15 A Hazard warning flashers
30
10 A PCM
31 HORN 15 A Horn
32 STOP 7.5 A Brake lights
33 EGI INJ 10 A Engine control system
34 ENG BAR 20 A Air flow sensor, EGR control valve
35 ENG BAR 2 7.5 A PCM
8-50
Maintenance and Care
íSome models.
Owner Maintenance
CX-9_8AU2-EA-09G_Edition5 Page516
Thursday, May 6 2010 5:1 PM
Form No.8AU2-EA-09G

Black plate (517,1)
Relay box (Engine compartment)í
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 INJ 7.5 A Injectors
2―― ―
3―― ―
Maintenance and Care
Owner Maintenance
8-51íSome models. CX-9_8AU2-EA-09G_Edition5 Page517
Thursday, May 6 2010 5:1 PM
Form No.8AU2-EA-09G

Black plate (518,1)
Fuse block (Glove box)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 OUTLET FR 15 A Accessory socket (Front)
2 MIRROR 7.5 A Power control mirror
3―― ―
4 METER 10 A Instrument cluster
5 SAS 7.5 A ABS, Air bag
6 ENG.IGA 7.5 A Engine control system
7 STA 7.5 A Ignition system
8―― ―
9 A/C 7.5 A Air conditioner
10 R.WIPER 15 A Rear window wiper and washer
11 TRAILER――
12 P.LIFT GATE 20 A Power lift gate
í
13 SUNROOF 15 A Moonroofí
14 AUDIO 10 A Audio system
15 M.DEF 10 A Mirror defrosterí
16―― ―
17 TAIL 10 A Taillight
18 ILLUMI 10 A Dashboard illumination
19 INJ 7.5 A Injectors
8-52
Maintenance and Care
íSome models.
Owner Maintenance
CX-9_8AU2-EA-09G_Edition5 Page518
Thursday, May 6 2010 5:1 PM
Form No.8AU2-EA-09G

Black plate (519,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
20―― ―
21 OUTLET CTR――
22 OUTLET RR――
23 WIPER 30 A Windshield wiper and washer
24 P.WIND 30 A Power windows
Maintenance and Care
Owner Maintenance
8-53
CX-9_8AU2-EA-09G_Edition5 Page519
Thursday, May 6 2010 5:1 PM
Form No.8AU2-EA-09G

Black plate (520,1)
How to Minimize
Environmental Paint Damage
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent
them.
qEtching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.
qDamage Caused by Bird
Dropping, Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
aren't removed they can eat away the clear
and color base coat of the vehicle's
paintwork.
When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.
Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
