To stop sliding partway, press any part of
the tilt or slide switch.
Close Tilt down
(Close)
Open
Power moonroof re-set procedure
If the battery had been disconnected
during vehicle maintenance or for other
reasons, the moonroof may not fully open
or close. The moonroof's jam-safe
function does not function while the
moonroof is re-setting. Carry out the
following procedure to resume operation:
1. Turn the ignition switch to the ON
position.
2. Press the tilt switch, to partially tilt
open the rear of the moonroof.
NOTE
If the re-set procedure is performed while the
moonroof is in the slide position (partially
open) it closes before the rear tilts opens.
3. Repeat the procedure in Step 2. The
rear of the moonroof tilts open to the
fully open position, then closes a little.
qEngine-off Moonroof Operation
The moonroof can be operated for about
40 seconds after the ignition switch is
turned from the ON position to the ACC
or LOCK position with all doors closed. If
any door is opened, the moonroof will be
inoperable.
qOpening/Closing the Moonroof
from Outside
The moonroof can be opened or closed
from outside the vehicle after the doors
and the liftgate are closed.
Refer to Opening/Closing the Power
Windows and the Moonroof from the
Outside on page 3-44.
qJam-safe Moonroof
If a person's hands, head or an object
blocks the moonroof during closing
operation, the moonroof will stop and
open halfway.
WARNING
Make sure nothing blocks the
moonroof just before it reaches the
fully closed position:
Blocking the moonroof just before it
reaches the closed position is
dangerous.
In this case, the jam-safe function
cannot prevent the moonroof from
stopping. If fingers are caught,
serious injuries could occur.
NOTE
lDepending on driving conditions, a closing
moonroof could stop and start opening
when the moonroof feels a shock that is
similar to something blocking it.
lThe moonroof's jam-safe function does not
function while the moonroof is initializing.
Knowing Your Mazda
Doors and Locks
3-51
CX-9_8AU2-EA-09G_Edition5 Page133
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (134,1)

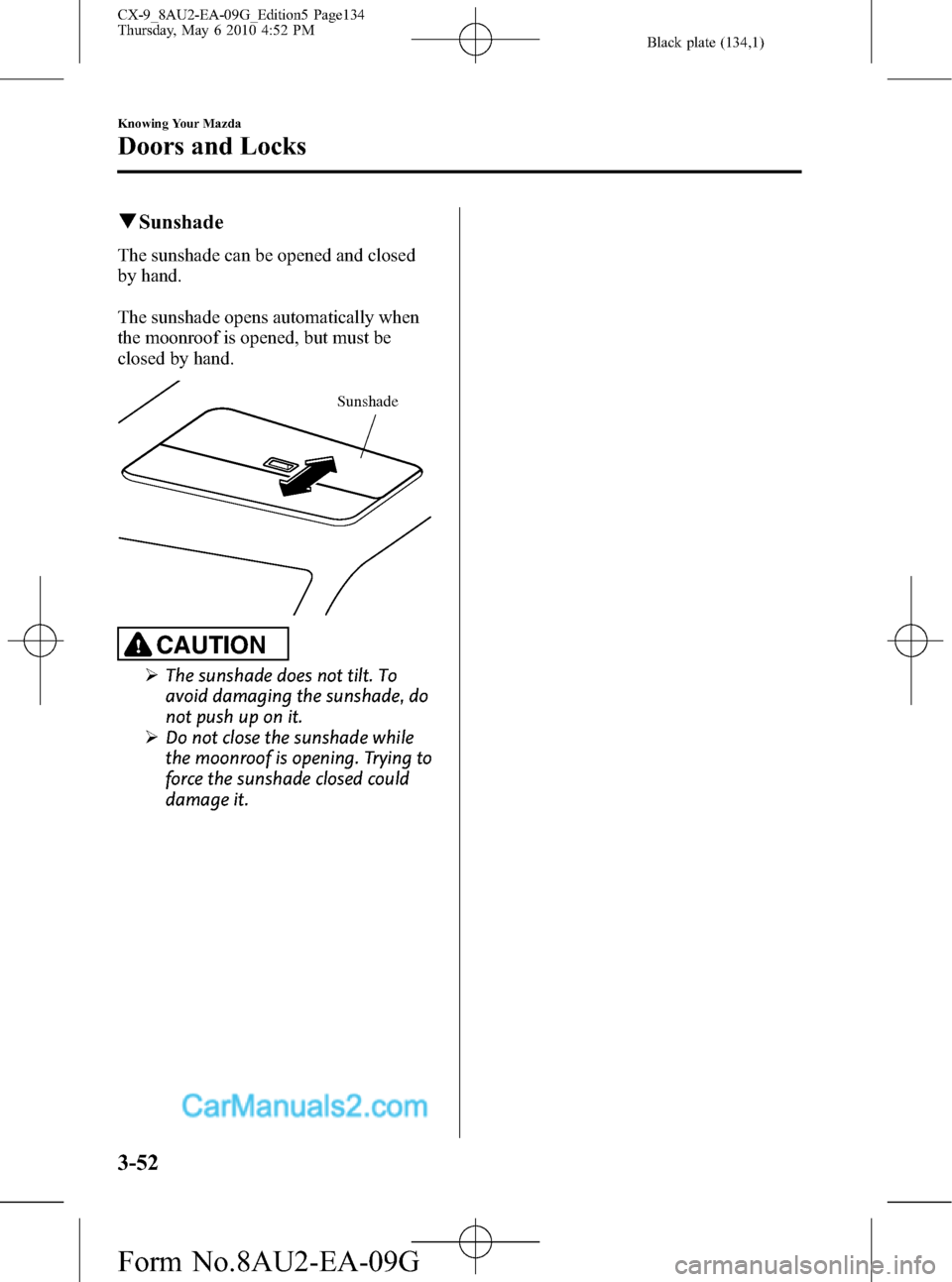

qSunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.
Sunshade
CAUTION
ØThe sunshade does not tilt. To
avoid damaging the sunshade, do
not push up on it.
ØDo not close the sunshade while
the moonroof is opening. Trying to
force the sunshade closed could
damage it.
3-52
Knowing Your Mazda
Doors and Locks
CX-9_8AU2-EA-09G_Edition5 Page134
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (138,1)
qOperation
Arming
The system is armed when the ignition
switch is turned from the ON position to
the ACC or LOCK position. The security
indicator light in the instrument cluster
flashes every 2 seconds until the system is
disarmed.
Disarming
The system is disarmed when the ignition
switch is turned to the ON position with
the registered advanced key.
The security indicator light illuminates for
about 3 seconds and goes out.
If the engine does not start with the
correct advanced key, and the security
indicator light keeps illuminating or
flashing, the system may have a
malfunction. Consult an Authorized
Mazda Dealer.NOTE
lThe engine may not start and the security
indicator light may illuminate or flash if the
advanced key is placed in an area where it
is difficult for the system to detect the
signal, such as on the dashboard, or in the
glove box. Move the advanced key to
another place, turn the ignition switch to
the LOCK position, and then restart the
engine.
lSignals from a TV or radio station, or from
a transceiver or a mobile telephone could
interfere with your immobilizer system. If
you are using the proper advanced key and
the engine fails to start, check the security
indicator light. If the indicator light is
flashing, turn the ignition switch to the
ACC or LOCK position and wait for a
while, then restart the engine. If it does not
start after 3 or more tries, contact an
Authorized Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving, do not
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If the
engine is shut off while the indicator light is
flashing, you will not be able to restart it.
lSince the electronic codes are reset when
repairing the immobilizer system, the
advanced key (including auxiliary key) are
needed. Bring all the advanced keys
(including auxiliary keys) to an Authorized
Mazda Dealer.
3-56
Knowing Your Mazda
Security System
CX-9_8AU2-EA-09G_Edition5 Page138
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (142,1)
qOperation
Arming
The system is armed when the ignition
switch is turned from the ON to the ACC
or LOCK position.
The security indicator light in the
instrument cluster flashes every two
seconds until the system is disarmed.
Disarming
The system is disarmed when the ignition
switch is turned to the ON position with
the correct ignition key.
The security indicator light illuminates for
about three seconds and goes out.
If the engine does not start with the
correct ignition key, and the security
indicator light keeps illuminating or
flashing, the system may have a
malfunction. Consult an Authorized
Mazda Dealer.NOTE
lIf the security indicator light illuminates
and stays on or flashes when the ignition
switch is turned to the ON position, the
engine will not start.
lSignals from a TV or radio station, or from
a transceiver or a mobile telephone, could
interfere with your immobilizer system. If
you are using the proper key and your
engine fails to start, check the security
indicator light. If it is flashing, remove the
ignition key and wait 2 seconds or more,
then reinsert it and try starting the engine
again. If it does not start after 3 or more
tries, contact an Authorized Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving, do not
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If you
shut off the engine while the light is
flashing you will not be able to restart it.
lSince the electronic codes are reset when
repairing the immobilizer system, the keys
are needed. Bring all the existing keys to an
Authorized Mazda Dealer.
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
system or the vehicle.
3-60
Knowing Your Mazda
Security System
CX-9_8AU2-EA-09G_Edition5 Page142
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (143,1)
Theft-Deterrent Systemí
If the theft deterrent system detects an
inappropriate entry into the vehicle, which
could result in the vehicle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.
Refer to Operation on page 3-61.
NOTE
lThe theft-deterrent system operates with the
advanced keyless function, keyless entry
system or the auxiliary key.
The system operates only when the driver is
in the vehicle or within operational range
while the advanced key is being carried.
lThe system will not function unless it is
properly armed. To properly secure the
vehicle, always make sure all windows are
completely closed and all doors and the
liftgate are locked before leaving the
vehicle. Remember to take your advanced
key.
qOperation
What turns it on:
lForcing open a door, the hood or the
liftgate.
lOpening a door or the hood by
operating an inside door-lock knob or
the hood release handle.
What it does:
lThe horn sounds intermittently and the
hazard warning lights flash.
lThe alarm continues for about 30
seconds, then stops.
If the system is triggered again, the lights
and horn will activate until a door or the
liftgate is unlocked with the key or with
the transmitter.NOTE
If the battery goes dead while the theft-
deterrent system is armed, the horn will
activate and the hazard warning lights will
flash when the battery is charged or replaced.
qHow to Arm the System
1. Remove the key from the ignition
switch.
(With advanced key)
Turn the start knob to the LOCK
position.
2. Make sure the hood is closed. Close
and lock all doors and the liftgate from
the outside using the key. If you have
the keyless entry system, press the lock
button on the transmitter.
The hazard warning lights will flash
once to indicate that the system is
armed.
The following method will also arm the
theft-deterrent system:
(With advanced key)
Press a request switch or the lock
button on the transmitter.
(Without advanced key)
Close the hood and the liftgate. Press
the area on the door-lock switch
marked“
”once. Close all doors.
The theft deterrent system can also be
armed by activating the auto re-lock
function with all the doors, the liftgate and
the hood closed.
Knowing Your Mazda
Security System
3-61íSome models. CX-9_8AU2-EA-09G_Edition5 Page143
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (144,1)
NOTE
Auto re-lock function
After unlocking with the transmitter or the
request switch, all doors and the liftgate will
automatically lock and the hazard warning
lights will flash if any of the following
operations are not performed within about 30
seconds.
lA door or the liftgate is opened.lThe auxiliary key inserted into the ignition
switch (with advanced key).
lThe key is inserted in the ignition switch.lThe start knob is pushed (with advanced
key).
qTo Turn off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door with the key.lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
and turn it to the ON position.
l(With advanced key)lPress a request switch or the unlock
button on the transmitter.
lTurn the start knob to the ON
position.
The hazard warning lights will flash twice
to indicate that the system is turned off.
qTo Stop an Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door or the liftgate with the
key.
lPress the unlock button on the keyless
entry system transmitter.
l(With advanced key)lPress a request switch.lPress the unlock button on the
transmitter.NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized Mazda
Dealer.
qTheft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove compartment.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
3-62
Knowing Your Mazda
Security System
CX-9_8AU2-EA-09G_Edition5 Page144
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (145,1)
Steering Wheel
WARNING
Never adjust the steering wheel while
the vehicle is moving:
Adjusting the steering wheel while
the vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident.
qSteering Wheel Adjustment
To change the angle or length of the
steering wheel:
1. Stop the vehicle, pull down the lock
release lever under the steering
column.
Tilt wheel release
lever
2. Tilt the steering wheel and/or adjust the
steering column length to the desired
positions, push the lever up to lock the
column.
3. Push the wheel up and down to be
certain it's locked before driving.
Mirrors
qOutside Mirrors
Check the mirror angles before driving.
Mirror type
The mirror combination (flat or convex)
installed on the driver and front passenger
sides varies depending on the vehicle
models.
Flat type
Flat surface mirror.
Convex type
The mirror has single curvature on its
surface.
WARNING
Be sure to look over your shoulder
before changing lanes:
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Power mirror
The ignition switch must be in the ACC
or ON position.
To adjust:
1. Press the left or right side of the
selector switch to choose the left or
right side mirror.
Knowing Your Mazda
Steering Wheel and Mirrors
3-63
CX-9_8AU2-EA-09G_Edition5 Page145
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (146,1)
2. Depress the mirror switch in the
appropriate direction.
Outside mirrorSelector switch
Mirror switch
After adjusting the mirror, lock the control
by placing the selector switch in the
middle position.
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident.
qRearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Manual day/night mirror
Auto-dimming mirror
3-64
Knowing Your Mazda
Steering Wheel and Mirrors
CX-9_8AU2-EA-09G_Edition5 Page146
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (152,1)
Engine Exhaust (Carbon Monoxide)
WARNING
Do not drive your vehicle if you smell exhaust gas inside the vehicle:
Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness
and death. If you smell exhaust gas inside your vehicle, keep all windows fully open
and contact an Authorized Mazda Dealer immediately.
Do not run the engine when inside an enclosed area:
Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss
of consciousness or even death could occur.
Open the windows or adjust the heating or cooling system to draw fresh air when
idling the engine:
Exhaust gas is dangerous. When your vehicle is stopped with the windows closed
and the engine running for a long time even in an open area, exhaust gas, which
contains poisonous carbon monoxide, could enter the cabin. Loss of consciousness or
even death could occur.
Clear snow from underneath and around your vehicle, particularly the tail pipe,
before starting the engine:
Running the engine when a vehicle is stopped in deep snow is dangerous. The
exhaust pipe could be blocked by the snow, allowing exhaust gas to enter the cabin.
Because exhaust gas contains poisonous carbon monoxide, it could cause loss of
consciousness or even death to occupants in the cabin.
4-4
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
CX-9_8AU2-EA-09G_Edition5 Page152
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (153,1)
Before Getting In
lBe sure the windows, outside mirrors,
and outside lights are clean.
lInspect inflation pressures and
condition of tires.
lLook under the vehicle for any sign of
fluid leaks.
lIf you plan to back up, make sure
nothing is in your way.
NOTE
Engine oil, engine coolant, brake fluid, washer
fluid, and other fluid levels should be
inspected. See Maintenance, Section 8.
After Getting In
lAre all doors closed and locked?lIs the seat adjusted properly?lAre the inside and outside mirrors
adjusted?
lIs the steering wheel adjusted properly?lIs everyone's seat belt fastened?lCheck all gauges.lCheck all warning lights when the
ignition switch is turned to the ON
position.
lRelease the parking brake and make
sure the brake warning light goes off.
Always be thoroughly familiar with your
Mazda.
Before Driving Your Mazda
Before Starting the Engine
4-5
CX-9_8AU2-EA-09G_Edition5 Page153
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G
