Black plate (261,1)
qControl Switches
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the selected
set temperature:
lAirflow temperaturelAmount of airflowlSelection of airflow modelOutside/Recirculated air selectionlAir conditioner operation
NOTE
AUTO switch indicator lightlWhen on, it indicates AUTO operation, and
the system will function automatically.
lIf any of the following dials or switches are
operated while in AUTO control, the AUTO
switch indicator turns off.
lMode selector switchlFan control diallWindshield defroster switch
The functions for dials and switches other
than those operated in the above continue
to operate in AUTO control.
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
Cold
Hot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
lWhen the DUAL switch is off:
Turn the driver temperature control dial
to control the temperature.
lWhen the DUAL switch is on:
Turn the driver or front passenger
temperature control dial to control the
temperature.
NOTE
The system changes to the individual operation
mode (DUAL switch indicator light
illuminated) by turning the front passenger
temperature control dial even when the DUAL
switch is off, which allows individual control
of the set temperature for the driver and front
passenger.
Fan control dial
SlowFast
The fan has seven speeds. The selected
speed will be displayed.
Interior Comfort
Climate Control System
6-7
CX-9_8BH2-EA-10H_Edition3 Page261
Wednesday, March 23 2011 9:31 AM
Form No.8BH2-EA-10H

Black plate (285,1)
*3 The function may appear on the
display but is only adjustable in the
European market models.
2. Turn the audio control dial to adjust the
selected functions as follows:
Indication Turn Left Turn Right
Select mode
Decrease
bassIncrease
bass
Decrease
trebleIncrease
treble
Shift the
sound to the
frontShift the
sound to the
rear
Shift the
sound to the
leftShift the
sound to the
right
Off On
Off On
12Hr
(Flashing)24Hr
(Flashing)
* The function may appear on the display but is only
adjustable in the European market models.
NOTE
About 5 seconds after selecting any mode, the
volume function will be automatically selected.
To reset bass, treble, fade, and balance, press
the audio control dial for 2 seconds. The unit
will beep and“CLEAR”will be displayed.
Automatic Level Control (ALC)
The automatic level control (ALC) is a
feature that automatically adjusts audio
volume and sound quality according to
the vehicle speed.
The volume increases in accordance with
the increase in vehicle speed, and
decreases as vehicle speed decreases.Select the desired ALC mode.
Mode Volume change
No change
Minimum
Medium
Maximum
Turn the audio control dial to select ALC
OFF or ALC LEVEL1―3 modes. The
selected mode will be indicated.
BEEP setting
The beep-sound when operating the audio
system can be set on or off.
ILLM EFT setting (Illumination setting
during operation)
The audio system illumination during
operation can be set on or off.
Time adjustment
Rotating the audio control dial switches
the display between 12 and 24-hour clock
time (page 6-191).
Interior Comfort
Audio System
6-31
CX-9_8BH2-EA-10H_Edition3 Page285
Wednesday, March 23 2011 9:31 AM
Form No.8BH2-EA-10H

Black plate (307,1)
“Updating channels XXX% complete”is
displayed when the SIRIUS channel map
is changed. If the“Updating channels
XXX% complete”display is not available,
“Updating channels”is displayed. If the
unit is initialized or the user contract
content is changed,“Updating channels.
Subscription Updated.”is displayed.
Updating could take as long as a few
minutes depending on the geographical
area. When the unit is in an initialized
state, channel 184 is displayed after the
display indicates“Updating channels
XXX% complete”. If the SIRIUS channel
map or the user contract content is
changed, the channel prior to the change
is displayed after“Updating channels
XXX% complete”is displayed. After the
initialization display, it may take as long
as ten seconds or more to receive channel
184.
NOTE
Do not perform the following operation while
“Updating”is displayed. Otherwise, the
updating procedure will be canceled.
lTurning off the audio powerlSwitching to other modeslSwitching the ignition off
When the SIRIUS mode is switched to
another mode, or when the power is
turned off, the present channel which is
being received is stored as the last
channel.
Channel selection
Turning the manual tuning dial allows you
to select the desired receiving channel.
Channel up
Turn the manual tuning dial clockwise.
Channel down
Turn the manual tuning dial
counterclockwise.Unsubscribed channel
When a selected station has not been
subscribed to, the display indicates the
following:
“Call 888-539-7474”
“To Subscribe”
NOTE
When the subscription contract is canceled, all
of the channels including channel 184 appear
as unsubscribed.
Invalid channel
When a selected channel is not
broadcasting,“Invalid”is displayed.
NOTE
If the last channel selected has become
unavailable because of a channel update the
above indication is displayed until any button
is pressed.
Preset channel programming
1. Turn the manual tuning dial and select
the desired channel.
2. Press and hold selection button 2, 3, 4,
6, 7, or 8.
NOTE
Six stations can be stored in each bank,
SIRIUS1, SIRIUS2 and SIRIUS3 for
convenient access to your favorite stations.
Preset channel call-up
Press selection button 2, 3, 4, 6, 7, or 8.
NOTE
In the initial setting, all channels are preset to
184.
Category change
Press the category button (
,) and
select the desired category.
Interior Comfort
Audio System
6-53
CX-9_8BH2-EA-10H_Edition3 Page307
Wednesday, March 23 2011 9:31 AM
Form No.8BH2-EA-10H

Black plate (445,1)
qClock
NOTE
Without navigation system (Type A)
When the trip computer is displayed, press the
CLOCK button to change the display to the
time.
With navigation system, Without navigation
system (Type B)
When the trip computer is displayed, press the
INFO button consecutively until the time is
displayed.
When the ignition is switched to ACC or
ON, the time is displayed.
Without navigation system
Time setting (Type A)
1. Press the CLOCK button until the beep
sounds and the displayed time flashes.
2. Press the H button to set the hour.
3. Press the M button to set the minutes,
then press the CLOCK button.
Time setting (Type B)
1. Switch the ignition to ACC or ON.2. Adjust the time using the time setting
buttons (
,). The hours advance
while the time setting button (
)is
pressed. The minutes advance while
the time setting button (
) is pressed.
With navigation system
Refer to the separate manual
“NAVIGATION SYSTEM”.
NOTE
Minutes and seconds are adjusted by the GPS,
however, it is necessary to adjust hours under
the following conditions:
lDriving across different time zoneslDaylight saving time start and end
qAmbient Temperature Display
When the ignition is switched ON, press
the OUTSIDE switch (page 6-6) to
display the ambient temperature.
Interior Comfort
Interior Equipment
6-191
CX-9_8BH2-EA-10H_Edition3 Page445
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

Black plate (465,1)
NOTElMake sure the jack is well lubricated before
using it.
(With Tire Pressure Monitoring System)
lBe sure to register the tire pressure sensor
ID signal code whenever tires or wheels are
changed (page 5-32).
1. Park on a level surface off the right-of-
way and firmly set the parking brake.
2. Shift into Park (P) and turn off the
engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle
and away from the vehicle and traffic.
5. Remove the jack, tool, and spare tire
(page 7-3).
6. Block the wheel diagonally opposite
the flat tire. When blocking a wheel,
place a tire block both in front and
behind the tire.
NOTE
When blocking a tire, use rocks or wood blocks
of sufficient size if possible to hold the tire in
place.
qRemoving a Flat Tire
1. Loosen the lug nuts by turning them
counterclockwise one turn each, but do
not remove any lug nuts until the tire
has been raised off the ground.
2. Place the jack on the ground.
3. Turn the jack screw in the direction
shown in the figure and adjust the jack
head so that it is close to the jack-up
position.
Jack head
In Case of an Emergency
Flat Tire
7-9
CX-9_8BH2-EA-10H_Edition3 Page465
Wednesday, March 23 2011 9:32 AM
Form No.8BH2-EA-10H

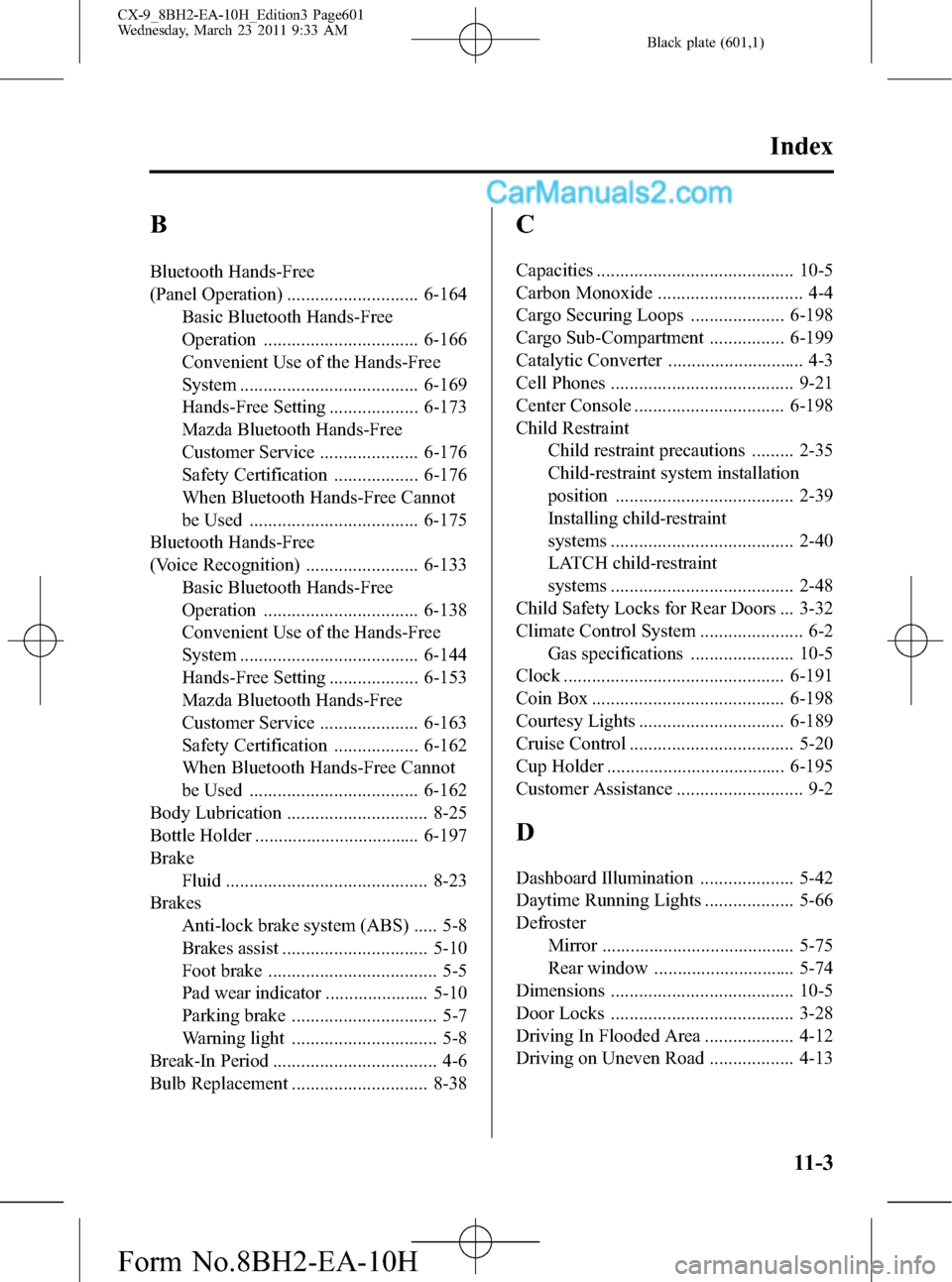

Black plate (601,1)
B
Bluetooth Hands-Free
(Panel Operation) ............................ 6-164
Basic Bluetooth Hands-Free
Operation ................................. 6-166
Convenient Use of the Hands-Free
System ...................................... 6-169
Hands-Free Setting ................... 6-173
Mazda Bluetooth Hands-Free
Customer Service ..................... 6-176
Safety Certification .................. 6-176
When Bluetooth Hands-Free Cannot
be Used .................................... 6-175
Bluetooth Hands-Free
(Voice Recognition) ........................ 6-133
Basic Bluetooth Hands-Free
Operation ................................. 6-138
Convenient Use of the Hands-Free
System ...................................... 6-144
Hands-Free Setting ................... 6-153
Mazda Bluetooth Hands-Free
Customer Service ..................... 6-163
Safety Certification .................. 6-162
When Bluetooth Hands-Free Cannot
be Used .................................... 6-162
Body Lubrication .............................. 8-25
Bottle Holder ................................... 6-197
Brake
Fluid ........................................... 8-23
Brakes
Anti-lock brake system (ABS) ..... 5-8
Brakes assist ............................... 5-10
Foot brake .................................... 5-5
Pad wear indicator ...................... 5-10
Parking brake ............................... 5-7
Warning light ............................... 5-8
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-38
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops .................... 6-198
Cargo Sub-Compartment ................ 6-199
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-21
Center Console ................................ 6-198
Child Restraint
Child restraint precautions ......... 2-35
Child-restraint system installation
position ...................................... 2-39
Installing child-restraint
systems ....................................... 2-40
LATCH child-restraint
systems ....................................... 2-48
Child Safety Locks for Rear Doors ... 3-32
Climate Control System ...................... 6-2
Gas specifications ...................... 10-5
Clock ............................................... 6-191
Coin Box ......................................... 6-198
Courtesy Lights ............................... 6-189
Cruise Control ................................... 5-20
Cup Holder ...................................... 6-195
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-42
Daytime Running Lights ................... 5-66
Defroster
Mirror ......................................... 5-75
Rear window .............................. 5-74
Dimensions ....................................... 10-5
Door Locks ....................................... 3-28
Driving In Flooded Area ................... 4-12
Driving on Uneven Road .................. 4-13
Index
11-3
CX-9_8BH2-EA-10H_Edition3 Page601
Wednesday, March 23 2011 9:33 AM
Form No.8BH2-EA-10H
