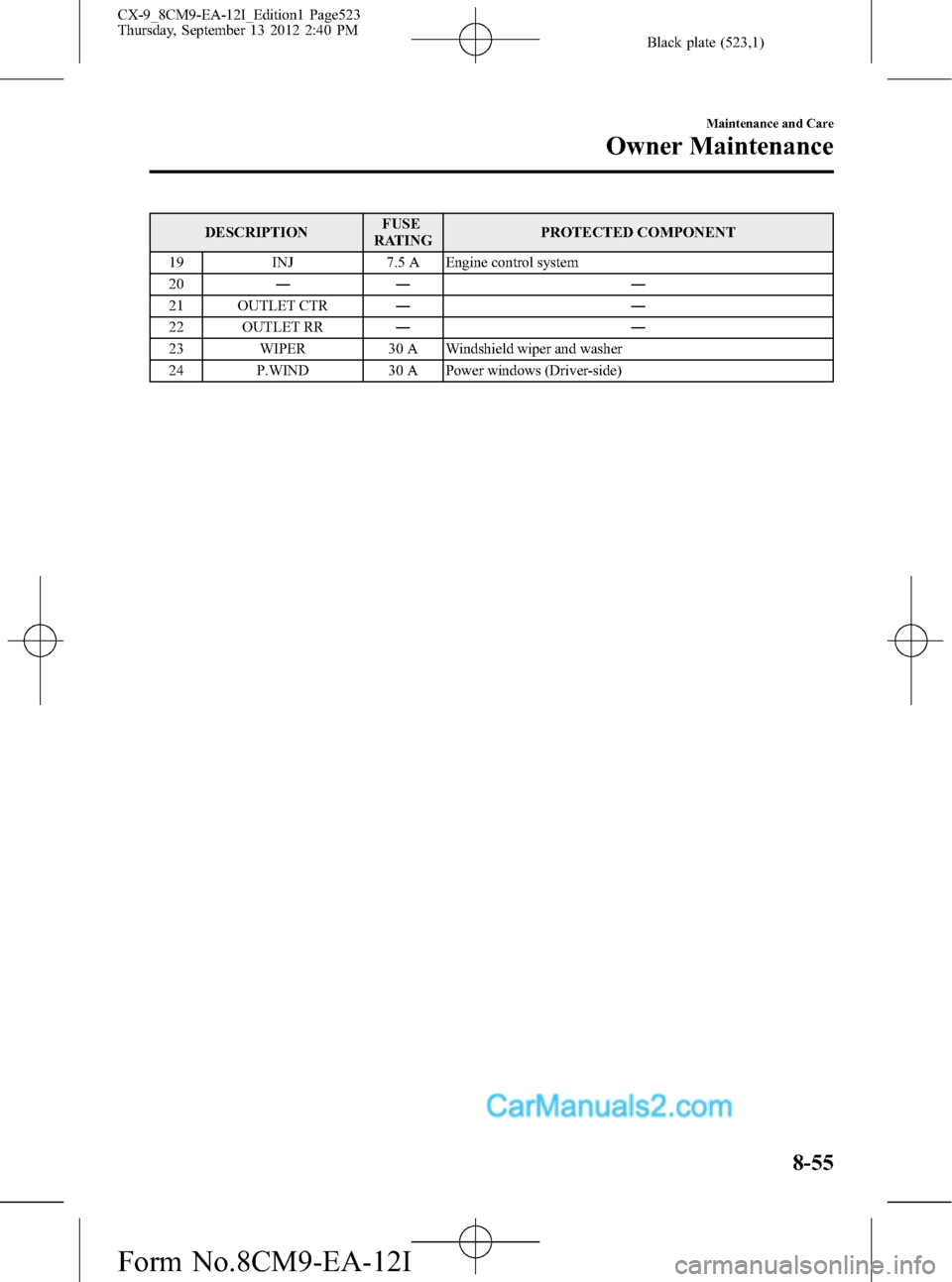

Black plate (523,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
19 INJ 7.5 A Engine control system
20―― ―
21 OUTLET CTR――
22 OUTLET RR――
23 WIPER 30 A Windshield wiper and washer
24 P.WIND 30 A Power windows (Driver-side)
Maintenance and Care
Owner Maintenance
8-55
CX-9_8CM9-EA-12I_Edition1 Page523
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (527,1)
CAUTION
ØDo not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or
caustic agents on chrome-plated
or anodized aluminum parts. This
may damage the protective
coating; also, cleaners and
detergents may discolor or
deteriorate the paint.
ØTo prevent damaging the antenna,
remove it before entering a car
wash facility or passing beneath a
low overhead clearance.
Pay special attention to removing salt,
dirt, mud, and other foreign material from
the underside of the fenders, and make
sure the drain holes in the lower edges of
the doors and rocker panels are clean.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.
Thoroughly rinse off all soap with
lukewarm or cold water. Do not allow
soap to dry on the finish.
After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WARNING
Dry off brakes that have become wet
by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:
Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
When using a high water pressure car
wash
High water temperature and high water
pressure car washers are available
depending on the type of car wash
machine. If the car washer nozzle is put
too close to the vehicle, the force of the
spray could damage or deform the
molding, affect the sealability of parts,
and allow water to penetrate the interior.
Keep a sufficient space (30 cm or more)
between the nozzle and the vehicle. In
addition, do not spend too much time
spraying the same area of the vehicle, and
be very careful when spraying between
gaps in doors and around windows.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives.
Waxes containing abrasive will remove
paint and could damage bright metal
parts.
Maintenance and Care
Appearance Care
8-59
CX-9_8CM9-EA-12I_Edition1 Page527
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (532,1)
To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
Piano black panelí
The following parts are fitted with panels
that have been treated with a special
coating that resists scratching.
· Center panel
· Steering wheel (partial)
· Door trim panel
When the panel needs to be cleaned, use a
soft cloth to wipe off dirt from the surface.
NOTE
Scratches or nicks on the panels resulting from
the use of a hard brush or cloth may not be
repairable.
qCleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Have an Authorized Mazda Dealer
replace damaged seat belts
immediately:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection.
qCleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them
with glass cleaner. Follow the directions
on the container.
CAUTION
ØDo not scrape or scratch the inside
of the window glass. It could
damage the thermal filaments
and the antenna lines.
ØWhen washing the inside of the
window glass, use a soft cloth
dampened in lukewarm water,
gently wiping the thermal
filaments and the antenna lines.
Use of glass cleaning products
could damage the thermal
filaments and the antenna lines.
8-64
Maintenance and Care
íSome models.
Appearance Care
CX-9_8CM9-EA-12I_Edition1 Page532
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (590,1)
Personalization Features
The following“Personalization Features”are available. These settings can only be changed by an Authorized
Mazda Dealer.
Item Feature Factory Setting Available Settings
Auto headlight on/offThe headlight illumination on/off timing based
on surrounding lightness/darkness can be
changedStandard
(Illuminates under
average levels of
darkness)Later
Auto headlight offThe time required for headlights to turn off
after ignition is switched off can be changed30 seconds 0/60/120 seconds
Blind spot warning The warning beep function can be changed Activated Deactivated
Advanced keyless
entryThe advanced key's remaining battery level
warning light in the instrument cluster can be
deactivatedActivated Deactivated
The beep sound which is heard when
locking/unlocking all doors or the liftgate can
be deactivated
*1Activated Deactivated
The function to automatically lock the doors
and the liftgate when leaving the vehicle while
carrying the key can be activated
*2Deactivated Activated
The method for unlocking the doors using the
request switch can be selectedPress × 2 Press × 1
The method for unlocking the doors using the
transmitter switch can be selectedPress × 2 Press × 1
The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed30 seconds 60/90 seconds
*1 When the autolock function is operating, the warning sound will be heard regardless of the setting.
*2 When the autolock function is enabled, windows will not automatically close. You must close them before
leaving vehicle.
10-8
Personalization Features
CX-9_8CM9-EA-12I_Edition1 Page590
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (593,1)
B
Bulb Replacement ............................. 8-40
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops .................... 6-175
Cargo Sub-Compartment ................ 6-175
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-21
Center Console ................................ 6-174
Child Restraint
Child restraint precautions ......... 2-35
Child-restraint system installation
position ...................................... 2-40
Installing child-restraint
systems ....................................... 2-41
LATCH child-restraint
systems ....................................... 2-49
Child Safety Locks for Rear Doors ... 3-32
Climate Control System ...................... 6-2
Gas specifications ...................... 10-5
Clock ............................................... 6-168
Courtesy Lights ............................... 6-166
Cruise Control ................................... 5-20
Cup Holder ...................................... 6-171
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-48
Daytime Running Lights ................... 5-70
Defroster
Mirror ......................................... 5-79
Rear window .............................. 5-78
Dimensions ....................................... 10-5
Door Locks ....................................... 3-28
Driving In Flooded Area ................... 4-12
D
Driving on Uneven Road .................. 4-13
Driving Tips ........................................ 4-6
Automatic transaxle ................... 5-16
Break-in period ............................ 4-6
Driving in flooded area .............. 4-12
Driving on uneven road ............. 4-13
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-9
Winter driving ............................ 4-10
Dynamic Stability Control
(DSC)/Roll Stability Control
(RSC) ................................................ 5-26
TCS/DSC/RSC Indicator light.... 5-27
E
Emergency Starting ........................... 7-18
Jump-starting .............................. 7-18
Push-starting .............................. 7-20
Emergency Towing ........................... 7-21
Emission Control System .................... 4-3
Engine
Coolant ....................................... 8-23
Exhaust gas .................................. 4-4
Hood release .............................. 3-49
Oil .............................................. 8-21
Overheating ................................ 7-16
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-20
Engine Coolant
Overheating ................................ 7-16
Engine Coolant Temperature
Gauge ................................................ 5-47
Event Data Recorder ......................... 9-22
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-58
Index
11-3
CX-9_8CM9-EA-12I_Edition1 Page593
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (595,1)
K
Keyless Entry System ....................... 3-22
Keys .................................................. 3-21
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-71
Liftgate .............................................. 3-33
Light Bulbs
Replacement ............................... 8-40
Specifications ............................. 10-6
Lighting Control ............................... 5-65
Lubricant Quality .............................. 10-4
Luggage Compartment Light .......... 6-166
M
Maintenance
Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-18
Owner maintenance schedule ..... 8-17
Scheduled ..................................... 8-4
Map Lights ...................................... 6-166
Mirror Defroster ................................ 5-79
Mirrors
Outside mirrors .......................... 3-64
Rearview mirror ......................... 3-66
Money-Saving Suggestions ................ 4-6
Moonroof .......................................... 3-50
O
Odometer and Trip Meter .................. 5-46
Outside Mirrors ................................. 3-64
Overhead Console ........................... 6-174
Overhead Lights .............................. 6-165
Overheating ....................................... 7-16
O
Overloading ...................................... 4-12
P
Paint Damage .................................... 8-56
Parking Brake ..................................... 5-7
Parking in an Emergency .................... 7-2
Parking Sensor System ..................... 5-40
Park assist sensor switch ............ 5-42
Parking sensor warning beep ..... 5-43
Sensor detection range ............... 5-42
When warning indicator/beep is
activated ..................................... 5-44
Personalization Features ................... 10-8
Power Door Locks ............................ 3-29
Power Liftgate ................................... 3-35
Power Outlet ................................... 6-179
Power Steering .................................. 5-17
Fluid ........................................... 8-26
Power Windows ................................ 3-40
Push-Starting ..................................... 7-20
R
Rear Coat Hooks ............................. 6-176
Rear Door Child Safety Locks .......... 3-32
Rear Entertainment System ............... 6-66
Before operation ......................... 6-79
Country code list ...................... 6-110
Language code list ................... 6-108
Sound output .............................. 6-85
Rear View Monitor ......................... 6-153
Rear Window Defroster .................... 5-78
Rear Window Washer ....................... 5-78
Rear Window Wiper .......................... 5-77
Rearview Mirror ................................ 3-66
Recreational Towing ......................... 7-24
Index
11-5
CX-9_8CM9-EA-12I_Edition1 Page595
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (597,1)
T
Tire Pressure Monitoring System ...... 5-28
System error activation .............. 5-32
Tire pressure monitoring system
warning light .............................. 5-30
Tires and wheels ......................... 5-32
Tires
Flat tire ......................................... 7-3
Inflation pressure ........................ 8-34
Replacement ............................... 8-36
Rotation ...................................... 8-35
Snow tires .................................. 4-10
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................. 4-11
Uniform tire quality grading system
(UTQGS) ................................... 9-23
Tool ..................................................... 7-3
Towing
Description ................................. 7-21
Emergency towing ..................... 7-21
Recreational towing ................... 7-24
Trailer Towing
(U.S.A. and Canada) .................. 4-14
Traction Control System (TCS) ........ 5-23
TCS OFF indicator light ............ 5-24
TCS OFF switch ........................ 5-25
TCS/DSC/RSC indicator light .... 5-24
Trailer Towing .................................. 4-14
Trip Meter ......................................... 5-46
Turn and Lane-Change Signals ......... 5-71
V
Vanity Mirrors ................................. 6-164
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-49
ABS ............................................ 5-52
Air bag system ........................... 5-54
Automatic transaxle ................... 5-55
AWD .......................................... 5-56
Brake system .............................. 5-51
Charging system ......................... 5-53
Check engine .............................. 5-53
Check fuel cap ........................... 5-55
Door-ajar .................................... 5-55
Engine oil pressure ..................... 5-53
Front seat belt pretensioner
system ........................................ 5-54
KEY warning light
(red)/KEY indicator light
(green) ........................................ 5-58
Low fuel ..................................... 5-55
Low washer fluid level ............... 5-55
Powertrain malfunction/reduced
power .......................................... 5-54
Seat belt ...................................... 5-55
Tire pressure monitoring
system ........................................ 5-56
Warranty ............................................ 9-15
Washer Fluid ..................................... 8-26
Weights ............................................. 10-5
Wheel Replacement .......................... 8-38
Windows
Power windows .......................... 3-40
Windshield Washer ........................... 5-77
Windshield Wipers ............................ 5-73
Blades replacement .................... 8-28
Winter Driving .................................. 4-10
Index
11-7
CX-9_8CM9-EA-12I_Edition1 Page597
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I
