Black plate (341,1)
Playable DVDRecording method and disc
size Applicable digital sound
DVD video
lRegion code must include
“ 1 ” or “ALL ”.
lNTSC
(National Television Sys-
tem Committee) recorded
type.
l8 cm (3 in) or 12 cm
(5 in) size
lDolby digital
lLinear PCM
DVD videos bearing the following logo can be
played.
DVD audio
8 cm (3 in) or 12 cm (5 in)
size
lLinear PCMlPacked PCM
DVD audio bearing the following logo can be
played.
DVD-R and DVD-RW
8 cm (3 in) or 12 cm (5 in)
size ―
DVD-Rs and DVD-RWs bearing each of the
following logos can be played.
Video CD, audio CD, CD-R, and CD-RW
lPlayback control function
supported.
l8 cm (3 in) or 12 cm
(5 in) size
lMP3 recorded type.
―
Video CDs, audio CDs, CD-Rs, and CD-RWs
bearing each of the following logos can be played.
*1: Stereo playback is produced.
Regarding digital sound
Dolby digital
Digital sound compression technology developed by Dolby Laboratories, Inc.
*Sound recorded using the dts method cannot be played.
Interior Comfort
Rear Entertainment System
6-67
CX-9_8DU1-EA-14H_Edition1 Page341
Thursday, June 5 2014 4:19 PM
Form No.8DU1-EA-14H

Black plate (342,1)
Unplayable discs
lDiscs not bearing the logo mark indicated in the above table.lDiscs not including“1 ” or “ALL ”in region code.lDiscs recorded in other than NTSC (e.g. PAL or SECAM).lDVD-ROM, DVD-RAM, DVDRW, CD-ROM, CDV, CD-G, CVD, VSD, SVCD,
SACD, photo CDs, non-conventional discs (e.g. heart-shaped), and partially transparent
discs.
lDiscs recorded in CD-TEXT format.lHD DVD and Blu-ray discs
Handling of discs
lDo not use non-conventional discs such as heart-shaped, octagonal discs, or discs with a
memory portion that is transparent or translucent. The unit could be damaged.
Transparent
lWhen driving over uneven surfaces, the sound may jump.lBe sure never to touch the signal surface when handling the discs. Pick up the discs by
grasping the outer edge or the edge of the hole and the outer edge.
lDo not write on or attach labels, stickers or similar to discs.lDefective (cracked or badly bent) discs should never be used.
6-68
Interior Comfort
Rear Entertainment System
CX-9_8DU1-EA-14H_Edition1 Page342
Thursday, June 5 2014 4:19 PM
Form No.8DU1-EA-14H

Black plate (343,1)
lA new disc may have rough edges on its inner and outer perimeters. If a disc with rough
edges is used, proper setting will not be possible and the unit will not play the disc.
Remove the rough edges in advance by using a ball-point pen or pencil as shown below.
To remove the rough edges, rub the side of the pen or pencil against the inner and outer
perimeter of the discs.
Disc cleaning
Do not use record sprays, antistatic agents, or household spray cleaners. Volatile chemicals
such as benzine and thinner can also damage the surface of the disc and must not be used.
Anything that can damage, warp or fog plastic should never be used to clean discs.
Condensation
Immediately after turning on the heater when the vehicle is cold, the disc or optical
components (prism and lens) in the unit may become clouded with condensation. At this
time, the disc will eject immediately when placed in the unit. A clouded disc can be
corrected simply by wiping it with a soft cloth. Clouded optical components will clear
naturally in about an hour. Wait for normal operation to return before attempting to use the
unit.
Operating tips for DVD video
Region code
The playback restriction area is set in a DVD video. The playback restriction area is
indicated by a region code, and a DVD video can be played only in its indicated area.
The region code for U.S.A. and Canada are“1 ”. DVD videos bearing region code
including “1 ” or “ALL ”on the package or the instruction manual can be played by this
unit. The region code setting for this unit has been set to “1 ”.
DVD videos bearing any of the following logos on the package or instruction manual can
be played.
Interior Comfort
Rear Entertainment System
6-69
CX-9_8DU1-EA-14H_Edition1 Page343
Thursday, June 5 2014 4:19 PM
Form No.8DU1-EA-14H

Black plate (344,1)
Playable DISC specification
CD-R and CD-RW including MP3/WMA files can be played with this unit. Discs which
conform to the following formats can be played.
NameStandard Explanation
CD-R, CD-RW format ISO9660
Level 1
Level 2
ISO9660 extension Joliet
Romeo
Multi-session Supported
Maximum hierarchy
number 8 hierarchies (Including root)
Maximum folder
number 256 folders
Maximum file number 512 files (Total capacity included in a disc.) Files other than MP3 or WMA are not
included.)
Operating tips for MP3
NOTE
Supply of this product only conveys a license for private, non-commercial use and does not convey a
license nor imply any right to use this product in any commercial (i.e. revenue-generating) real time
broadcasting (terrestrial, satellite, cable and/or any other media), broadcasting/streaming via the
Internet, intranets and/or other networks or in other electronic content distribution systems, such as
pay-audio or audio-on-demand applications. An independent license for such use is required. For
details, please visit http://www.mp3licensing.com.
Playable MP3 file specification
Playable MP3 files are as follows:
Item Content
Specification MPEG1 AUDIO LAYER3
MPEG2.5 AUDIO LAYER3
MPEG2 AUDIO LAYER3
Sampling frequency MPEG1 32, 44.1, 48kHz
MPEG2 16, 22.05, 24kHz
Bit rate MPEG1
32, 40, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320
kbps
MPEG2, 2.5 32, 40, 48, 56, 64, 80, 96, 112, 128, 144, 160 kbps
VBR (Variable Bit Rate) Supported
Channel mode Stereo, Joint stereo, Dual channel, Monaural
ID3 tag Ver. 1.0, Ver. 1.1 title, artist name, album name
lThis unit corresponds to MP3 files in which both header and data comply with the MP3
format.
6-70
Interior Comfort
Rear Entertainment System
CX-9_8DU1-EA-14H_Edition1 Page344
Thursday, June 5 2014 4:19 PM
Form No.8DU1-EA-14H

Black plate (345,1)
lThis unit corresponds to multi-session recorded disc playback at a maximum of 49
sessions.
lSome data on multi-session recorded discs cannot be played.lPlayback of discs with added sessions is possible.lPacket Write recorded discs cannot be played.lThis unit does not correspond to MP3i (MP3 interactive), MP3 PRO, and RIFF-style
MP3 formats.
lThe maximum number of characters available for a file name is as follows, however, the
displayable number of characters on this unit is limited.
Maximum number of characters in a file name
(including a separator “.” and the three letters of the file exten-
sion)
ISO9660 level 1 12
*
ISO9660 level 2 31*
Joliet extended format 64
Romeo extended format 128
* English one-byte characters (capitalized only) and underbar “_ ” are available.
MP3
CAUTION
This unit plays files with the (.mp3) file extension as a MP3 file. Do not use the MP3
file extension for files other than MP3 files. It may cause noise or a malfunction.
lIn a MP3 file, the track name, artist name, album name and category name are recorded
with data called “ID3-Tag ”, and the information can be displayed on the monitor.
lMP3 files which do not comply with the specific standard may not be played correctly
or its file and folder name may not be displayed correctly.
lThe file extension may not be provided depending on the computer operating system,
version, software, or settings. In this case, add the file extension “.mp3 ”to the end of the
file name, and then write the disc.
Playlist
This unit can play playlist files. Playlist is a function that allows free setting of the
playback order of MP3 files. The file extension of a playlist file in which the order of
playback is recorded is “. m3u” or“. pls ”.
Operating tips for WMA
WMA is short for Windows Media Audio and is the audio compression format used by
Microsoft.
Audio data can be created and stored at a higher compression ratio than MP3.
*Microsoft and Window Media are registered trademarks of Microsoft Corporation U.S. in
the United States and other countries.
Interior Comfort
Rear Entertainment System
6-71
CX-9_8DU1-EA-14H_Edition1 Page345
Thursday, June 5 2014 4:19 PM
Form No.8DU1-EA-14H

Black plate (346,1)
Playable WMA file specification
CD-R and CD-RW including WMA files can be played with this unit. Discs which
conform to the following formats can be played.
Playable WMA files are as follows:Item Content
Specification Windows Media Audio Version7.0
Sampling frequency Bit rate 22.05kHz
....32kbps
32kHz. ......48,64 kbps
44.1kHz .....48,64,80,96, 128, 160, 192, 256, 320 kbps
48kHz. ......64,96, 128, 160, 192 kbps
VBR (Variable Bit Rate) Supported
Channel mode Stereo/Monaural
WMA tag Title, artist name, album name
WMA
CAUTION
This unit plays files with the (.wma) file extension as a WMA file. Do not use the
WMA file extension for files other than WMA files. It may cause noise or a
malfunction.
lIn a WMA file, the track name, artist name, album name and category name are
recorded with data called “WMA-Tag ”, and the information can be displayed on the
monitor.
lWMA files which do not comply with the specific standard may not be played correctly
or its file and folder name may not be displayed correctly.
lThe file extension may not be provided depending on the computer operating system,
version, software, or settings. In this case, add the file extension “.wma ”to the end of
the file name, and then write the disc.
Operating tips for Dolby
Manufactured under license from Dolby Laboratories.
“ Dolby ”, “MLP Lossless ”, and the double-D symbol are trademarks of Dolby Laboratories.
6-72
Interior Comfort
Rear Entertainment System
CX-9_8DU1-EA-14H_Edition1 Page346
Thursday, June 5 2014 4:19 PM
Form No.8DU1-EA-14H

Black plate (347,1)
qOperation Tips for Headphones
To listen to audio other than from the speakers of the Rear Entertainment System, it is
necessary to use the wireless headphones that are included.
Specification
Item Content
Transmission system Infrared light
Modulation system Frequency modulation
Carrier frequency Right channel 2.8 MHz, left channel 2.3 MHz
Interior Comfort
Rear Entertainment System
6-73
CX-9_8DU1-EA-14H_Edition1 Page347
Thursday, June 5 2014 4:19 PM
Form No.8DU1-EA-14H

Black plate (348,1)
Part Names
qRear Entertainment System Main Unit
Disc slotMonitor screen release knob
DISC IN indicator light Eject button
Wireless headphone signal transmitter/Remote
control signal receiver Monitor screen
6-74
Interior Comfort
Rear Entertainment System
CX-9_8DU1-EA-14H_Edition1 Page348
Thursday, June 5 2014 4:19 PM
Form No.8DU1-EA-14H

Black plate (349,1)
qRemote Controller
No. Name No.Name
RETURN buttonPLAY button
MENU buttonSlow playback button
ENTER/Select buttonPOWER button
STOP buttonSOURCE button
PAUSE buttonPicture adjust mode button
Fast-forward buttonPicture adjust button
Rewind buttonSET UP button
PREVIOUS (Track down) buttonNumber keys
NEXT (Track up) buttonDISPLAY MODE button
DISPLAY button
Interior Comfort
Rear Entertainment System
6-75
CX-9_8DU1-EA-14H_Edition1 Page349
Thursday, June 5 2014 4:19 PM
Form No.8DU1-EA-14H

Black plate (350,1)

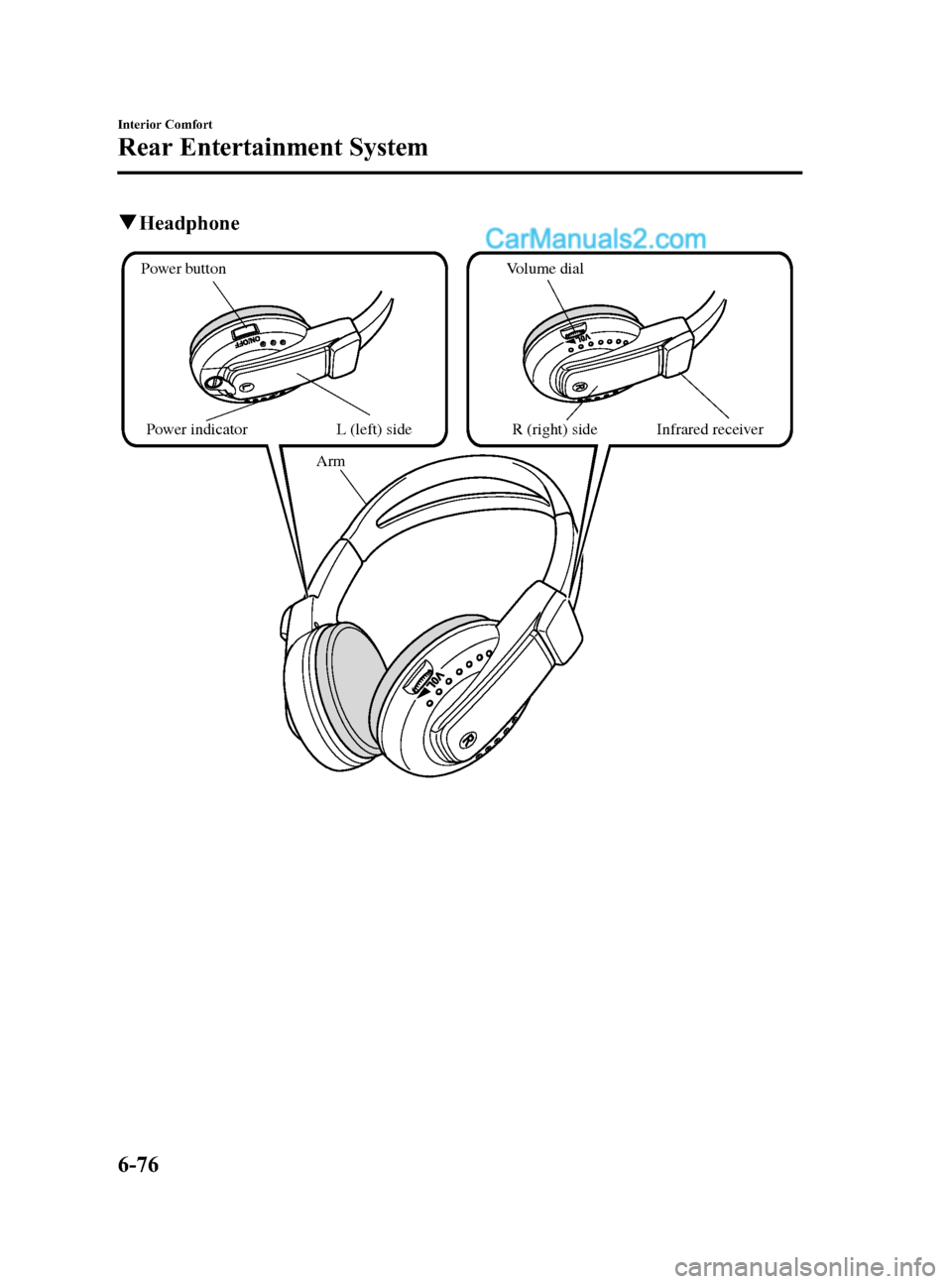

qHeadphone
Arm
Volume dial
Infrared receiver
R (right) sidePower button
Power indicator
L (left) side
6-76
Interior Comfort
Rear Entertainment System
CX-9_8DU1-EA-14H_Edition1 Page350
Thursday, June 5 2014 4:19 PM
Form No.8DU1-EA-14H
