Page 530 of 612
7–46
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Seat Belt Warning Beep
E x c e p t M e x i c o
If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds. If
the driver or the front passenger's seat belt
is not fastened and the vehicle is driven
at a speed faster than about 20 km/h (12
mph), a beep sound will be heard again for
a speci ¿ ed period of time.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
N O T E
y To allow the front passenger occupant
classi ¿ cation sensor to function
properly, do not place and sit on an
additional seat cushion on the front
passenger's seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
y If a small child is seated on the front
passenger's seat, the warning beep may
not operate.
Mexico
If the vehicle speed exceeds about 20
km/h (12 mph) with the driver or front
passenger's seat belt unfastened, a warning
beep sounds continuously. If the seat belt
remains unfastened, the beep sound stops
once and then continues for about 90
seconds. The beep stops after the driver or
front passenger's seat belt is fastened.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
N O T E
y Placing heavy items on the front
passenger's seat may cause the front
passenger's seat belt warning function
to operate depending on the weight of
the item.
y To allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on
the front passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause
sensor interference.
y If a small child is seated on the front
passenger's seat, the warning beep may
not operate.
Ignition Not Switched Off (STOP)
Warning Beep
If the driver's door is opened with the
ignition switched to ACC, a beep will
be heard continuously in the cabin to
notify the driver that the ignition has not
been switched OFF (STOP). Under this
condition, the keyless entry system will
not operate, the vehicle cannot be locked,
and the battery voltage will be depleted.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 561 of 612
8–25
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
P
Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
N O T E
If your tire size does not begin with a letter this may mean it is designated by either ETRTO
(European Tire and Rim Technical Organization) or JATMA (Japan Tire Manufacturing
Association).
215
“215” is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.
6 5
“65” is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.
R
“R” is the tire construction symbol. R indicates “Radial ply construction”.
1 5
“15” is the wheel rim diameter in inches.
9 5
“95” is the Load Index. This two-or three-digit number indicates how much weight each tire
can support.
H
“H” is the speed rating. The speed rating denotes the maximum speed for which the use of
the tire is rated.
Letter Rating Speed Rating
Q 99 mph
R 106 mph
S 112 mph
T 118 mph
U 124 mph
H 130 mph
V 149 mph
W 168
* mph
Y 186 * mph
* For tires with a maximum speed capability over 149 mph, tire manufacturers sometimes
use the letters ZR. For tires with a maximum speed capability over 186 mph, tire
manufacturers always use the letters ZR.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 562 of 612
8–26
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
M S or M/S: Mud and Snow
AT: All Terrain.
AS: All Season. The “M
S” or “M/S” indicates that the tire has some functional use in mud
and snow.
U.S. DOT Tire Identi ¿ cation Number (TIN)
This begins with the letters “DOT” which indicates the tire meets all federal standards. The
next two numbers or letters are the plant code where it was manufactured, and the last four
numbers represent the week and year the tire was manufactured. For example, the numbers
457 means the 45st week of 1997. After 2000 the numbers go to four digits. For example,
the number 2102 means the 21th week of 2002. The other numbers are marketing codes
used at the manufacturer's discretion. This information is used to contact consumers if a tire
defect requires a recall.
Tire Ply Composition and Materials Used
The number of plies indicates the number of layers of rubber-coated fabric in the tire.
In general, the greater the number of plies, the more weight a tire can support. Tire
manufacturers also must indicate the tire materials, which include steel, nylon, polyester,
and other.
Maximum Load Rating
This number indicates the maximum load in kilograms and pounds that can be carried by the
tire.
Maximum Permissible In À ation Pressure
This number is the greatest amount of air pressure that should ever be put in the tire under
normal driving conditions.
Tread Wear, Traction and Temperature Grades
Tread wear: The tread wear grade is a comparative rating based on the wear rate of the tire
when tested under controlled conditions on a speci ¿ ed government test course. For example,
a tire graded 150 would wear one and one-half (1 1/2) times as well on the government
course as a tire graded 100.
Traction: The traction grades, from highest to lowest are AA, A, B, and C. The grades
represent the tire's ability to stop on wet pavement as measured under controlled conditions
on speci ¿ ed government test surfaces of asphalt and concrete. A tire marked C may have
poor traction performance.
Temperature: The temperature grades are A (the highest), B and C, representing the
tire's resistance to the generation of heat and its ability to dissipate heat when tested under
controlled conditions on a speci ¿ ed indoor laboratory test wheel.
Snow Tires
In some heavy snow areas, local governments may require true snow tires, those with very
deeply cut tread. These tires should only be used in pairs or placed on all four wheels. Make
sure you purchase snow tires that are the same size and construction type as the other tires
on your vehicle.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C

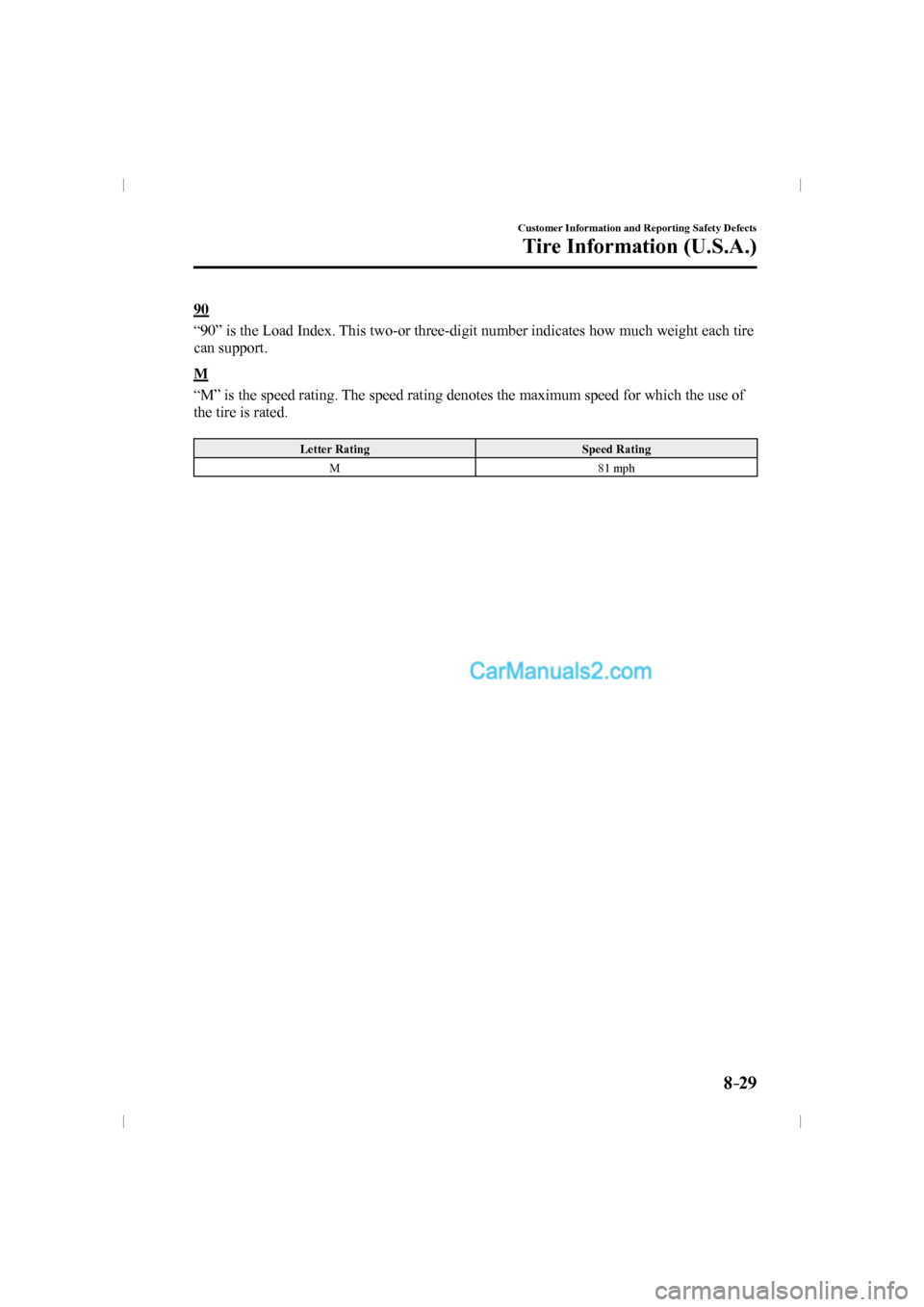

Page 565 of 612
8–29
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9 0
“90” is the Load Index. This two-or three-digit number indicates how much weight each tire
can support.
M
“M” is the speed rating. The speed rating denotes the maximum speed for which the use of
the tire is rated.
Letter Rating Speed Rating
M 81 mph
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 568 of 612
8–32
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Glossary of Terms
Tire Placard: A label indicating the OE tire sizes, recommended in À ation pressure, and the
maximum weight the vehicle can carry.
Tire Identi ¿ cation Number (TIN): A number on the sidewall of each tire providing
information about the tire brand and manufacturing plant, tire size, and date of manufacture.
In À ation Pressure: A measure of the amount of air in a tire.
kPa: Kilopascal, the metric unit for air pressure.
psi: Pounds per square inch, the English unit for air pressure.
B-pillar: The structural member at the side of the vehicle behind the front door.
Original Equipment (OE): Describes components originally equipped on the vehicle.
Vehicle Load Limit: The maximum value of the combination weight of occupants and
cargo.
Bead Area of the Tire: Area of the tire next to the rim.
Sidewall Area of the Tire: Area between the bead area and the tread.
Tread Area of the Tire: Area on the perimeter of the tire that contacts the road when it's
mounted on the vehicle.
Seating capacity means the total allowable number of vehicle occupants. Seating capacity
is described on the tire label.
Production options weight is the combination weight of installed regular production
options weighing over 2.3 kilograms in excess of the standard items which they replace,
and not previously considered in the curb weight or accessory weight, including heavy duty
brakes, ride levelers, roof rack, heavy duty battery, and special trim.
Rim is the metal support (wheel) for a tire or a tire and tube assembly upon which the tire
beads are seated.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 572 of 612
8–36
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Vehicle Loading
This section will guide you in the proper loading of your vehicle and/or trailer, to keep your
loaded vehicle weight within its design rating capability, with or without a trailer. Properly
loading your vehicle will provide maximum return of vehicle design performance. Before
loading your vehicle, familiarize yourself with the following terms for determining your
vehicle's weight ratings, with or without a trailer, from the vehicle's Safety Certi ¿ cation
Label and Tire and Load Information Label:
WARNING
Overloaded Vehicle:
Overloading a vehicle is dangerous. The results of overloading can have serious
consequences in terms of passenger safety. Too much weight on a vehicle's suspension
system can cause spring or shock absorber failure, brake failure, handling or steering
problems, irregular tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the distance
required for stopping. In cases of serious overloading, brakes can fail completely,
particularly on steep grades. The load a tire will carry safely is a combination of the size of
the tire, its load range, and corresponding infl ation pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the
vehicle's Safety Certifi cation and Tire and Load Information labels.
Base Curb Weight is the weight of the vehicle including a full tank of fuel and all
standard equipment. It does not include passengers, cargo, or optional equipment.
Vehicle Curb Weight is the weight of your new vehicle when you picked it up from your
dealer plus any aftermarket equipment.
PAYLOAD
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 573 of 612
8–37
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Payload is the combination weight of cargo and passengers that the vehicle is designed
to carry. The maximum payload for your vehicle can be found on the Tire and Load
Information label on the driver's door frame or door pillar. Look for “THE COMBINATION
WEIGHT OF OCCUPANTS AND CARGO SHOULD NEVER EXCEED XXX kg or
XXX lbs” for your maximum payload. The payload listed on the tire label is the maximum
payload for the vehicle as built by the assembly plant. If any aftermarket or dealer installed
equipment has been installed on the vehicle, the weight of the equipment must be subtracted
from the payload listed on the tire label in order to be accurate.
SAMPLE
CARGO
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 574 of 612
8–38
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Cargo Weight includes all weight added to the Base Curb Weight, including cargo and
optional equipment. When towing, trailer tongue load or king pin weight is also part of
cargo weight.
The cargo weight limit decreases depending on the number of vehicle occupants. The cargo
weight limit can be calculated by subtracting the total weight of the vehicle occupants from
the “combination weight of occupants and cargo should never exceed” value on the tire
label.
Examples: Based on a single occupant weight of 68 kg (150 lbs), and a value of 385 kg (849
lbs) for the “combination weight of occupants and cargo should never exceed”:
The cargo weight limit with one occupant is 385 kg (849 lbs) - 68 kg (150 lbs) = 317 kg
(699 lbs)
The cargo weight limit with two occupants is 385 kg (849 lbs) - (68 × 2) kg ( (150 × 2) lbs)
= 249 kg (549 lbs)
If the weight of the occupant increases, the cargo weight limit decreases by that much.
GAW (Gross Axle Weight) is the total weight placed on each axle (front and rear) -
including vehicle curb weight and all payload.
GAWR (Gross Axle Weight Rating) is the maximum allowable weight that can be carried
by a single axle (front or rear). These numbers are shown on the Safety Compliance
Certi ¿ cation Label located on the driver's door frame or door pillar. The total load on
each axle must never exceed its GAWR.
GVW
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 575 of 612
8–39
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
GVW (Gross Vehicle Weight) is the Vehicle Curb Weight cargo passengers.
GVWR (Gross Vehicle Weight Rating) is the maximum allowable weight of the fully
loaded vehicle (including all options, equipment, passengers and cargo). The GVWR is
shown on the Safety Compliance Certi ¿ cation Label located on the driver's door frame
or door pillar. The GVW must never exceed the GVWR.
SAMPLE
WARNING
Never Exceed Axle Weight Rating Limits:
Exceeding the Safety Certifi cation Label axle weight rating limits is dangerous and could
result in death or serious injury as a result of substandard vehicle handling, performance,
engine, transmission and/or structural damage, serious damage to the vehicle, or loss of
control.
Always keep the vehicle within the axle weight rating limits.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 576 of 612
8–40
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
GCW
GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW) plus the
weight of the fully loaded trailer.
GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the
vehicle and the loaded trailer - including all cargo and passengers - that the vehicle can
handle without risking damage. (Important: The towing vehicle's braking system is rated
for operation at GVWR, not at GCWR. Separate functional brakes should be used for safe
control of towed vehicles and for trailers weighing more than 1,500 lbs). The GCW must
never exceed the GCWR.
Maximum Loaded Trailer Weight is the highest possible weight of a fully loaded trailer
the vehicle can tow. It assumes a vehicle with only mandatory options, no cargo (internal
or external), a tongue load of 10-15% (conventional trailer) or king pin weight of 15-25%
( ¿ fth-wheel trailer), and driver only (150 lbs). Consult your dealership (or the RV and
Trailer Towing Guide provided by your dealership) for more detailed information.
Tongue Load or Fifth-Wheel King Pin Weight refers to the amount of the weight that a
trailer pushes down on a trailer hitch.
Examples: For a 5000 lb conventional trailer, multiply 5000 by 0.10 and 0.15 to obtain a
proper tongue load range of 500 to 750 lbs. For an 11,500 lb ¿ fth-wheel trailer, multiply by
0.15 and 0.25 to obtain a proper king pin load range of 1,725 to 2,875 lbs.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
