MAZDA MODEL CX-9 2017 Owners Manual (in English)
Manufacturer: MAZDA, Model Year: 2017, Model line: MODEL CX-9, Model: MAZDA MODEL CX-9 2017Pages: 612
Page 181 of 612
4–33
When Driving
Instrument Cluster and Display
*Some models.
Signal Warning Page
* Tire Pressure Monitoring System Warning Light *1 Flashing
7-33 ,
Illuminate
7-38
(Amber) * KEY Warning Indication 7-33
(Red) * KEY Warning Light *1 Malfunction
7-33 ,
Except
malfunction
7-38
(Amber)
* High Beam Control System (HBC) Warning Indication/Warning Light *1 7-33
* Blind Spot Monitoring (BSM) Warning Indication/Warning Light *1 7-33
(Amber) * Mazda Radar Cruise Control (MRCC) Warning Indication 7-33
(Amber) * Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) Warning Indication 7-33
LED Headlight Warning Light 7-33
(Amber)
* Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning
Indication 7-38
Low Fuel Warning Indication/Warning Light 7-38
* Check Fuel Cap Warning Indication/Warning Light *1 7-38
Seat Belt Warning Light 7-38
CX-9_8FS7-EA-16K_Edition2.indb 33CX-9_8FS7-EA-16K_Edition2.indb 332016/12/15 18:33:472016/12/15 18:33:47
Page 182 of 612
4–34
When Driving
Instrument Cluster and Display
*Some models.
Signal Warning Page
Engine Oil Level Warning Light 7-38
* Low Washer Fluid Level Warning Indication/Warning Light 7-38
* Door-Ajar Warning Indication 7-38
* Liftgate-Ajar Warning Indication 7-38
* Door-Ajar Warning Light 7-38
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2 The light turns on continuously when the parking brake is applied.
CX-9_8FS7-EA-16K_Edition2.indb 34CX-9_8FS7-EA-16K_Edition2.indb 342016/12/15 18:33:482016/12/15 18:33:48
Page 183 of 612
4–35
When Driving
Instrument Cluster and Display
*Some models.
Indication/Indicator Lights
These lights turn on or fl ash to notify the user of the system operation status or a system
malfunction.
Signal Indicator Page
Front Passenger Air Bag Deactivation Indicator Light *1 2-65
(White/Green) KEY Indication/Indicator Light 4-5
Security Indicator Light *1 3-46
Wrench Indication/Indicator Light *1 4-37
(Blue) * Low Engine Coolant Temperature Indicator Light 4-37
Shift Position Indication 4-41
Lights-On Indication/Indicator Light 4-48
Headlight High-Beam Indicator Light Headlight High-Low
Beam
4-52 ,
Flashing the Headlights
4-52
Turn Signal/Hazard Warning Indicator Lights Turn and Lane-Change
Signals
4-54 ,
Hazard Warning Flasher
4-61
Brake Pedal Operation demand Indicator Light 4-67
TCS/DSC Indicator Light *1 (Flashes)
Traction Control System
(TCS)
4-73 ,
Dynamic Stability
Control (DSC)
4-75
(Turns on)
7-33
CX-9_8FS7-EA-16K_Edition2.indb 35CX-9_8FS7-EA-16K_Edition2.indb 352016/12/15 18:33:492016/12/15 18:33:49
Page 184 of 612
4–36
When Driving
Instrument Cluster and Display
*Some models.
Signal Indicator Page
TCS OFF Indicator Light
*1 4-74
Select Mode Indication 4-80
(Green) * High Beam Control System (HBC) Indicator Light 4-90
(White) * Mazda Radar Cruise Control (MRCC) Main Indication 4-109
(Green) * Mazda Radar Cruise Control (MRCC) Set Indication 4-109
(White/Green) * Lane-keep Assist System (LAS) & Lane Departure Warning
System (LDWS) Indication 4-120
* Smart City Brake Support (SCBS) Indication 4-132
* Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF
Indicator Light *1 Smart City Brake
Support (SCBS) System
4-132 ,
Smart Brake Support
(SBS) System
4-135
(White) * Cruise Main Indication 4-147
(Green) * Cruise Set Indication 4-147
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
CX-9_8FS7-EA-16K_Edition2.indb 36CX-9_8FS7-EA-16K_Edition2.indb 362016/12/15 18:33:502016/12/15 18:33:50
Page 185 of 612
4–37
When Driving
Instrument Cluster and Display
*Some models.
Wrench Indicator Light *
When the ignition is switched ON, the
wrench indicator light turns on and then
turns off after a few seconds.
The wrench indicator light turns on under
the following conditions:
When the preset maintenance period has
arrived.
When it’s time to replace the engine oil.
Refer to Maintenance Monitor on page
6-19 .
Low Engine Coolant Temperature
Indicator Light (Blue) *
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
CX-9_8FS7-EA-16K_Edition2.indb 37CX-9_8FS7-EA-16K_Edition2.indb 372016/12/15 18:33:512016/12/15 18:33:51
Page 186 of 612
4–38
When Driving
Automatic Transaxle
Automatic Transaxle Controls
Lock-release button
Indicates the selector lever can be shifted freely into any position.
Indicates that you must hold in the lock-release button to shift.
Indicates that you must depress the brake pedal and hold in the lock-release
button to shift (The ignition must be switched ON).
Various Lockouts:
NOTE
The Sport AT has an option that is not included in the traditional automatic transaxle that
gives the driver the option of selecting each gear instead of leaving it to the transaxle to
shift gears. Even if you intend to use the automatic transaxle functions as a traditional
automatic, you should also be aware that you can inadvertently shift into manual shift mode
and an inappropriate gear may be retained as the vehicle speed increases. If you notice the
engine speed going higher or hear the engine racing, confi rm you have not accidentally
slipped into manual shift mode (page 4-42 ).
CX-9_8FS7-EA-16K_Edition2.indb 38CX-9_8FS7-EA-16K_Edition2.indb 382016/12/15 18:33:522016/12/15 18:33:52
Page 187 of 612
4–39
When Driving
Automatic Transaxle
Shift-Lock System
The shift-lock system prevents shifting out
of P unless the brake pedal is depressed.
To shift from P:
1. Depress and hold the brake pedal.
2. Start the engine.
3. Press and hold the lock-release button.
4. Move the selector lever.
NOTE
When the ignition is switched to ACC or
the ignition is switched off, the selector
lever cannot be shifted from P.
The ignition cannot be switched to OFF
if the selector lever is not in P.
Shift-Lock Override
If the selector lever will not move from P
using the proper shift procedure, continue
to hold down the brake pedal.
1. Remove the shift-lock override cover
using a cloth-wrapped fl at head
screwdriver.
2. Insert a screwdriver and push it down.
Cover
3. Press and hold the lock-release button.
4. Move the selector lever.
Take the vehicle to an Authorized Mazda
Dealer to have the system checked.
CX-9_8FS7-EA-16K_Edition2.indb 39CX-9_8FS7-EA-16K_Edition2.indb 392016/12/15 18:33:522016/12/15 18:33:52
Page 188 of 612
4–40
When Driving
Automatic Transaxle
Transaxle Ranges
The shift position indicator light in the
instrument cluster illuminates. Refer
to Warning/Indicator Lights on page
4-31 .
The selector lever must be in P or N to
operate the starter.
P (Park)
P locks the transaxle and prevents the front
wheels from rotating.
WARNING
Always set the selector lever to P and set
the parking brake:
Only setting the selector lever to the
P position without using the parking
brake to hold the vehicle is dangerous.
If P fails to hold, the vehicle could move
and cause an accident.
CAUTION
Shifting into P, N or R while the vehicle is
moving can damage your transaxle.
Shifting into a driving gear or reverse
when the engine is running faster than
idle can damage the transaxle.
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete
stop before shifting to or from R, except
under rare circumstances as explained in
Rocking the Vehicle (page 3-51 ).
NOTE
(With parking sensor system)
When the selector lever is shifted to the R
position with the ignition switched ON, the
parking sensor system is activated and a
beep sound is heard.
Refer to Parking Sensor System on page
4-163 .
N (Neutral)
In N, the wheels and transaxle are not
locked. The vehicle will roll freely even
on the slightest incline unless the parking
brake or brakes are on.
WARNING
If the engine is running faster than idle,
do not shift from N or P into a driving
gear:
It's dangerous to shift from N or P
into a driving gear when the engine
is running faster than idle. If this is
done, the vehicle could move suddenly,
causing an accident or serious injury.
Do not shift into N when driving the
vehicle:
Shifting into N while driving is
dangerous. Engine braking cannot
be applied when decelerating which
could lead to an accident or serious
injury.
CAUTION
Do not shift into N when driving the
vehicle. Doing so can cause transaxle
damage.
CX-9_8FS7-EA-16K_Edition2.indb 40CX-9_8FS7-EA-16K_Edition2.indb 402016/12/15 18:33:522016/12/15 18:33:52
Page 189 of 612

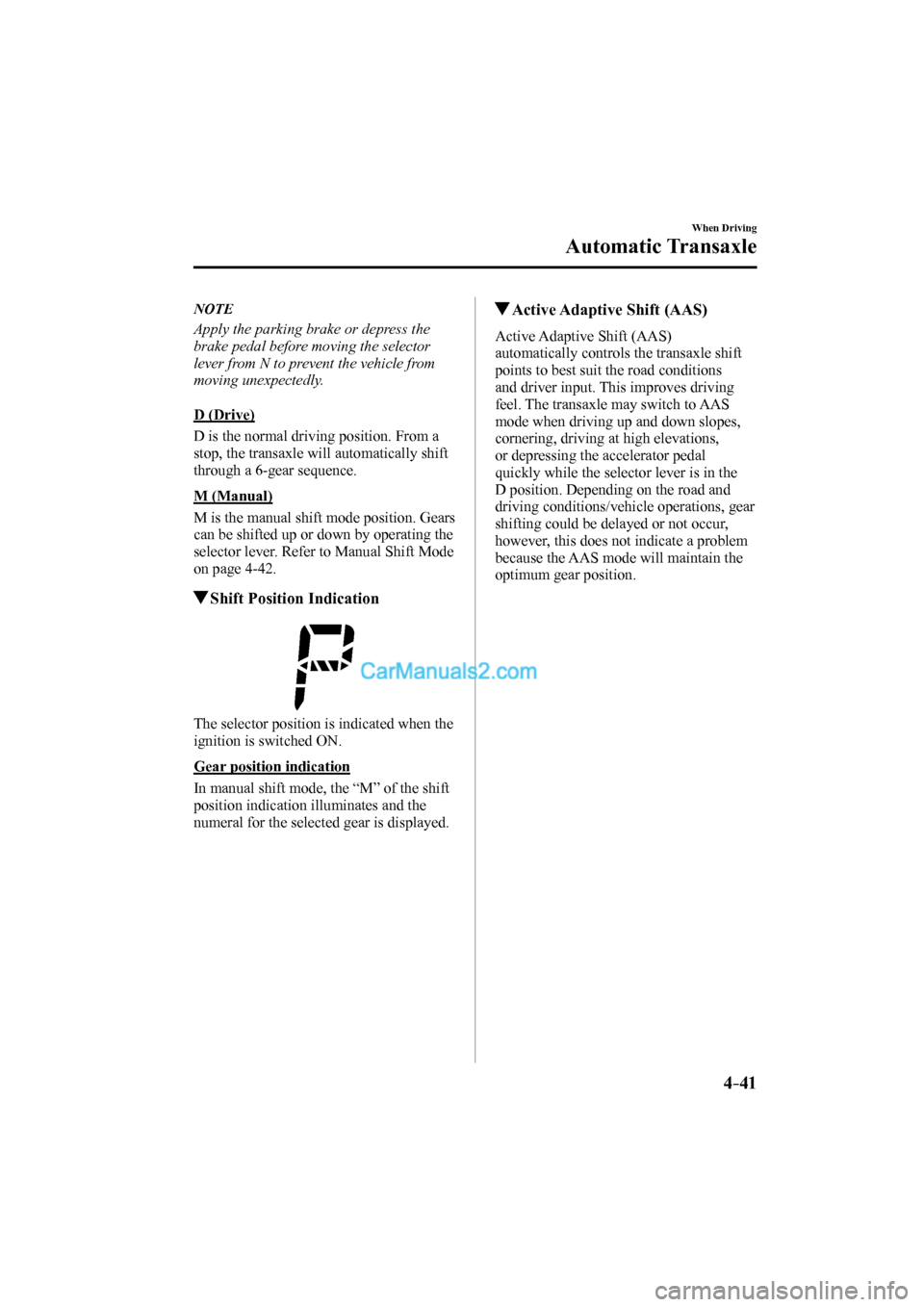

4–41
When Driving
Automatic Transaxle
NOTE
Apply the parking brake or depress the
brake pedal before moving the selector
lever from N to prevent the vehicle from
moving unexpectedly.
D (Drive)
D is the normal driving position. From a
stop, the transaxle will automatically shift
through a 6-gear sequence.
M (Manual)
M is the manual shift mode position. Gears
can be shifted up or down by operating the
selector lever. Refer to Manual Shift Mode
on page 4-42 .
Shift Position Indication
The selector position is indicated when the
ignition is switched ON.
Gear position indication
In manual shift mode, the “M” of the shift
position indication illuminates and the
numeral for the selected gear is displayed.
Active Adaptive Shift (AAS)
Active Adaptive Shift (AAS)
automatically controls the transaxle shift
points to best suit the road conditions
and driver input. This improves driving
feel. The transaxle may switch to AAS
mode when driving up and down slopes,
cornering, driving at high elevations,
or depressing the accelerator pedal
quickly while the selector lever is in the
D position. Depending on the road and
driving conditions/vehicle operations, gear
shifting could be delayed or not occur,
however, this does not indicate a problem
because the AAS mode will maintain the
optimum gear position.
CX-9_8FS7-EA-16K_Edition2.indb 41CX-9_8FS7-EA-16K_Edition2.indb 412016/12/15 18:33:532016/12/15 18:33:53
Page 190 of 612
4–42
When Driving
Automatic Transaxle
Manual Shift Mode
The manual shift mode gives you the feel
of driving a manual transaxle vehicle by
allowing you to operate the selector lever
manually. This allows you to control
engine rpm and torque to the drive wheels
much like a manual transaxle when more
control is desired.
To change to manual shift mode, shift the
lever from D to M.
NOTE
Changing to manual shift mode while
driving will not damage the transaxle.
To return to automatic shift mode, shift the
lever from M to D.
NOTE
If you change to manual shift mode
when the vehicle is stopped, the gear
will shift to M1.
If you change to manual shift mode
without depressing the accelerator
pedal when driving in D range, 5th
gear/6th gear, the gear will shift to M4/
M5.
Indicators
Manual shift mode indication
In manual shift mode, the “M” of the shift
position indication in the instrument panel
illuminates.
Gear position indication
The numeral for the selected gear
illuminates.
Manual shift mode indicator
Gear position indicator
NOTE
If the gears cannot be shifted down
when driving at higher speeds, the gear
position indication will fl ash twice to
signal that the gears cannot be shifted
down (to protect the transaxle).
If the automatic transaxle fl uid (ATF)
temperature becomes too high, there
is the possibility that the transaxle
will switch to automatic shift mode,
canceling manual shift mode and
turning off the gear position indication
illumination. This is a normal function
to protect the AT. After the ATF
temperature has decreased, the gear
position indication illumination turns
back on and driving in manual shift
mode is restored.
CX-9_8FS7-EA-16K_Edition2.indb 42CX-9_8FS7-EA-16K_Edition2.indb 422016/12/15 18:33:532016/12/15 18:33:53
