Tire Labeling
Federal law requires tire manufacturers to place standardized information on the sidewall of
all tires. This information identifies and descri bes the fundamental characteristics of the tire
and also provides a tire identification number for safety standard certification and in case of
a recall.
▼ Information on Passenger Vehicle Tires
Please refer to the sample below.
1. TIN: U.S. DOT tire identification number
2. Passenger car tire
3. Nominal width of tire in millimeters
4. Ratio of height to width (aspect ratio)
5. Radial
6. Run-flat tire
7. Rim diameter code
8. Load index & speed symbol
9. Severe snow conditions
10. Tire ply composition and materials used
11. Max. load rating
12. Tread wear, traction and temperature grades
13. Max. permissible inflation pressure
14. SAFETY WARNING
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-25
CX-9_8JK1-EA-20G_Edition6_old
2021-12-8 9:30:44

Letter RatingSpeed Rating
V1 49 m ph
W 168
* mph
Y 186
* mph
* For tires with a maximum speed capability over 149 mph, tire manufacturers sometimes use the letters ZR. For
tires with a maximum speed capability over 186 mph, tire manufacturers always use the letters ZR.
MS or M/S: Mud and Snow
AT: All Terrain.
AS: All Season. The “M
The number of plies indicates the number of layers of rubber-coated fabric in the tire. In
general, the greater the number of plies, the more weight a tire can support. Tire
manufacturers also must indicate the tire materials, which include steel, nylon, polyester,
and other.
Maximum Load Rating
This number indicates the maximum load in kilograms and pounds that can be carried by the
tire.
Maximum Permissible Inflation Pressure
This number is the greatest amount of air pressure that should ever be put in the tire under
normal driving conditions.
Tread Wear, Traction and Temperature Grades
Tr e a d w e a r : The tread wear grade is a comparative rating based on the wear rate of the tire
when tested under controlled conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-27
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Traction: The traction grades, from highest to lowest are AA, A, B, and C. The grades
represent the tire's ability to stop on wet pave ment as measured under controlled conditions
on specified government test surfaces of asphalt and concrete. A tire marked C may have
poor traction performance.
Te m p e r a t u r e : The temperature grades are A (the highest), B and C, representing the tire's
resistance to the generation of heat and its ability to dissipate heat when tested under
controlled conditions on a specif ied indoor laboratory test wheel.
Snow Tires
In some heavy snow areas, local governments may require true snow tires, those with very
deeply cut tread. These tires should only be used in pairs or placed on all four wheels. Make
sure you purchase snow tires that are the same size and construction type as the other tires
on your vehicle.
SAFETY WARNING
The following safety warning appears on the tire's sidewall.
SERIOUS INJURY MAY RESULT FROM:
EXPLOSION OF TIRE/RIM ASSEMBLY DUE TO IMPROPER MOUNTING-MATCH
TIRE DIAMETER TO RIM DIAMETER; NEVE R EXCEED 40 psi (275 kPa) TO SEAT
BEADS-ONLY SPECIALLY TRAINED PERSONS SHOULD MOUNT TIRES.
TIRE FAILURE DUE TO UNDER-INFLATION/OVERLOADING/
DAMAGE-FOLLOW OWNER'S MANUAL AND PLACARD IN
VEHICLE-FREQUENTLY CHECK INFLATION PRESSURE AND INSPECT FOR
DAMAGE.
▼ Information on Temporary Tires
Please refer to the sample below.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-28
CX-9_8JK1-EA-20G_Edition6_old
2021-12-8 9:30:44

Location of the Tire Label (Placard)
You will find the tire label containing tire inflation pressure by tire size and other important
information on the driver's side B-pillar or on the edge of the driver's door frame.

SAMPLE
▼ Recommended Tire Inflation Pressure
On the tire label you will find the recommended
tire inflation pressure in both kPa and psi
for the tires installed as origin al equipment on the vehicle. It is very important that the
inflation pressure of the tires on your vehicl e is maintained at the recommended pressure.
You should check the tire pressu re regularly to insure that the proper inflation pressure is
maintained.
Refer to Tires on page 9-7.
NOTE
Tire pressures listed on the vehicle placar d or tire information label indicate the
recommended cold tire inflation pressure, measured when the tires are cold, after the vehicle
has been parked for at least 3 hours. As you drive, the temperature in the tire warms up,
increasing the tire pressure.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-30
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

WARNING
Always check the tire inflation pressures on a regular basis according to the recommended
tire inflation pressure on the tire label and in conjunction with the information in this owner's
manual:
Driving your vehicle with under-inflated tires is dangerous.
Under-inflation is the most common cause of failures in any kind of tire and may result in
severe cracking, tread separation or “blowout”, with unexpected loss of vehicle control and
increased risk of injury. Under-inflation inc reases sidewall flexing and rolling resistance,
resulting in heat buildup and internal damage to the tire. It results in unnecessary tire stress,
irregular wear, loss of control and accidents. A ti re can lose up to half of its air pressure and
not appear to be flat!
It is impossible to determine whether or not tires are properly inflated just by looking at them.
▼Checking Tire Pressure
1. When you check the air pressure, make sure the tires are cold
―meaning they are not
hot from driving even a mile.
2. Remove the cap from the valve on one tire.
3. Firmly press a tire gauge onto the valve.
4. Add air to achieve recommended air pressure.
5. If you overfill the tire, release air by push ing on the metal stem in the center of the
valve. Then recheck the pressure with your tire gauge.
6. Replace the valve cap.
7. Repeat with each tire, including the spare.
NOTE
Some spare tires require higher inflation pressure.
8. Visually inspect the tires to make sure there are no nails or other objects embedded that
could poke a hole in the tire and cause an air leak.
9. Check the sidewalls to make sure there are no gouges, cuts, bulges, cracks or other irregularities.
▼Glossary of Terms
Tire Placard:
A label indicating the OE tire sizes, recommended inflation pressure, and the
maximum weight the vehicle can carry.
Tire Identificatio n Number (TIN): A number on the sidewall of each tire providing
information about the tire brand and manufacturi ng plant, tire size, and date of manufacture.
Inflation Pressure: A measure of the amount of air in a tire.
kPa: Kilopascal, the metric unit for air pressure.
psi: Pounds per square inch, the English unit for air pressure.
B-pillar: The structural member at the side of the vehicle behind the front door.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-31
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Tire Maintenance
Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Here are
some important maintenance points:
▼Tire Inflation Pressure
Inspect all tire pressure monthly (including the spare) when the tires are cold. Maintain
recommended pressures for the best ride, top handling, and minimum tire wear. Use the
pressures specified on the vehicle tire informat
ion placard or tire label for optimum service.
▼Tire Rotation
To equalize tread wear, rotate the tires every 12,000 km (7,500 miles) at the latest or sooner
if irregular wear develops. Mazda recommends to rotate every 8,000 km (5,000 miles) to
help increase tire life and di
stribute wear more evenly.
Do not include (TEMPORARY USE ONLY)
spare tire in rotation.Forward
Inspect the tires for uneven wear and damage. Abnormal wear is usually caused by one or a
combination of the following:
Incorrect tire pressure
Improper wheel alignment
Out-of-balance wheel
Severe braking
After rotation, inflate all tire pressures to sp ecification (page 9-7) and inspect the lug nuts
for tightness.
CAUTION
Rotate unidirectional tires and radial tires that have an asymmetrical tread pattern or studs
only from front to rear, not from side to side . Tire performance will be weakened if rotated
from side to side.

Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-33
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

CAUTION
If you feel a sudden vibration or ride disturbance while driving or you suspect your tire or
vehicle has been damaged, immediately reduce your speed. Drive with caution until you can
safely pull off the road. Stop and inspect the tire for damage. If the tire is
under-inflated or
damaged, deflate it, remove the tire and rim and replace it with your spare tire. If you cannot
detect a cause, have the vehicle towed to the ne arest vehicle or tire dealer to have the vehicle
inspected.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-35
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Ve h i c l e L o a d i n g
This section will guide you in the proper loading of your vehicle and/or trailer, to keep your
loaded vehicle weight within it s design rating capability, with or without a trailer. Properly
loading your vehicle will provide maximum retu rn of vehicle design performance. Before
loading your vehicle, familiarize yourself with the following terms for determining your
vehicle's weight ratings, with or without a trailer, from the vehicle's Safety Certification
Label and Tire and Load Information Label:
WA R N I N G
Overloaded Vehicle:
Overloading a vehicle is dangerous. The results of overloading can have serious consequences
in terms of passenger safety. Too much weight on a vehicle's suspension system can cause
spring or shock absorber failure, brake failu re, handling or steering problems, irregular tire
wear, tire failure or other damage.
Overloading makes a vehicle harder to drive an d control. It also increases the distance
required for stopping. In cases of serious overloading, brakes can fail completely, particularly
on steep grades. The load a tire will carry safely is a combination of the size of the tire, its load
range, and corresponding inflation pressure.
Never overload the vehicle and always observe th e vehicle's weight ratings from the vehicle's
Safety Certification and Tire and Load Information labels.
Base Curb Weight is the weight of the ve hicle including a full tank of fuel and all
standard equipment. It does not include passengers, carg o, or optional equipment.

Vehicle Curb Weight is the weight of your new vehicl e when you picked it up from your
dealer plus any aftermarket equipment.

PAYLOAD
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-36
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Interior light
Light bulbCategory
Wattage UN-R*1
Overhead lights (Front)/Map lights
(Front) LED type LED
―
Bulb type 8―
Overhead lights (Center)/Map lights
(Center) LED type
LED ―
Bulb type 8―
Overhead light (Rear) LED type
LED ―
Bulb type 10―
Ambient lights
*LED ―
Vanity mirror lights
*LED type LED ―
Bulb type 2―
Luggage compartment light LED type
LED ―
Bulb type 8―
*1 UN-R stands for United Nations Regulation.
▼Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 6-34.
Standard tire
(U.S.A. and Canada)
Tire size Inflation pressure
Front Rear
P255/60R18 107H 230 kPa (34 psi)230 kPa (34 psi)
P255/50R20 104V 230 kPa (34 psi)230 kPa (34 psi)
(Mexico)
Tire size Inflation pressure
Front Rear
P255/50R20 104V 230 kPa (2.3 bar, 33 psi) 230 kPa (2.3 bar, 33 psi)
Specifications
Specifications
*Some models.9-7
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

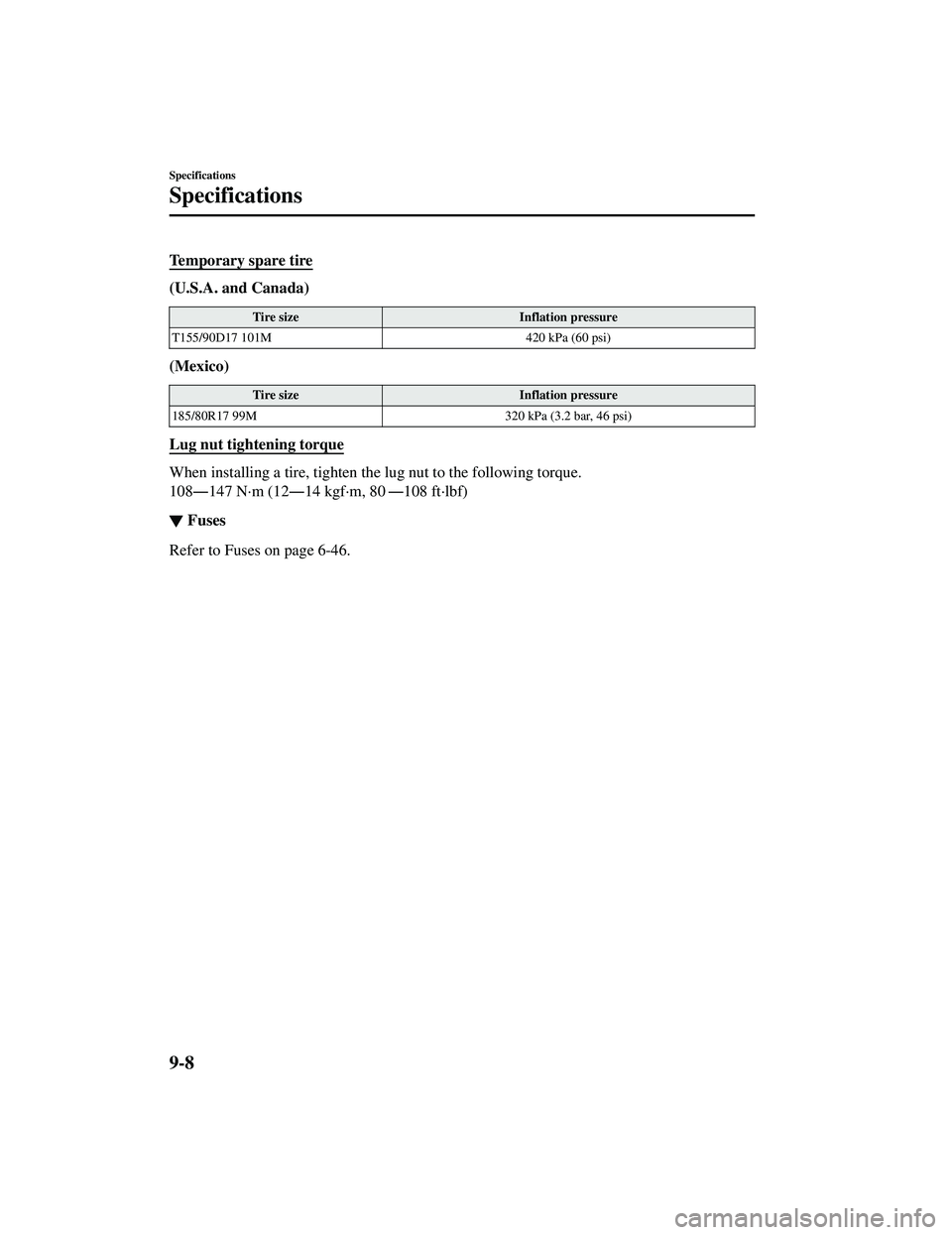

Temporary spare tire
(U.S.A. and Canada)
(Mexico)
Tire sizeInflation pressure
185/80R17 99M 320 kPa (3.2 bar, 46 psi)
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108―147 N·m (12―14 kgf·m, 80 ―108 ft
