MAZDA MODEL CX-9 2021 Owners Manual

Interior Care
WA R N I N G
Do not spray water into the vehicle cabin:
Spraying water into the vehicle cabin is
dangerous as electrical devices such as the
audio and switches could get wet resulting
in a malfunction or vehicle fire.
NOTE
Do not wipe the interior using alcohol,
chlorine bleach, or organic solvents
such as thinner, benzene, and gasoline.
Otherwise, it may cause discoloration or
stains.
Rubbing hard with a stiff brush or cloth
may cause damage.
If the vehicle interior becomes soiled by
any of the following, wipe it off
immediately using a soft cloth.
Leaving it uncleaned could cause
discoloration, stains, cracks, or peeling of
the coating, and it will make it hard to
wipe off later.
Beverage or fragrance
Grease or oil
Soiling
▼ Seat Belt Maintenance
1. Clean the soiled area by lightly
dabbing it with a soft cloth soaked in a
mild detergent (approx. 5%) diluted
with water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
3. Before retracting seat belts which have been pulled out for cleaning, dry them
off thoroughly and make sure there is
no remaining moisture on them.
WA R N I N G
If a seat belt appears frayed or has
abrasions, have it replaced by an
Authorized Mazda Dealer:
If a seat belt is used under such a condition,
it cannot function at its full capacity which
could result in serious injury or death.
Use a mild detergent to remove soiling
from a seat belt:
If organic solvents are used for cleaning the
seat belts or they become stained or
bleached, there is the possibility of them
becoming weakened and as a result, they
may not function at their full capacity
which could cause serious injury or death.
NOTE
Clean seat belts diligently if they get dirty.
Leaving them uncleaned will make it
difficult to clean them later, and it may
affect the smooth retracting of the seat
belt.
▼Vinyl Upholstery Maintenance
Remove dust and dirt from the vinyl
upholstery using a brush or vacuum.
Remove soiling from vinyl upholstery
using a leather and vinyl upholstery
cleaner.
▼Upholstery Maintenance
1. Clean the soiled area by lightly
dabbing it with a soft cloth soaked in a
mild detergent (approx. 5%) diluted
with water.
Maintenance and Care
Appearance Care
6-58
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

2. Wipe off the remaining detergent usinga cloth soaked in clean water and
wrung out well.
▼Leather Upholstery Maintenance*
1. Remove dust and sand using a vacuum
cleaner.
2. Wipe off the soiled area with a soft cloth and a suitable, special cleaner or
a soft cloth soaked in a mild detergent
(about 5%) diluted with water.
3. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
4. Remove moisture with a dry, soft cloth and allow the leather to further dry in a
well-ventilated, sh aded area. If the
leather gets wet such as from rain,
remove the moisture and dry it as soon
as possible.
NOTE
Because genuine leather is a natural
material, its surface is not uniform and
it may have natural scars, scratches,
and wrinkles.
To maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.
If the leather upholstery comes into
contact with any of the following, clean
it immediately.
Leaving it uncleaned could cause
premature wear, mold, or stains.
Sand or dirt
Grease or oil, such as hand cream
Alcohol, such as in cosmetic or hair
dressing items
If the leather upholstery gets wet,
promptly remove moisture with a dry
cloth. Remaining moisture on the
surface may cause deterioration such as
hardening and shrinkage.
Exposure to direct sunlight for long
periods may cause deterioration and
shrinkage. When parking the car under
direct sunlight for long periods, shade
the interior using sunshades.
Do not leave vinyl products on the
leather upholstery for long periods.
They may affect the leather quality and
coloring. If the cabin temperature
becomes hot, the vinyl may deteriorate
and adhere to the genuine leather.
▼ Plastic Part Maintenance
CAUTION
Do not use polishing agents.
Depending on the product ingredients,
they could cause discoloration, stains,
cracks or peeling of the coating.
▼Instrument Panel Top Maintenance
1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5%) diluted with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
▼Panel Maintenance
If a panel becomes soiled, wipe it off with
a soft cloth soaked in clean water and
thoroughly wrung out.
If some areas require further cleaning, use
the following procedure:
Maintenance and Care
Appearance Care
*Some models.6-59
CX-9_8JK1-EA-20G_Edition6_old
2021-12-8 9:30:44

1. Wipe the soiled area with a soft clothsoaked in a mild detergent (approx.
5 %) diluted with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
NOTE
Be particularly careful when cleaning
shiny surface panels and metallic parts
such as plating as they can be scratched
easily.
▼Active Driving Display
Maintenance*
The dust-proof sheet has a coating. When
cleaning, do not use a hard or
rough-surface cloth, or cleaning detergent.
In addition, if a chemical solvent gets on
the active driving display, wipe it off
immediately. The dust-proof sheet could
be damaged and the surface coating could
be scratched. Use a fine, soft cloth such as
those used for cleaning eyeglasses.
NOTE
Use of compressed air when cleaning the
dust-proof sheet is recommended.
▼Cleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them with
glass cleaner. Follow the directions on the
container.
CAUTION

Do not scrape or scratch the inside of the
window glass. It could damage the
thermal filaments and the antenna lines.
When washing the inside of the window
glass, use a soft cloth dampened in
lukewarm water, gently wiping the
thermal filaments and the antenna lines.
Use of glass cleaning products could
damage the thermal filaments and the
antenna lines.
▼ Cleaning the Floor Mats
Rubber floor mats should be cleaned with
mild soap an
d water only.
WA R N I N G
Do not use rubber cleaners, such as tire
cleaner or tire shine, when cleaning rubber
floor mats:
Cleaning the rubber floor mats with rubber
cleaning products makes the floor mats
slippery.
This may cause an accident when
depressing the accelerator or brake pedal
or when getting in or out of the vehicle.
After removing the floor mats for
cleaning, always reinstall them securely
(page 3-51).
Maintenance and Care
Appearance Care
6-60*Some models.
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Parking in an Emergency................. 7-2 Parking in an Emergency..............7-2
Flat Tire.............................................. 7-3 Spare Tire and Tool Storage......... 7-3
Changing a Flat Tire..................... 7-9
Battery Runs Out............................ 7-19 Jump-Starting............................. 7-19
Emergency Starting.........................7-22 Starting a Flooded Engine.......... 7-22
Push-Starting.............................. 7-22
Overheating......................................7-23 Overheating................................ 7-23
Emergency Towing.......................... 7-25 Towing Description.................... 7-25
Towing Hooks (Mexic o).............7-26
Warning/Indicator Lights and
Warning Sounds.............................. 7-28
If a Warning Light Turns On or
Flashes........................................ 7-28
Message Indicated on
Display........................................7-43
Message Indicated in Multi-
information Display
*.................. 7-45
Warning Sound is Activated....... 7-47
When Liftgate Cannot be
Opened..............................................7-52 When Liftgate Cannot be
Opened........................................7-52
Active Driving Display Does Not
Operate
*........................................... 7-53
If the Active Driving Display Does
Not Operate................................ 7-53
*Some models.7-1
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.

The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.

Depress the hazard warning flasher and all
the turn signals will flash. The hazard
warning indicator ligh ts in the instrument
cluster flash simultaneously.
NOTE
The turn signals do not work when the
hazard warning lights are on.
Check local regulations about the use of
hazard warning lights while the vehicle
is being towed to verify that it is not in
violation of the law.
If Trouble Arises
Parking in an Emergency
7-2
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Lug wrenchJack lever
Towing eyelet
Flat tire belt
Spare tire hold-down bolt
Jack
Tool bag
With sub-woofer
Lug wrenchJack lever
Towing eyelet
Flat tire belt
Spare tire hold-down bolt
Jack
Tool bag
Without sub-wooferSpare tire
Some models. Spare tire
▼
Jack
To remove the jack
1. Set the third-row seatbacks to their
on-road positions.
If Trouble Arises
Flat Tire
7-3
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

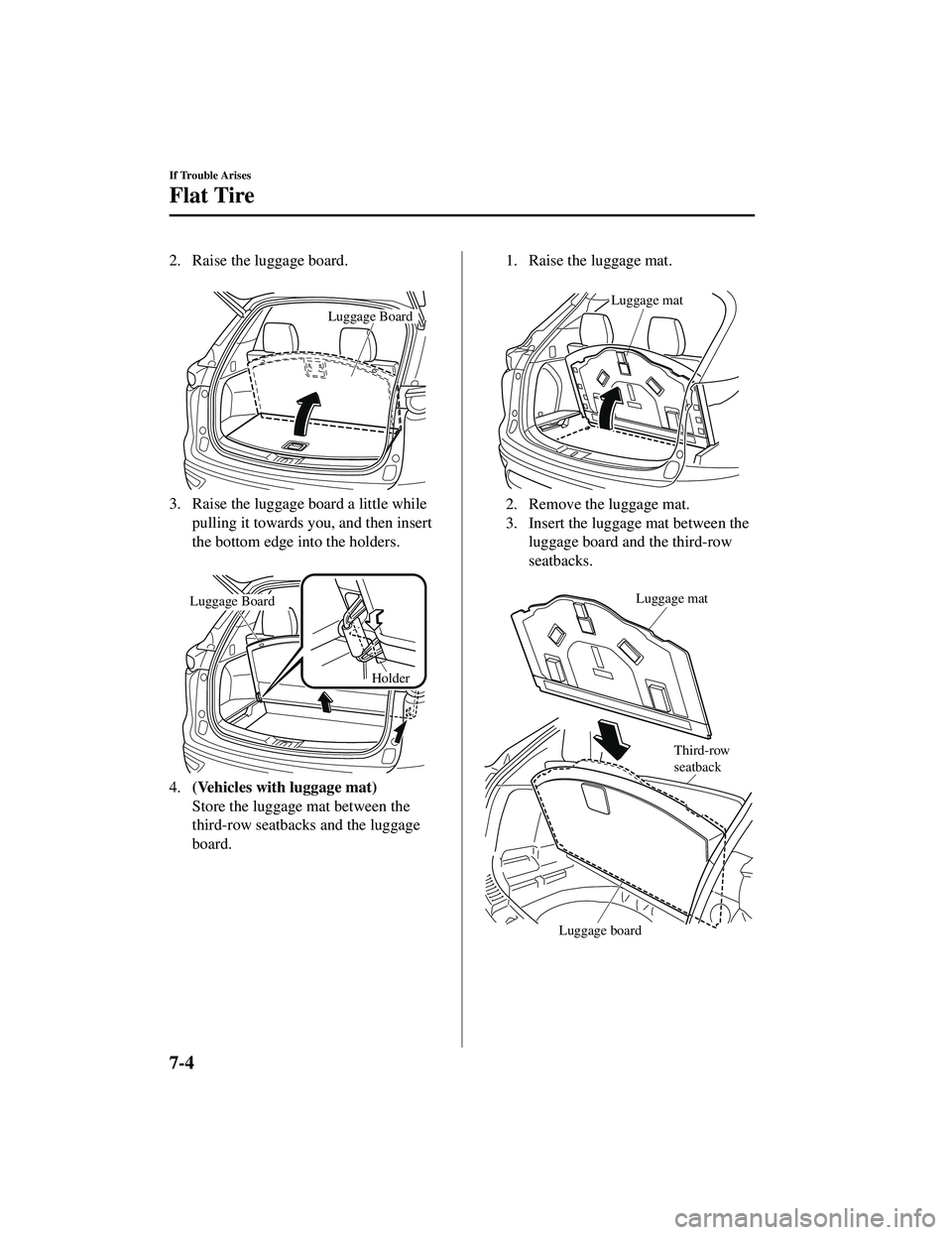

2. Raise the luggage board.
Luggage Board
3. Raise the luggage board a little whilepulling it towards you, and then insert
the bottom edge into the holders.

Luggage Board
Holder
4.(Vehicles with luggage mat)
Store the luggage mat between the
third-row seatbacks and the luggage
board.
1. Raise the luggage mat.

Luggage mat
2. Remove the luggage mat.
3. Insert the luggage mat between theluggage board and the third-row
seatbacks.

Luggage mat
Luggage board Third-row
seatback
If Trouble Arises
Flat Tire
7-4
CX-9_8JK1-EA-20G_Edition6_old
2021-12-8 9:30:44

NOTE
When inserting the luggage mat,
support the luggage board with one
hand so that it does not come off
the holders.
5. Remove the cover on the right side.
Cover
6. Remove the cargo sub compartment.
Cargo sub compartment
7. Turn the wing bolt and jack screw
counterclockwise.

Wing boltJack screw
To secure the jack
1. Insert the wing bolt into the jack withthe jack screw pointing back and turn
the wing bolt clockwise to temporarily
tighten it.
2. Tighten the jack screw clockwise.

Wing boltJack screw
3. Turn the wing bolt completely tosecure the jack.
NOTE
If the jack is not completely secured, it
could rattle while driving. Make sure
the jack screw is sufficiently tightened.
Maintenance
Always keep the jack clean.
If Trouble Arises
Flat Tire
7-5
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Make sure the moving parts are kept
free from dirt or rust.
Make sure the screw thread is
adequately lubricated.
▼Spare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
WA R N I N G
Do not install the temporary spare tire on
the front wheels (driving wheels):
Driving with the temporary spare tire on
one of the front driving wheels is
dangerous. Handling will be affected. You
could lose control of the vehicle, especially
on ice or snow bound roads, and have an
accident. Move a regular tire to the front
wheel and install the temporary spare tire
to the rear.
CAUTION

When using the temporary spare tire,
driving stability may decrease compared
to when using only the conventional tire.
Drive carefully.
 To avoid damage to the temporary spare
tire or to the vehicle, observe the
following precautions:
 Do not exceed 80 km/h (50 mph).
Avoid driving over obstacles. Also, do
not drive through an automatic car
wash. This tire's diameter is smaller
than a conventional tire, so the ground
clearance is reduced.
 Do not use a tire chain on this tire
because it will not fit properly.
 Do not use your temporary spare tire
on any other vehicle, it has been
designed only for your Mazda.
 Use only one temporary spare tire on
your vehicle at the same time.
To remove the spare tire
NOTE
(Vehicles with sub-woofer)
Because the sub-woofer is not operational
when the sub-woofer connector is
disconnected, no sound is output from the
sub-woofer.
1. Set the third-row seatbacks to their on-road positions.
2. Raise the luggage board.
Luggage Board
If Trouble Arises
Flat Tire
7-6
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

3. Raise the luggage board a little whilepulling it towards you, and then insert
the bottom edge into the holders.

Luggage Board
Holder
4.(Vehicles with luggage mat)
Store the luggage mat between the
third-row seatbacks and the luggage
board.
1. Raise the luggage mat.

Luggage mat
2. Remove the luggage mat.
3. Insert the luggage mat between the
luggage board and the third-row
seatbacks.

Luggage mat
Luggage board Third-row
seatback
NOTE
When inserting the luggage mat,
support the luggage board with one
hand so that it does not come off
the holders.
5. Remove the tool bag.
6. (Vehicles with sub-woofer)
If Trouble Arises
Flat Tire
7-7
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44
