MAZDA MODEL MAZDASPEED 3 2008 (in English) User Guide

Black plate (11,1)
Trunk lid ............................................................................................................ page 3-14
Antenna ............................................................................................................. page 6-15
Rear window defroster ....................................................................................... page 5-58
Power window ................................................................................................... page 3-18
Tires ................................................................................................................... page 8-35
Fuel-filler lid ...................................................................................................... page 3-20
Light bulbs ......................................................................................................... page 8-39
Hood .................................................................................................................. page 3-21
Windshield wiper blades .................................................................................... page 8-29
Moonroof ........................................................................................................... page 3-23
Child safety lock ................................................................................................ page 3-10
Door lock ............................................................................................................. page 3-8
Outside mirror .................................................................................................... page 3-29
Your Vehicle at a Glance
Exterior Overview
1-5The equipment and installation position varies by vehicle Mazda3_8X41-EA-07F_Edition1 Page11
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (12,1)

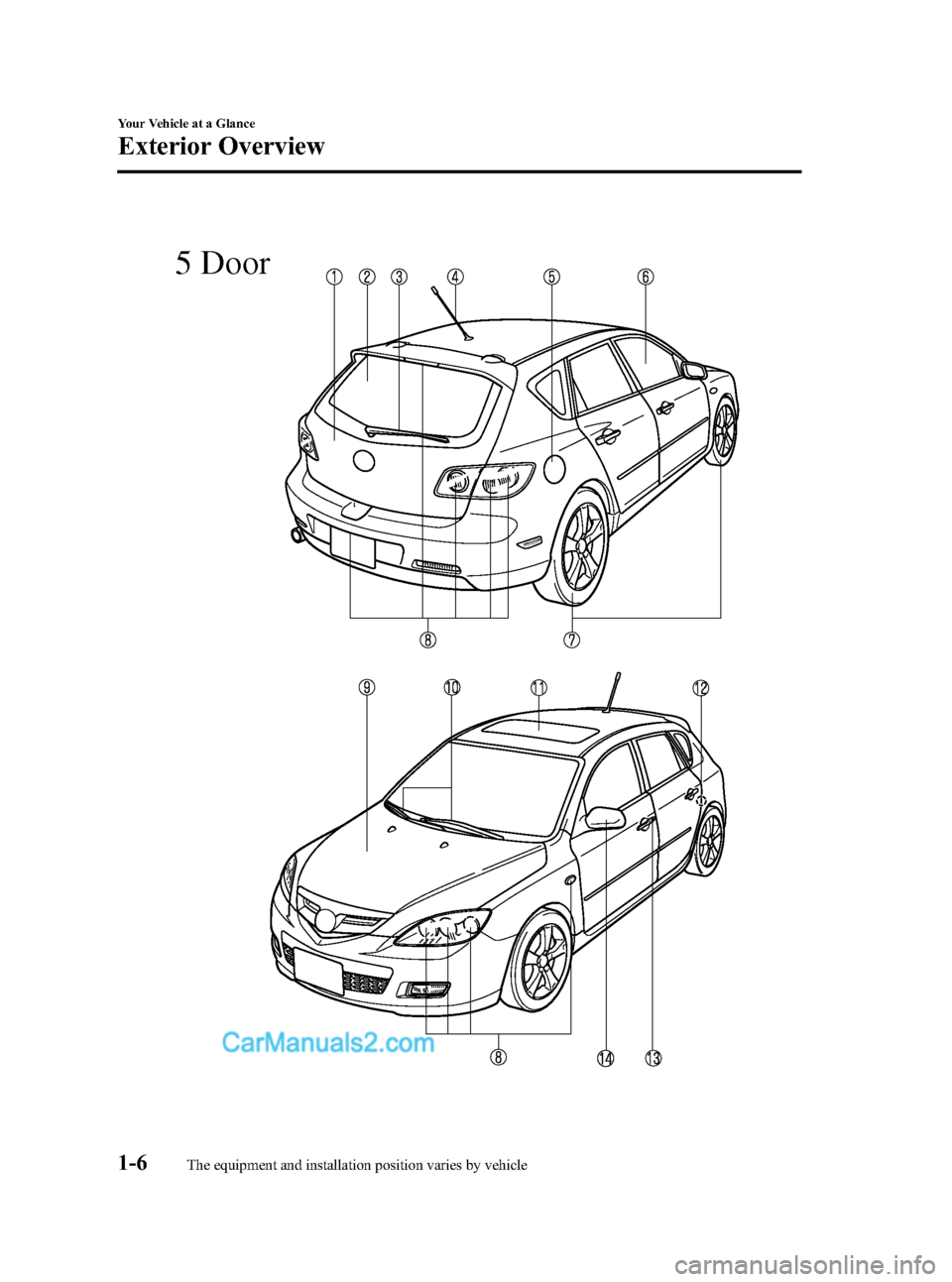

5 Door
1-6
Your Vehicle at a Glance
The equipment and installation position varies by vehicle
Exterior Overview
Mazda3_8X41-EA-07F_Edition1 Page12
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (13,1)
Liftgate ............................................................................................................... page 3-11
Rear window defroster ....................................................................................... page 5-58
Rear wiper blade ................................................................................................ page 8-30
Antenna ............................................................................................................. page 6-15
Fuel-filler lid ...................................................................................................... page 3-20
Power window ................................................................................................... page 3-18
Tires ................................................................................................................... page 8-35
Light bulbs ......................................................................................................... page 8-39
Hood .................................................................................................................. page 3-21
Windshield wiper blades .................................................................................... page 8-29
Moonroof ........................................................................................................... page 3-23
Child safety lock ................................................................................................ page 3-10
Door lock ............................................................................................................. page 3-8
Outside mirror .................................................................................................... page 3-29
Your Vehicle at a Glance
Exterior Overview
1-7The equipment and installation position varies by vehicle Mazda3_8X41-EA-07F_Edition1 Page13
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (14,1)
1-8
Mazda3_8X41-EA-07F_Edition1 Page14
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (15,1)
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
Seats ............................................................................................... 2-2
Front Seats ................................................................................ 2-2
Rear Seat ................................................................................... 2-5
Seat Belt Systems ........................................................................ 2-10
Seat Belt Precautions .............................................................. 2-10
Seat Belt (Except Center-Rear Position) ................................. 2-14
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-16
Center-Rear Position Seat Belt (3-Point Type) ....................... 2-19
Seat Belt Extender ................................................................... 2-21
Seat Belt Warning Light/Beep ................................................ 2-23
Child Restraint ............................................................................ 2-25
Child Restraint Precautions ..................................................... 2-25
Installing Child-Restraint Systems .......................................... 2-29
LATCH Child-Restraint Systems ............................................ 2-35
SRS Air Bags ............................................................................... 2-40
Supplemental Restraint Systems (SRS) Precautions ............... 2-40
Supplemental Restraint System Components ......................... 2-44
How the Air Bags Work .......................................................... 2-47
2-1
Mazda3_8X41-EA-07F_Edition1 Page15
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (16,1)
Front Seats
WARNING
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.
Make sure the adjustable components
of a seat are locked in place:
Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat
are locked in place by attempting to
slide the seat forward and backward
and rocking the seatback.
qSeat Slide
WARNING
Adjust the driver seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
2-2
Essential Safety Equipment
Seats
Mazda3_8X41-EA-07F_Edition1 Page16
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (17,1)
Always sit in a passenger seat properly
with the seatback upright and feet on
the floor:
If your vehicle is equipped with front
passenger seat weight sensors,
sitting in the front passenger seat
improperly out of position or with the
seatback reclined too far while the
vehicle is moving is dangerous as it
can take off weight from the seat
bottom and affect the weight
determination of the front passenger
sensing system. As a result the front
passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor.
Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when
there are no other passengers, rock
the seatback to make sure it is locked
in place.To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.
Essential Safety Equipment
Seats
2-3
Mazda3_8X41-EA-07F_Edition1 Page17
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (18,1)
qHeight Adjustment (Driver's Seat)í
By moving the seat lever up or down, the
seat bottom height can be adjusted.
DownUp
qLumbar Support Adjustment
(Driver's Seat)í
To adjust the lumbar support, pull the
lever forward.
qHead Restraint
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck to prevent
injury.
2-4
Essential Safety Equipment
íSome models.
Seats
Mazda3_8X41-EA-07F_Edition1 Page18
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (19,1)
qSeat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
NOTE
The seat temperature is regulated
automatically by a thermostat. Other than
turning it on or off, it cannot be adjusted.
Rear Seat
WARNING
Do not stack cargo higher than the
seatbacks or place articles on the rear
package tray or on the luggage
compartment cover:
Stacking luggage or other cargo
higher than the seatbacks, and
placing articles on the rear package
tray or on the luggage compartment
cover is dangerous. During sudden
braking or a collision, objects can fly
around and become projectiles that
may hit and injure passengers.
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Make sure the adjustable components
of a seat are locked in place:
Adjustable seats that are not securely
locked are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury.
Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After returning the
seatback at any time, even when
there are no other passengers, rock
the seatback to make sure it is locked
in place.
Essential Safety Equipment
Seats
2-5íSome models. Mazda3_8X41-EA-07F_Edition1 Page19
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (20,1)
Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving:
Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat
belt could be thrown forward, back
or even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown
into other occupants and cause
serious injury.
Never give the car keys to children and
do not allow them to play in the
vehicle:
Playing with the folding rear seats is
dangerous. The folding rear
seatbacks cannot be folded down
from inside the trunk. Once the
seatbacks are back up, a child in the
trunk would not be able to get out
the way they had entered. If you have
small children, keep the seatbacks
locked (sedan).Always leave your car locked and keep
the car keys safely away from children:
Leaving your car unlocked or the
keys in reach of children is
dangerous. Children who find their
way into the trunk through an
unlocked rear seatback or an open
trunk can become accidentally locked
in the trunk. This could result in
death or brain damage from heat
prostration, particularly in the
summer. Always lock the doors and
the trunk, and as an added measure,
keep the rear seatbacks locked,
whether you have children in your
home or not.
NOTE
When returning a rear seat to its original
position, also replace the seat belt to its
normal position. Verify that the seat belt pulls
out and retracts.
qSplit-Folding Rear Seatback
To fold the seatbacks
CAUTION
When operating the rear seatback
knob, make sure you support the
seatback with your hand. If the
seatback is not supported with your
hand, it will flip forward suddenly
and could cause injury to the finger
that pushes the rear seatback knob
down.
2-6
Essential Safety Equipment
Seats
Mazda3_8X41-EA-07F_Edition1 Page20
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F
