MAZDA MODEL MAZDASPEED 6 2007 (in English) Owner's Manual

Black plate (20,1)
qLumbar Support Adjustment
To adjust the lumbar support, pull the
lever forward.
qHead Restraint
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
qSeat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
ON
OFF
2-8
Essential Safety Equipment
íSome models.
Seats
Mazdaspeed6_8V77-EA-06F_Edition1 Page20
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (21,1)
NOTE
The seat temperature is regulated
automatically by a thermostat. Other
than turning it on or off, it cannot be
adjusted.
Rear Seat
WARNING
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
qHead Restraint
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Essential Safety Equipment
Seats
2-9
Mazdaspeed6_8V77-EA-06F_Edition1 Page21
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (22,1)
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
qArmrest
The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright, pull on the
small fabric pull-tab to lower the armrest.
2-10
Essential Safety Equipment
Seats
Mazdaspeed6_8V77-EA-06F_Edition1 Page22
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (23,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown out
of the vehicle. They could be seriously injured or even killed. In the same collision,
occupants wearing seat belts would be much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way cannot spread the impact forces properly and the two passengers could be
crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time and always operate the vehicle with each occupant properly
restrained.
Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during
an accident before they are used again.
Essential Safety Equipment
Seat Belt Systems
2-11
Mazdaspeed6_8V77-EA-06F_Edition1 Page23
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (24,1)
WARNING
Have your seat belts changed immediately if the pretensioner or load limiter has been
expended:
One or both front air bags may deploy, and the corresponding pretensioner(s) may
also deploy at the same time. While it is safer to use a crash-used seat belt that was
used in an accident than no seat belt at all, using a seat belt with an expended
pretensioner or load limiter loaded reduces the safety available to you. Like the air
bags, the seat belt pretensioners will only function once. After they are expended, they
will not function again and must be replaced immediately. If the seat belt
pretensioners are not replaced, the risk of injury in a collision will increase. Always
have an Authorized Mazda Dealer inspect the seat belt pretensioners and air bags
after any collision. Expended seat belt pretensioners and air bags must be replaced
after any collision which caused them to deploy. Additionally, the load limiter will only
limit loads on the chest once in a collision and this is another reason to have the front
seat belts inspected.
CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep them
clean. For more details about cleaning the seat belts, refer to“Cleaning the Lap/Shoulder
Belt Webbing”(page 8-44).
Ring
2-12
Essential Safety Equipment
Seat Belt Systems
Mazdaspeed6_8V77-EA-06F_Edition1 Page24
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (25,1)
qPregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return to the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
qAutomatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will
retract down to the child-restraint system and stay locked on it. See the section on child
restraint (page 2-24).
Essential Safety Equipment
Seat Belt Systems
2-13
Mazdaspeed6_8V77-EA-06F_Edition1 Page25
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (26,1)
Seat Belt (Except Center-
Rear Position)
NOTE
When using the center-rear seat belt,
refer to“Center-Rear Position Seat
Belt”(page 2-18).
qFastening the Seat Belt
1. Grasp the tongue.
2. Slowly pull out the lap/shoulder belt.
TongueBelt
3. Insert the tongue into the buckle until
you hear a click.
BuckleTongue
WARNING
Positioning the Shoulder Portion of
the Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
4. Position the lap belt as low as possible,
not on the abdominal area, then adjust
the shoulder belt so that it fits snugly
against your body.
Keep low on
hip bone
Too high Take up slack
WARNING
Positioning the Lap Portion of the
Seat Belt:
The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
2-14
Essential Safety Equipment
Seat Belt Systems
Mazdaspeed6_8V77-EA-06F_Edition1 Page26
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (27,1)

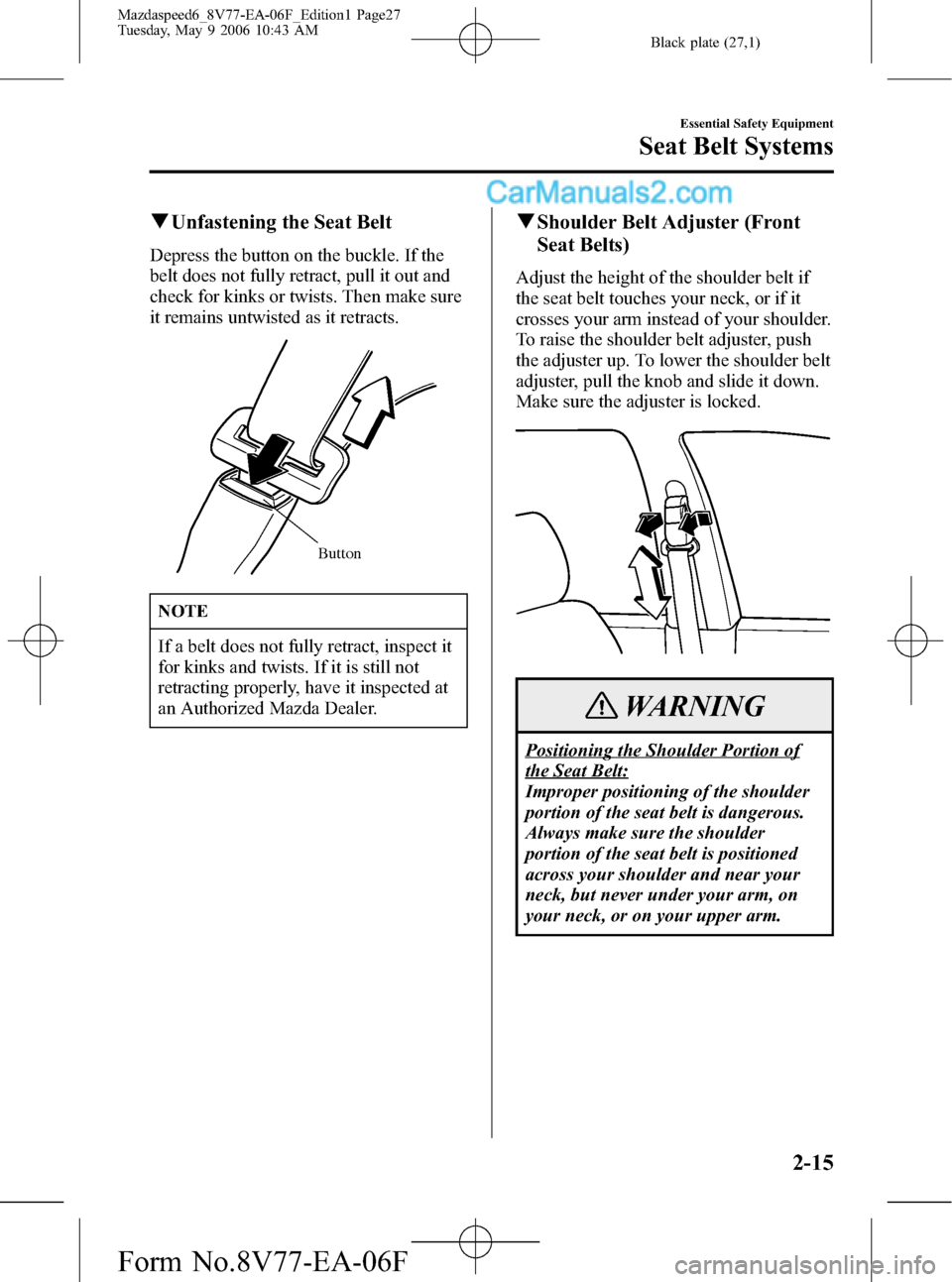

qUnfastening the Seat Belt
Depress the button on the buckle. If the
belt does not fully retract, pull it out and
check for kinks or twists. Then make sure
it remains untwisted as it retracts.
Button
NOTE
If a belt does not fully retract, inspect it
for kinks and twists. If it is still not
retracting properly, have it inspected at
an Authorized Mazda Dealer.
qShoulder Belt Adjuster (Front
Seat Belts)
Adjust the height of the shoulder belt if
the seat belt touches your neck, or if it
crosses your arm instead of your shoulder.
To raise the shoulder belt adjuster, push
the adjuster up. To lower the shoulder belt
adjuster, pull the knob and slide it down.
Make sure the adjuster is locked.
WARNING
Positioning the Shoulder Portion of
the Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
Essential Safety Equipment
Seat Belt Systems
2-15
Mazdaspeed6_8V77-EA-06F_Edition1 Page27
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (28,1)
Front Seat Belt Pretensioner
and Load Limiting Systems
For optimum protection, the driver and
front passenger seat belts are equipped
with pretensioner and load limiting
systems. For both these systems to work
properly you must wear the seat belt
properly.
Pretensioners:
In moderate or severe frontal or near-
frontal accidents, the front air bag and
pretensioner systems deploy
simultaneously when the seat belt is worn.
If the front seat occupant is not wearing a
seat belt, that person's pretensioner will
not fire even if the air bag does. The front
seat belt retractors remove slack quickly
as the air bags are expanding.
In addition, the pretensioner system for
the front passenger, like the front
passenger air bag, is designed to only
deploy in accordance with the total seated
weight on the front passenger seat. Any
time the air bags and seat belt
pretensioners have fired they must be
replaced. For details, refer to the front
passenger seat weight sensors (page 2-48).
Load limiter:
The load limiting system releases belt
webbing in a controlled manner to reduce
belt force on the occupant's chest. While
the most severe load on a seat belt occurs
in frontal collisions, the load limiter has
an automatic mechanical function and can
activate in any accident mode with
sufficient occupant movement.
Even if the pretensioners have not fired,
the load limiting function must be
checked by an Authorized Mazda Dealer.
WARNING
Wear seat belts only as recommended
in this owner's manual:
Incorrect positioning of the driver and
front passenger seat belts is
dangerous. Without proper
positioning, the pretensioner and load
limiting systems cannot provide
adequate protection in an accident
and this could result in serious injury.
For more details about wearing seat
belts, refer to“Fastening the seat
belts”(page 2-14).
2-16
Essential Safety Equipment
Seat Belt Systems
Mazdaspeed6_8V77-EA-06F_Edition1 Page28
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (29,1)
WARNING
Have your seat belts changed
immediately if the pretensioner or load
limiter has been expended:
One or both front air bags may deploy,
and the corresponding pretensioner(s)
may also deploy at the same time.
While it is safer to use a crash-used
seat belt that was used in an accident
than no seat belt at all, using a seat
belt with an expended pretensioner or
load limiter loaded reduces the safety
available to you. Like the air bags, the
seat belt pretensioners will only
function once. After they are
expended, they will not function again
and must be replaced immediately. If
the seat belt pretensioners are not
replaced, the risk of injury in a
collision will increase. Always have an
Authorized Mazda Dealer inspect the
seat belt pretensioners and air bags
after any collision. Expended seat belt
pretensioners and air bags must be
replaced after any collision which
caused them to deploy. Additionally,
the load limiter will only limit loads on
the chest once in a collision and this is
another reason to have the front seat
belts inspected.
Do not modify the components or
wiring, or use electronic testing
devices on the pretensioner system:
Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable which
would prevent it from activating in an
accident. The occupants or repairers
could be seriously injured.
WARNING
Properly dispose of the pretensioner
system:
Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap a
pretensioner-equipped vehicle.
NOTE
lThe pretensioner system will activate
in a moderate or greater frontal or
near-frontal collision. The
pretensioner system for the front
passenger is designed to only deploy
in accordance with the total seated
weight on the front passenger seat. It
will not activate in most rollovers,
side or rear impacts.
lSome smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not
indicate a fire. This gas normally has
no effect on occupants, however,
those with sensitive skin may
experience light skin irritation. If
residue from the deployment of the
air bags or the front pretensioner
system gets on the skin or in the
eyes, wash it off as soon as possible.
Essential Safety Equipment
Seat Belt Systems
2-17
Mazdaspeed6_8V77-EA-06F_Edition1 Page29
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F
