7. At this point, wait until the engine
reaches normal operating temperature;
then depress the accelerator two or
three times. Add more coolant, if
necessary, until the system is full.
8. Install the cooling system cap. Inspect
all connections for leaks. Inspect the
level in the coolant reservoir one more
time.

Inspecting Brake Fluid Level
Inspect the fluid level in the reservoir
regularly. It should be kept at MAX.
The level normally drops with
accumulated distance, a condition
associated with wear of brake linings. If it
is excessively low, have the brake system
inspected by an Authorized Mazda
Dealer.
Brake Fluid
J76Y.book Page 15 Wednesday, March 27, 2002 5:04 PM

8-16
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F

Adding Brake Fluid
If the fluid level is low, add fluid until it
reaches MAX.
Before adding fluid, thoroughly clean the
area around the cap.

Inspecting Power Steering Fluid
Level
Inspect the fluid level in the reservoir at
each engine oil change with the engine off
and cold. Add fluid if necessary; it does
not require periodic changing.
Spilled Brake Fluid:
Spilled brake fluid is dangerous. If it
gets in your eyes, they could be
seriously injured. If this happens,
immediately flush your eyes with
water and get medical attention.
Brake fluid spilled on a hot engine
could cause a fire. Be careful not to
spill brake fluid on yourself or on the
engine.
Low Brake Fluid Levels:
Low brake fluid levels are dangerous.
Low levels could signal brake lining
wear or a brake system leak. Your
brakes could fail and cause an
accident. If you find a low fluid level,
have the brakes inspected.
•Brake fluid will damage painted
surfaces. If brake fluid does get on
a painted surface, wipe it off
immediately.
•Using nonspecified brake fluids
(page 10-4) will damage the system.
Mixing different fluids will also
damage it.
If the brake system frequently
requires new fluid, consult an
Authorized Mazda Dealer.
WARNING
CAUTION
Power Steering Fluid
To avoid damage to the power steering
pump, don’t operate the vehicle for
long periods when the power steering
fluid level is low.
NOTE
Use specified power steering fluid
(page 10-4).
CAUTION
2.5 liter V6 DOHC
J76Y.book Page 16 Wednesday, March 27, 2002 5:04 PM

8-17
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F
The level must be kept between MIN and
MAX.
Visually examine the lines and hoses for
leaks and damage.
If new fluid is required frequently, consult
an Authorized Mazda Dealer.

Inspecting Automatic Transaxle
Fluid Level
The automatic transaxle fluid level should
be inspected regularly. Measure it as
described below.
The volume of fluid changes with the
temperature. Fluid must be checked at idle
without driving at normal operating
temperature.
1. Park on a level surface and set the
parking brake firmly.
2. Idle the engine about two minutes.
Push down on the brake pedal.
3. Move the shift lever through all ranges
and set it at P.
Miller Cycle Engine V6 DOHCAutomatic Transaxle Fluid
(ATF)
•Low fluid level causes transaxle
slippage. Overfilling can cause
foaming, loss of fluid, and transaxle
malfunction.
•Use specified fluid (page 10-4). A
nonspecified fluid could result in
transaxle malfunction and failure.
CAUTION
J76Y.book Page 17 Wednesday, March 27, 2002 5:04 PM

8-18
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F
4. With the engine still idling, pull out the
dipstick, wipe it clean, and put it back.
5. Pull it out again.
The proper fluid level is marked on the
dipstick as follows.Fluid hot scale A
When the vehicle has been driven and the
fluid is at normal operating temperature,
about 65°C (150°F), the level must be
between Full and Low.
Fluid cold scale B
When the engine has not been running
and the outside temperature is about 20°C
(70°F), the level must be between Full and
Low.
Fully insert the dipstick. When adding
fluid, inspect with the dipstick to make
sure it doesn’t pass full.
Sudden Vehicle Movement:
Shifting the shift lever without first
depressing the brake pedal is
dangerous. The vehicle could move
suddenly and cause an accident.
Make sure the brake pedal is applied
before shifting the shift lever.
WARNING
2.5 liter V6 DOHCFull
Low
Full
LowA
B
Full
Low Full
LowA
B
Miller Cycle Engine V6 DOHC
•Use the cold scale only as a
reference.
•If outside temperature is lower than
about 20°C (70°F), start the engine
and inspect the fluid level after the
engine reaches operating
temperature.
•If the vehicle has been driven for an
extended period at high speeds or in
city traffic in hot weather, inspect
the level only after stopping the
engine and allowing the fluid to
cool for 30 minutes.
NOTE
Inspect both sides of the dipstick for
accurate reading.
CAUTION
J76Y.book Page 18 Wednesday, March 27, 2002 5:04 PM

8-19
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F

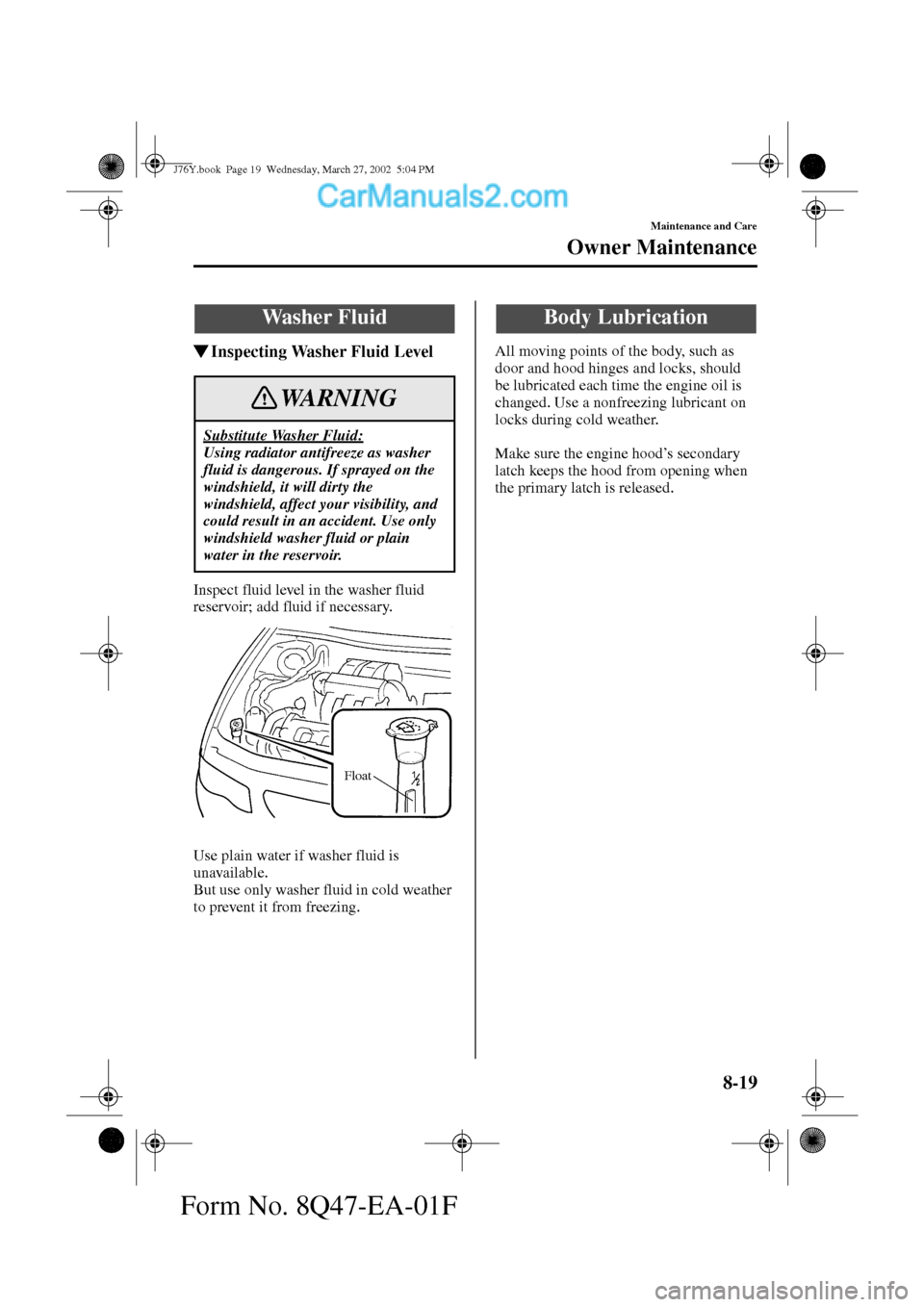

Inspecting Washer Fluid Level
Inspect fluid level in the washer fluid
reservoir; add fluid if necessary.
Use plain water if washer fluid is
unavailable.
But use only washer fluid in cold weather
to prevent it from freezing.All moving points of the body, such as
door and hood hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.
Make sure the engine hood’s secondary
latch keeps the hood from opening when
the primary latch is released.
Wa s h e r F l u i d
Substitute Washer Fluid:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the
windshield, affect your visibility, and
could result in an accident. Use only
windshield washer fluid or plain
water in the reservoir.
WARNING
Float
Body Lubrication
J76Y.book Page 19 Wednesday, March 27, 2002 5:04 PM

8-20
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F

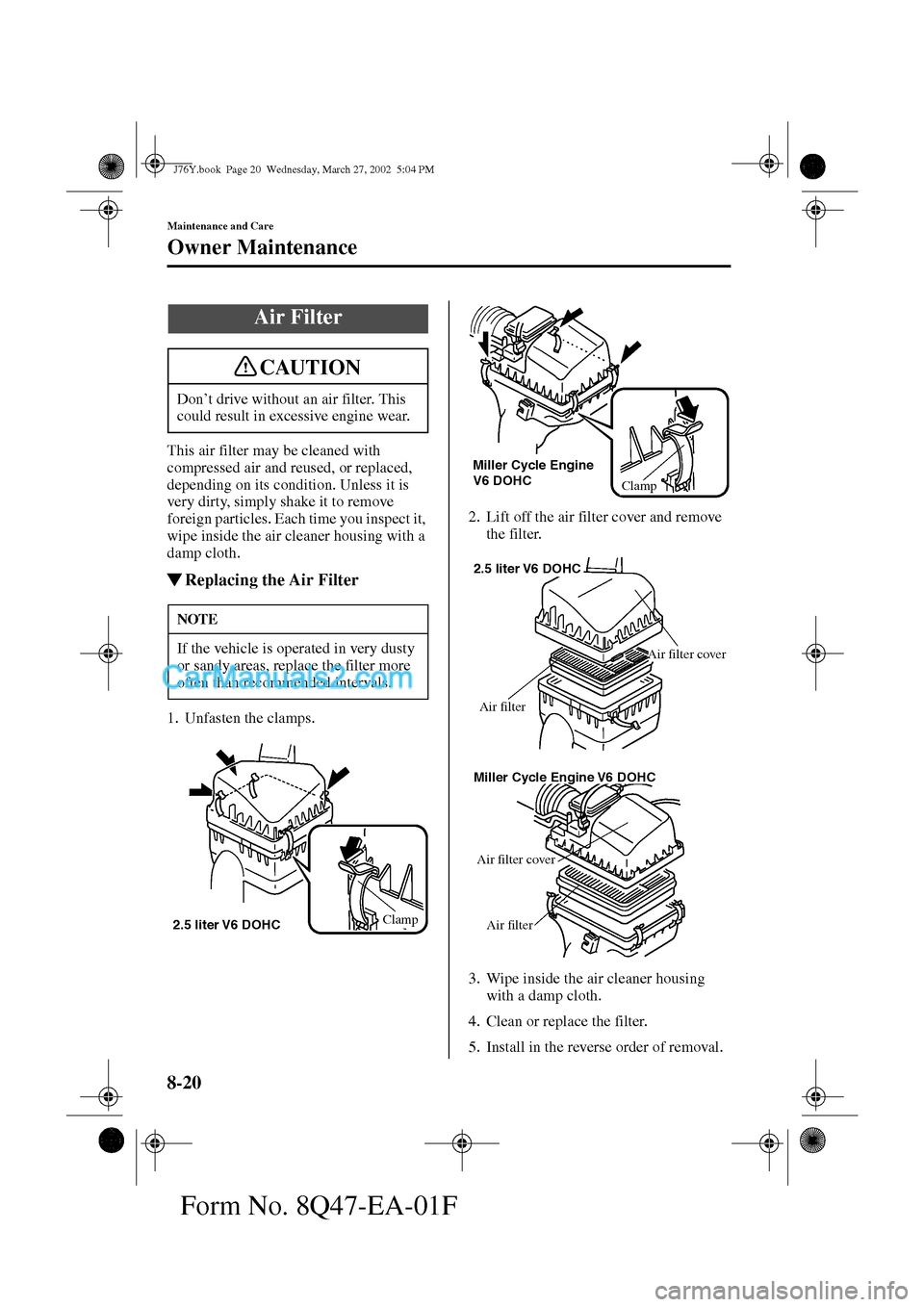

This air filter may be cleaned with
compressed air and reused, or replaced,
depending on its condition. Unless it is
very dirty, simply shake it to remove
foreign particles. Each time you inspect it,
wipe inside the air cleaner housing with a
damp cloth.

Replacing the Air Filter
1. Unfasten the clamps.2. Lift off the air filter cover and remove
the filter.
3. Wipe inside the air cleaner housing
with a damp cloth.
4. Clean or replace the filter.
5. Install in the reverse order of removal.
Air Filter
Don’t drive without an air filter. This
could result in excessive engine wear.
NOTE
If the vehicle is operated in very dusty
or sandy areas, replace the filter more
often than recommended intervals.
CAUTION
2.5 liter V6 DOHCClamp
Miller Cycle Engine
V6 DOHC
Clamp
Air filter cover
Air filter 2.5 liter V6 DOHC
Miller Cycle Engine V6 DOHC
Air filter Air filter cover
J76Y.book Page 20 Wednesday, March 27, 2002 5:04 PM

8-36
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F

Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1 MAIN 120AFor protection of all
circuits
2 AD.FAN 30AAdditional cooling
fan for air conditioner
3 EGI INJ 30A Fuel injection system
4 HEAD 40A Headlights
5 IG KEY 60ARADIO, TURN,
METER, ENGINE,
S/ROOF and P/WIND
fuses, Ignition system
6COOLING
FA N30A Cooling fan
7 ABS 60A Antilock brake system
8 HEATER 40AHeater, Air
conditioner
9DEFOG 40ARear window
defroster
10 BTN 60ASTOP, ROOM and
D/LOCK fuses, Fuel
lid opener, Power
door lockDESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
11 AUDIO 20A Audio system
12 P/WINDOW 30A Power windows
13 P.SEAT 30A Power seat
14 HORN 10A Horn
15 IDL UP 10AEngine control
system
16 ST.SIGN 10A Engine control unit
17 FOG 15A Fog lights
18 S.WARM 20A Seat warmer
19 TAIL 15ATaillights, Parking
lights, License plate
lights, Dashboard
illumination, Glove
box light, Clock
20—— —
21—— —
22—— —
J76Y.book Page 36 Wednesday, March 27, 2002 5:04 PM

8-37
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F
Fuse panel (Driver’s side)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1 HAZARD 15AHazard warning
light
2 ROOM 15AClock, Interior
light
3 S/ROOF 15A Sunroof
4 METER 15AGauges, Reverse
lights, Turn signals,
Cruise control
5 STOP 20A Brake lights
6—— —
7 IIA 15A IIA
8 R.DEF 10ARear window
defroster
9 A/C 10A Air conditioner
10 WIPER 20AWindshield wipers
and washer
11 M.DEF 10A Mirror defroster
12 START 15A Starter
13 TURN 10A Turn signal lights
14 BLOWER 10A Air conditioner
15—— —
16—— —DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
17—— —
18 RADIO 10A Audio system
19 ENGINE 15AEngine control
system
20 ILLUMI 10ADashboard
illumination
21 OPENER 15ATrunk lid opener,
Fuel-lid opener
22—— —
23 CIGAR 15A Cigar lighter
24—— —
25—— —
26 SPARE 30A—
27—— —
28—— —
29 D/LOCK 30A Power door lock
J76Y.book Page 37 Wednesday, March 27, 2002 5:04 PM

9-9
Customer Information
Wa r r a n t y
Form No. 8Q47-EA-01F
Government regulations in the United States and Canada require that automobiles meet
specific emission regulations and safety standards. Therefore, vehicles built for use in the
United States, its territories, and Canada may differ from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside these areas.
You may have these problems if you do:
•Recommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
•Proper repair facilities, tools, testing equipment, and replacement parts may not be
available.
The Mazda warranty applies only to Mazda vehicles registered and normally operated in
the United States, its territories, and Canada.
Outside the United States and Canada
J76Y.book Page 9 Wednesday, March 27, 2002 5:04 PM

9-10
Customer Information
Wa r r a n t y
Form No. 8Q47-EA-01F
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by the Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, they could affect your
vehicle’s performance or safety system; the Mazda warranty doesn’t cover this. Before you
install any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
Add-On Non-Genuine Parts and Accessories
Installation of Non-Genuine Parts or Accessories:
Installation of non-genuine parts or accessories is dangerous. Improperly designed
parts or accessories could seriously affect your vehicle’s performance or safety system.
This could cause you to have an accident or increase your chances of injuries in an
accident. Always consult an Authorized Mazda Dealer before you install non-genuine
parts or accessories.
Add-On Electrical and Electronic Equipment:
Incorrectly choosing or installing improper add-on equipment or choosing an
improper installer is dangerous. Essential systems could damaged, causing engine
stalling, air-bag (SRS) activation, ABS inactivation, or a fire in the vehicle.
Be very careful in choosing and installing add-on ‘electrical equipment, such as
mobile telephones, two-way radios, stereo systems, and car alarm systems.
WARNING
J76Y.book Page 10 Wednesday, March 27, 2002 5:04 PM
