Folding the Second-Row Seats
The second-row seatbacks can be folded
down and used as tables when the vehicle
is not moving.
To fold the seatback
1. Put the buckle in the pocket of the seat
bottom.2. Raise the reclining lever and lower the
seatback forward. Make sure the
seatback is locked.
To return the seatback to the upright
position
Raise the reclining lever and lift the
seatback upright. Attempt to move the
seatback forward and backward to make
sure it is locked.
Using Folded Seatback as a Table
While the Vehicle is Moving:
Using the folded seatback as a table
while driving is dangerous. During
sudden braking or a collision, objects
placed on the folded seatback could
become projectiles that could hit and
injure someone. Never use the folded
seat as a table while the vehicle is
moving.
Lowering the seatback without
stowing the seat belt buckle could
damage the seatback.
WARNING
CAUTION
J16L_EA.book Page 13 Friday, February 22, 2002 11:34 AM

2-14
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K

Removal of Second-Row Seats
The second-row seats can be removed to
create a more comfortable space between
the third-row and front seats. Additional
cargo space is available with the removal
of the second-row seats and stowing of the
third-row seat.
To r e m o v e t h e s e a t
1. Put the buckle in the pocket of the seat
bottom.
2. Lower the head restraint all the way
down.
3. Slide the seat all the way back.
Seat Removal or Installation While
Vehicle is Moving or on a Slope:
Removing or installing the second-
row seats while the vehicle is moving
or on a slope is dangerous. The seats
are heavier than they appear and
could suddenly detach causing
serious injury. Remove or install the
seats with the vehicle parked on a
level surface.
Riding on The Floor Space:
Riding on the floor space created by
the removal of the second-row seat is
dangerous. Sudden braking or a
collision could cause serious injury.
Do not sit or lie in the floor space for
the second-row seat while the vehicle
is moving. Never ride in a vehicle
where you can’t sit in the seat and
wear the seat belt.
Pinching Fingers or Hands:
Placing your hands around the seat
anchors when removing or installing
the second-row seats is dangerous.
You could pinch your hands or
fingers between the seat anchor and
the seat. Hold the edge of the seat
when lowering it into place. Never
place your hands between the seat
anchor and the seat.
WARNING
Lifting the Seat-Anchor Bar:
Lifting the seat-anchor bar without
firmly supporting the seat with your
hand is dangerous. Lifting the seat
unlocks the front clamps
automatically and could cause the
seat to fall. Support the seat firmly
while lifting the seat-anchor bar.
Lowering the seatback without
stowing the seat belt buckle could
damage the seatback.
WARNING
CAUTION
J16L_EA.book Page 14 Friday, February 22, 2002 11:34 AM

2-15
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K
4. Raise the reclining lever and lower the
seatback forward.
Make sure the seatback is locked.
5. Work only on one seat at a time to
avoid one seat falling while working on
another.
6. Lift and hold the seat-anchor bar and
raise the entire seat up and forward.7. The seat is heavier than it looks,
carefully pull up and detach the seat.
Get assistance to lift it out of the
vehicle.
To install the seat
1. First identify which seat fits which
position by verifying that the seat belt
buckles point to the center (inboard) of
the vehicle.
2. Align the clamps on the front underside
of the seat with the forward loop
anchors on the floor and support the
seat so that it doesn’t fall (the rear
portion of the seat cannot be mounted
first). The clamps on the front of the
seat automatically lock into the floor
loop anchors after lowering the seat.
Seat-anchor bar
Loops Clamp
Loops
Clamp
J16L_EA.book Page 15 Friday, February 22, 2002 11:34 AM

2-16
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K
3. Supporting the seat with your hands,
slowly lower the seat rearwards to lock
it in place.
4. Raise the reclining lever and lift the
seatback upright. Attempt to move the
seatback forward and backward to
make sure it is locked.
5. Buckle the seat belts once just to
confirm the seat belt buckles are
inboard which means each seat is on
the correct side of the vehicle.
Unsecured Seat:
Driving with the seat unsecured is
dangerous. The seat may become
detached while the vehicle is moving
causing serious injury. After
installing the seat, push it forward
and backward to make sure it is
securely locked.
Do not move the side seat-slide lever
with the seat removed. The lever could
be damaged resulting in loss of
functionality.
WARNING
CAUTION
Third-Row Seat
Stacking Cargo:
Stacking luggage or other cargo
higher than the seatback is
dangerous. During a sudden stop or
collision, objects can become
projectiles that could hit and injure
passengers. Don’t stack things higher
than the seatback.
Securing Seats:
Adjustable seats and seatbacks that
are not securely latched are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat are
locked in place by attempting to rock
the seatback.
Unlocked Seatback:
A seatback plays an important role in
your protection in a vehicle. Leaving
the seatback unlocked is dangerous as
it can allow passengers to be ejected
or thrown around and baggage to
strike occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to make
sure it is locked in place.
WARNING
J16L_EA.book Page 16 Friday, February 22, 2002 11:34 AM

2-17
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K

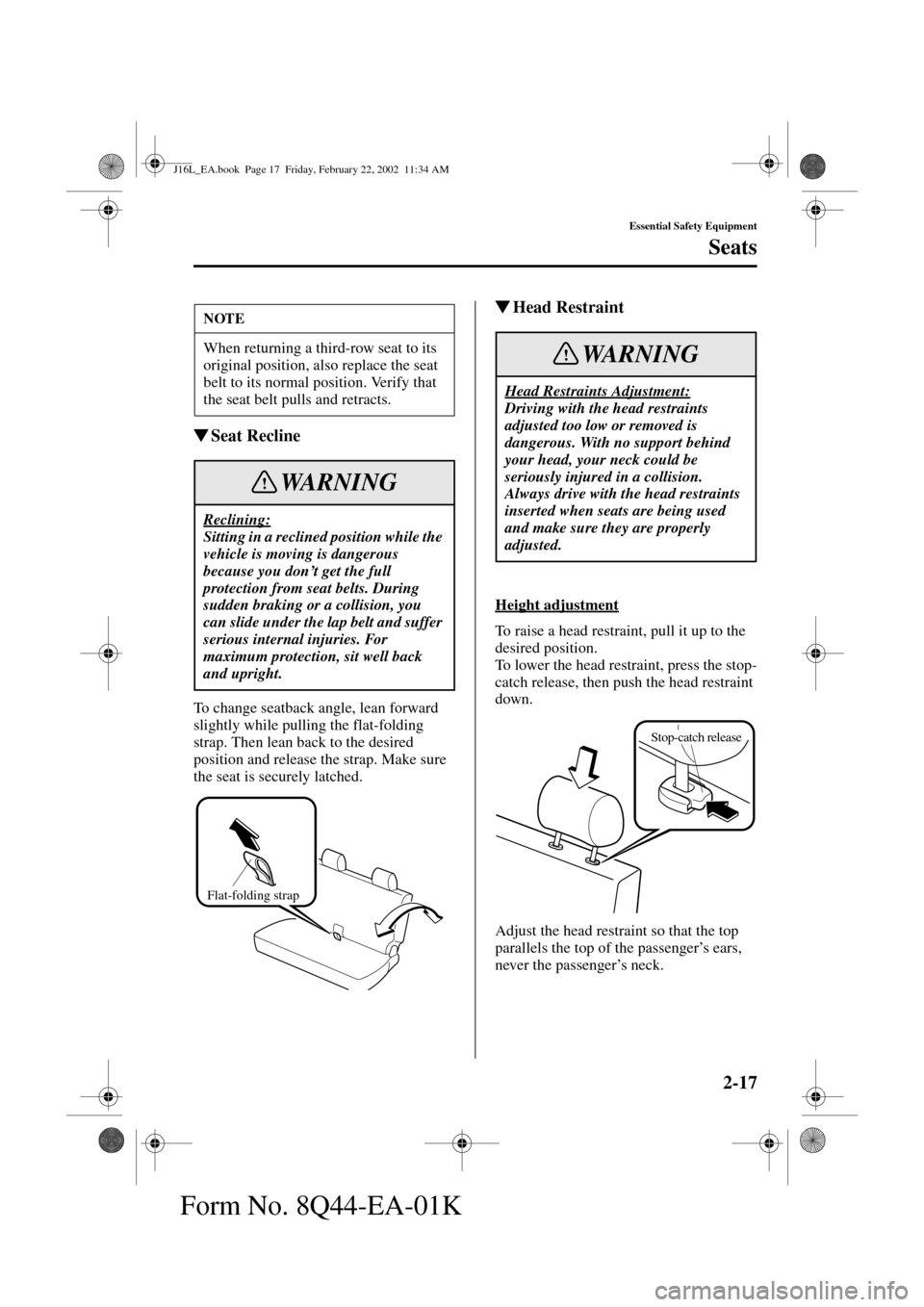

Seat Recline
To change seatback angle, lean forward
slightly while pulling the flat-folding
strap. Then lean back to the desired
position and release the strap. Make sure
the seat is securely latched.

Head Restraint
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top
parallels the top of the passenger’s ears,
never the passenger’s neck.
NOTE
When returning a third-row seat to its
original position, also replace the seat
belt to its normal position. Verify that
the seat belt pulls and retracts.
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don’t get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back
and upright.
WARNING
Flat-folding strap
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Always drive with the head restraints
inserted when seats are being used
and make sure they are properly
adjusted.
WARNING
Stop-catch release
J16L_EA.book Page 17 Friday, February 22, 2002 11:34 AM

2-18
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K
Removal
To remove the head restraint, press the
stop-catch release, then pull up on the
head restraint.

Folding the Third-Row Seat
1. Remove the head restraints from the
third-row seat (page 2-17).2. Pull the third-row seat’s flat-folding
strap and push the seatback down until
it locks.

Stowing the Third-Row Seat
More storage space can be created by
folding away the third-row seat into the
rear seat well. With the second-row seats
removed and the third-row seat stowed,
even more space is available.
Riding on Folded Flat Third-Row
Seat:
Riding on the third-row seat when it’s
folded is dangerous. During sudden
braking or a collision, passenger’s
could be thrown around inside the
vehicle and seriously injured. Always
ride with the third-row seat in the
forward-facing, upright position and
seat belt securely fastened.
Stop-catch release
WARNING
Flat-folding strap
J16L_EA.book Page 18 Friday, February 22, 2002 11:34 AM

2-19
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K
Stowing the third-row seat
1. Insert the seat belts in the retainers.
2. Remove the head restraint and set them
aside temporarily (page 2-17).
3. Pull strap A and ease the seatback
toward the front of the vehicle with
your other hand and be sure it locks
with a click.
Riding in the Seat Well:
Riding in the seat well for the third-
row seat is dangerous. Sudden
braking or a collision could cause
serious injury. Do not sit on lie in the
seat well while the vehicle is moving.
Never ride in a vehicle where you
can’t sit in the seat and wear the seat
belt.
Pinching Fingers or Hands:
Placing your hands around the seat
stowage well when stowing the third-
row seat is dangerous. You could
pinch your hands or fingers between
the seat and the well. Hold the handle
when lowering the seat into place.
Never place your hands between the
seat and the seat well.
Unlocked Seatback:
An unlocked seatback is dangerous.
While stowing the seat, the seatback
could suddenly move causing serious
injury. Push the seatback forward and
backward to make sure it is locked in
place.
NOTE
Remove any items from the seat well
for the third-row seat before stowing
the seat. Anything in the baggage area
when the seat is set into the well can
damage the seatback material and
prevent a flat cargo area.
WARNING
Retainer
Strap A
J16L_EA.book Page 19 Friday, February 22, 2002 11:34 AM

2-20
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K
4. Pull strap B and lift the combined
seatback and seat bottom up to vertical
with your other hand. Gently set the
seat the remainder of the way down
into the seat well.
5. Insert the head restraints between the
floor and seat at the positions indicated
on the labels.Raising the third-row seat upright for
road use
1. Clear the entire cargo floor.
2. Remove the head restraints.
3. Carefully reverse the procedures used
to lower the seat into the seat well. Use
the handle and ease the combined
seatback and seat bottom up to vertical.
4. Carefully lower the seat forward and
make sure it’s latched to the floor.
Strap B
Labels
Handle
J16L_EA.book Page 20 Friday, February 22, 2002 11:34 AM

2-21
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K
5. Pull strap A and raise the seatback
upright. Attempt to move the seatback
forward and backward to make sure it
is locked.
6. Insert the head restraints.
7. Place the seat belt buckles face up.
Third-Row Seat and Open
Liftgate Position
Strap A
Support Bar:
Sitting in the rear-facing, third-row
seat position without installing the
support bar is dangerous. Without the
support of the bar, the seatback could
collapse resulting in injury.
Always install the support bar before
sitting in the rear-facing, third-row
seat position.
Rear Facing Third-Row Seat and a
Moving Vehicle:
Driving with the third-row seat facing
rearward is dangerous because the
liftgate cannot be securely closed.
During sudden braking or a collision,
passengers could be thrown out of the
vehicle resulting in serious injury or
death. Place the third-row seat in the
forward-facing position with the
seatback upright before driving the
vehicle.
Third-Row Seat and the Flat-Folding
Strap:
Pulling the flat-folding strap with the
third-row seat facing rearward is
dangerous. The seatback will collapse
into the seat bottom and could result
in injury. Do not pull the flat-folding
strap with the third-row seat facing
rearward.
WARNING
J16L_EA.book Page 21 Friday, February 22, 2002 11:34 AM

2-22
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K
To put the third-row seat in the rear
facing position:
1. Open the liftgate.
2. Clear away all cargo from the seat well.
3. Remove the head restraints.
4. Pull strap B while supporting the
seatback with the other hand and
carefully ease the seatback rearward
and into the seat well.
5. Go inside the vehicle and to the rear.6. Remove the support bar from the
pocket.
7. Set the hook on the support bar in the
rear of the seatback.
NOTE
•Adjust the seatback to the upright
position when the third-row seat is
facing rearward.
•Remove cargo from the seat well
area before placing the third-row
seat in the rear-facing position.
Strap B
Support bar
Pocket
J16L_EA.book Page 22 Friday, February 22, 2002 11:34 AM
