Limitations to front air bag activation
Depending on the severity of impact, the front air bags may not inflate in the following
cases:
Impacts involving trees or poles cause severe
cosmetic damage but may not have enough
impact to activate the air bag.Rear-ending or running under a truck's tail
gate may not provide the stopping force
necessary for air bag deployment.
Frontal offset impact to the vehicle may not
provide the stopping force necessary for air
bag deployment.
J16L_EA.book Page 53 Friday, February 22, 2002 11:34 AM

2-54
Essential Safety Equipment
SRS Air Bags
Form No. 8Q44-EA-01K

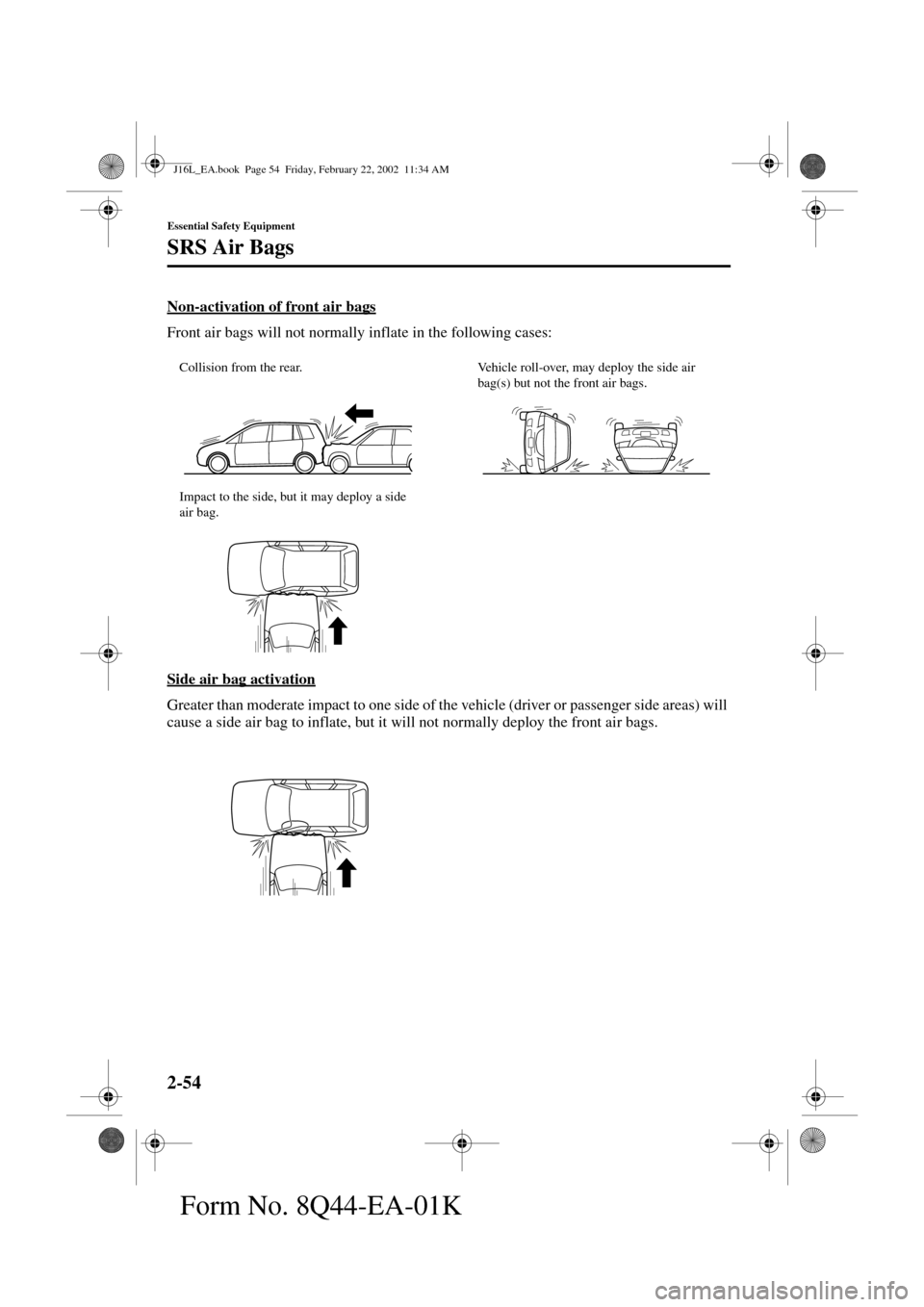

Non-activation of front air bags
Front air bags will not normally inflate in the following cases:
Side air bag activation
Greater than moderate impact to one side of the vehicle (driver or passenger side areas) will
cause a side air bag to inflate, but it will not normally deploy the front air bags.
Collision from the rear.
Impact to the side, but it may deploy a side
air bag.Vehicle roll-over, may deploy the side air
bag(s) but not the front air bags.
J16L_EA.book Page 54 Friday, February 22, 2002 11:34 AM

2-55
Essential Safety Equipment
SRS Air Bags
Form No. 8Q44-EA-01K

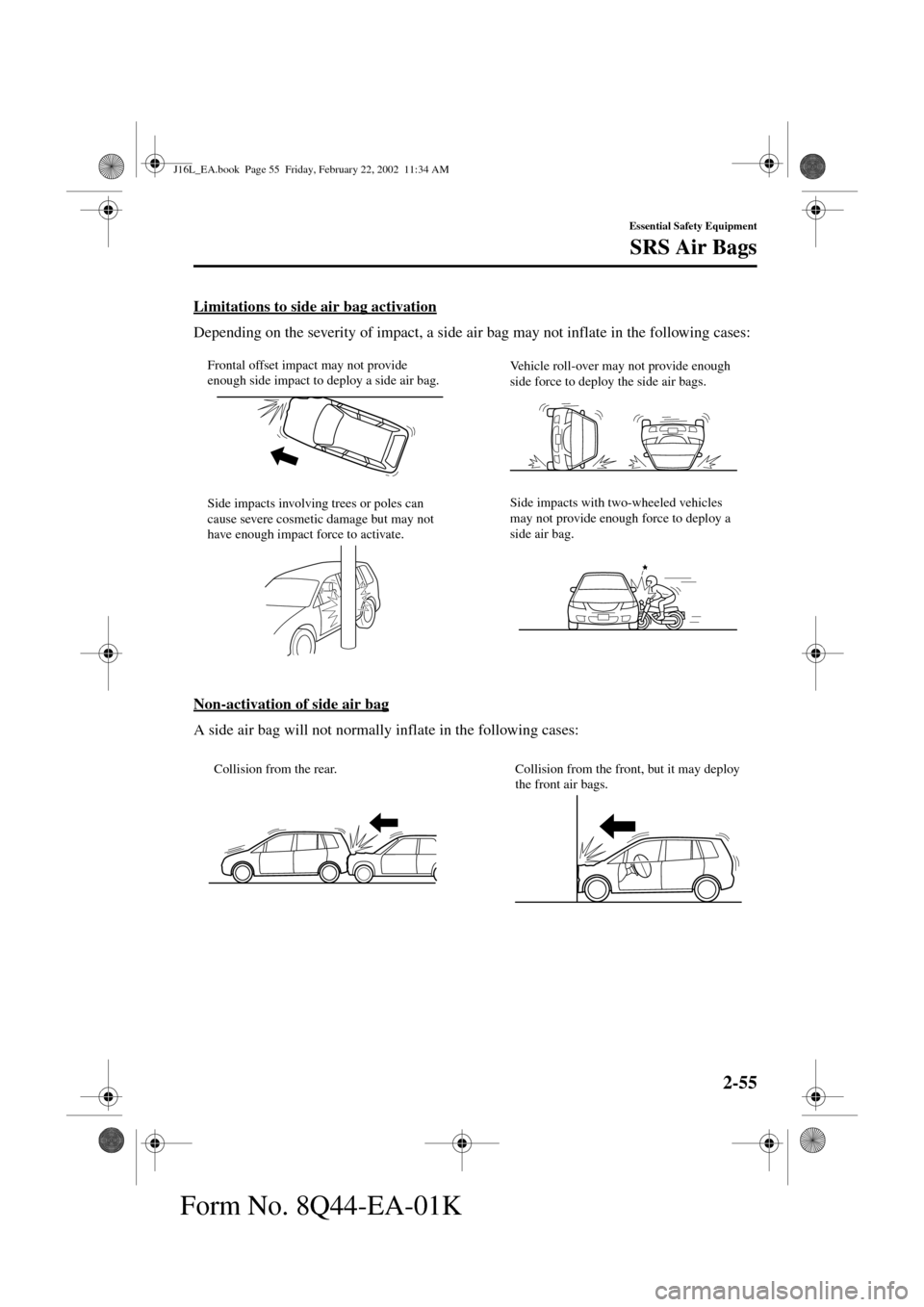

Limitations to side air bag activation
Depending on the severity of impact, a side air bag may not inflate in the following cases:
Non-activation of side air bag
A side air bag will not normally inflate in the following cases:
Side impacts involving trees or poles can
cause severe cosmetic damage but may not
have enough impact force to activate.Side impacts with two-wheeled vehicles
may not provide enough force to deploy a
side air bag. Vehicle roll-over may not provide enough
side force to deploy the side air bags. Frontal offset impact may not provide
enough side impact to deploy a side air bag.
Collision from the rear. Collision from the front, but it may deploy
the front air bags.
J16L_EA.book Page 55 Friday, February 22, 2002 11:34 AM

2-56
Essential Safety Equipment
SRS Air Bags
Form No. 8Q44-EA-01K

Constant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
•SAS unit
•Air bag modules
•Side air bag crash sensor
•Front seat belt pretensioners
•Related wiring
A diagnostic module continuously
monitors the systems’ readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.

Air Bag/Front Seat Belt
Pretensioner Systems Warning
Light
If the air bag system is OK, the warning
light comes on when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds it
goes out.
A system malfunction is indicated when
the warning light constantly flashes, stays
on or doesn’t come on at all. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.

Maintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
•The air bag system warning light
flashes.
•The air bag system warning light stays
on.
•The air bag system warning light stays
off when the ignition switch is turned
to the ON position.
•The air bags inflate.
Self-Servicing the Air Bag Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag
could accidentally activate or become
disabled. This could cause serious
injuries. Never tamper with the
systems and always have an
Authorized Mazda Dealer perform all
servicing and repairs.
WARNING
J16L_EA.book Page 56 Friday, February 22, 2002 11:34 AM

2-57
Essential Safety Equipment
SRS Air Bags
Form No. 8Q44-EA-01K
Damaged Air Bag Sensors:
Driving with damaged air bag sensors
is dangerous. A collision, even one
not strong enough to inflate the air
bags, could damage the sensors. If
there was a subsequent collision, a
damaged sensor would not inflate the
air bags. Always have an Authorized
Mazda Dealer inspect the air bag
systems after a collision.
Removing Interior Parts:
Removing any components such as
the front seat, front dashboard, the
steering wheel or parts containing air
bag parts or sensors is dangerous.
These parts contain essential air bag
parts. The air bag could accidentally
activate and cause serious injuries.
Always have an Authorized Mazda
Dealer remove these parts.
Air Bag Disposal:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all
safety procedures are followed, injury
can result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
WARNING
J16L_EA.book Page 57 Friday, February 22, 2002 11:34 AM

2-58
Form No. 8Q44-EA-01K
J16L_EA.book Page 58 Friday, February 22, 2002 11:34 AM

3-1
Form No. 8Q44-EA-01K
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks
.......................................................................... 3- 2
Keys ......................................................................................... 3- 2
Keyless Entry System .............................................................. 3- 3
Door Locks .............................................................................. 3- 8
Liftgate .................................................................................... 3-18
Power Windows ....................................................................... 3-19
Rear Quarter Windows ............................................................ 3-22
Fuel-Filler Lid and Cap ........................................................... 3-22
Hood ........................................................................................ 3-24
Sunroof .................................................................................... 3-25
Security System
........................................................................... 3-27
Immobilizer System ................................................................ 3-27
Theft-Deterrent System ........................................................... 3-29
Steering Wheel and Mirrors
...................................................... 3-31
Steering Wheel ........................................................................ 3-31
Mirrors ..................................................................................... 3-31
J16L_EA.book Page 1 Friday, February 22, 2002 11:34 AM

3-2
Knowing Your Mazda
Form No. 8Q44-EA-01K
Doors and Locks
The keys operate all locks.
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
Also write down the code number and
keep it in another safe and handy place,
but not in the vehicle.
If your key is lost, consult your
Authorized Mazda Dealer with the code
number ready.Keys
Keys and Children:
Leaving children in a vehicle with the
ignition key is dangerous. This could
result in someone being badly injured
or even killed. They could play with
power windows or other controls, or
even make the vehicle move. Don’t
leave the keys in your vehicle with
children.
(With immobilizer system)
•To avoid damage to the key, do not:
Drop the key.
Get the key wet.
Expose the key to any kind of
magnetic field.
Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
•When starting the engine, do not let
the following materials touch the
key grip. The engine may not start:
Spare keys.
Keys for other vehicles equipped
with an immobilizer system.
Metal objects that touch or pass
through the hole in the key.
Devices for electronic purchases,
and security passage.
WARNING
CAUTION
Key code number plate
Without immobilizer system
Key code number plate
With immobilizer system
J16L_EA.book Page 2 Friday, February 22, 2002 11:34 AM

3-3
Knowing Your Mazda
Doors and Locks
Form No. 8Q44-EA-01K
This system locks and unlocks the doors
and the liftgate.
It can also help you signal for attention in
an emergency.
Opening and closing of the power sliding
doors with the keyless entry system
transmitter is also possible on power
sliding door-equipped vehicles.
Press the button slowly and accurately.
Keyless Entry System
To avoid damage to the transmitter, do
not:
•Drop it.
•Get it wet.
•Disassemble it.
•Expose it to heat or sunlight.
CAUTION
NOTE
•The keyless entry system is
designed to operate up to about 2.5
m (8 ft) from the center of the
vehicle, but this may vary because
of local conditions.
•The system doesn’t operate when
the ignition switch is in the ON
position.
•If the transmitter does not operate
when pressing a button or the
operation range becomes too small,
the battery may be dead. To install a
new battery, refer to Maintenance
(page 3-6).
•Additional transmitters can be
obtained at an Authorized Mazda
Dealer. Up to 3 transmitters can be
used with the keyless entry system
per vehicle. Bring all transmitters to
an Authorized Mazda Dealer when
the electronic codes need to be
reset.
J16L_EA.book Page 3 Friday, February 22, 2002 11:34 AM

3-4
Knowing Your Mazda
Doors and Locks
Form No. 8Q44-EA-01K

TransmitterLock button
To lock the doors and the liftgate, press
the LOCK button and the hazard warning
lights will flash once.
To confirm that all the doors and the
liftgate have been locked, press the LOCK
button again within 5 seconds. If they are
closed and locked, the horn will sound
and the hazard warning lights will flash
once.
Unlock button
To unlock the driver’s door, press the
UNLOCK button and the hazard warning
lights will flash twice.
To unlock all the doors and the liftgate,
press the UNLOCK button again within 5
seconds and the hazard warning lights
will flash twice.
Sliding door transmitter buttons
If your Mazda has power sliding doors
(page 3-12), the transmitter can open/
close the sliding doors.
NOTE
This device complies with part 15 of
the FCC Rules and with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation. (Outside
transmissions may momentarily
interfere with the device’s operation.)
Lock button
Right sliding door button
Left sliding door buttonUnlock button
Panic button
With power sliding doors
Lock button
Unlock button
Panic button
Without power sliding doors
NOTE
Confirm that all the doors and the
liftgate are locked visually or aurally
by use of the double click.
NOTE
After unlocking with the transmitter,
all doors or the liftgate will
automatically lock if one of the doors
or the liftgate is not opened within
about 30 seconds.
J16L_EA.book Page 4 Friday, February 22, 2002 11:34 AM
