MAZDA MODEL MPV 2002 Owners Manual (in English)

4-1
Form No. 8Q44-EA-01K
4Before Driving Your Mazda
Important information about driving your Mazda.
Fuel and Engine Exhaust Precautions
....................................... 4- 2
Fuel Requirements ................................................................... 4- 2
Emission Control System ........................................................ 4- 3
Engine Exhaust (Carbon Monoxide) ....................................... 4- 5
Before Starting the Engine
......................................................... 4- 6
Before Getting In ..................................................................... 4- 6
After Getting In ....................................................................... 4- 6
Driving Tips
................................................................................. 4- 7
Break-In Period ....................................................................... 4- 7
Money-Saving Suggestions ..................................................... 4- 7
Hazardous Driving ................................................................... 4- 8
Rocking the Vehicle ................................................................. 4- 8
Winter Driving ......................................................................... 4- 9
Driving In Flooded Area ......................................................... 4-10
Overloading ............................................................................. 4-11
To w i n g
.......................................................................................... 4-12
Trailer Towing ......................................................................... 4-12
J16L_EA.book Page 1 Friday, February 22, 2002 11:34 AM

4-2
Before Driving Your Mazda
Form No. 8Q44-EA-01K
Fuel and Engine Exhaust Precautions
Vehicles with catalytic converters must use ONLY UNLEADED FUEL, which will reduce
exhaust emissions and keep spark plug fouling to a minimum.
Fuel with a lower rating could cause the emission control system to lose effectiveness. It
could also cause engine knocking and serious engine damage.
Your Mazda will perform best with fuel listed in the table.
*U.S. federal law requires that octane ratings be posted on gasoline station pumps.
Haiti, Nicaragua, Venezuela
Use only premium unleaded fuel: 91 [ (R+M)/2 method] or above (96 RON or above)
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10%. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name "Gasohol".
Vehicle damage and drivability problems resulting from the use of the following may not
be covered by the Mazda warranty.
•Gasohol containing more than 10% ethanol.
•Gasoline or gasohol containing methanol.
•Leaded fuel or leaded gasohol.
Fuel Requirements
Fuel Octane Rating* (Anti-knock index)
Regular unleaded fuel 87 [ (R+M)/2 method] or above (91 RON or above)
•USE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter. The lead will accumulate on the
oxygen sensor and the catalyst inside the converter. This will result in a malfunction
of the emission control system, causing poor performance.
•Your vehicle can only use oxygenated fuels containing no more than 10% ethanol by
volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of any
kind if your vehicle engine is performing poorly.
•Never add fuel system additives. Never add cleaning agents other than those specified
by Mazda. Other cleaning agents and additives may damage the system. Consult an
Authorized Mazda Dealer.
CAUTION
J16L_EA.book Page 2 Friday, February 22, 2002 11:34 AM

4-3
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Form No. 8Q44-EA-01K
Your vehicle is equipped with an emission control system (the catalytic converter is part of
this system) that enables your vehicle to comply with existing exhaust emissions
requirements.
Emission Control System
Parking Over Things That Burn:
Parking over or near anything inflammable, such as dry grass, is dangerous. Even
with the engine turned off, the exhaust system could ignite it because the exhaust
system gets very hot during normal use. A resulting fire could cause serious injury or
death. Never park over or near anything inflammable.
Ignoring the following precautions could cause lead to accumulate on the catalyst inside
the converter or cause the converter to get very hot. Either condition will damage the
converter and cause poor performance.
•USE ONLY UNLEADED FUEL.
•Don’t drive your Mazda with any sign of engine malfunction.
•Don’t coast with the ignition switch turned off.
•Don’t descend steep grades in gear with the ignition switch turned off.
•Don’t operate the engine at high idle for more than 5 minutes.
•Don’t tamper with the emission control system. All inspections and adjustments must
be made by a qualified technician.
•Don’t try to push-start or pull-start your vehicle.
NOTE
Under U.S. federal law, any modification to the original-equipment emission control
system before the first sale and registration of a vehicle is subject to penalties. In some
states, such modification made on a used vehicle is also subject to penalties.
WARNING
CAUTION
J16L_EA.book Page 3 Friday, February 22, 2002 11:34 AM

4-4
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Form No. 8Q44-EA-01K
NOTE
After driving some distance and turning off the engine, the sound of a valve opening and
closing can be heard near the lower left part of the driver's seat or below the driver-side
door from the outside, however this does not indicate an abnormality. Your vehicle has a
self-checking device and it operates after turning off the engine.
J16L_EA.book Page 4 Friday, February 22, 2002 11:34 AM

4-5
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Form No. 8Q44-EA-01K

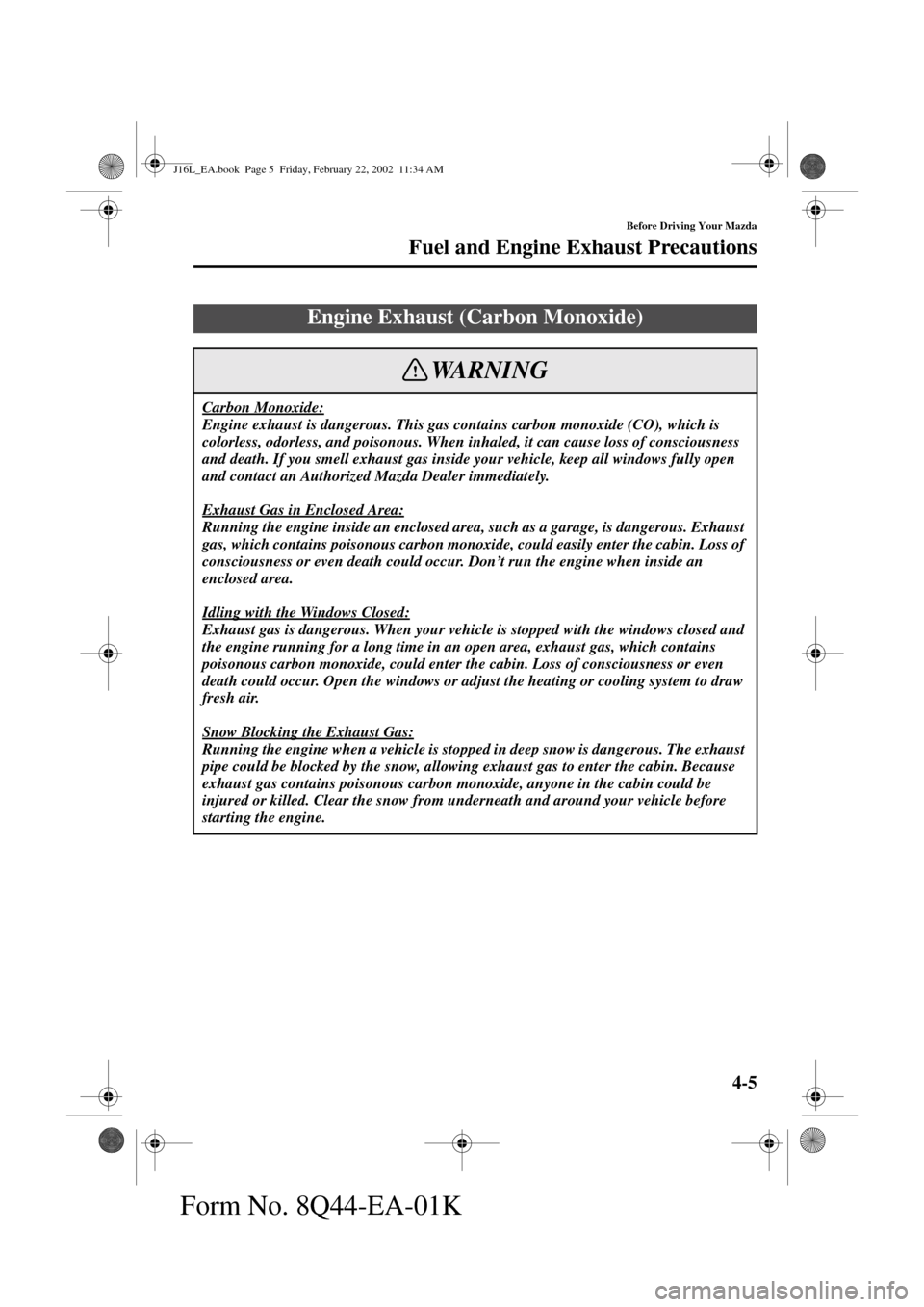

Engine Exhaust (Carbon Monoxide)
Carbon Monoxide:
Engine exhaust is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness
and death. If you smell exhaust gas inside your vehicle, keep all windows fully open
and contact an Authorized Mazda Dealer immediately.
Exhaust Gas in Enclosed Area:
Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss of
consciousness or even death could occur. Don’t run the engine when inside an
enclosed area.
Idling with the Windows Closed:
Exhaust gas is dangerous. When your vehicle is stopped with the windows closed and
the engine running for a long time in an open area, exhaust gas, which contains
poisonous carbon monoxide, could enter the cabin. Loss of consciousness or even
death could occur. Open the windows or adjust the heating or cooling system to draw
fresh air.
Snow Blocking the Exhaust Gas:
Running the engine when a vehicle is stopped in deep snow is dangerous. The exhaust
pipe could be blocked by the snow, allowing exhaust gas to enter the cabin. Because
exhaust gas contains poisonous carbon monoxide, anyone in the cabin could be
injured or killed. Clear the snow from underneath and around your vehicle before
starting the engine.
WARNING
J16L_EA.book Page 5 Friday, February 22, 2002 11:34 AM

4-6
Before Driving Your Mazda
Form No. 8Q44-EA-01K
Before Starting the Engine
•Be sure the windows, outside mirror(s),
and outside lights are clean.
•Inspect inflation pressures and
condition of tires.
•Look under the vehicle for any sign of
a leak.
•If you plan to back up, make sure
nothing will be in your way.•Are all doors closed and locked?
•Are the inside and outside mirrors
adjusted?
•Is everyone’s seat belt fastened?
•Do all the lights work?
•Check all gauges.
•Check all warning lights when the
ignition switch is turned to the ON
position.
•Release the parking brake and make
sure the parking brake warning light
goes off.
Always be thoroughly familiar with your
Mazda.
Before Getting In
NOTE
Engine oil, engine coolant, brake fluid,
washer fluid, and other fluid levels
should be inspected daily, weekly, or at
refueling, depending on the fluid. See
Maintenance, Section 8.
After Getting In
J16L_EA.book Page 6 Friday, February 22, 2002 11:34 AM

4-7
Before Driving Your Mazda
Form No. 8Q44-EA-01K
Driving Tips
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of your Mazda.
•Don’t race the engine.
•Don’t maintain one constant speed for
long.
•Don’t drive constantly at full-throttle or
high engine rpm for extended periods
of time.
•Avoid unnecessary hard stops.
•Avoid full-throttle starts.
•Don’t tow a trailer.How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
•Avoid long warm-ups. Once the engine
runs smoothly, begin driving.
•Avoid fast starts.
•Keep the engine tuned. Follow the
maintenance schedule (page 8-3) and
have an Authorized Mazda Dealer
perform inspections and servicing.
•Use the air conditioner only when
necessary.
•Slow down on rough roads.
•Keep the tires properly inflated.
•Don’t carry unnecessary weight.
•Don’t rest your foot on the brake pedal
while driving.
•Keep the wheels in correct alignment.
•Keep windows closed at high speeds.
•Slow down when driving in crosswinds
and headwinds.
Break-In PeriodMoney-Saving Suggestions
Coasting:
Turning off the engine to coast down
a hill is dangerous. This causes the
loss of power steering and power
brake control. Any loss of steering or
braking control could cause an
accident. Never turn off the engine
and coast down a hill.
WARNING
J16L_EA.book Page 7 Friday, February 22, 2002 11:34 AM

4-8
Before Driving Your Mazda
Driving Tips
Form No. 8Q44-EA-01K
When driving on ice or in water, snow,
mud, sand, or similar hazard:
•Be cautious and allow extra distance
for braking.
•Avoid sudden braking and quick
steering.
•If your vehicle is not equipped with
ABS, brake with the pedal by using a
light up-down motion. Don’t hold the
pedal down constantly.
If your vehicle is equipped with ABS,
don’t pump the brakes. Continue to
press down on the brake pedal.
•If you get stuck, shift to 2 or 3 and
accelerate slowly. Don’t spin the front
wheels.
•For more traction in starting, use sand,
rock salt, chains, carpeting, or other
nonslip material under the front
wheels.If you must rock the vehicle to free it from
snow, sand, or mud, depress the
accelerator slightly and slowly move the
shift lever from D to R.
Hazardous Driving
Downshifting on Slippery Surfaces:
Downshifting into lower gear while
driving on slippery surfaces is
dangerous. The sudden change in tire
speed could cause the tires to skid.
This could lead to loss of vehicle
control and an accident. If it is
necessary to downshift on slippery
surfaces, be very careful.
NOTE
Use snow chains only on the front
wheels.
WARNING
Rocking the Vehicle
Spinning the Wheels:
When the vehicle is stuck, spinning
the wheels at high speed is dangerous.
The spinning tire could overheat and
explode. This could cause serious
injuries. Don’t spin the wheels at
more than 56 km/h (35 mph), and
don’t allow anyone to stand behind a
wheel when pushing the vehicle.
Too much rocking may cause engine
overheating, transaxle failure, and tire
damage.
WARNING
CAUTION
J16L_EA.book Page 8 Friday, February 22, 2002 11:34 AM

4-9
Before Driving Your Mazda
Driving Tips
Form No. 8Q44-EA-01K
•Carry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag
of sand or salt.
Ask a Mazda dealer to perform the
following precautions:
•Have the proper ratio of antifreeze in
the radiator.
•Inspect the battery and its cables. Cold
reduces battery capacity.
•Use only cold-weather engine oil
(page 8-9).
•Inspect the ignition system for damage
and loose connections.
•Use washer fluid made with
antifreeze—but don’t use engine
coolant antifreeze for washer fluid
(page 8-16).
•Don’t use the parking brake in freezing
weather as the parking brake may
freeze. Instead, shift to P and block the
rear wheels.

Snow Tires
Your vehicle is originally equipped with
all season radials designed to be used all
year around. In some extreme climates
you may find it necessary to replace them
with snow tires during the winter months
to further improve traction on snow and
ice covered roads.
Use snow tires on all four wheels
Don’t go faster than 120 km/h (75 mph).
Inflate snow tires 28 kPa (0.3 kgf/cm2, 4
psi) more than recommended on the tire
pressure label (driver’s door), but never
more than the maximum cold-tire
pressure shown on the tires.
Winter Driving
Mixing Tire Types:
Using tires different in size or type is
dangerous. Your vehicle’s handling
could be greatly affected and result in
an accident. Use only the same size
and type tires (snow, radial, or non-
radial) on all four wheels.
Check local regulations before using
studded tires.
WARNING
CAUTION
J16L_EA.book Page 9 Friday, February 22, 2002 11:34 AM

4-10
Before Driving Your Mazda
Driving Tips
Form No. 8Q44-EA-01K

Tire Chains
Check local regulations before using tire
chains.
Install the chains on the front tires.
Don’t use chains on the rear tires.
Use only SAE Class "S" chains, and make
sure they fit.
Installing the chains
1. Remove the wheel covers, or the chain
bands will scratch them.
2. Secure the chains on the front tires as
tightly as possible. Always follow the
chain manufacturer’s instructions.
3. Retighten the chains after driving
1/2—1 km (1/4—1/2 mile). •Chains may scratch or chip
aluminum wheels. Install tire chains
on steel wheels only.
•Chains may affect handling.
•Don’t go faster than 50 km/h (30
mph) or the chain manufacturer’s
recommended limit, whichever is
lower.
•Drive carefully and avoid bumps,
holes, and sharp turns.
•Avoid locked-wheel braking.
•Don’t use chains on the temporary
tire; it may result in damage to the
vehicle and to the tire.
•Don’t use chains on roads that are
free of snow or ice. The tires and
chains could be damaged.
CAUTION
Driving In Flooded Area
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been
affected. Dry the brakes by driving
very slowly and applying the brakes
lightly until brake performance
returns to normal.
Make sure water does not enter the
vehicle interior or the engine area. The
vehicle interior could become wet or
the engine could be damaged.
WARNING
CAUTION
J16L_EA.book Page 10 Friday, February 22, 2002 11:34 AM
