wheel MAZDA MODEL MPV 2005 (in English) Owner's Manual

Black plate (143,1)
qABS Warning Lightí
The warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
WARNING
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don't drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
NOTE
lWhen the engine is jump-started to
charge the battery, uneven rpm
occurs and the ABS warning light
comes on. This is due to a weak
battery, not a malfunction.
Recharge the battery.
lWhen the ABS warning light
remains illuminated, the power
sliding doors cannot be opened
electrically. Refer to“Power Sliding
Doors”(page 3-12).
qBrake Pad Wear Indicator
When the disc brake pads become worn,
the built-in wear indicators contact the
disc plates. This causes a screeching noise
to warn that the pads should be replaced.
When you hear this noise, consult an
Authorized Mazda Dealer as soon as
possible.
Driving Your Mazda
Starting and Driving
5-7íSome models. Mazda MPV_8T50-EA-04G_Edition1 Page143
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (145,1)
Automatic Transaxle Controls
Indicates the shift lever can be shifted freely into any position.
Indicates that you must pull the shift lever toward you to shift.
Indicates that you must depress the brake pedal and pull the shift lever toward
you to shift (The ignition switch must be in the ACC or ON position).
Various Lockouts:
Overdrive button
For turning the
overdrive off or on
qTransaxle Ranges
The shift lever must be in P or N to
operate the starter.
NOTE
When shifting the automatic transaxle
in extremely cold temperature, the shift
pattern indicator will respond more
slowly than under normal conditions.
P (Park)
P locks the transaxle and prevents the
front wheels from rotating.
WARNING
Holding the Vehicle with P:
Only setting the shift lever to the P
position without using the parking
brake to hold the vehicle is dangerous.
If P fails to hold, the vehicle could
move and cause an accident. To hold
the vehicle, set the shift lever to P AND
set the parking brake.
Driving Your Mazda
Starting and Driving
5-9
Mazda MPV_8T50-EA-04G_Edition1 Page145
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

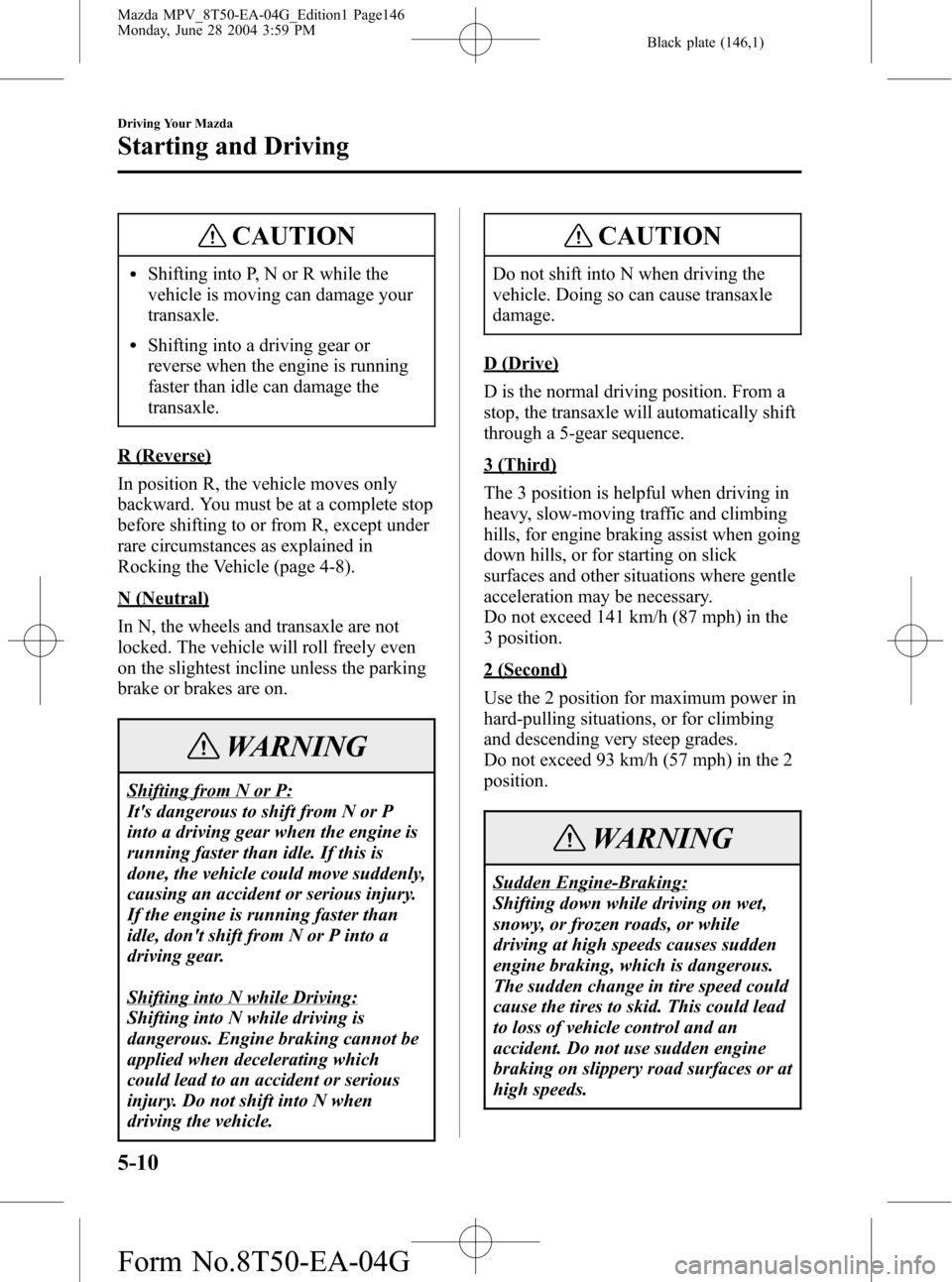

Black plate (146,1)
CAUTION
lShifting into P, N or R while the
vehicle is moving can damage your
transaxle.
lShifting into a driving gear or
reverse when the engine is running
faster than idle can damage the
transaxle.
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete stop
before shifting to or from R, except under
rare circumstances as explained in
Rocking the Vehicle (page 4-8).
N (Neutral)
In N, the wheels and transaxle are not
locked. The vehicle will roll freely even
on the slightest incline unless the parking
brake or brakes are on.
WARNING
Shifting from N or P:
It's dangerous to shift from N or P
into a driving gear when the engine is
running faster than idle. If this is
done, the vehicle could move suddenly,
causing an accident or serious injury.
If the engine is running faster than
idle, don't shift from N or P into a
driving gear.
Shifting into N while Driving:
Shifting into N while driving is
dangerous. Engine braking cannot be
applied when decelerating which
could lead to an accident or serious
injury. Do not shift into N when
driving the vehicle.
CAUTION
Do not shift into N when driving the
vehicle. Doing so can cause transaxle
damage.
D (Drive)
D is the normal driving position. From a
stop, the transaxle will automatically shift
through a 5-gear sequence.
3 (Third)
The 3 position is helpful when driving in
heavy, slow-moving traffic and climbing
hills, for engine braking assist when going
down hills, or for starting on slick
surfaces and other situations where gentle
acceleration may be necessary.
Do not exceed 141 km/h (87 mph) in the
3 position.
2 (Second)
Use the 2 position for maximum power in
hard-pulling situations, or for climbing
and descending very steep grades.
Do not exceed 93 km/h (57 mph) in the 2
position.
WARNING
Sudden Engine-Braking:
Shifting down while driving on wet,
snowy, or frozen roads, or while
driving at high speeds causes sudden
engine braking, which is dangerous.
The sudden change in tire speed could
cause the tires to skid. This could lead
to loss of vehicle control and an
accident. Do not use sudden engine
braking on slippery road surfaces or at
high speeds.
5-10
Driving Your Mazda
Starting and Driving
Mazda MPV_8T50-EA-04G_Edition1 Page146
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (149,1)
Power Steering
Power steering is only operable when the
engine is running. If the engine is off or if
the power steering system is inoperable,
you can still steer, but it requires more
physical effort.
If the steering feels rigid during normal
driving, consult an Authorized Mazda
Dealer.
CAUTION
Never hold the steering wheel to the
extreme left or right for more than 5
seconds with the engine running.
This could damage the power steering
system.
Cruise Controlí
With cruise control, you can set and
automatically maintain any speed of more
than about 40 km/h (25 mph).
WARNING
Cruise Control Use:
Using cruise control in the following
conditions could cause you to lose
control of the vehicle:
lHilly terrainlSteep inclineslHeavy or unsteady trafficlSlippery or winding roadslSimilar restrictions that require
inconsistent speed
Don't use cruise control in these
situations.
qCruise Main Indicator Light
This light comes on when the ON/OFF
switch is pressed and the cruise control
system is activated.
Driving Your Mazda
Starting and Driving
5-13íSome models. Mazda MPV_8T50-EA-04G_Edition1 Page149
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (153,1)
lPress the CANCEL button.
The system is off when the ignition is off.
NOTE
Cruise control will cancel at about 15
km/h (9 mph) below the preset speed or
below 40 km/h (25 mph).
Traction Control System
(TCS)
í
The Traction Control System (TCS)
enhances traction and safety by
controlling engine torque. When the TCS
detects driving wheel slippage, it lowers
engine torque to prevent loss of traction.
This means that on a slick surface, the
engine adjusts automatically to provide
optimum power to the drive wheels
without causing them to spin and lose
traction.
WARNING
TCS and Unsafe Driving:
The traction control system (TCS)
cannot compensate for unsafe and
reckless driving, excessive speed,
tailgating (following another vehicle
too closely), and hydroplaning
(reduced tire friction and road contact
because of water on the road surface).
You can still have an accident. So
don't rely on the traction control
system as a substitute for safe driving.
TCS and Snow and Ice:
Driving without proper traction
devices on snow and/or ice-covered
roads is dangerous. The traction
control system (TCS) alone cannot
provide adequate traction and you
could still have an accident. Use snow
tires or tire chains and drive at
reduced speeds when roads are
covered with ice and/or snow.
Driving Your Mazda
Starting and Driving
5-17íSome models. Mazda MPV_8T50-EA-04G_Edition1 Page153
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (159,1)
qFuel Gauge
The fuel gauge shows approximately how
much fuel is in the tank. We recommend
keeping the tank over 1/4 full. When the
low fuel warning light illuminates or
when the needle is near E, refuel as soon
as possible.
Low fuel
warning light
qDashboard Illumination
When the headlight switch is in theor
position, rotate the thumb-wheel to
adjust the brightness of the dashboard
lights.
Bright
Dim
Driving Your Mazda
Instrument Cluster and Indicators
5-23
Mazda MPV_8T50-EA-04G_Edition1 Page159
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (162,1)
qBrake System Warning Light
This warning has the following functions:
Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Low brake fluid level warning/
Electronic brake force distribution
system warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
Low brake fluid level warning
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-15).
2. After adding fluid, check the light
again.
If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.Even if the light goes off, have your brake
system inspected as soon as possible.
Electronic brake force distribution
system warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light on.
In this case, the ABS warning light comes
on at the same time (page 5-28).
WARNING
Brake Warning Light:
Driving with the brake system warning
light on is dangerous. It indicates that
your brakes may not work at all or
that they could completely fail at any
time. If this light remains on, after
checking that the parking brake is
fully released, have the brakes
inspected immediately. Don't drive
with this light on, and contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible.
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don't drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
5-26
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Mazda MPV_8T50-EA-04G_Edition1 Page162
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (164,1)
lThe fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on or
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
qABS Warning Lightí
The warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
WARNING
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don't drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
NOTE
lWhen the engine is jump-started to
charge the battery, uneven rpm
occurs and the ABS warning light
comes on. This is due to a weak
battery, not a malfunction.
Recharge the battery.
lWhen the ABS warning light
remains illuminated, the power
sliding doors cannot be opened
electrically. Refer to“Power Sliding
Doors”(page 3-12).
5-28
Driving Your Mazda
íSome models.
Warning/Indicator Lights and Beep Sounds
Mazda MPV_8T50-EA-04G_Edition1 Page164
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (174,1)
Horn
To sound the horn, press around the
mark on the steering wheel.
Hazard Warning Flasher
The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Hazard warning flasher
Depress the hazard warning flasher and all
four turn signals will flash.
NOTE
lThe turn signals don't work when the
hazard warning lights are on.
lCheck local regulations about the use
of hazard warning lights while the
vehicle is being towed. They may
forbid it.
5-38
Driving Your Mazda
Switches and Controls
Mazda MPV_8T50-EA-04G_Edition1 Page174
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (175,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 6-2
Operating Tips ........................................................................... 6-2
Vent Operation (Front) .............................................................. 6-3
Control Panel (Front) ................................................................ 6-5
Vent Operation (Rear) ............................................................. 6-10
Control Panel (Rear)
í............................................................ 6-12
Audio System ............................................................................... 6-14
Antenna ................................................................................... 6-14
Operating Tips for Audio System ........................................... 6-14
Audio Set
í............................................................................. 6-21
Audio Control Switch Operation (Steering Wheel)í............. 6-42
Safety Certification ................................................................. 6-44
Interior Equipment ..................................................................... 6-45
Sunvisors ................................................................................. 6-45
Interior Lights ......................................................................... 6-46
Lighter
í.................................................................................. 6-49
Ashtrayí................................................................................. 6-49
Cup Holder .............................................................................. 6-51
Bottle Holder ........................................................................... 6-53
Storage Compartments ............................................................ 6-53
Accessory Sockets
í................................................................ 6-57
6-1íSome models.
Mazda MPV_8T50-EA-04G_Edition1 Page175
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G
