We want to help you get the most driving
pleasure from your vehicle. Your owner's
manual, when read from cover to cover,
can do that in many ways.
Illustrations complement the words of the
manual to best explain how to enjoy your
Mazda. By reading your manual, you can
find out about the features, important
safety information, and driving under
various road conditions.
The above symbol in this manual means
“Do not do this”or“Do not let this
happen”.
Index:A good place to start is the Index,
an alphabetical listing of all information
in your manual.
You'll find several WARNINGs,
CAUTIONs, and NOTEs in the manual.
WARNING
A WARNING indicates a situation in
which serious injury or death could
result if the warning is ignored.
CAUTION
A CAUTION indicates a situation in
which bodily injury or damage to your
vehicle, or both, could result if the
caution is ignored.
NOTE
A NOTE provides information and
sometimes suggests how to make better
use of your vehicle.
The above symbol, located on some parts
of the vehicle, indicates that this manual
contains information related to the part.
Please refer to the manual for a detailed
explanation.
How to Use This Manual
Mazda MPV_8T50-EA-04G_Edition1 Page4
Monday, June 28 2004 3:58 PM
Form No.8T50-EA-04G

Black plate (9,1)
Second-row seat ................................................................................................. page 2-12
Third-row seat ................................................................................................... page 2-20
Front seats ............................................................................................................ page 2-3
Power seat switches ............................................................................................. page 2-8
Seat belt ............................................................................................................. page 2-30
Air bags ............................................................................................................. page 2-56
Power door lock switch ..................................................................................... page 3-10
Power sliding door switch ................................................................................. page 3-12
Power window lock switch ................................................................................ page 3-20
Power window switches .................................................................................... page 3-19
Hood release handle .......................................................................................... page 3-23
Tilt wheel release lever ...................................................................................... page 3-31
Outside mirror switch ........................................................................................ page 3-31
Rearview mirror ................................................................................................. page 3-32
Ignition switch ..................................................................................................... page 5-2
Parking brake ....................................................................................................... page 5-4
AT shift lever ........................................................................................................ page 5-9
Cruise control switches ...................................................................................... page 5-13
TCS-OFF switch ................................................................................................ page 5-17
Instrument cluster .............................................................................................. page 5-20
Lighting control/Turn signals ............................................................................ page 5-33
Wiper and washer lever ..................................................................................... page 5-35
Hazard warning flasher switch .......................................................................... page 5-38
Climate control system ........................................................................................ page 6-2
Rear vents .......................................................................................................... page 6-10
Rear climate control panel ................................................................................. page 6-12
Audio system ..................................................................................................... page 6-14
Audio control switch ......................................................................................... page 6-42
Interior light ....................................................................................................... page 6-46
Map light ........................................................................................................... page 6-47
Glove box .......................................................................................................... page 6-54
Front console ..................................................................................................... page 6-54
Sunvisor ............................................................................................................. page 6-45
Vanity mirror ...................................................................................................... page 6-45
Lighter ............................................................................................................... page 6-49
Ashtray ............................................................................................................... page 6-49
Cup holder ......................................................................................................... page 6-51
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3
Mazda MPV_8T50-EA-04G_Edition1 Page9
Monday, June 28 2004 3:58 PM
Form No.8T50-EA-04G

Black plate (13,1)
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, SRS air bags and
child-restraint systems.
Seats ............................................................................................... 2-2
Seat Arrangements .................................................................... 2-2
Front Seats (Manually Operated Seats) ..................................... 2-3
Front Seats (Electrically Operated Seats) .................................. 2-8
Second-Row Seats .................................................................. 2-12
Third-Row Seat ....................................................................... 2-20
Flat Folding ............................................................................. 2-28
Seat Belt Systems ........................................................................ 2-30
Seat Belt Precautions .............................................................. 2-30
3-Point Type Seat Belt ............................................................ 2-33
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-35
2-Point Type Seat Belt ............................................................ 2-37
Seat Belt Extender ................................................................... 2-38
Seat Belt Warning Light .......................................................... 2-39
Seat Belt Warning Beep .......................................................... 2-40
Child Restraint ............................................................................ 2-41
Child Restraint Precautions ..................................................... 2-41
Installing Child-Restraint Systems .......................................... 2-45
LATCH Child-Restraint Systems ............................................ 2-53
SRS Air Bags ............................................................................... 2-56
Supplemental Restraint Systems (SRS) Precautions ............... 2-56
Supplemental Restraint System Components ......................... 2-60
How the Air Bags Work .......................................................... 2-63
2-1
Mazda MPV_8T50-EA-04G_Edition1 Page13
Monday, June 28 2004 3:58 PM
Form No.8T50-EA-04G

Black plate (15,1)
Front Seats (Manually
Operated Seats)
WARNING
Modification of the Front Seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Damaged Front Seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag components.
If there was a subsequent collision, the
air bag may not deploy which could
lead to injuries. Always have an
Authorized Mazda Dealer inspect the
front seats, front seat belt
pretensioners and air bags after a
collision.
WARNING
Securing the Seats:
Adjustable seats and seatbacks that
are not securely locked are dangerous.
In a sudden stop or collision, the seat
or seatback could move, causing
injury. Make sure the adjustable
components of the seat are locked in
place by attempting to slide the seat
forward and backward and rocking
the seatback.
qSeat Slide
WARNING
Driver's Seat Adjustment:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident. Adjust the
driver's seat only when the vehicle is
stopped.
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Essential Safety Equipment
Seats
2-3
Mazda MPV_8T50-EA-04G_Edition1 Page15
Monday, June 28 2004 3:58 PM
Form No.8T50-EA-04G

Black plate (16,1)
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.

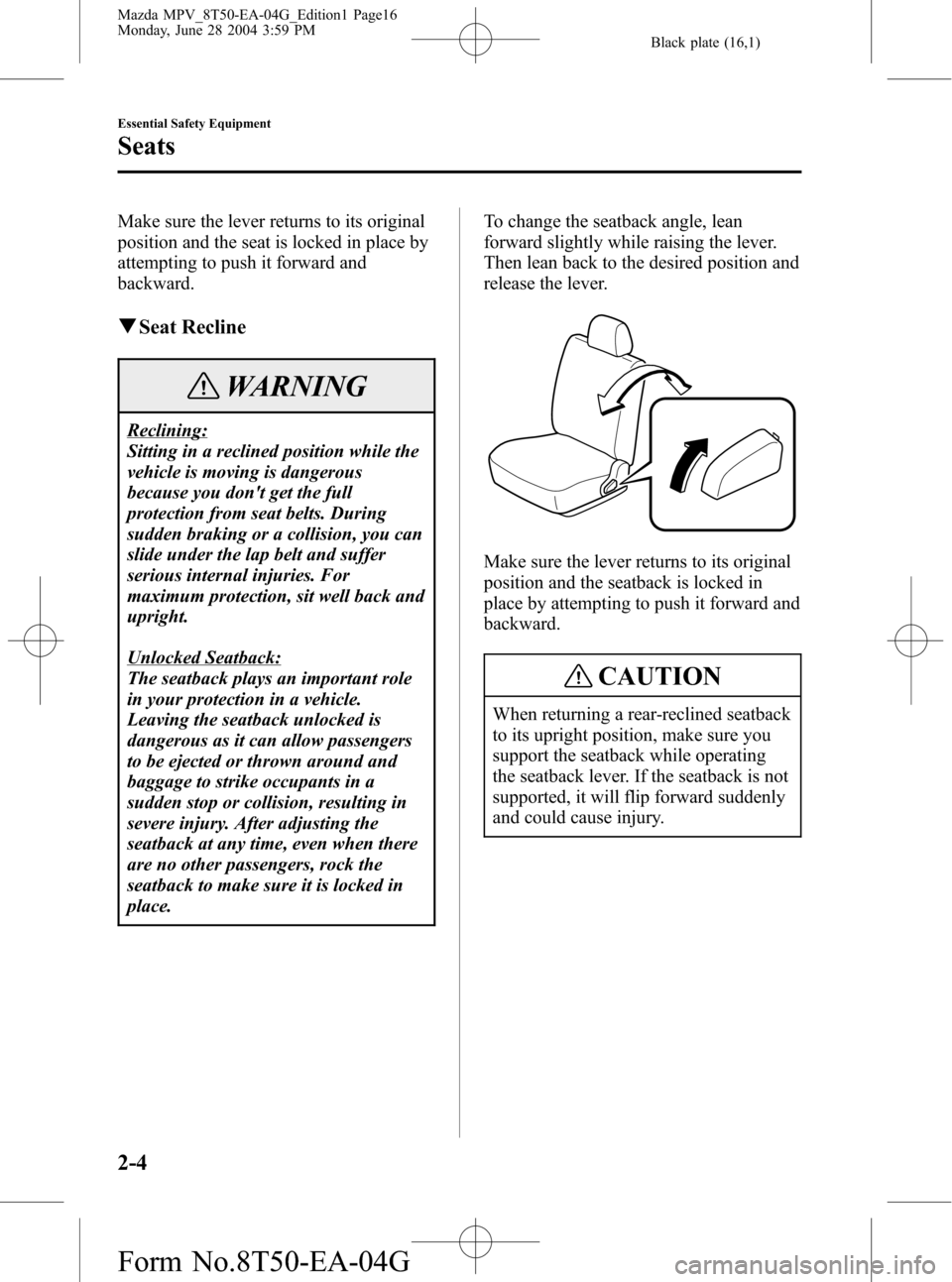

qSeat Recline
WARNING
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you can
slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back and
upright.
Unlocked Seatback:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
CAUTION
When returning a rear-reclined seatback
to its upright position, make sure you
support the seatback while operating
the seatback lever. If the seatback is not
supported, it will flip forward suddenly
and could cause injury.
2-4
Essential Safety Equipment
Seats
Mazda MPV_8T50-EA-04G_Edition1 Page16
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (17,1)
qHeight Adjustment (Driver's
Seat)
The seat-bottom angle can be adjusted by
rotating the dial.
Up
Down Front of seat bottom
Up
Down Rear of seat bottom
qLumber Support Adjustment
(Driver's Seat)í
The amount of lumber support can be
adjusted by rotating dial.
qHead Restraint
WARNING
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision. Always
drive with the head restraints inserted
when seats are being used and make
sure they are properly adjusted.
Essential Safety Equipment
Seats
2-5íSome models. Mazda MPV_8T50-EA-04G_Edition1 Page17
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (18,1)
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
parallel with the top of the passenger's
ears, never the passenger's neck.
Removal
To remove the head restraint, press the
stop-catch release, then pull up on the
head restraint.
qFront Passenger Seat Side Table
WARNING
Using Seat Side Table While Vehicle is
Moving:
Using the seat side table while the
vehicle is moving is dangerous. Hot
liquids could cause scalding if spilled,
or objects could fall causing injury.
Do not use the seat side table while the
vehicle is moving.
Adjusting Front Passenger Seat While
Seat Side Table is in Use:
Adjusting the front passenger seat
forward or rearward while the seat
side table is in use is dangerous. Hot
liquids could cause scalding if spilled,
or objects could fall causing injury.
Do not adjust the front passenger seat
while the seat side table is in use.
The pull-up table on the side of the front
passenger seat is collapsible. The table
can be used when the vehicle is safely
parked.
Pull up the table to use it. After pulling
the table up, push the table downward and
verify that it is locked.
2-6
Essential Safety Equipment
Seats
Mazda MPV_8T50-EA-04G_Edition1 Page18
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (19,1)
NOTE
The table can be expanded rearward by
pulling out the rear end.
When collapsing the table, pull the lever
under the table. After the table is
collapsed, press the table surface to lock it
in place.
qArmrest
The armrest can be used or placed upright.
WARNING
Positioning the Shoulder Belt Over the
Armrest:
Positioning the shoulder portion of a
front seat belt over the armrest is
dangerous as it cannot provide
adequate protection in a collision and
could result in serious injuries. Never
position the shoulder portion of a
front seat belt over the armrest.
Essential Safety Equipment
Seats
2-7
Mazda MPV_8T50-EA-04G_Edition1 Page19
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (20,1)
Front Seats (Electrically
Operated Seats)
WARNING
Modification of the Front Seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Damaged Front Seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag components.
If there was a subsequent collision, the
air bag may not deploy which could
lead to injuries. Always have an
Authorized Mazda Dealer inspect the
front seats, front seat belt
pretensioners and air bags after a
collision.
CAUTION
lThe seat-bottom power adjustment is
operated by motors. Avoid extended
operation because excessive use can
damage the motors.
lTo prevent the battery from running
down, avoid using the power
adjustment when the engine is
stopped. The adjuster uses a large
amount of electric power.
lDon't use the switch to make more
than one adjustment at a time.
qSeat Slide (Driver's Seat)
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
2-8
Essential Safety Equipment
Seats
Mazda MPV_8T50-EA-04G_Edition1 Page20
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (21,1)
qSeat Recline (Driver's Seat)
WARNING
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you can
slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back and
upright.
Change the seatback angle by pressing the
front or rear side of the reclining switch.
Release the switch at the desired position.
qHeight Adjustment (Driver's
Seat)
Front height adjustment
To adjust the front height of the seat-
bottom, raise or lower the front of the
slide lifter switch on the left side of the
seat.
Rear height adjustment
Raise or lower the back of the switch to
adjust the rear height of the seat-bottom.
Height adjustment
Raise the seat-bottom by pulling up on the
center of the switch. Release the switch at
the desired position.
Essential Safety Equipment
Seats
2-9
Mazda MPV_8T50-EA-04G_Edition1 Page21
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G
