WARNING
Using an Extender That is Too Long:
Using an extender that is too long is
dangerous. The seat belt will not fit
properly. In an accident, the seat belt
will not provide adequate protection
and you could be seriously injured.
Don't use the extender or choose one
shorter in length if the distance
between the extender's buckle and the
center of the user's body is less than
15cm (6 in).
NOTE
When not in use, remove the seat belt
extender and store it in the vehicle. If
the seat belt extender is left connected,
the seat belt extender might get
damaged as it will not retract with the
rest of the seat belt and can easily fall
out of the door when not in use and be
damaged the seat belt warning light will
not illuminate and function properly.
Seat Belt Warning Light
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, the seat belt warning light
will remain on until the belt is fastened.
If the system does not operate correctly,
consult an Authorized Mazda Dealer.
Essential Safety Equipment
Seat Belt Systems
2-39
Mazda MPV_8U61-EA-05G_Edition1 Page51
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (52,1)

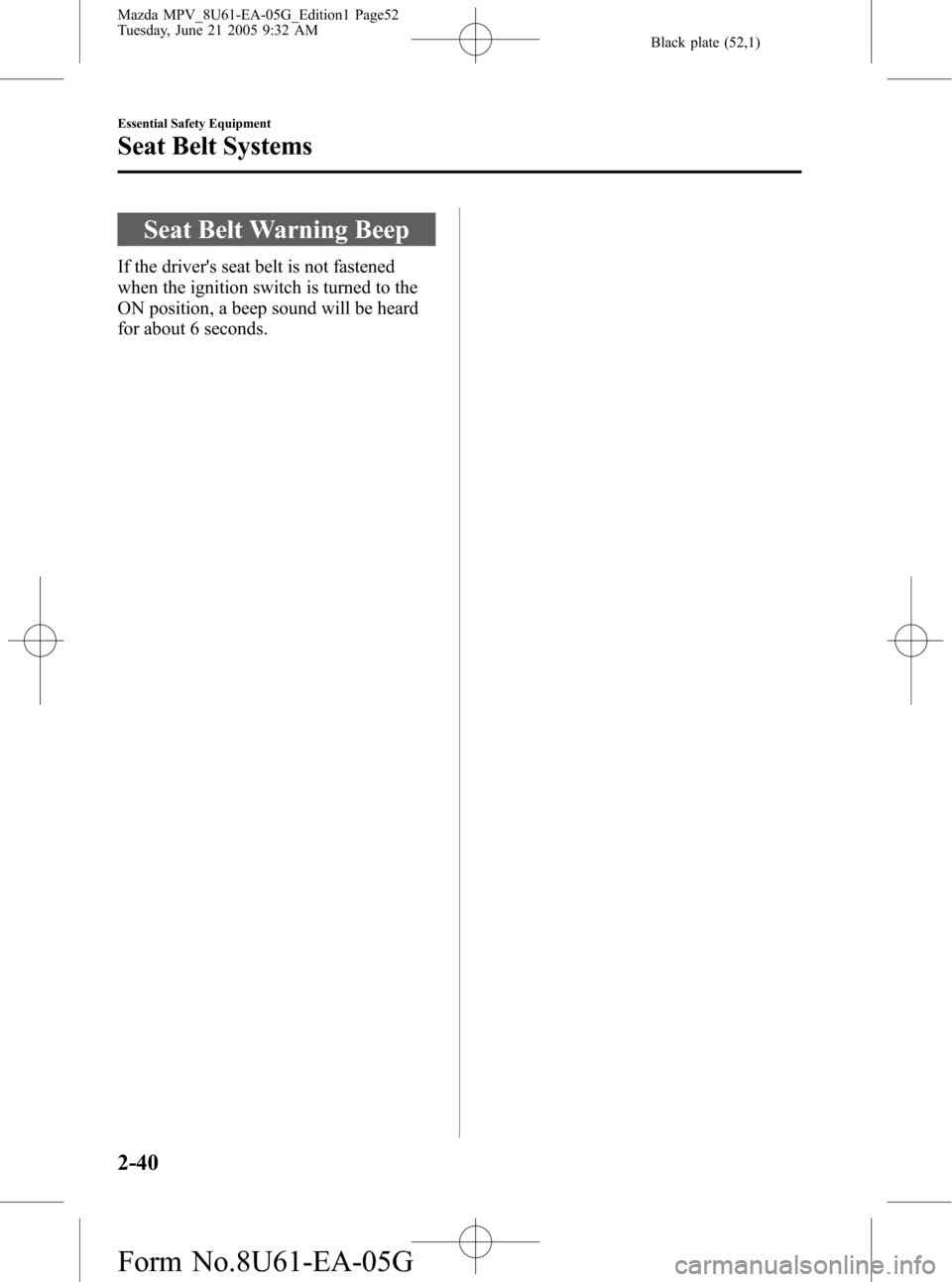

Seat Belt Warning Beep
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep sound will be heard
for about 6 seconds.
2-40
Essential Safety Equipment
Seat Belt Systems
Mazda MPV_8U61-EA-05G_Edition1 Page52
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (53,1)
Child Restraint Precautions
Mazda strongly urges the use of child-restraint systems for children small enough to use
them.
You are required by law to use a child-restraint system for children in the U.S. and Canada.
Check your local and state or provincial laws for specific requirements regarding the safety
of children riding in your vehicle.
Whatever child-restraint system you consider, please pick the appropriate one for the age
and size of the child, obey the law and follow the instructions that come with the individual
child-restraint system.
A child who has outgrown child-restraint systems should sit in the rear and use seat belts,
both lap and shoulder. If the shoulder belt crosses the neck or face, move the child closer to
the center of the vehicle.
Statistics confirm that the rear seats are the best place for all children up to 12 years of age,
and more so with a supplemental restraint system (air bags).
A rear-facing child-restraint system shouldNEVERbe used on the front seat with the air
bag system activated. The front passenger's seat is also the least preferred seat for other
child-restraint systems.
To reduce the chance of injuries caused by deployment of the front passenger air bag, the
front passenger seat weight sensors work as a part of the supplemental restraint system.
This system deactivates the front passenger front and side air bags and also the front
passenger seat belt pretensioner system when the total seated weight on the front passenger
seat is less than approximately 30 kg (66 lb).
When an infant or small child sits on the front passenger seat, the system shuts off the front
passenger front and side air bags and seat belt pretensioner system, so make sure the front
passenger air bag deactivation indicator light illuminates.
Even if the front passenger air bag is shut off, Mazda strongly recommends that children be
properly restrained and child-restraint systems of all kinds are properly secured on the rear
seats which are the best place for children.
For more details, refer to“Front passenger seat weight sensors”(page 2-63).
Essential Safety Equipment
Child Restraint
2-41
Mazda MPV_8U61-EA-05G_Edition1 Page53
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (54,1)
WARNING
Proper Size of Child-Restraint System:
For effective protection in vehicle accidents and sudden stops, a child must be
properly restrained using a seat belt or child-restraint system depending on age and
size. If not, the child could be seriously injured or even killed in an accident.
Follow the Manufacturer's Instructions and Always Keep the Child-Restraint System
Buckled Down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it
could move causing serious injury or death to the child or other occupants. Make sure
any child-restraint system is properly secured in place according to the child-restraint
system manufacturer's instructions. When not in use, remove it from the vehicle or
fasten it with a seat belt, or latch it down to BOTH LATCH lower anchors for LATCH
child-restraint systems and the corresponding tether anchor.
Holding a Child While the Vehicle is Moving:
Holding a child in your arms while the vehicle is moving is extremely dangerous. No
matter how strong the person may be, he or she cannot hold onto a child in a sudden
stop or collision and it could result in serious injury or death to the child or other
occupants. Even in a moderate accident, the child may be exposed to air bag forces
that could result in serious injury or death to the child, or the child may be slammed
into the adult, injuring the adult. Always secure a child in a proper child-restraint
system.
Rear-Facing Child-Restraint System:
Rear-facing child-restraint systems on the front seat are particularly dangerous.
The child-restraint system can be hit by a deploying air bag and moved violently
backward resulting in serious injury or death to the child. Even though you may feel
assured that a front passenger air bag will not deploy based on the fact that the front
passenger air bag deactivation indicator light illuminates, NEVER use a rear-facing
child-restraint system in the front seat with an air bag that could deploy even in a
moderate collision.
2-42
Essential Safety Equipment
Child Restraint
Mazda MPV_8U61-EA-05G_Edition1 Page54
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (55,1)
WARNING
Seating Children in a Child-Restraint System on the Front Passenger Seat:
If your vehicle is equipped with front passenger seat weight sensors, the vehicle is also
equipped with an air bag deactivation indicator light (page 2-51). Even with the front
passenger seat weight sensors, if you must use the front passenger seat for children,
seating a child in a child-restraint system on the front passenger seat under the
following conditions increases the danger of the front passenger air bag deploying
and could result in serious injury or death to the child.
lThe total seated weight of the child with the child-restraint system on the front
passenger seat is approximately 30 kg (66 lb) or more with a child in the child-
restraint system.
lLuggage or other items are placed on the seat with the child in the child-restraint
system.
lA rear passenger or luggage push or pull down on the front passenger seatback.lA rear passenger puts their feet on the front seat rails.lLuggage or other items are placed on the seatback or hung on the assist grip, head
restraint or armrest.
lThe seat is washed.lLiquids are spilled on the seat.lThe front passenger seat is moved backward, pushing into luggage or other items
placed behind it.
lThe front passenger seatback contacts the second-row seat.lLuggage or other items are placed between the front passenger seat and driver seat.lAny accessories which might increase the total seated weight on the front passenger
seat are attached to the front passenger seat.
The designated positions with seat belts on the rear seats are the safest places for
children. Always use seat belts and child restraints.
Children and Seating Position with Side Air Bag:
Allowing anyone to lean over or against the front door is dangerous. If the vehicle is
equipped with side air bags, the impact of an inflating side air bag could cause serious
injury or death to the person. Children are more likely to sleep in the vehicle; when
they do, they are more at risk in the front passenger's seat that has a side air bag
because they may slump over into the path of the seatback-mounted air bag.
Furthermore, leaning over or against the doors could block the side air bag and
eliminate the advantages of supplemental protection. With the front air bag and the
additional side air bag that deploys from outboard shoulder of the front passenger
seat, the rear seat is always a better location for children who are prone to sleeping. If
a child can't be seated in the rear, do not allow the child to lean over or against the
side window, even if the child is seated in a child-restraint system.
Essential Safety Equipment
Child Restraint
2-43
Mazda MPV_8U61-EA-05G_Edition1 Page55
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (56,1)
WARNING
One Belt, One Passenger:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way can't spread the impact forces properly and the two passengers could be
crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time and always operate the vehicle with each occupant properly
restrained.
CAUTION
A seat belt or child-restraint system can become very hot in a closed vehicle during
warm weather. To avoid burning yourself or a child, check them before you or your child
touches them.
NOTE
Your Mazda is equipped with LATCH lower anchors for attachment of specially
designed LATCH child-restraint systems in the rear seats. When using these anchors to
secure a child-restraint system, refer to“LATCH Child-Restraint Systems”(page 2-53).
2-44
Essential Safety Equipment
Child Restraint
Mazda MPV_8U61-EA-05G_Edition1 Page56
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (57,1)
Installing Child-Restraint
Systems
Accident statistics reveal that a child is
safer in the rear seats (both second-row
seats and third-row center seat). The front
passenger's seat is clearly the worst choice
for any child under 12, and with rear-
facing child-restraint systems it is clearly
unsafe due to air bags.
Some child-restraint systems now come
with tethers and therefore must be
installed on the seats that take tethers to
be effective. In your Mazda, tethered
child-restraint systems can only be
accommodated in the three specific
seating positions on the rear seats (both
second-row seats and third-row center
seat).
Some child-restraint systems also employ
specially designed LATCH attachments;
refer to“LATCH Child-Restraint
Systems”(page 2-53).
WARNING
Tethered Child-Restraint Systems
Work Only on Tether-Equipped Rear
Seats:
Installation of a tether equipped child-
restraint system in the front
passenger's seat or the third-row
outboard seats defeats the safety
design of the system and will result in
an increased chance of serious injury
if the child-restraint system goes
forward without benefit of being
tethered.
Place tether equipped child-restraint
systems where there are tether
anchors.
qSecond-Row Seats Child-
Restraint System Installationí
Follow these instructions when using a
child-restraint system, unless you are
attaching a LATCH-equipped child-
restraint system to the rear LATCH lower
anchors. Refer to“LATCH Child-
Restraint Systems”(page 2-53).
NOTE
Follow the child-restraint system
manufacturer's instructions carefully. If
you are not sure whether you have a
LATCH system or tether, check in the
child-restraint system manufacturer's
instructions and follow them
accordingly. Depending on the type of
child-restraint system, it may not
employ seat belts which are in
automatic locking mode.
Essential Safety Equipment
Child Restraint
2-45íSome models. Mazda MPV_8U61-EA-05G_Edition1 Page57
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (58,1)
1. If the seat in which you install a child-
restraint system has a seat slide
function, slide the seat as far back as
possible.
2. Make sure the seatback is securely
latched by pushing it back until it is
fully locked.
3. Secure the child-restraint system with
the lap portion of the lap/shoulder belt.
See the manufacturer's instructions on
the child-restraint system for belt
routing instructions.
4. To get the retractor into the automatic
locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.5. Push the child-restraint system firmly
into the vehicle seat. Be sure the belt
retracts as snugly as possible. Adjust
the angle of the seat belt buckle so that
the belt is not loose. Clicking from the
retractor will be heard during retraction
if the system is in the automatic
locking mode. If the belt does not lock
the seat down tight, repeat this step.
NOTE
Inspect this function before each use of
the child-restraint system. You should
not be able to pull the shoulder belt out
of the retractor while the system is in
the automatic locking mode. When you
remove the child-restraint system, be
sure the belt fully retracts to return the
system to emergency locking mode
before occupants use the seat belts.
6. If your child-restraint system requires
the use of a tether strap, hook and
tighten the tether strap after raising the
head restraint by following the
manufacturer's instructions.
2-46
Essential Safety Equipment
Child Restraint
Mazda MPV_8U61-EA-05G_Edition1 Page58
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (59,1)
Anchor bracket location
Tether strap position
Tether strap
Anchor
bracket
WARNING
Child-Restraint Tether Usage:
Using the tether or tether anchor to
secure anything but a child-restraint
system is dangerous. This could
weaken or damage the tether or tether
anchor and result in injury. Use the
tether and tether anchor only for a
child-restraint system.
Incorrect Attachment of the Tether
Strap:
Routing the tether strap on top of the
head restraint is dangerous. In a
collision, the tether strap could slide
off the head restraint, and loosen the
child-restraint system. The child-
restraint system could move which
may result in death or injury to the
child. Always route the tether strap
between the head restraint posts.
qThird-Row Center Seat Child-
Restraint System Installation
In the third-row seat, tether equipped
child-restraint systems belong only in the
center seat where there is a tether anchor
available.
Follow these instructions when using a
child-restraint system.
1. Secure the child-restraint system with a
lap belt. Adjust for a snug fit by pulling
on the loose end of the belt webbing.
2. If your child-restraint system requires
the use of a tether strap, peel back the
carpeting in the rear luggage
compartment to expose the anchor
bracket (above the marking).
Essential Safety Equipment
Child Restraint
2-47
Mazda MPV_8U61-EA-05G_Edition1 Page59
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (60,1)
Anchor bracket location
3. Hook the tether strap by following the
child-restraint system manufacturer's
instructions.
Tether strap position
Anchor
bracketTether
strap
WARNING
Child-Restraint Tether Usage:
Using the tether or tether anchor to
secure anything but a child-restraint
system is dangerous. This could
weaken or damage the tether or tether
anchor and result in injury. Use the
tether and tether anchor only for a
child-restraint system.
qThird-Row Outboard Seats Child-
Restraint System Installation
The third-row outboard seats cannot
accommodate LATCH-type child-restraint
systems or tethers, therefore these systems
must be installed on the other seat
positions such as the second-row or third-
row center seat. If this not possible,
LATCH-type child-restraint systems or
tethers should be installed using seat belts
depending on whether the child-restraint
manufacturer allows their use without
LATCH attachments and tether anchors.
Follow these manufacturer's instructions
when using a child-restraint system.
NOTE
Follow the child-restraint system
manufacturer's instructions carefully.
Depending on the type of child-restraint
system, it may not employ seat belts
which are in automatic locking mode.
1. Secure the child-restraint system with
the lap portion of the lap/shoulder belt.
See the instructions on the child-
restraint system for belt routing
instructions.
2-48
Essential Safety Equipment
Child Restraint
Mazda MPV_8U61-EA-05G_Edition1 Page60
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G
