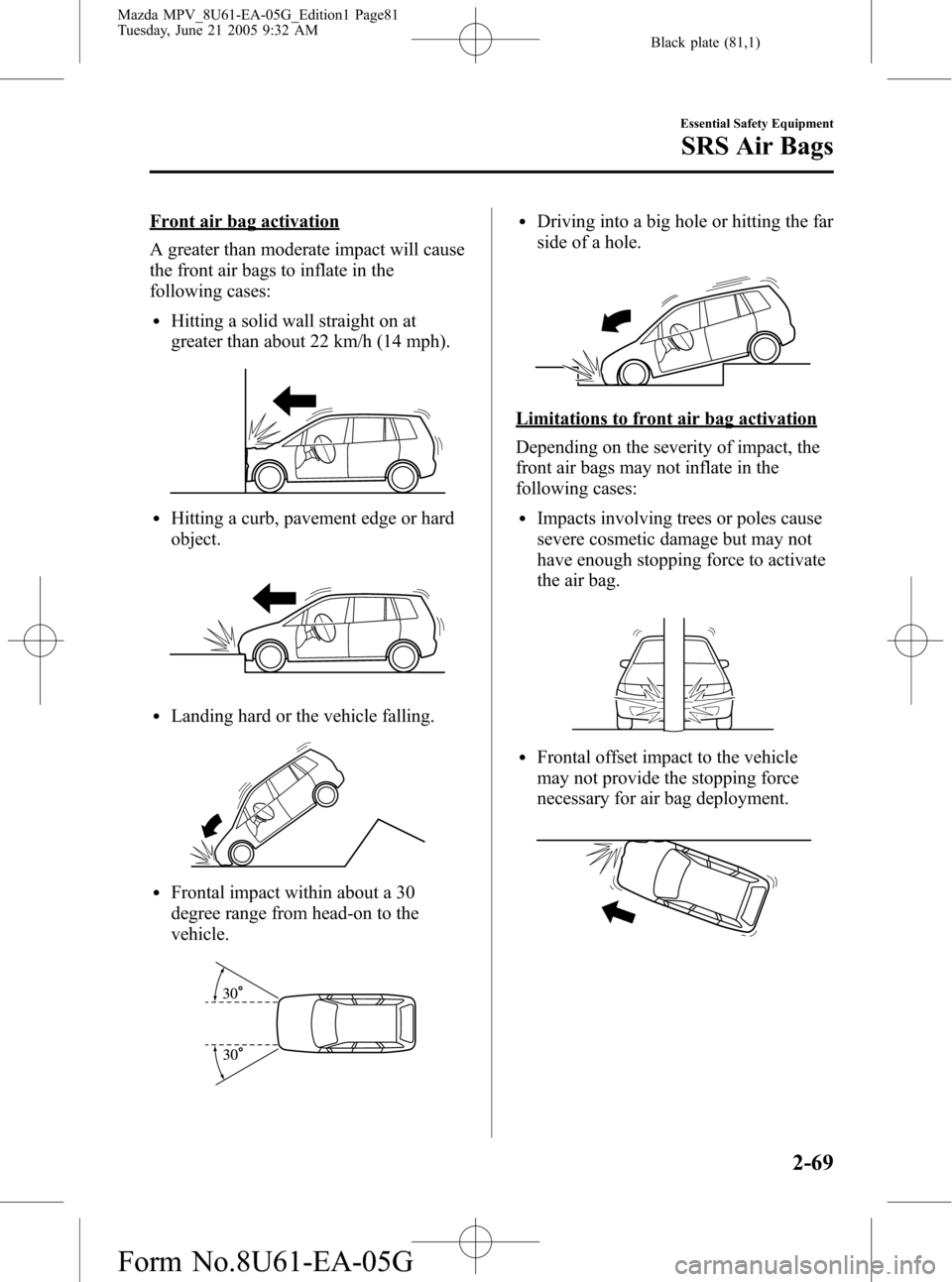

Front air bag activation
A greater than moderate impact will cause
the front air bags to inflate in the
following cases:
lHitting a solid wall straight on at
greater than about 22 km/h (14 mph).
lHitting a curb, pavement edge or hard
object.
lLanding hard or the vehicle falling.
lFrontal impact within about a 30
degree range from head-on to the
vehicle.
lDriving into a big hole or hitting the far
side of a hole.
Limitations to front air bag activation
Depending on the severity of impact, the
front air bags may not inflate in the
following cases:
lImpacts involving trees or poles cause
severe cosmetic damage but may not
have enough stopping force to activate
the air bag.
lFrontal offset impact to the vehicle
may not provide the stopping force
necessary for air bag deployment.
Essential Safety Equipment
SRS Air Bags
2-69
Mazda MPV_8U61-EA-05G_Edition1 Page81
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (82,1)
lRear-ending or running under a truck's
tail gate may not provide the stopping
force necessary for air bag deployment.
Non-activation of front air bags
Front air bags will not normally inflate in
the following cases:
lCollision from the rear.
lImpact to the side, but it may deploy
the side air bags.
lVehicle roll-over, may deploy the side
air bags but not the front air bags.
Side air bag activation
Greater than moderate impact to one side
of the vehicle (driver or passenger side
areas) will cause a side air bag on that side
to inflate, but it will not normally deploy
the front air bags.
Limitations to side air bag activation
Depending on the severity of impact, a
side air bag may not inflate in the
following cases:
lFrontal offset impact may not provide
enough side impact to deploy the side
air bags.
lSide impacts involving trees or poles
can cause severe cosmetic damage but
may not have enough impact force to
activate the side air bags.
2-70
Essential Safety Equipment
SRS Air Bags
Mazda MPV_8U61-EA-05G_Edition1 Page82
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (83,1)
lVehicle roll-over may not provide
enough side force to deploy the side air
bags.
lSide impacts with two-wheeled
vehicles may not provide enough force
to deploy the side air bags.
Non-activation of side air bag
A side air bag will not normally inflate in
the following cases:
lCollision from the rear.
lCollision from the front, but it may
deploy the front air bags.
qConstant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
lSAS unit
lFront air bag sensor
lAir bag modules
lSide crash sensorsí
lFront seat belt pretensioners
lRelated wiring
lDriver seat slide position sensor
lFront passenger seat weight sensors
lDriver and front passenger seat belt
buckle switches
The diagnostic module continuously
monitors the system's readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is normal, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds
it goes out.
Essential Safety Equipment
SRS Air Bags
2-71íSome models. Mazda MPV_8U61-EA-05G_Edition1 Page83
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (84,1)
A system malfunction is indicated when
the warning light constantly flashes,
constantly illuminates or doesn't
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.
qMaintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
lThe air bag system warning light
flashes.
lThe air bag system warning light
remains illuminated.
lThe air bag system warning light does
not illuminate when the ignition switch
is turned to the ON position.
lThe air bags have deployed.
lFront passenger air bag deactivation
indicator light does not illuminate
when the ignition switch is turned to
the ON position or does not illuminate
as indicated in the chart. For more
details about this indicator light and
this chart, refer to“Front passenger
seat weight sensors”(page 2-63).
WARNING
Damaged Air Bag/Seat Belt
Pretensioner System Components:
Expended or damaged air bag or seat
belt pretensioner units must be
replaced after any collision which
caused them to deploy or damage
them. Only a trained Authorized
Mazda Dealer can fully evaluate these
systems to see that they will work in
the next accident. Driving with an
expended or damaged air bag or
pretensioner units will provide you
reduced protection in the next accident
and you could be injured or killed.
Removing Interior Parts:
Removing any components such as the
front seats(if side air bags are
equipped), front dashboard, the
steering wheel or parts containing air
bag parts or sensors is dangerous.
These parts contain essential air bag
components. The air bag could
accidentally activate and cause serious
injuries. Always have an Authorized
Mazda Dealer remove these parts.
2-72
Essential Safety Equipment
SRS Air Bags
Mazda MPV_8U61-EA-05G_Edition1 Page84
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (85,1)
WARNING
Air Bag Disposal:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all safety
procedures are followed, injury can
result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
NOTE
If it becomes necessary to have the
components or wiring system for the
supplementary restraint system
modified to accommodate a person with
certain medical conditions in
accordance with a certified physician,
contact an Authorized Mazda Dealer,
refer to“Customer Assistance (U.S.A.)”
(page 9-2).
Essential Safety Equipment
SRS Air Bags
2-73
Mazda MPV_8U61-EA-05G_Edition1 Page85
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (86,1)

2-74
Mazda MPV_8U61-EA-05G_Edition1 Page86
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (87,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks ........................................................................... 3-2
Keys .......................................................................................... 3-2
Keyless Entry System
í............................................................ 3-3
Door Locks ............................................................................... 3-8
Liftgate .................................................................................... 3-18
Power Windows
í................................................................... 3-19
Rear Quarter Windows ............................................................ 3-22
Fuel-Filler Lid and Cap ........................................................... 3-23
Hood ....................................................................................... 3-24
Moonroof
í............................................................................. 3-25
Security System ........................................................................... 3-28
Immobilizer System
í............................................................. 3-28
Theft-Deterrent Systemí........................................................ 3-30
Steering Wheel and Mirrors ...................................................... 3-32
Steering Wheel ........................................................................ 3-32
Mirrors .................................................................................... 3-32
3-1íSome models.
Mazda MPV_8U61-EA-05G_Edition1 Page87
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (88,1)
Keys
WARNING
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. These new kinds of keys are
fascinating to children. They could
play with power windows or other
controls, or even make the vehicle
move. Don't leave the keys in your
vehicle with children and keep them in
a place where your children will not
find or play with them.
NOTE
l(With immobilizer system)
Refer to Immobilizer System (page
3-28) for information regarding keys
and engine starting.
l(With theft-deterrent system)
Refer to Theft-Deterrent System
(page 3-30) for information
regarding keys and the prevention of
vehicle and vehicle contents theft.
The keys operate all locks.With keyless entry system
Key code number plate
Retractable
type key
Without keyless entry system
Key code number plate
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
NOTE
Write down the code number and keep
it in a separate safe and convenient
place, but not in the vehicle.
If your key is lost, consult your
Authorized Mazda Dealer and have
your code number ready.
3-2
Knowing Your Mazda
Doors and Locks
Mazda MPV_8U61-EA-05G_Edition1 Page88
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (89,1)
Key extend/retract method (Retractable
type key)
To extend the key, press the release
button.
To retract the key, press the release button
and rotate the key into the holder.
Keyless Entry Systemí
This system remotely locks and unlocks
the doors and the liftgate.
It can also help you signal for attention.
Opening and closing of the power sliding
doors with the keyless entry system
transmitter is also possible on power
sliding door-equipped vehicles.
Press the button slowly and carefully.
CAUTION
To avoid damage to the transmitter, do
not:
lDrop it.
lGet it wet.
lDisassemble it.
lExpose it to heat or sunlight.
Knowing Your Mazda
Doors and Locks
3-3íSome models. Mazda MPV_8U61-EA-05G_Edition1 Page89
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (90,1)
NOTE
lThe keyless entry system is designed
to operate up to about 2.5 m (8 ft)
from the center of the vehicle, but
this may vary due to local
conditions.
lThe system doesn't operate when the
ignition switch is in the ON position.
lIf the transmitter does not operate
when pressing a button or the
operation range becomes too small,
the battery may be dead. To install a
new battery, refer to Maintenance
(page 3-6).
lAdditional transmitters can be
obtained at an Authorized Mazda
Dealer. Up to 3 transmitters can be
used with the keyless entry system
per vehicle. Bring all transmitters to
an Authorized Mazda Dealer when
the electronic codes need to be reset.
qTransmitter
With power sliding doors
Lock button
Unlock button
Right sliding door button Left sliding
door button
Panic button
Operation
indicator light
Without power sliding doors
Lock button
Unlock button
Panic button
Operation
indicator light
NOTE
l(U.S.A.)
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
this device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
l(CANADA)
This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate, press
the lock button and the hazard warning
lights will flash once.
3-4
Knowing Your Mazda
Doors and Locks
Mazda MPV_8U61-EA-05G_Edition1 Page90
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G
