MAZDA MODEL MX-30 EV 2022 Owners Manual

CAUTION
Heed the following precautions to
assure correct operation of each
system.
Do not hit or apply strong force to
the Forward Sensing Camera (FSC)
or the area around it. If the Forward
Sensing Camera (FSC) is severely hit
or if there are cracks or damage
caused by flying gravel or debris in
the area around it, stop using the
following systems and consult an
Authorized Mazda Dealer.
 HBC
 LDWS
 TSR
 DSA
 DAA
 MRCC with Stop & Go function
 TJ A
 LAS
 ELK
 SBS forward drive detection
 The Forward Sensing Camera (FSC) is
installed to the windshield. Consult
an Authorized Mazda Dealer for
windshield repair and replacement.
 Do not remove the Forward Sensing
Camera (FSC) cover.
 Be careful not to scratch the Forward
Sensing Camera (FSC) lens or allow
it to get dirty.
 The direction in which the Forward
Sensing Camera (FSC) is pointed has
been finely adjusted. Do not change
the installation position of the
Forward Sensing Camera (FSC) or
remove it. Otherwise, it could result
in damage or malfunction.
 Consult an Authorized Mazda Dealer
regarding cleaning of the camera
lens.
 Do not place objects on the
dashboard which refl ect light.
Do not apply accessories, stickers or
fi lm to the windshield near the
Forward Sensing Camera (FSC).
If the area in front of the Forward
Sensing Camera (FSC) lens is
obstructed, it will cause the system
to not operate correctly.
Consequently, each system may not
operate normally which could lead
to an unexpected accident.
 Always keep the windshield glass
around the camera clean by
removing dirt or fogging. Use the
windshield defroster to remove
fogging on the windshield.
 The Forward Sensing Camera (FSC)
includes a function for detecting a
soiled windshield and informing the
driver, however, depending on the
conditions, it may not detect plastic
shopping bags, ice or snow on the
windshield. In such cases, the system
cannot accurately determine a
vehicle ahead and may not be able
to operate normally. Always drive
carefully and pay attention to the
road ahead.
 When cleaning the windshield, do
not allow glass cleaners or similar
cleaning fluids to get on the Forward
Sensing Camera (FSC) lens. In
addition, do not touch the Forward
Sensing Camera (FSC) lens.
 Consult an Authorized Mazda Dealer
regarding cleaning the interior side of
the windshield around the Forward
Sensing Camera (FSC).
 If there are recognizable cracks or
damage caused by flying gravel or
debris on the windshield, always
have the windshield replaced.
Consult an Authorized Mazda Dealer
for replacement.
 Consult an Authorized Mazda Dealer
before performing repairs around the
Forward Sensing Camera (FSC).
When Driving
i-ACTIVSENSE
4-72
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

When performing repairs around the
rearview mirror, consult an
Authorized Mazda Dealer.
 Always use tires for all wheels that
are of the speci fied size, and the
same manufacturer, brand, and tread
pattern. In addition, do not use tires
with signi ficantly di fferent wear
patterns on the same vehicle as the
system may not operate normally.
NOTE
If the Forward Sensing Camera (FSC)
cannot operate normally due to rain,
backlight, or fog, the system
functions related to the Forward
Sensing Camera (FSC) are
temporarily stopped and the
following warning lights turn on.
However, this does not indicate a
malfunction.
HBC warning indication/warning
light (amber)
i-ACTIVSENSE warning indication/
warning light
If the Forward Sensing Camera (FSC)
cannot operate normally due to high
temperatures, the system functions
related to the Forward Sensing
Camera (FSC) are temporarily
stopped and the following warning
lights turn on. However, this does
not indicate a malfunction. Cool
down the area around the Forward
Sensing Camera (FSC) such as by
turning on the air conditioner.
HBC warning indication/warning
light (amber)
i-ACTIVSENSE warning indication/
warning light
If the Forward Sensing Camera (FSC)
detects that the windshield is dirty or
foggy, the system functions related to
the Forward Sensing Camera (FSC)
are temporarily stopped and the
following warning lights turn on.
However, this does not indicate a
problem. Remove the dirt from the
windshield or press the defroster
switch and defog the windshield.
HBC warning indication/warning
light (amber)
i-ACTIVSENSE warning indication/
warning light
Detection of pedestrians
The Forward Sensing Camera (FSC)
detects pedestrians when all of the
following conditions are met.
The height of a pedestrian is about 1
to 2 m (3 to 6.5 ft).
The outline of a pedestrian is
recognized such as the head, both
shoulders, or the feet.
The Forward Sensing Camera (FSC)
may not be able to detect pedestrians
when any of the following conditions is
met.
There are multiple pedestrians.A pedestrian is close to a separate
object.
A pedestrian is crouching, lying , or
slouching.
A pedestrian suddenly jumps into
the road.
A pedestrian is holding something
(such as an open umbrella or large
baggage).
A pedestrian blends into the
background (such as in a dark
location at night or by wearing
clothes matching the background
color).
When Driving
i-ACTIVSENSE
4-73
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Detection of objects
When any of the following conditions
is met, the Forward Sensing Camera
(FSC) may not be able to detect target
objects correctly, and each system may
not operate normally.
The height of the vehicle ahead is
low.
You are driving your vehicle at the
same speed as the vehicle ahead.
The headlights of your vehicle are not
turned on during the night or in a
tunnel.
When any of the fo llowing conditions
is met, the Forward Sensing Camera
(FSC) may not be able to detect target
objects, and each system may not
operate normally.
The target object enters the blind
spot of the Forward Sensing Camera
(FSC).
A person or object bursts onto the
road from the shoulder or cuts right
in front of you.
The distance between your vehicle
and the target object is extremely
close.
You change the course and approach
a target object.
A vehicle ahead has a special shape
(such as a vehicle carrier).
A vehicle ahead is a truck with a low
loading platform.
A vehicle ahead has an extremely
low or high pro file.
A vehicle ahead is outside the
illumination range of the headlights.
A vehicle ahead is not equipped with
taillights.
The taillights of a vehicle ahead are
dim or turned
off.
The headlights of an on-coming
vehicle are dim or turned
off.
Under bad weather conditions (rain,
fog , and snow).
Front visibility is reduced (due to a
vehicle ahead casting o ff water,
snow, or sand).
Strong light is directed at the front of
your vehicle (such as backlight and
high-beam headlights).
There is an object which emits a lot
of light.
The surrounding area is dark (such as
during the night, early evening, or
early morning , or in a tunnel or
indoor parking lot).
There are light sources in the
surrounding area (such as street
lamps, illuminated signboards, and tra ffic signals).
There are objects which re flect light
(such as re flective plates and signs)
in the surrounding area.
The surrounding brightness suddenly
changes (such as when entering or
exiting a tunnel).
The brightness of the headlights of
your vehicle is insu fficient (such as
the illumination is weakened due to
a dirty lens or the optical axis is
deviated).
Tires other than the speci fied size are
used on your vehicle (such as when
tire chains or temporary spare tires
are used).
The tires on your vehicle have signi ficantly di fferent wear.
Foreign matter is stuck to the
windshield (such as ice, fog , snow,
frost, raindrops, dirt, or a piece of
plastic).
The windshield is dirty or fogged.The Forward Sensing Camera (FSC) is
blocked by an obstruction, causing
poor forward visibility (such as when
roof rails are installed to the vehicle
and a long object is loaded).
The windshield washer is being used.The windshield wipers are not being
used when it is raining.
When Driving
i-ACTIVSENSE
4-74
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Your vehicle is tilted (such as when
heavy luggage is in the luggage
compartment or on the rear seat).
Your vehicle is towing another
vehicle.
The vehicle is making a sharp curve,
or ascending or descending a steep
slope.
The vehicle is driven on roads with
sharp curves or undulations.
The vehicle is driven on uneven
roads.
The vehicle is driven next to walls
with no patterning (including fences
and longitudinally striped walls).
There are water puddles on the road.The road surface is shiny.
Front Radar Sensor*
▼Front Radar Sensor
Your vehicle is equipped with a front
radar sensor.
1. Front radar sensor

The following systems also use the
front radar sensor.
Distance & Speed Alert (DSA)Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)
Tra
ffic Jam Assist (TJA)Smart brake support (SBS) forward
drive detection
The front radar sensor functions by
detecting the radio waves re flected o ff
a vehicle ahead or an obstruction sent
from the radar sensor.
CAUTION
Heed the following precautions to
assure correct operation of each
system.
 Do not apply a sticker (including a
transparent one) to the front radar
sensor cover or replace the front
radar sensor cover with a product
other than a genuine product.
When Driving
i-ACTIVSENSE
*Some models.4-75
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

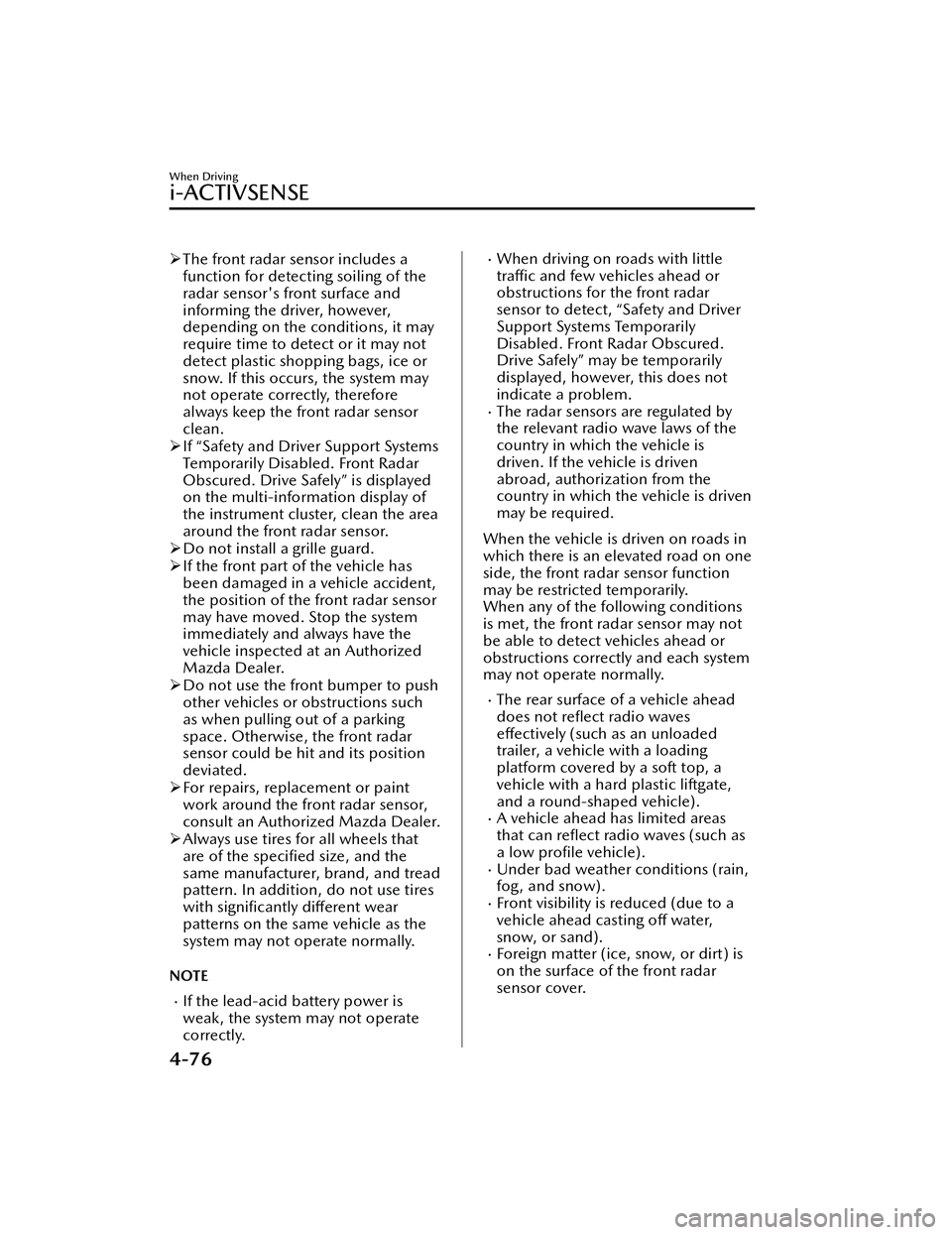

The front radar sensor includes a
function for detecting soiling of the
radar sensor's front surface and
informing the driver, however,
depending on the conditions, it may
require time to detect or it may not
detect plastic shopping bags, ice or
snow. If this occurs, the system may
not operate correctly, therefore
always keep the front radar sensor
clean.
 If “Safety and Driver Support Systems
Temporarily Disabled. Front Radar
Obscured. Drive Safely” is displayed
on the multi-information display of
the instrument cluster, clean the area
around the front radar sensor.
 Do not install a grille guard.
 If the front part of the vehicle has
been damaged in a vehicle accident,
the position of the front radar sensor
may have moved. Stop the system
immediately and always have the
vehicle inspected at an Authorized
Mazda Dealer.
 Do not use the front bumper to push
other vehicles or obstructions such
as when pulling out of a parking
space. Otherwise, the front radar
sensor could be hit and its position
deviated.
 For repairs, replacement or paint
work around the front radar sensor,
consult an Authorized Mazda Dealer.
 Always use tires for all wheels that
are of the speci fied size, and the
same manufacturer, brand, and tread
pattern. In addition, do not use tires
with signi ficantly di fferent wear
patterns on the same vehicle as the
system may not operate normally.
NOTE
If the lead-acid battery power is
weak, the system may not operate
correctly.
When driving on roads with little tra ffic and few vehicles ahead or
obstructions for the front radar
sensor to detect, “Safety and Driver
Support Systems Temporarily
Disabled. Front Radar Obscured.
Drive Safely” may be temporarily
displayed, however, this does not
indicate a problem.
The radar sensors are regulated by
the relevant radio wave laws of the
country in which the vehicle is
driven. If the vehicle is driven
abroad, authorization from the
country in which the vehicle is driven
may be required.
When the vehicle is driven on roads in
which there is an elevated road on one
side, the front radar sensor function
may be restricted temporarily.
When any of the following conditions
is met, the front radar sensor may not
be able to detect vehicles ahead or
obstructions correctly and each system
may not operate normally.
The rear surface of a vehicle ahead
does not re flect radio waves
e ff ectively (such as an unloaded
trailer, a vehicle with a loading
platform covered by a soft top, a
vehicle with a hard plastic liftgate,
and a round-shaped vehicle).
A vehicle ahead has limited areas
that can re flect radio waves (such as
a low pro file vehicle).
Under bad weather conditions (rain,
fog, and snow).
Front visibility is reduced (due to a
vehicle ahead casting o ff water,
snow, or sand).
Foreign matter (ice, snow, or dirt) is
on the surface of the front radar
sensor cover.
When Driving
i-ACTIVSENSE
4-76
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Your vehicle is tilted (such as when
heavy luggage is in the luggage
compartment or on the rear seat).
The vehicle is driven near facilities or
objects emitting strong radio waves.
When any of the following conditions
is met, the front radar sensor may
detect vehicles in the opposite lane or
surrounding obstructions, or it may not
be able to detect vehicles ahead or
obstructions, and each system may not
operate normally.
The vehicle ahead enters the front
radar sensor’s blind spot.
The distance to the vehicle ahead is
extremely close.
The vehicle ahead is being driven in
an unstable condition.
A vehicle suddenly comes close such
as by cutting into your lane.
The vehicle is entering or exiting a
curve.
The vehicle is driven on a
continuously curving road.
The vehicle is driven on roads with
repeated up and downslopes.
The vehicle is driven on roads with
narrow lanes.
The vehicle is driven on poor roads
or unpaved roads.
Front Side Radar Sensor*
▼ Front Side Radar Sensor
Your vehicle is equipped with front
side radar sensor.
1. Front side radar sensor

The following systems also use the
front side radar sensor.
Front Cross
Traffic Alert (FCTA)
The front side radar sensor function by
detecting the radio waves re flected o ff
a vehicle approaching from the front or
an obstruction sent from the radar
sensor.
CAUTION
Heed the following precautions to
assure correct operation of each
system.
 Always keep the surface of the front
bumper near the front side radar
sensors clean so that they operate
normally. Also, do not apply items
such as stickers.
Refer to Exterior Care on page
6-34.
 If the front bumper receives a severe
impact, the system may no longer
operate normally. Stop the system
immediately and have the vehicle
inspected at an Authorized Mazda
Dealer.
When Driving
i-ACTIVSENSE
*Some models.4-77
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Vehicles are shipped with the
direction of the front side radar
sensor adjusted for each vehicle to a
loaded vehicle condition so that the
front side radar sensor detect
approaching vehicles correctly. If the
direction of the front side radar
sensor has deviated for some reason,
have the vehicle inspected at an
Authorized Mazda Dealer.
 For repairs or replacement of the
front side radar sensor, or bumper
repairs, paintwork, and replacement
near the radar sensors, consult an
Authorized Mazda Dealer.
NOTE
The radar sensors are regulated by the
relevant radio wave laws of the country
in which the vehicle is driven. If the
vehicle is driven abroad, authorization
from the country in which the vehicle is
driven may be required.
When any of the fo llowing conditions
is met, the detection ability of the front
side radar sensors may decrease and
each system may not operate normally.
Under bad weather conditions (rain,
fog , and snow).
The front bumper around a front side
radar sensor is deformed.
Foreign matter (such as ice, snow,
and mud) is adhering to the front
bumper around a front side radar
sensor.
The front side radar sensors may not
detect the following target objects.
Small motorcyclesBicyclesPe de s tr ia n sAnimalsShopping cartsStationary objects on the road or
roadside
Vehicles with shapes that may not re flect radar waves (such as
unloaded trailers with low vehicle
heights and sports cars).
When Driving
i-ACTIVSENSE
4-78
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Rear Side Radar Sensor*
▼Rear Side Radar Sensor
Your vehicle is equipped with rear side
radar sensor.
1. Rear side radar sensor

The following systems also use the rear
side radar sensor.
Blind Spot Monitoring (BSM)Rear Cross Tra
ffic Alert (RCTA)Smart brake support (SBS) reverse
drive detection
Emergency Lane Keeping (ELK)
The rear side radar sensors emit radio
waves and detect the radio waves
re flected off a vehicle approaching
from the rear or an obstruction.
CAUTION
Heed the following precautions to
assure correct operation of each
system.
 Always keep the surface of the rear
bumper near the rear side radar
sensors clean so that they operate
normally. Also, do not apply items
such as stickers.
Refer to Exterior Care on page
6-34.
If the rear bumper receives a severe
impact, the system may no longer
operate normally. Stop the system
immediately and have the vehicle
inspected at an Authorized Mazda
Dealer.
 Vehicles are shipped with the
direction of the rear side radar
sensor adjusted for each vehicle to a
loaded vehicle condition so that the
rear side radar sensor detect
approaching vehicles correctly. If the
direction of the rear side radar
sensor has deviated for some reason,
have the vehicle inspected at an
Authorized Mazda Dealer.
 For repairs or replacement of the rear
side radar sensor, or bumper repairs,
paintwork, and replacement near the
radar sensors, consult an Authorized
Mazda Dealer.
NOTE
The radar sensors are regulated by the
relevant radio wave laws of the country
in which the vehicle is driven. If the
vehicle is driven abroad, authorization
from the country in which the vehicle is
driven may be required.
When any of the following conditions
is met, the detection ability of the rear
side radar sensors may decrease and
each system may not operate normally.
Under bad weather conditions (rain,
fog , and snow).
The rear bumper around a rear side
radar sensor is deformed.
Foreign matter (such as ice, snow,
and mud) is adhering to the rear
bumper around a rear side radar
sensor.
The rear side radar sensors may not
detect the following target objects.
Small motorcycles
When Driving
i-ACTIVSENSE
*Some models.4-79
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

BicyclesPe de s tr ia n sAnimalsShopping cartsStationary objects on the road or
roadside
Vehicles with shapes that may notre flect radar waves (such as
unloaded trailers with low vehicle
heights and sports cars).
Rear Ultrasonic Sensor*
▼ Rear Ultrasonic Sensor
Your vehicle is equipped with rear
ultrasonic sensor.
1. Rear ultrasonic sensor

The following systems also use the rear
ultrasonic sensor.
Smart brake support (SBS) reverse
drive detection
The rear ultrasonic sensors function by
emitting ultrasonic waves which are
re flected o ff obstructions at the rear
and the returning ultrasonic waves are
picked up by the rear ultrasonic
sensors.
When Driving
i-ACTIVSENSE
4-80*Some models.
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Front Camera/Side
Cameras/Rear Camera
*
▼ Front Camera/Side Cameras/Rear
Camera
Your vehicle is equipped with a front
camera, side cameras, and a rear
camera.
1. Side cameras
2. Front camera
3. Rear camera

Each camera is used by the following
system.
360°View Monitor
The front camera, side cameras, and
rear camera shoot images of the area
surrounding the vehicle.
Driver Monitoring Camera
*
▼Driver Monitoring Camera
Your vehicle is equipped with a driver
monitoring camera.
1. Driver monitoring camera

The driver monitoring camera is used
by the following system.
Driver Monitoring (DM)
The driver monitoring camera detects
changes in the driver's facial features
and estimates the amount of
accumulated fatigue and sleepiness of
the driver.
NOTE
DM and the earlier collision warning
may not operate normally under the
following conditions.
The driver monitoring camera is
covered with something.
You are driving the vehicle while
leaning on the steering wheel.
You are wearing glasses or
sunglasses.
A cap or hat you are wearing
partially blocks the driver
monitoring camera's view of your
eyes, you have long bangs partially
covering your eyes, or a part of
your face is invisible due to a face
mask.
When Driving
i-ACTIVSENSE
*Some models.4-81
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07
