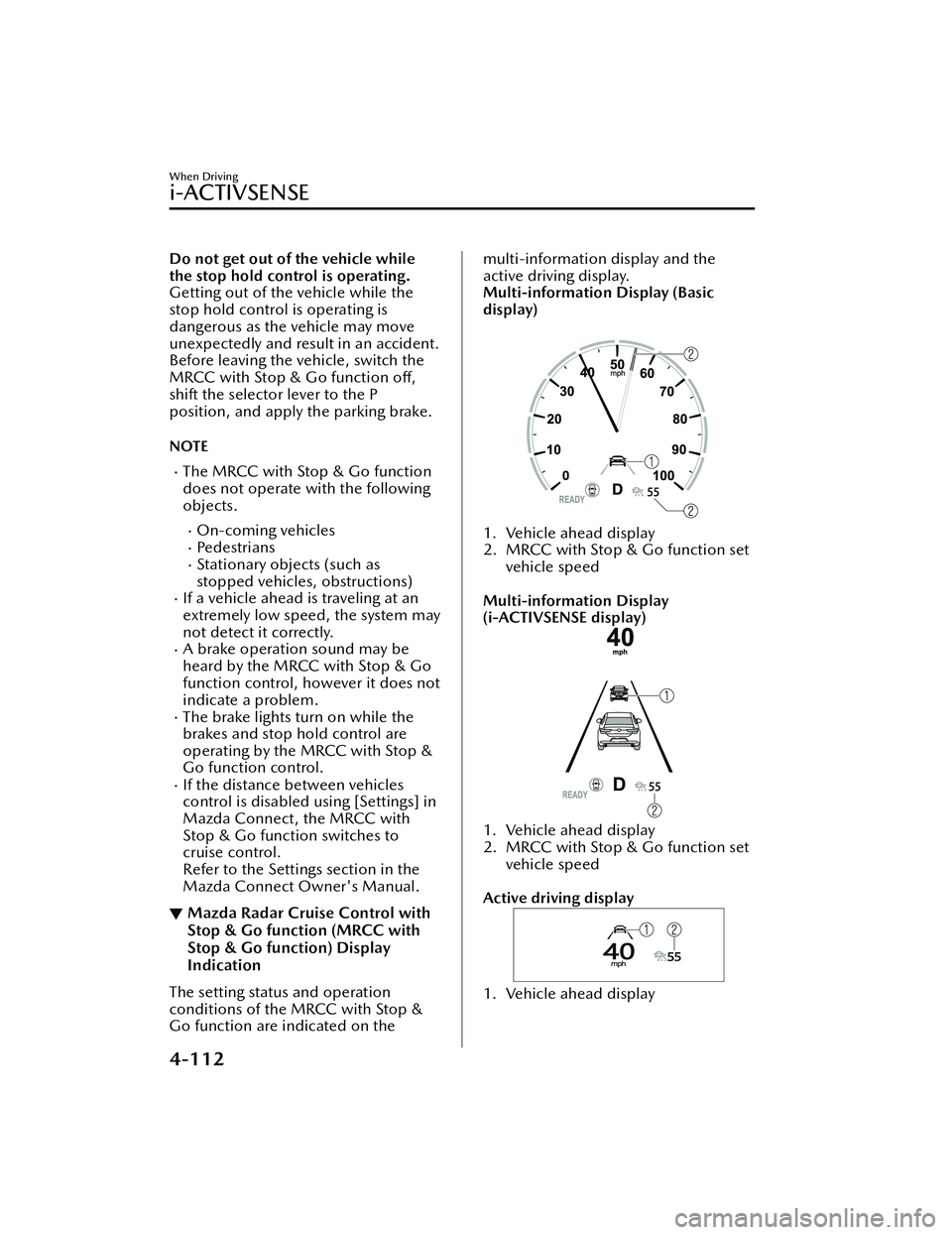

Do not get out of the vehicle while
the stop hold control is operating.
Getting out of the vehicle while the
stop hold control is operating is
dangerous as the vehicle may move
unexpectedly and result in an accident.
Before leaving the vehicle, switch the
MRCC with Stop & Go function off,
shift the selector lever to the P
position, and apply the parking brake.
NOTE
The MRCC with Stop & Go function
does not operate with the following
objects.
On-coming vehiclesPe de st r i a nsStationary objects (such as
stopped vehicles, obstructions)
If a vehicle ahead is traveling at an
extremely low speed, the system may
not detect it correctly.
A brake operation sound may be
heard by the MRCC with Stop & Go
function control, however it does not
indicate a problem.
The brake lights turn on while the
brakes and stop hold control are
operating by the MRCC with Stop &
Go function control.
If the distance between vehicles
control is disabled using [Settings] in
Mazda Connect, the MRCC with
Stop & Go function switches to
cruise control.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼ Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) Display
Indication
The setting status and operation
conditions of the MRCC with Stop &
Go function are indicated on the
multi-information display and the
active driving display.
Multi-information Display (Basic
display)
1. Vehicle ahead display
2. MRCC with Stop & Go function set
vehicle speed

Multi-information Display
(i-ACTIVSENSE display)
1. Vehicle ahead display
2. MRCC with Stop & Go function set vehicle speed

Active driving display
1. Vehicle ahead display
When Driving
i-ACTIVSENSE
4-112
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

2. MRCC with Stop & Go function setvehicle speed

If there is a problem with the MRCC
with Stop & Go function, messages are
displayed on the displays. Check the
details of the problem and then have
your vehicle inspected by an
Authorized Mazda Dealer.
Refer to If a Warning Light Turns On or
Flashes on page 7-21.
▼ Close Proximity Warning
If your vehicle approaches a vehicle
ahead while in headway control using
the Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function), a warning sound is
activated and a brake warning is
displayed on the multi-information
display. Check the surrounding
conditions and keep a safe distance
from the vehicle ahead.
1. “Depress Brake Pedal” message is
displayed
CAUTION
While the accelerator pedal is being
depressed, the warnings and brake
control do not operate even if your
vehicle approaches the vehicle
ahead.
 In the following cases, the warnings
and brakes may not operate even if
your vehicle approaches the vehicle
ahead.
 Your vehicle is being driven at the
same speed as the vehicle ahead.
 Immediately after the MRCC with
Stop & Go function is set.
 Immediately after the accelerator
pedal is released.
 Another vehicle cuts into the
driving lane.
When Driving
i-ACTIVSENSE
4-113
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

▼Setting the System
Operation switch
1. CANCEL switch
2. RES switch
3. MRCC switch
Operation conditions
The MRCC with Stop & Go function operat
es when all of the following conditions
are met.
The MRCC with Stop & Go function is on.The selector lever is in the D position.The parking brake is released.All the doors are closed.The driver's seat belt is fastened.Vehicle speed is 0 to 140 km/h (0 to 87 mph)
NOTE
In the following cases, the MRCC with Stop & Go function system is canceled
when the vehicle is traveling at 30 km/h (20 mph) or less and “Mazda Radar
Cruise Control Disabled Under 30 km/h” is displayed in the multi-information
display.
The Forward Sensing Camera (FSC) cannot detect target objects.There is a problem with the stop hold control function.There is a problem with the Electric Parking Brake (EPB).
Setting the vehicle speed
1. Press the MRCC switch to turn the system on.
2. Accelerate the vehicle until it reaches the desired speed using the accelerator pedal and press the RES switch up (SET+) or down (SET -) to set the speed.
NOTE
When the system is turned on, the MRCC standby indication (white) turns on and
the MRCC display indications are displayed on the multi-information display and
the active driving display.
When Driving
i-ACTIVSENSE
4-114
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

When the vehicle speed is set, the set vehicle speed is displayed on the displays
and the MRCC standby indication (white) changes to the MRCC set indication
(green).
The minimum speed setting is 30 km/h (19 mph).
Tra ve l s t a t u sIndication on multi-information
display Indication on active driving dis-
play
During travel at constant speed
During travel under headway
control
Setting the distance between vehicles
The distance between vehicles is set to a shorter distance by pressing the CANCEL
switch down, and to a longer distance by pressing the CANCEL switch up. The
distance between vehicles can be set to 4 levels: Long , medium, short, and
extremely short distance.
The distance between vehicles increases or decreases depending on the vehicle
speed.
Distance-between-vehicles
guideline
(at 80 km/h (50 mph) vehicle speed) Indication on multi-information
display Indication on active driving dis-
play
*1
Long (about 50 m (164 ft))
When Driving
i-ACTIVSENSE
4-115
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Distance-between-vehiclesguideline
(at 80 km/h (50 mph) vehicle speed) Indication on multi-information
display Indication on active driving dis-
play
*1
Medium (about 40 m (131 ft))
Short (about 30 m (98 ft))
Extremely short (about 25 m (82
ft))
*1 Displays a pop-up image in the active driving display only when the driver operates the switch.
Changing the set vehicle speed
How to change the set vehicle speed using the RES switch
When the RES switch is pressed up (SET+), the vehicle accelerates, and when the
RES switch is pressed down (SET -), the vehicle decelerates.
Press and release immediately: 1 km/h (1 mph)Press and hold: 10 km/h (5 mph)
How to change the set vehicle speed using the accelerator pedal
Depress the accelerator pedal until the vehicle speed reaches the desired speed,
then press the RES switch up (SET+) or down (SET -) and release the switch.
Temporary cancellation
If any of the following conditions is me t, the MRCC with Stop & Go function is
canceled temporarily.
The MRCC with Stop & Go function operation conditions are not met.The CANCEL switch is pressed.The brake pedal is depressed.The front radar sensors cannot detect target objects.
When Driving
i-ACTIVSENSE
4-116
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

The DSC has operated.The Smart Brake Support (SBS) has operated.The frequency of the braking operation by the MRCC with Stop & Go function is
high.
There is a problem in the system.
Resuming the control
If the MRCC with Stop & Go function is temporarily canceled, it will resume
operation at the previously set speed by pressing the RES switch after all of the
operation conditions have been met again.
Tu r n i n g o ff the system
When the MRCC switch is pressed while the MRCC is operating, the MRCC turns
off.
▼ Stop Hold Control
While in headway control using the
MRCC with Stop & Go function, your
vehicle will stop when a vehicle ahead
stops. When your vehicle is stopped
and the stop hold control operates, the
MRCC with Stop & Go function
indicator light turns on.
NOTE
The parking brake is automatically
applied and the vehicle is held in its
stopped position when 10 minutes
or longer have passed since the stop
hold control operated. When this
occurs, the MRCC with Stop & Go
function is temporarily canceled.
Resuming driving
While in stop hold control, if the
vehicle ahead starts moving and the
distance from the vehicle increases, the
stop hold control will be canceled and
your vehicle will resume driving by
performing any of the following
operations.
Press the RES switch.Depress the accelerator pedal.
NOTE
If the vehicle ahead starts moving
within three seconds after your vehicle
is stopped, the headway control will
continue even if you do not resume
driving your vehicle.
Resume driving information
If you do not resume driving within a
few seconds after the vehicle ahead
starts moving during stop hold control,
the vehicle-ahead indication on the
multi-information display flashes to
urge you to resume driving. If you still
do not resume driving after the
indicator light flashes, a sound is
activated to urge you to resume
driving.
When Driving
i-ACTIVSENSE
4-117
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Traffic Jam Assist (TJA)*
▼ Tra
ffic Jam Assist (TJA)
The TJA is a system designed to reduce
driver fatigue during
traffic jams when
driving on expressways or highways.
The TJA consists of a headway control
function and a steering assist function.

Headway control function
The function performs headway
control to maintain a constant distance
between your vehicle and a vehicle
ahead at a preset vehicle speed
without you having to depress the
accelerator or brake pedal.

Steering assist function
When vehicle lane lines are detected,
the function assists your steering
operation to follow the vehicle lane
lines.
When vehicle lane lines are not
detected, the function assists your
steering operation to follow the
trajectory of the vehicle ahead.

Also refer to the fo llowing information
before using the TJA.
Refer to Forward Sensing Camera
(FSC) on page 4-71.
Refer to Front Radar Sensor on page
4-77.
WARNING
Do not rely completely on the TJA and
always drive carefully:
 The TJA is not an automated driving
system. Therefore, the function has
limitations. Do not rely completely
on the system and always stay on
course using the steering wheel.
Set a vehicle speed within the speed
limit according to the road
conditions and the weather
conditions.
 The TJA may not be able to detect a
vehicle ahead depending on the type
of vehicle ahead and its conditions,
the weather conditions, and the road
conditions. Additionally, the system
might be unable to decelerate
suffi ciently if the vehicle ahead
applies the brakes suddenly or
another vehicle cuts into your lane,
which could result in an accident.
Do not use the system under the
following conditions. Otherwise, it
may result in an accident:
 The vehicle is driven on roads other
than expressways and highways.
 The vehicle is driven on roads with
sharp curves or with heavy tra ffic
where su fficient distances between
vehicles cannot be kept.
 The vehicle is driven on roads where
acceleration and deceleration are
frequently repeated.
 The vehicle is exiting the main lane
on an expressway to enter an
interchange, a rest area, or a parking
area.
 The vehicle is driven on slippery
roads such as icy roads,
snow-covered roads, and unpaved
roads.
 The vehicle is driven on a long
downslope.
 The vehicle is driven on a steep
slope.
 A two-wheeled vehicle such as a
motorcycle or bicycle is traveling
ahead.
 The vehicle is being towed.
 Proximity warnings activate
frequently.
When Driving
i-ACTIVSENSE
4-118*Some models.
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Under bad weather conditions (rain,
fog , and snow).
 Tires other than the speci fied size are
used, such as when tire chains or
temporary spare tires are used.
Switch the TJA off when it is not being
used.
Leaving the TJA on when it is not in use
is dangerous as it could operate
unexpectedly, resulting in an accident.
Do not get out of the vehicle while
the stop hold control is operating.
Getting out of the vehicle while the
stop hold control is operating is
dangerous as the vehicle may move
unexpectedly and result in an accident.
Before leaving the vehicle, switch the
TJ A off, shift the selector lever to the P
position, and apply the parking brake.
NOTE
The TJA does not operate with the
following objects.
On-coming vehiclesPe d e s t r i a n sStationary objects (such as
stopped vehicles, obstructions)
If a vehicle ahead is traveling at an
extremely low speed, the system may
not detect it correctly.
A brake operation sound may be
heard by the TJA control, however, it
does not indicate a problem.
The brake lights turn on while the
brakes and stop hold control are
operating by the TJA control.
When any of the following
conditions is met, the TJA may not be
able to detect white (yellow) lane
lines or vehicles ahead correctly and
the TJA may not operate normally.
A condition under which the
Forward Sensing Camera (FSC)
cannot detect a target object is
met.
Refer to Forward Sensing Camera
(FSC) on page 4-71.
The Forward Sensing Camera (FSC)
cannot recognize the area in front
of the vehicle.
The visibility of white (yellow) lane
lines is poor.
There are multiple white (yellow)
lane lines.
There is a misleading line which
looks like a white (yellow) lane
line.
The distance to the vehicle ahead
is close.
The width of the vehicle lane is
narrow or wide.
A vehicle ahead is driving
erratically.
A vehicle ahead veers o ff course
from your vehicle's line of travel.
The vehicle is driven through an
intersection, a junc tion, or a fork in
the road.
▼ Tra
ffic Jam Assist (TJA) Display
Indication
The TJA setting status and operation
conditions are indicated on the
multi-information display and the
active driving display.
When Driving
i-ACTIVSENSE
4-119
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Multi-information display (Basic
display)
1. Vehicle ahead display
2. TJA set vehicle speed
Multi-information display
(i-ACTIVSENSE display)
1. Vehicle ahead display
2. TJA set vehicle speed
Active driving display
1. Vehicle ahead display
2. TJA set vehicle speed
Steering assist function display
When the steering assist function
operates, the steering assist operation
display on the display changes from
white to green.
1. Steering assist operation display
NOTE
You can check if the steering assist
function is following the lane lines or it
is following vehicles ahead, on the
multi-information display.
Inactive
Active (vehicle ahead)
When Driving
i-ACTIVSENSE
4-120
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Active (lane line)
If there is a problem with the TJA, a
message is displayed on the display.
Check the details of the problem and
then have your vehicle inspected by an
Authorized Mazda Dealer.
Refer to If a Warning Light Turns On or
Flashes on page 7-21.
▼Steering Assist Limit Warning
If the steering assist function cannot
keep the vehicle within the lane lines,
a warning sound is activated and the
lane line of the direction reaching the
limit is displayed on the
multi-information display to urge you
to operate the steering wheel.
▼Close Proximity Warning
If your vehicle approaches the vehicle
ahead while traveling under headway
control using the Tra
ffic Jam Assist
(TJA), a warning sound is activated and
a brake warning is indicated on the
multi-information display. Check the
surrounding conditions and keep a
safe distance from the vehicle ahead.
1. “Depress Brake Pedal” message is displayed
CAUTION
While the accelerator pedal is being
depressed, the warnings and brake
control do not operate even if your
vehicle approaches the vehicle
ahead.
 In the following cases, the warnings
and brakes may not operate even if
your vehicle approaches the vehicle
ahead.
 Your vehicle is being driven at the
same speed as the vehicle ahead.
 Immediately after the Tra ffic Jam
Assist (TJA) is set.
 Immediately after the accelerator
pedal is released.
 Another vehicle cuts into the
driving lane.
When Driving
i-ACTIVSENSE
4-121
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07
