MAZDA MODEL MX-30 EV 2022 Owner's Guide

side of the front seat, or the walk in
switch.
The seatback folds forward while
the upper side of the angle switch is
pressed, and the seat slides forward
while the upper side of the slide
switch is pressed.
1. Walk in switch
2. Angle switch
3. Slide switch
2. Perform the following procedure to
return the operated front seat to its
sitting position after getting in the
vehicle.
1. Press the lower side of the angle switch. The seatback reclines
while the switch is being
pressed.
2. Press the lower side of the slide switch. The seat slides rearward
while the switch is being
pressed.
NOTE
After a few seconds have passed since
the power switch was switched OFF,
the seat cannot be moved even if the
walk in switch is operated. The seat
can be moved by operating the walk in
switch again after a door is opened or
closed or the power seat switch is
operated.
When getting out of the vehicle
Manual seat
1. The seatback can be folded forwardand the seat can be slid forward by
pulling the walk in strap on the
front seat.
1. Walk in strap
2. Slide the seat rearward with the seatback folded forward and then
raise the seatback to return the
operated front seat to its sitting
position after getting out the
vehicle.
3. Make sure that the seatback and
slide are firmly locked by
attempting to lightly move the front
seat forward and back.
Powe r s eat
1. Press the upper side of the angle switch. The seatback folds forward
while the switch is being pressed.
2. Press the upper side of the slide switch. The seat slides forward
while the switch is being pressed.
1. Walk in switch
Essential Safety Equipment
Seats
2-14
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

2. Angle switch
3. Slide switch
NOTE
While an occupant is not seated
on the driver’s seat, the seat can
be moved using the walk in
switch.
After a few seconds have passed
since the power switch was
switched OFF, the seat cannot be
moved even if the walk in switch
is operated. The seat can be
moved by operating the walk in
switch again after a door is
opened or closed or the power
seat switch is operated.
3. Perform the following procedure to return the operated front seat to its
sitting position after getting out the
vehicle.
1. Operate the angle adjustment
(reclining) switch on the side of
the front seat or the angle
switch on the back of the front
seat to raise the seatback.
2. Operate the forward/back
adjustment (seat slide) switch
on the side of the front seat or
the slide switch on the back of
the front seat to slide the seat
rearward.
Rear Seat
▼Split Folding
By lowering the rear seatbacks the
luggage compartment space can be
expanded.
WARNING
Do not drive the vehicle with
occupants on folded down seatbacks
or in the luggage compartment.
Putting occupants in the luggage
compartment is dangerous because
seat belts cannot be fastened which
could lead to serious injury or death
during sudden braking or a collision.
Do not allow children to play inside
the vehicle with the seatbacks
lowered.
Allowing children to play in the vehicle
with the seatbacks folded down is
dangerous. If a child enters the luggage
compartment and the seatbacks were
raised back up, the child may become
trapped in the luggage compartment
which could lead to an accident.
Tightly secure cargo in the luggage
compartment when it is transported
with the seatbacks folded down.
Driving without tightly securing cargo
and luggage is dangerous as it could
move and become an obstruction to
driving during emergency braking or a
collision resulting in an unexpected
accident.
Essential Safety Equipment
Seats
2-15
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

When transporting cargo, do not
allow the cargo to exceed the height
of the seatbacks.
Transporting cargo stacked higher than
the seatbacks is dangerous as visibility
to the rear and sides of the vehicle is
reduced which could interfere with
driving operations and lead to an
accident.
Lowering the seatbacks
CAUTION
When folding the seatback forward,
always support the seatback with
your hand. If it is not supported by a
hand, fingers or the hand pressing
the push knob could be injured.
 Check the position of a front seat
before folding a rear seatback.
Depending on the position of a front
seat, it may not be possible to fold a
rear seatback all the way down
because it may hit the seatback of
the front seat which could scratch or
damage the front seat or its pocket.
Fold down or remove the head
restraint on the rear outboard seat
before folding down the seatback.
Press the push knob to fold down the
seatback.

To return the seatback to its upright
position:
WARNING
When returning a seatback to its
upright position, make sure the
3-point seat belt is not caught in the
seatback and the 3-point seat belt is
not twisted.
If the seat belt is used while it is
twisted and caught in the seatback, the
seat belt cannot function at its full
capacity, which could cause serious
injury or death.
When returning a seatback to its
upright position, make sure that it is
fi rmly locked and the red indication is
not visible.
If the red indication is visible behind
the push knob, it means the seatback
is not locked. If the vehicle is driven
without the seatback locked, it could
fold down suddenly and cause an
accident.

1. Locked position
2. Unlocked position
3. Red indication

1. Make sure that the seat belt passes through the seat belt guide
correctly and it is not twisted, then
Essential Safety Equipment
Seats
2-16
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

raise the seatback while preventing
the seat belt from being caught in
the seatback.

1. Red indication
2. Seat belt guide

2. Press the seatback rearward and lock it in place. After returning the
seatback to its upright position,
make sure it is securely locked.
▼Armrest*
The rear armrest in the center of the
rear seatback can be used (no
occupant in the center seat) or placed
upright.

WARNING
Never put your hands and
fingers
around the moving parts of the seat
and armrest:
Putting your hands and fingers around
the moving parts of the seat and
armrest is dangerous as they could get
injured.
Essential Safety Equipment
Seats
*Some models.2-17
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Head Restraints
▼Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats and the
rear center seat. The head restraints are
intended to help protect you and the
passengers from neck injury.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
▼
Height Adjustment
Adjust the head restraint so that the
center is even with the top of the
passenger's ears.

To raise a head restraint, pull it up to
the desired position.
To lower the head restraint, press the
stop-catch release, then push the head
restraint down.
Front seats

Rear seats
(Rear center seat)

(Rear outboard seats)
The height of the foldable head
restraints equipped on the rear
outboard seats cannot be adjusted.
▼ Removal/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, insert the
legs into the holes while pressing the
stop-catch.
Essential Safety Equipment
Seats
2-18
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
installed:
Driving with the head restraints not
installed is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.
After installing a head restraint, try
lifting it to make sure that it does not
pull out:
Driving with an unsecured head
restraint is dangerous as the
eff ectiveness of the head restraint will
be compromised which could cause it
to unexpectedly detach from the seat.
CAUTION
 When installing a head restraint,
make sure that it is installed correctly
with the front of the head restraint
facing forward. If the head restraint is
installed incorrectly, it could detach
from the seat during a collision and
result in injury.
 The head restraints on each of the
front and rear seats are specialized to
each seat. Do not switch around the
head restraint positions. If a head
restraint is not installed to its correct
seat position, the e ffectiveness of the
head restraint during a collision will
be compromised which could cause
injury.
▼ Folding/Unfolding (Rear outboard
seats)
The rear outboard seats are equipped
with foldable head restraints.
WARNING
Always drive with the head restraints
in their upright positions when the
rear seats are occupied, and make
sure they are securely locked in place:
Driving with the head restraints folded
down is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.
Always operate the strap to unlock
and fold down the head restraint:
If the head restraint is folded down
without unlocking it, the lock
mechanism of the head restraint may
become damaged and the head
restraint may not be able to stay in a
secured position. Driving the vehicle
with the head restraint in such a
condition is dangerous as impact to
the occupant’s head cannot be
prevented during emergency braking or
in a collision, which could result in a
serious injury or death.
CAUTION

Do not place your finger in the
moving parts of the head restraint
when operating the head restraint. If
the head restraint is operated with
your finger placed in a moving part
of the head restraint, your finger
could get caught resulting in injury.
 Do not leave the head restraint
raised up when folding a seatback. If
a seatback is folded while the head
restraint is left raised up, the head
restraint could contact the front seat
depending on the front seat position,
and therefore, the front seat,
seatback, and the head restraint
surfaces could become damaged.
Essential Safety Equipment
Seats
2-19
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

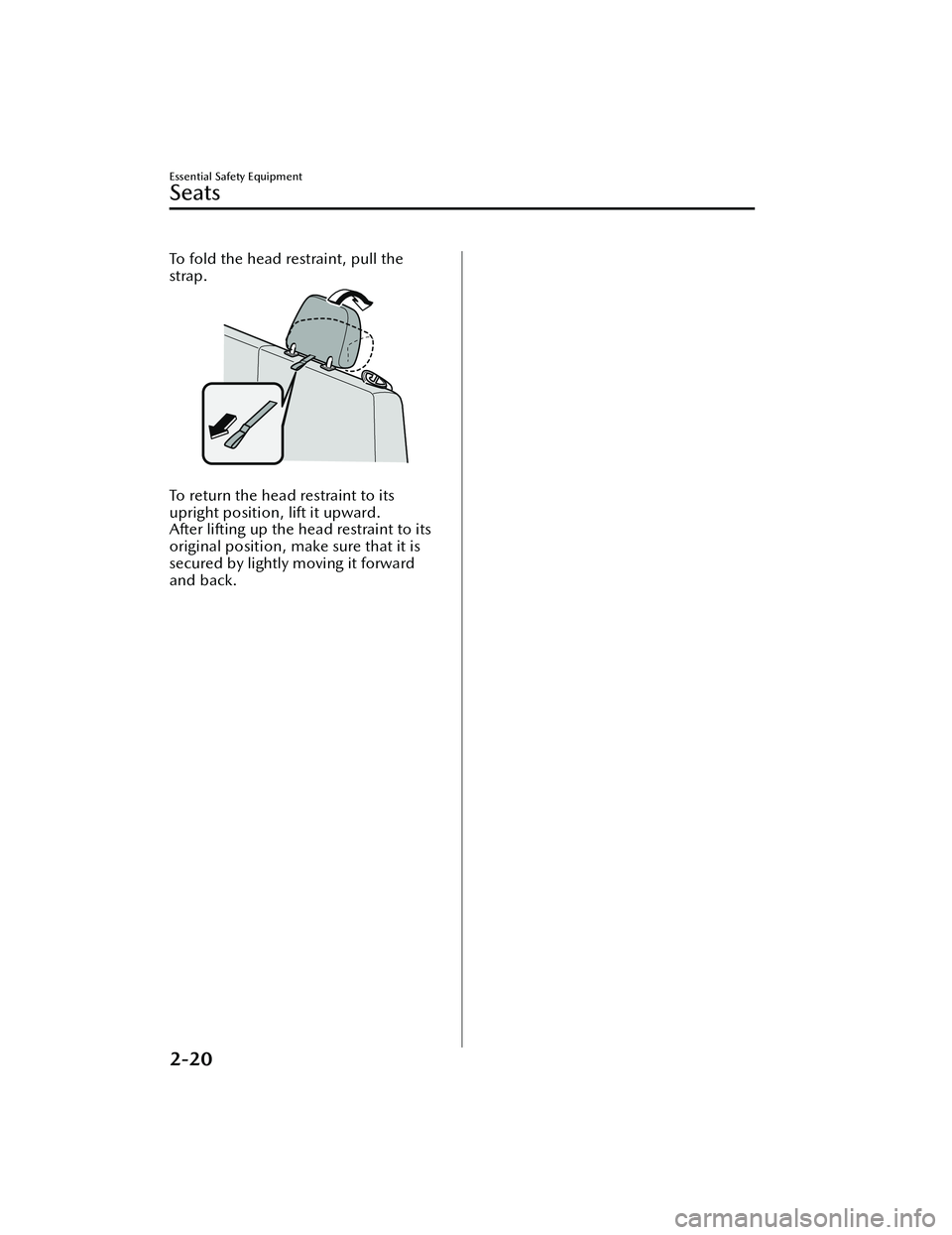

To fold the head restraint, pull the
strap.

To return the head restraint to its
upright position, lift it upward.
After lifting up the head restraint to its
original position, make sure that it is
secured by lightly moving it forward
and back.
Essential Safety Equipment
Seats
2-20
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Seat Warmer*
▼Seat Warmer
The front seats can be warmed up
while the EV system is operating.
WARNING
Be careful when using the seat
warmer:
The heat from the seat warmer may be
too hot for the following people and
could cause a low-temperature burn.

Infants, small children, elderly
people, and physically challenged
people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken
sleep-inducing medicine such as
sleeping pills or cold medicine
Do not use the seat warmer with
anything having high
moisture-retention ability such as a
blanket or cushion on the seat:
The seat may be heated excessively
and cause a low-temperature burn.
Do not use the seat warmer even
when taking a short nap in the
vehicle:
The seat may be heated excessively
and cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it:
This could cause the seat to become
excessively heated and result in injury
from a minor burn.
CAUTION
Do not use organic solvents such as
benzene or gasoline to clean the seat.
It may damage the seat surface and the
heater.
NOTE
The seat warmer cannot be used while
charging the vehicle.
The seat warmer can be operated on
the operation screen of the climate
control system.
1. AUTO switch
2. Seat warmer icon
3. Seat warmer setting icon
The seat warmer has manual mode
and auto mode.
Manual mode
When the , is operated, the seat
warmer operates in manual mode.
When the
, is touched or swiped,
the temperature level changes.
1. OFF
2. High
Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
*Some models.2-21
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

3. Mid
4. Low
NOTE
When the , is swiped upward,
the temperature changes to high.
When it is swiped downward, the
seat warmer changes to OFF.
The seat warmer does not operate
when the EV system is stopped even
if the
or is touched or swiped.
When the
is touched or swiped,
the setting screen of the seat warmer
can be displayed.
When each icon for the setting screen
is touched or swiped, the temperature
level can also be changed on the
setting screen.
When the
is touched or swiped, the
setting screen can be closed.
1. Setting screen
NOTE
If the EV system is stopped while the
seat warmer is operating in manual
mode, the seat warmer does not turn
on automatically the next time the EV
system is started. To turn the seat
warmer on, touch or swipe the icon
again.

Auto mode
The seat warmer can be operated in
conjunction with auto mode for the
climate control system.
Auto mode operates when auto mode
is enabled in the Mazda Connect
settings.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
Press the AUTO switch to select auto
mode.
While operating in auto mode, the
is displayed. The (white) for
the driver's seat/front passenger's seat
is displayed individually on the settings
screen.
The seat temperature is automatically
controlled at 4 levels (High, Mid, Low,
and OFF) according to the conditions
in the cabin.
NOTE
When auto mode is enabled using
Mazda Connect and auto mode is
not operating, the
(gray) is
displayed on the setting screen of the
seat warmer.
If the front passenger’s seat belt is
fastened, the front passenger’s seat
warmer turns on.
Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
2-22
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

If the or is operated during
auto mode, the seat warmer on the
side where the icon was operated
switches to manual mode. To return
to auto mode, press the AUTO
switch.
If the power switch is switched OFF
while the seat warmer is operating in
auto mode, the seat warmer
operates in auto mode again the
next time the EV system is started.
Heated Steering Wheel*
▼ Heated Steering Wheel
The grips on the left and right of the
steering wheel can be warmed up
when the power switch is switched
ON.
1. Heated position
WARNING
The following types of persons should
be careful not to touch the steering
wheel. Otherwise, it could cause a
low-temperature burn.

Infants, small children, elderly
people, and physically challenged
people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 Pe o pl e w h o have ta ke n
sleep-inducing medicine such as
sleeping pills or cold medicine
NOTE
The steering warmer cannot be used
while charging the vehicle.
Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
*Some models.2-23
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07
