Starting a Flooded Engine
If the engine fails to start, it may be
flooded (excessive fuel in the engine).
Follow this procedure:
1. Depress the accelerator all the way and
hold it there.
2. Turn the ignition switch to the START
position and hold it there―for up to 10
seconds. If the engine starts, release the
key and accelerator immediately
because the engine will suddenly rev
up.
3. If the engine fails to start, crank it
without depressing the accelerator―for
up to 10 seconds.
Jump-Starting
The battery is in the trunk.
Jump-starting is dangerous if done
incorrectly. So follow the procedure
carefully. If you feel unsure about jump-
starting, we strongly recommend that you
have a competent service technician do
the work.
WARNING
Battery-Related Explosion:
Flames and sparks near open battery
cells are dangerous. Hydrogen gas,
produced during normal battery
operation, could ignite and cause the
battery to explode. An exploding
battery can cause serious burns and
injuries. Keep all flames, including
cigarettes, and sparks away from open
battery cells.
Frozen Battery:
Jump-starting a frozen battery is
dangerous. It may rupture or explode,
causing serious injury.
Don't jump-start a frozen battery.
CAUTION
Use only a 12 V booster system. You
can damage a 12 V starter, ignition
system, and other electrical parts
beyond repair with a 24 V power
supply (two 12 V batteries in series or a
24 V motor generator set).
1. Make sure the booster battery is 12 V
and that its negative terminal is
grounded.
In Case of an Emergency
Emergency Starting
7-13
MX-5 Miata_8T72-EA-04G_Edition1 Page211
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (212,1)
2. If the booster battery is in another
vehicle, don't allow the vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.
3. Connect the jumper cables in the exact
sequence as in the illustration.
lConnect one end of a cable to the
positive terminal on the discharged
battery (1).
lAttach the other end to the positive
terminal on the booster battery (2).
lConnect one end of the other cable
to the negative terminal of the
booster battery (3).
lConnect the other end to a solid,
stationary, exposed metallic point
(for example, the trunk latch catch)
away from the discharged battery
(4).
Booster battery
Jumper
cable
Discharged
battery
Connect cables
in numerical
order and
disconnect in
reverse order.
Jumper cable
WARNING
Connecting to Negative Terminal:
Connecting the end of the second
cable to the negative (
) terminal of
the discharged battery is dangerous.
A spark could cause the gas around
the battery to explode and injure
someone. Connect the cable to a point
away from the battery.
4. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
5. When finished, carefully disconnect the
cables in the reverse order described in
Step3.
7-14
In Case of an Emergency
Emergency Starting
MX-5 Miata_8T72-EA-04G_Edition1 Page212
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (213,1)

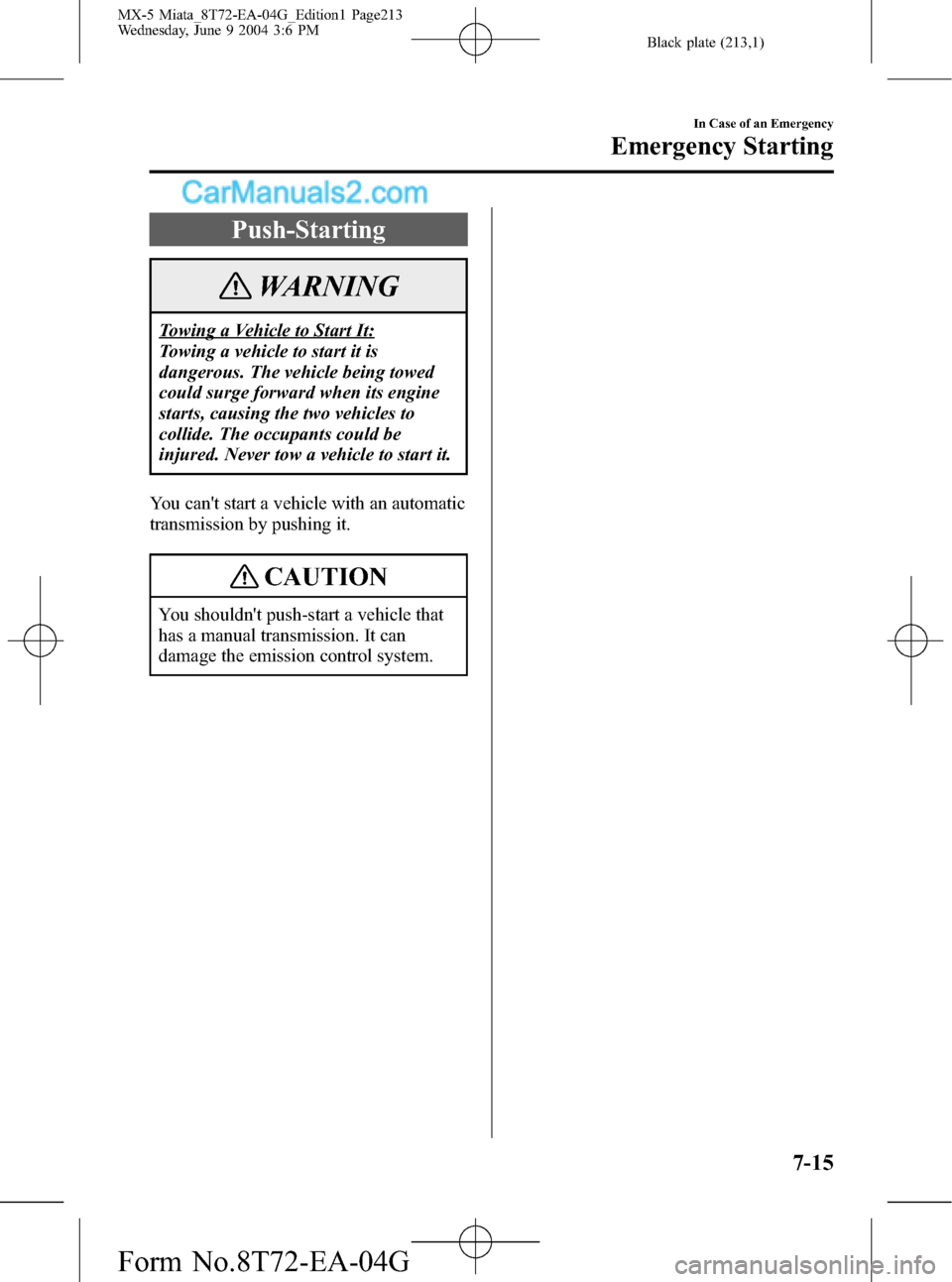

Push-Starting
WARNING
Towing a Vehicle to Start It:
Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured. Never tow a vehicle to start it.
You can't start a vehicle with an automatic
transmission by pushing it.
CAUTION
You shouldn't push-start a vehicle that
has a manual transmission. It can
damage the emission control system.
In Case of an Emergency
Emergency Starting
7-15
MX-5 Miata_8T72-EA-04G_Edition1 Page213
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (214,1)
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
rear wheels off the ground. If excessive
damage or other conditions prevent this,
use wheel dollies.
Wheel dollies
CAUTION
Don't tow the vehicle pointed forward
with driving wheels on the ground. This
may cause internal damage to the
transmission.
CAUTION
Don't tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.
7-16
In Case of an Emergency
Emergency Towing
MX-5 Miata_8T72-EA-04G_Edition1 Page214
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (215,1)
Tiedown Hooks
CAUTION
Don't use the tiedown hooks under the
front and rear for towing.
They are designed ONLY for tying
down the vehicle when it's being
transported. Using them for towing will
damage the bumper.
qTiedown Hooks-Front
qTiedown Hooks-Rear
Recreational Towing
An example of“recreational towing”is
towing your vehicle behind a motorhome.
The transmission is not designed for
towing this vehicle on all 4 wheels.
When doing recreational towing refer to
“Towing Description”(page 7-16) and
“Tiedown Hooks”(page 7-17) and
carefully follow the instructions.
In Case of an Emergency
Emergency Towing
7-17
MX-5 Miata_8T72-EA-04G_Edition1 Page215
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (216,1)
7-18
MX-5 Miata_8T72-EA-04G_Edition1 Page216
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (217,1)
