Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
CHASSIS and BODY
Brake lines, hoses and connections I I
Disc brakes I I I I
Tire (Rotation) Rotate every 12,000 km (7,500 miles)
Steering operation and linkages I I
Manual transmission oilR
Rear differential oilR
Front and rear suspension ball joints I I
Driveshaft dust boots I I
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 60 months
All locks and hinges L L L L L L L L
Chart symbols
I:Inspect:Inspect and repair, clean, adjust, or replace if necessary.
R:Replace
C:Clean
L:Lubricate
Remarks
* According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage/kilometer period to ensure long-term reliability.
Maintenance and Care
Scheduled Maintenance
8-5
MX-5 Miata_8T72-EA-04G_Edition1 Page221
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (222,1)
qSchedule 2
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Engine valve clearanceI
Engine timing belt Replace every 96,000 km (60,000 miles)
Drive belts (tension) I I
Engine oil
(Except Puerto Rico)MX-5/Miata R R R R R R RRRRRR
MAZDAS-
PEED MX-5Replace every 5,000 km (3,000 miles) or 3 months
Engine oil (Puerto Rico) Replace every 5,000 km (3,000 miles) or 3 months
Engine oil filterMX-5/Miata R R R R R R RRRRRR
MAZDAS-
PEED MX-5Replace every 5,000 km (3,000 miles) or 3 months
COOLING SYSTEM
Cooling system I I
Engine coolantReplace at first 96,000 km (60,000 miles) or
48 months ; after that, every 24 months
Engine coolant level I I I I I I IIIIII
FUEL SYSTEM
Idle speed I I
Air filter C C R C
Fuel lines and hoses
*II
Hoses and tubes for emission*I
IGNITION SYSTEM
Spark plugsMX-5/Miata R R
MAZDAS-
PEED MX-5Replace every 160,000 km (100,000 miles)
ELECTRICAL SYSTEM
Function of all lights I I I I I I IIIIII
8-6
Maintenance and Care
Scheduled Maintenance
MX-5 Miata_8T72-EA-04G_Edition1 Page222
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (223,1)
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
CHASSIS and BODY
Brake lines, hoses and connections I I
Brake and clutch fluid level I I I I I I IIIIII
Disc brakesIIII
Tire (Rotation) Rotate every 8,000 km (5,000 miles)
Tire inflation pressure and tire wear I I I I I I IIIIII
Steering operation and linkages I I
Power steering fluid level I I I I I I IIIIII
Manual transmission oil R R
Rear differential oil R R
Front and rear suspension ball joints I I
Driveshaft dust boots I I
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 60 months
All locks and hinges L L L L L LLLLLLL
Washer fluid level I I I I I I IIIIII
Chart symbols
I:Inspect:Inspect and repair, clean, adjust, or replace if necessary.
R:Replace
C:Clean
L:Lubricate
Remarks
* According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage/kilometer period to ensure long-term reliability.
Maintenance and Care
Scheduled Maintenance
8-7
MX-5 Miata_8T72-EA-04G_Edition1 Page223
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (224,1)
Scheduled Maintenance (Except North America)
NOTE
lAfter the prescribed period, continue to follow the described maintenance at the
recommended intervals.
lAs the result of visual examination or functional measurement of a system's operation
(performance), correct, clean, or replace as required. (Inspect, and if necessary replace
the air filter)
Emission control and related systems
The ignition and fuel systems are highly important to the emission control system and to
efficient engine operation. Don't tamper with them.
All inspections and adjustments must be made by an Authorized Mazda Dealer.
8-8
Maintenance and Care
Scheduled Maintenance
MX-5 Miata_8T72-EA-04G_Edition1 Page224
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (225,1)
qSchedule
Maintenance
IntervalNumber of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96
×1000 km 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
×1000 miles
6.25 12.5 18.752531.25 37.5 43.755056.25 62.5 68.757581.25 87.5 93.75100
ENGINE
Engine valve clearance Inspect every 100,000 km (62,500 miles) or 60 months
Drive belts
*1IIIIIIIIIIIIIIII
Engine timing belt*2Replace every 100,000 km (62,500 miles)
Engine oil*3RRRRRRRRRRRRRRRR
Engine oil filter*3RRRRRRRRRRRRRRRR
COOLING SYSTEM
Cooling system I I I I I I I I
Engine coolantexcept Australia
and New ZealandReplace every 24 months
Australia and New
ZealandReplace at first 80,000 km (50,000 miles) or 48 months ;
after that, every 24 months
FUEL SYSTEM
Idle speed I I I I I I I I
Air filter
*4
except Australia
and New ZealandCCRCCRCC
Australia and New
ZealandCRCRC
Fuel filterexcept Australia
and New ZealandRRRR
Australia and New
ZealandRRR
Fuel lines and hoses I I I I I I I I
Maintenance and Care
Scheduled Maintenance
8-9
MX-5 Miata_8T72-EA-04G_Edition1 Page225
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (226,1)
Maintenance
IntervalNumber of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96
×1000 km 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
×1000 miles
6.25 12.5 18.752531.25 37.5 43.755056.25 62.5 68.757581.25 87.5 93.75100
IGNITION SYSTEM
Spark plugs Replace every 40,000km (25,000miles)
Chart symbols
I:Inspect:Inspect and repair, clean, adjust, or replace if necessary.
R:Replace
C:Clean
Remarks
*1 Also inspect and adjust the power steering and air conditioner drive belts, if installed.
*2 Replacement of the timing belt is required at every 100,000 km {62,500 miles}. Failure to replace the timing
belt may result in damage to the engine.
*3 If the vehicle is operated under any of the following conditions, change the engine oil and oil filter more often
than recommended intervals.
a) Driving in dusty conditions.
b) Extended periods of idling or low speed operation.
c) Driving for long period in cold temperatures or driving regularly at short distance only.
*4 If the vehicle is operated in very dusty or sandy areas, inspect and if necessary, clean or replace the air filter
more often than the recommended intervals.
8-10
Maintenance and Care
Scheduled Maintenance
MX-5 Miata_8T72-EA-04G_Edition1 Page226
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (227,1)

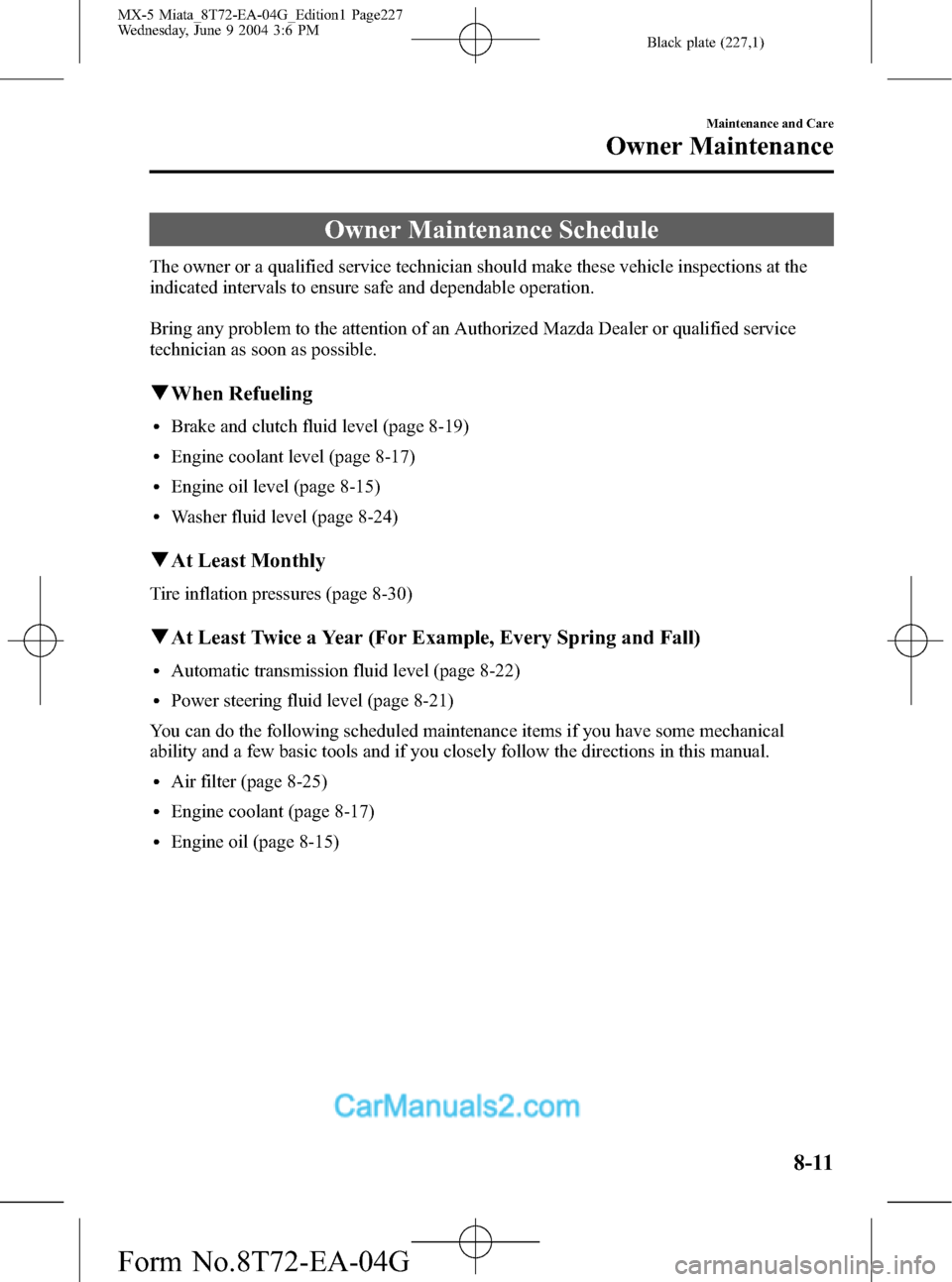

Owner Maintenance Schedule
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.
qWhen Refueling
lBrake and clutch fluid level (page 8-19)
lEngine coolant level (page 8-17)
lEngine oil level (page 8-15)
lWasher fluid level (page 8-24)
qAt Least Monthly
Tire inflation pressures (page 8-30)
qAt Least Twice a Year (For Example, Every Spring and Fall)
lAutomatic transmission fluid level (page 8-22)
lPower steering fluid level (page 8-21)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
lAir filter (page 8-25)
lEngine coolant (page 8-17)
lEngine oil (page 8-15)
Maintenance and Care
Owner Maintenance
8-11
MX-5 Miata_8T72-EA-04G_Edition1 Page227
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (228,1)
Owner Maintenance Precautions
Improper or incomplete service may result in problems. This section gives instructions only
for items that are easy to perform.
As explained in the Introduction (page 8-2), several procedures can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
For details, read the separate Mazda Warranty statement provided with the vehicle. If
you're unsure about any servicing or maintenance procedure, have it done by an
Authorized Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
WARNING
Maintenance Procedures:
Performing maintenance work on a vehicle is dangerous if not done properly. You can
be seriously injured while performing some maintenance procedures. If you lack
sufficient knowledge and experience or the proper tools and equipment to do the work,
have it done by a qualified technician.
Running the Engine:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Therefore, if you must run the engine while working under the hood, make certain
that you remove all jewelry (especially rings, bracelets, watches, and necklaces) and
all neckties, scarves, and similar loose clothing before getting near the engine or
cooling fan which may turn on unexpectedly.
Electrical Fan and Engine Inspection:
Inspecting the engine with the ignition switch in the ON position is dangerous. The
cooling fan could come on unexpectedly even when the engine isn't running. You
could be seriously injured by the fan. Turn the ignition switch off and remove the key
from the ignition switch when you inspect the engine.
8-12
Maintenance and Care
Owner Maintenance
MX-5 Miata_8T72-EA-04G_Edition1 Page228
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (229,1)
Engine Compartment Overview
Fuse block
Engine oil-filler cap
Cooling system cap
Power steering fluid filler cap/dipstickAir filterClutch fluid reservoir
(Only for manual
transmission model) Automatic transmission fluid-level dipstick
(Only for automatic transmission model)
Engine oil dipstick
Brake fluid reservoir Washer fluid reservoir
(TypeA)
Engine coolant
reservoirWasher fluid reservoir (TypeB)
The battery is in the trunk
Maintenance and Care
Owner Maintenance
8-13
MX-5 Miata_8T72-EA-04G_Edition1 Page229
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (230,1)
Engine Oil
qRecommended Oil
Use SAE 5W-20 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine
friction.
U.S.A. and CANADA
(ILSAC)
Only use oils“Certified For Gasoline
Engines”by the American Petroleum
Institute (API). An oil with this trademark
symbol conforms to the current engine
and emission system protection standards
and fuel economy requirements of the
International Lubricant Standardization
and Approval Committee (ILSAC),
comprised of U.S. and Japanese
automobile manufacturers.
5W-20
120 100 80
60 40
20
0 –20
50 40 30
20 10
0 –10
–20 –30
Except U.S.A. and CANADA
(ILSAC)
8-14
Maintenance and Care
Owner Maintenance
MX-5 Miata_8T72-EA-04G_Edition1 Page230
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G
