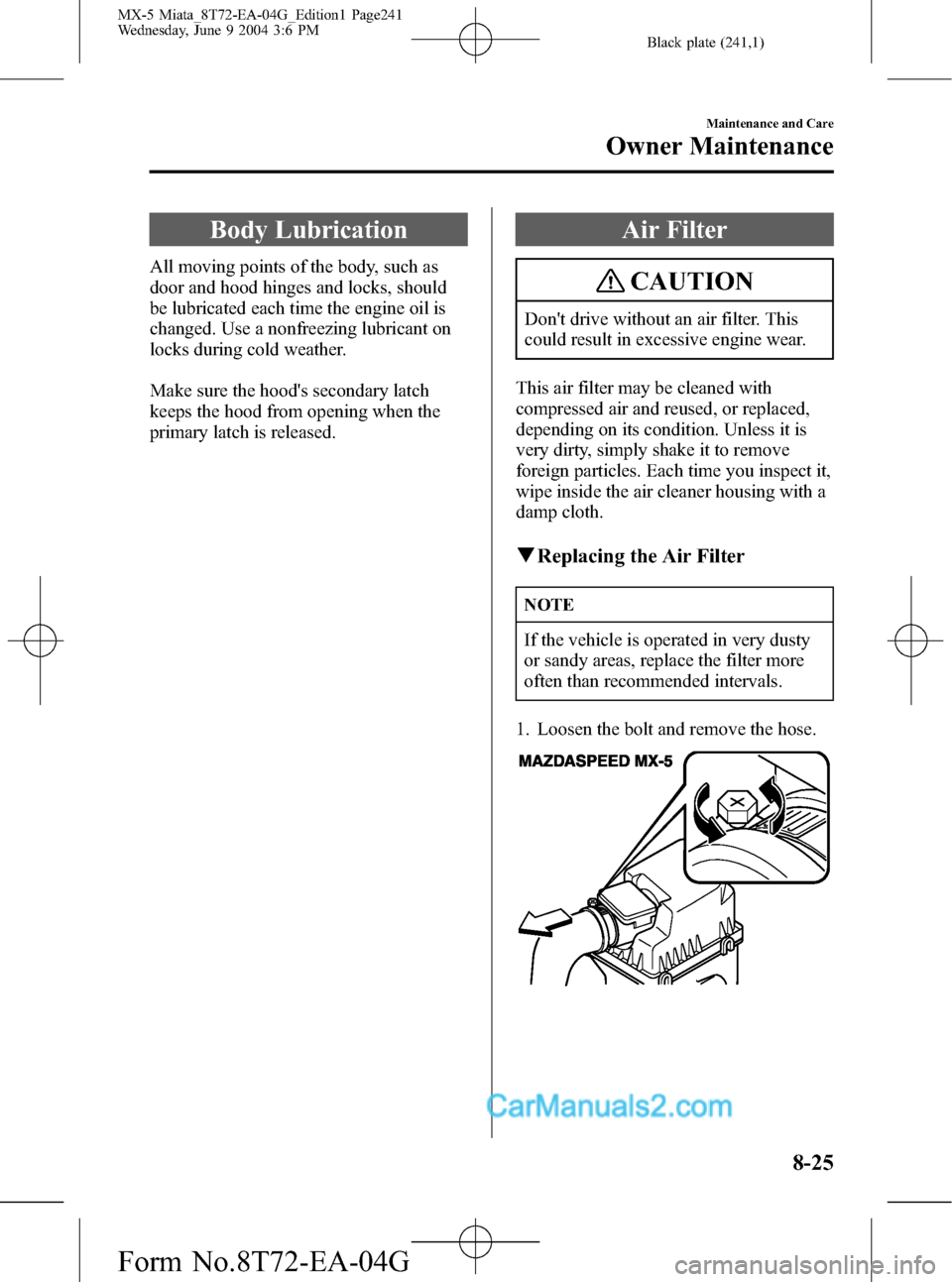

Body Lubrication
All moving points of the body, such as
door and hood hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.
Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.
Air Filter
CAUTION
Don't drive without an air filter. This
could result in excessive engine wear.
This air filter may be cleaned with
compressed air and reused, or replaced,
depending on its condition. Unless it is
very dirty, simply shake it to remove
foreign particles. Each time you inspect it,
wipe inside the air cleaner housing with a
damp cloth.
qReplacing the Air Filter
NOTE
If the vehicle is operated in very dusty
or sandy areas, replace the filter more
often than recommended intervals.
1. Loosen the bolt and remove the hose.
Maintenance and Care
Owner Maintenance
8-25
MX-5 Miata_8T72-EA-04G_Edition1 Page241
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (242,1)
2. Unfasten the clamps.
3. Lift off the air filter cover and remove
the filter.
Air filter cover
Air filter
4. Wipe inside the air cleaner housing
with a damp cloth.
5. Clean or replace the filter.
6. Install in the reverse order of removal.
Replace the filter according to Scheduled
Maintenance (page 8-3).
Wiper Blades
CAUTION
lHot waxes applied by automatic car
washers have been known to affect
the wiper's ability to clean windows.
lTo prevent damage to the wiper
blades, don't use gasoline, kerosene,
paint thinner, or other solvents on or
near them.
Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
qReplacing Windshield Wiper
Blades
When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.
CAUTION
To prevent damage to the wiper arms
and other components, don't move the
wipers by hand.
8-26
Maintenance and Care
Owner Maintenance
MX-5 Miata_8T72-EA-04G_Edition1 Page242
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (243,1)
1. Raise the wiper arm and turn the blade
assembly to expose the plastic locking
clip.
Compress the clip and slide the
assembly downward; then lift it off the
arm.
Plastic locking clip
CAUTION
To prevent damage to the windshield,
don't let the wiper arm fall on it.
2. Hold the end of the rubber and pull
until the tabs are free of the metal
support.
Metal support
Ta b
3. Remove the metal stiffeners from the
blade rubber and install them in new
blades.
CAUTION
lDon't bend or discard the stiffeners.
You need to use them again.
lIf the metal stiffeners are switched,
the blade's wiping efficiency could
be reduced.
So don't use the driver's side metal
stiffeners on the passenger's side, or
vice versa.
lBe sure to reinstall the metal
stiffeners in the new blade rubber so
that the curve is the same as it was in
the old blade rubber.
Maintenance and Care
Owner Maintenance
8-27
MX-5 Miata_8T72-EA-04G_Edition1 Page243
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (244,1)
4. Carefully insert the new blade rubber.
Then install the blade assembly in the
reverse order of removal.
NOTE
Install the blade so that the tabs are
toward the bottom of the wiper arm.
Battery
WARNING
Battery-Related Lead Materials:
Battery posts, terminals and related
accessories contain lead and lead
compounds, chemicals known to the
State of California to cause cancer
and reproductive harm.
Wash hands after handling.
Battery-Related Explosion:
Flames and sparks near open battery
cells are dangerous. Hydrogen gas,
produced during normal battery
operation, could ignite and cause the
battery to explode. An exploding
battery can cause serious burns and
injuries. Keep all flames, including
cigarettes, and sparks away from open
battery cells.
Children and Batteries:
Allowing children to play near
batteries is dangerous. Battery fluid
could cause serious injuries if it gets
in the eyes or on the skin. Always keep
batteries out of the reach of children.
NOTE
The battery in this vehicle is unique and
should only be replaced with the
appropriate Mazda battery. For more
details, contact an Authorized Mazda
Dealer.
8-28
Maintenance and Care
Owner Maintenance
MX-5 Miata_8T72-EA-04G_Edition1 Page244
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (245,1)
The battery is in the trunk.
qBattery Maintenance
To get the best service from a battery:
lKeep it securely mounted.
lKeep the top clean and dry.
lKeep terminals and connections clean,
tight, and coated with petroleum jelly
or terminal grease.
lRinse off spilled electrolyte
immediately with a solution of water
and baking soda.
lIf the vehicle will not be used for an
extended time, disconnect the battery
cables.
Tires
For reasons of proper performance, safety,
and better fuel economy, always maintain
recommended tire inflation pressures and
stay within the recommended load limits
and weight distribution.
WARNING
Using Different Tire Types:
Driving your vehicle with different
types of tires is dangerous. It could
cause poor handling and poor
braking; leading to loss of control.
Except for the limited use of the
temporary spare tire, use only the
same type tires (radial, bias-belted,
bias-type) on all four wheels.
Using Wrong-Sized Tires:
Using any other tire size than what is
specified for your Mazda (page 10-6)
is dangerous. It could seriously affect
ride, handling, ground clearance, tire
clearance, and speedometer
calibration. This could cause you to
have an accident. Use only tires that
are the correct size specified for your
Mazda.
Maintenance and Care
Owner Maintenance
8-29
MX-5 Miata_8T72-EA-04G_Edition1 Page245
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (246,1)

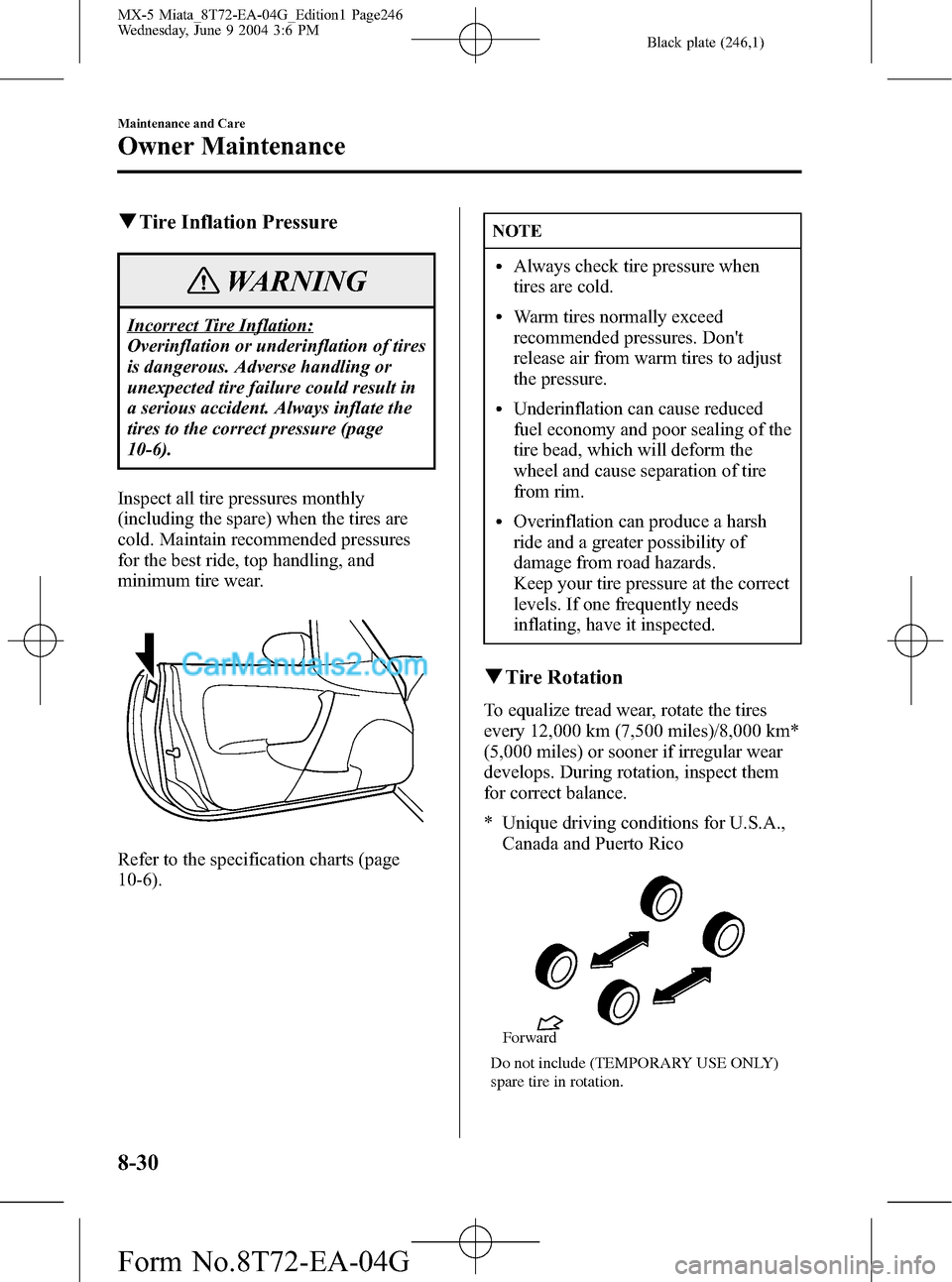

qTire Inflation Pressure
WARNING
Incorrect Tire Inflation:
Overinflation or underinflation of tires
is dangerous. Adverse handling or
unexpected tire failure could result in
a serious accident. Always inflate the
tires to the correct pressure (page
10-6).
Inspect all tire pressures monthly
(including the spare) when the tires are
cold. Maintain recommended pressures
for the best ride, top handling, and
minimum tire wear.
Refer to the specification charts (page
10-6).
NOTE
lAlways check tire pressure when
tires are cold.
lWarm tires normally exceed
recommended pressures. Don't
release air from warm tires to adjust
the pressure.
lUnderinflation can cause reduced
fuel economy and poor sealing of the
tire bead, which will deform the
wheel and cause separation of tire
from rim.
lOverinflation can produce a harsh
ride and a greater possibility of
damage from road hazards.
Keep your tire pressure at the correct
levels. If one frequently needs
inflating, have it inspected.
qTire Rotation
To equalize tread wear, rotate the tires
every 12,000 km (7,500 miles)/8,000 km*
(5,000 miles) or sooner if irregular wear
develops. During rotation, inspect them
for correct balance.
* Unique driving conditions for U.S.A.,
Canada and Puerto Rico
Do not include (TEMPORARY USE ONLY)
spare tire in rotation.Forward
8-30
Maintenance and Care
Owner Maintenance
MX-5 Miata_8T72-EA-04G_Edition1 Page246
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (247,1)
Also, inspect them for uneven wear and
damage. Abnormal wear is usually caused
by one or a combination of the following:
lIncorrect tire pressure
lImproper wheel alignment
lOut-of-balance wheel
lSevere braking
After rotation, inflate all tire pressures to
specification (page 10-6) and inspect the
lug nuts for tightness.
CAUTION
Rotate unidirectional tires and radial
tires that have an asymmetrical tread
pattern or studs only from front to rear,
not from side to side. Tire performance
will be weakened if rotated from side to
side.
CAUTION
Limited-Slip Differential system;
don't use the following:
lTires not of the designated size
lTires of different sizes or types at the
same time
lTires not sufficiently inflated
If these instructions aren't followed, the
rotation of the left and right wheels will
be different and will thus apply a
constant load on the limited-slip
differential.
This will cause a malfunction.
qReplacing a Tire
WARNING
Worn Tires:
Driving with worn tires is dangerous.
Reduced braking, steering, and
traction could result in an accident.
Always use tires that are in good
condition.
If a tire wears evenly, a wear indicator
will appear as a solid band across the
tread.
Replace the tire when this happens.
New treadTread wear indicator
Worn tread
You should replace it before the band is
across the entire tread.
qTemporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it's properly inflated
and stored.
The temporary spare tire is easier to
handle because of its construction. It is
lighter and smaller than a conventional
tire and should be used only for an
emergency and only for a short distance.
Maintenance and Care
Owner Maintenance
8-31
MX-5 Miata_8T72-EA-04G_Edition1 Page247
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (248,1)
Use the temporary only until the
conventional tire is repaired, which should
be as soon as possible.
Maintain its pressure at 420 kPa (4.2 kgf/
cm
2or bar, 60 psi).
CAUTION
lDon't use your temporary spare tire
rim with a snow tire or a
conventional tire. Neither will
properly fit and could damage both
tire and rim.
lThe temporary spare tire has a tread
life of up to 5,000 km (3,000 miles),
depending on road conditions and
driving habits.
lThe temporary spare tire is for
limited use, however, if the tread
wear solid-band indicator appears,
replace the tire with the same type of
temporary spare (page 8-31).
qReplacing a Wheel
WARNING
Using a Wrong-Sized Wheel:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident. Always use
wheels of the correct size on your
vehicle.
CAUTION
A wrong-sized wheel may adversely
affect:
lTire fit
lWheel and bearing life
lGround clearance
lSnow-chain clearance
lSpeedometer calibration
lHeadlight aim
lBumper height
lLimited-Slip Differential System
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset.
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
8-32
Maintenance and Care
Owner Maintenance
MX-5 Miata_8T72-EA-04G_Edition1 Page248
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (249,1)
Light Bulbs
Overhead light
High-mount brake light
Rear turn signal lights Brake lights/Taillights
Reverse lights
Headlights
Some models.
License plate
lights/Trunk lights Side-marker lightsFog lights Front turn signal
lights/Parking lights
Maintenance and Care
Owner Maintenance
8-33
MX-5 Miata_8T72-EA-04G_Edition1 Page249
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (250,1)
Your Mazda's headlights and fog lights
have replaceable halogen bulbs.
WARNING
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries could
be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
qReplacing Exterior Light Bulbs
Replacing a headlight bulb
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. Lift the hood and find the high and low
beam bulbs in the rear of the headlight
unit.
The outboard bulb is the LOW beam,
and the inboard one is the HIGH beam.
Refer to Light Bulbs (page 8-33).3. Turn the socket and bulb assembly
counterclockwise and remove it while
holding the rubber socket cover in
place. Carefully remove the headlight
bulb from its socket in the reflector by
gently pulling it straight backward out
of the socket.
4. Disconnect the bulb from the electrical
connector by pressing the tab on the
connector with your finger and pulling
the bulb upward.
High beam bulb
Low beam bulb
5. Install the new bulb in the reverse order
of removal.
NOTE
Use the protective cover and carton for
the replacement bulb to dispose of the
old bulb promptly and out of the reach
of children.
Replacing a fog light bulbí
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Front turn signal lights/Parking lights
1. Turn the socket and bulb assembly
counterclockwise and remove it.
8-34
Maintenance and Care
íSome models.
Owner Maintenance
MX-5 Miata_8T72-EA-04G_Edition1 Page250
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G
