MAZDA MODEL MX-5 2005 Owners Manual (in English)

Black plate (261,1)
CAUTION
Don't use steel wool, abrasive cleaners,
or strong detergents containing highly
alkaline or caustic agents on chrome-
plated or anodized aluminum parts.
This may result in damage to the
protective coating and cause
discoloration or paint deterioration.
qUnderbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also
to do this every month.
Pay special attention to these areas
because they easily hide mud and dirt.It
will do more harm than good to wet
down the road grime without removing
it.
The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting.
WARNING
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
Dry the brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal.
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
NOTE
lDon't use a wire brush or any
abrasive cleaner, polishing
compound, or solvent on aluminum
wheels. They may damage the
coating.
lOnly use a mild soap or neutral
detergent and always use a sponge or
soft cloth to clean the wheels.
Rinse thoroughly with lukewarm or
cold water. Also, be sure to clean the
wheels after driving on dusty or
salted roads. This helps prevent
corrosion.
lAvoid washing your vehicle in an
automatic car wash that uses high-
speed or hard brushes.
lIf your aluminum wheels lose luster,
wax the wheels.
Maintenance and Care
Appearance Care
8-45
MX-5 Miata_8T72-EA-04G_Edition1 Page261
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (262,1)
qConvertible Top Maintenance
The convertible top is made of a special
high-grade material, but if it's not taken
good care of, hardening, staining, and loss
of luster will result. Maintain it under
these guidelines.
Washing
Don't wait until the top gets really dirty
before cleaning it. Dirt that's there too
long will cause deterioration.
1. Before washing, remove dust and
coarse particulate with a soft brush.
2. Gently clean the top with a synthetic
neutral detergent, lots of water, and a
soft brush.
3. Rinse it thoroughly with clean water to
remove all the soap.
4. Wipe it as dry as you can before the
water dries on it.
5. Then allow it to dry completely before
lowering it.
CAUTION
lAutomatic and high-pressure car
washes are harmful to a convertible
top. Avoid them.
lDon't spray water directly on the
area where the window glass and the
top meet. This would probably cause
water to enter the cabin.
Appearance(Polyvinyl only)
Dress the top once a month after washing
and drying it well. For best results, use a
water-based leather treatment or vinyl top
dressing. This will help maintain good
appearance and material condition of the
top.
CAUTION
lSome leather treatment products can
ruin the top's gloss. Be careful of the
one you choose.
lTest on an inconspicuous, small
corner of the top if you are not sure.
lDon't get any car wax on the top.
If you do, remove it with a good
leather cleaner.
lToo much treatment on the top can
be as damaging as too little. Follow
the manufacturer's directions.
Don't overdo it!
lLet the top dry completely before
lowering after applying treatment or
dressing.
qDetachable Hardtop
Maintenanceí
Washing
To help protect the hardtop's finish, use a
soft cloth or sponge to wash it.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if they are not removed
immediately. When prompt washing with
plain water is ineffective use a mild soap
made for use on vehicles.
8-46
Maintenance and Care
íSome models.
Appearance Care
MX-5 Miata_8T72-EA-04G_Edition1 Page262
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (263,1)
CAUTION
lDon't use an automatic car wash.
lDon't use strong soap, chemical
detergents, or hot water, and don't
wash the hardtop in direct sunlight or
when the surface is warm.
Thoroughly rinse with lukewarm or cold
water. Don't allow soap to dry on the
finish.
Waxing
Wax the hardtop when water no longer
beads on the paint. Always wash and dry
it before waxing.
CAUTION
lWiping off dust or dirt with a dry
cloth will scratch the finish.
lDon't use abrasive wax. This may
damage the protective coating and
discolor or deteriorate the paint.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take
off the wax. Rewax these areas.
Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Real leather isn't uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
If the leather gets wet from rain, remove
the moisture as soon as possible and dry
in a shaded area.
If the seats get wet, promptly remove
moisture with a dry cloth and allow it to
further dry in a shaded area.
If moisture is not removed, it will cause
hardening and shrinkage of the leather.
Do not leave vinyl products on the seats
for long periods as they may affect the
leather quality and coloring.
Maintenance and Care
Appearance Care
8-47íSome models. MX-5 Miata_8T72-EA-04G_Edition1 Page263
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (264,1)
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.
To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
qCleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Damaged Seat Belt:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection. Have an Authorized Mazda
Dealer replace damaged belts
immediately.
qCleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them
with glass cleaner. Follow the directions
on the container.
CAUTION
Don't scrape or scratch the inside of the
rear window. You may damage the rear
window defroster grid.
8-48
Maintenance and Care
Appearance Care
MX-5 Miata_8T72-EA-04G_Edition1 Page264
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (265,1)

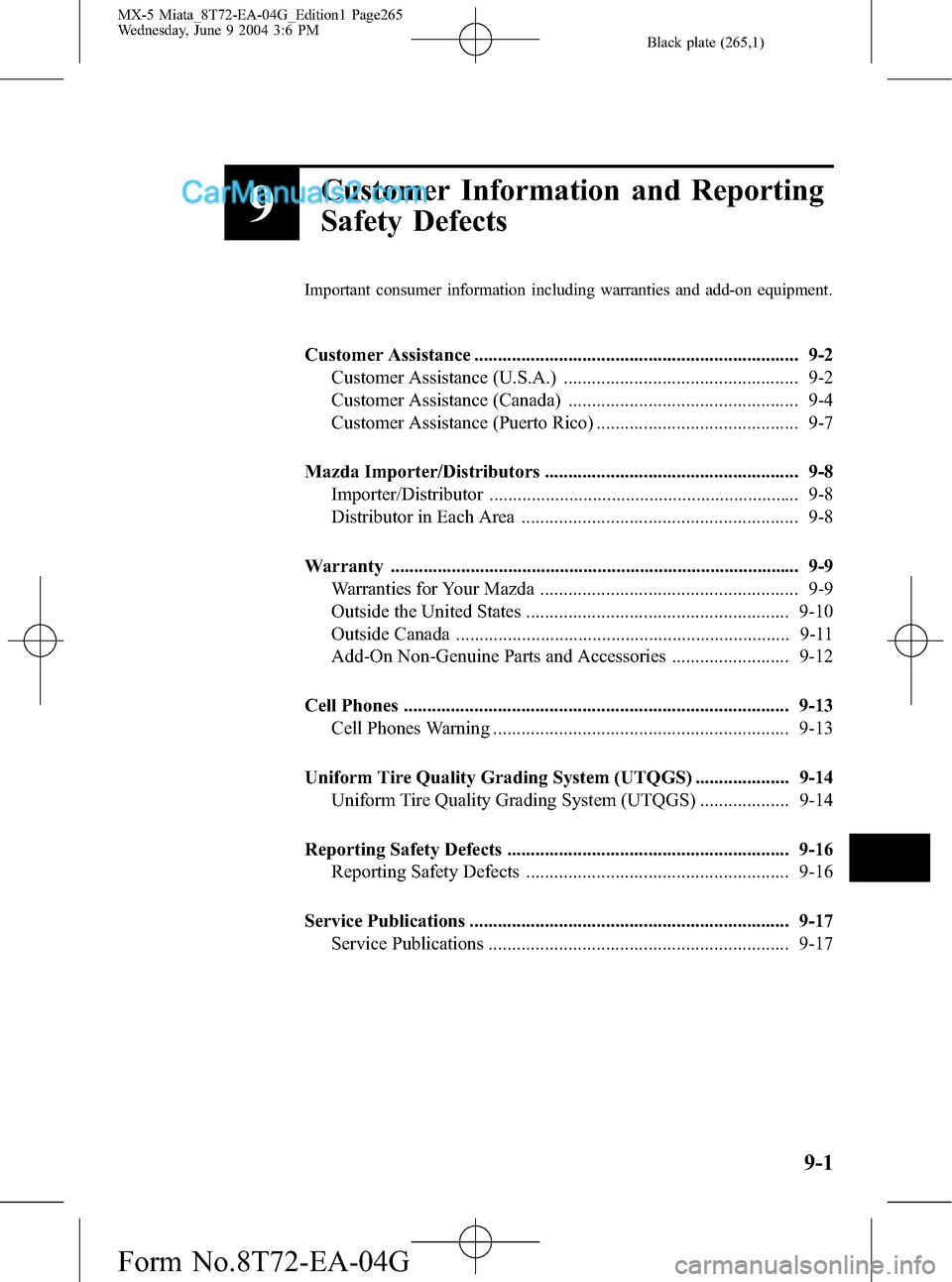

9
Customer Information and Reporting
Safety Defects
Important consumer information including warranties and add-on equipment.
Customer Assistance ..................................................................... 9-2
Customer Assistance (U.S.A.) .................................................. 9-2
Customer Assistance (Canada) ................................................. 9-4
Customer Assistance (Puerto Rico) ........................................... 9-7
Mazda Importer/Distributors ...................................................... 9-8
Importer/Distributor .................................................................. 9-8
Distributor in Each Area ........................................................... 9-8
Warranty ....................................................................................... 9-9
Warranties for Your Mazda ....................................................... 9-9
Outside the United States ........................................................ 9-10
Outside Canada ....................................................................... 9-11
Add-On Non-Genuine Parts and Accessories ......................... 9-12
Cell Phones .................................................................................. 9-13
Cell Phones Warning ............................................................... 9-13
Uniform Tire Quality Grading System (UTQGS) .................... 9-14
Uniform Tire Quality Grading System (UTQGS) ................... 9-14
Reporting Safety Defects ............................................................ 9-16
Reporting Safety Defects ........................................................ 9-16
Service Publications .................................................................... 9-17
Service Publications ................................................................ 9-17
9-1
MX-5 Miata_8T72-EA-04G_Edition1 Page265
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (266,1)
Customer Assistance (U.S.A.)
Your complete and permanent satisfaction is our business. We are here to serve you. All
Authorized Mazda Dealers have the knowledge and the tools to keep your Mazda vehicle
in top condition.
If you have any questions or recommendations for improvement regarding the service of
your Mazda vehicle or servicing by Mazda Dealer personnel, we recommend that you take
the following steps:
qSTEP 1: Contact Your Mazda Dealer
Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to
address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS,
SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL
MANAGER of the dealership or the OWNER.
qSTEP 2: Contact Mazda North American Operations
If for any reason you feel the need for further assistance after contacting your dealership
management, you can reach Mazda North American Operations by one of three ways.
By email at: www.mazdaUSA.com (Click the TALK TO US link at the top of the
home page).
Answers to many of your Frequently Asked Questions (FAQs), including how to
locate or contact a local Mazda Dealership in the U.S., can be found here.
By phone at: 1 (800) 222-5500
By letter at:
Attn: Customer Assistance
Mazda North American Operations
7755 Irvine Center Drive
Irvine, CA 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
In order to serve you efficiently and effectively, please help us by providing the following
information:
1. Your name, address, and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number (17 digits, noted on your registration or title or located on
the upper driver's side corner of the dash)
9-2
Customer Information and Reporting Safety Defects
Customer Assistance
MX-5 Miata_8T72-EA-04G_Edition1 Page266
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (267,1)
4. Purchase date and current mileage
5. Your dealer's name and location
6. Your question(s)
If you live outside the U.S.A., please contact your nearest Mazda Distributor.
Customer Information and Reporting Safety Defects
Customer Assistance
9-3
MX-5 Miata_8T72-EA-04G_Edition1 Page267
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (268,1)
Customer Assistance (Canada)
qSatisfaction Review Process
Your complete and permanent satisfaction is of primary concern to Mazda. All Authorized
Mazda Dealers have both the knowledge and tools to keep your Mazda in top condition. In
our experience, any questions, problems, or complaints regarding the operation of your
Mazda or any other general service transactions are most effectively resolved by your
dealer. If the cause of your dissatisfaction cannot adequately be addressed by normal
dealership procedures, we recommend that you take the following steps:
qSTEP 1: Contact the Mazda Dealer
Discuss the matter with a member of dealership management. If the Service Manager has
already reviewed your concerns, contact the owner of the dealership or its General
Manager.
qSTEP 2: Contact the Mazda Regional Office
If you feel that you still require assistance, ask the dealer Service Manager to arrange for
you to meet the local Mazda Service Representative. If more expedient, contact Mazda
Canada Inc.Regional Office nearest you for such arrangements. Regional Office address
and phone numbers are shown (page 9-6).
qSTEP 3: Contact the Mazda Customer Relations Department
If still not substantially satisfied, contact the Customer Relations Department, Mazda
Canada Inc., 305 Milner Avenue, Suite 400 Scarborough, Ontario M1B 3V4 Canada
TEL:1 (800) 263-4680.
Provide the Department with the following information:
1. Your name, address and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number (VIN). Refer to the“Vehicle Identification Labels”page
of section 10 of this manual for the location of the VIN.
4. Purchase date
5. Present odometer reading
6. Your dealer's name and location
7. The nature of your problem and/or cause of dissatisfaction
The Department, in cooperation with the local Mazda Service Representative, will review
the case to determine if everything possible has been done to ensure your satisfaction.
9-4
Customer Information and Reporting Safety Defects
Customer Assistance
MX-5 Miata_8T72-EA-04G_Edition1 Page268
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (269,1)

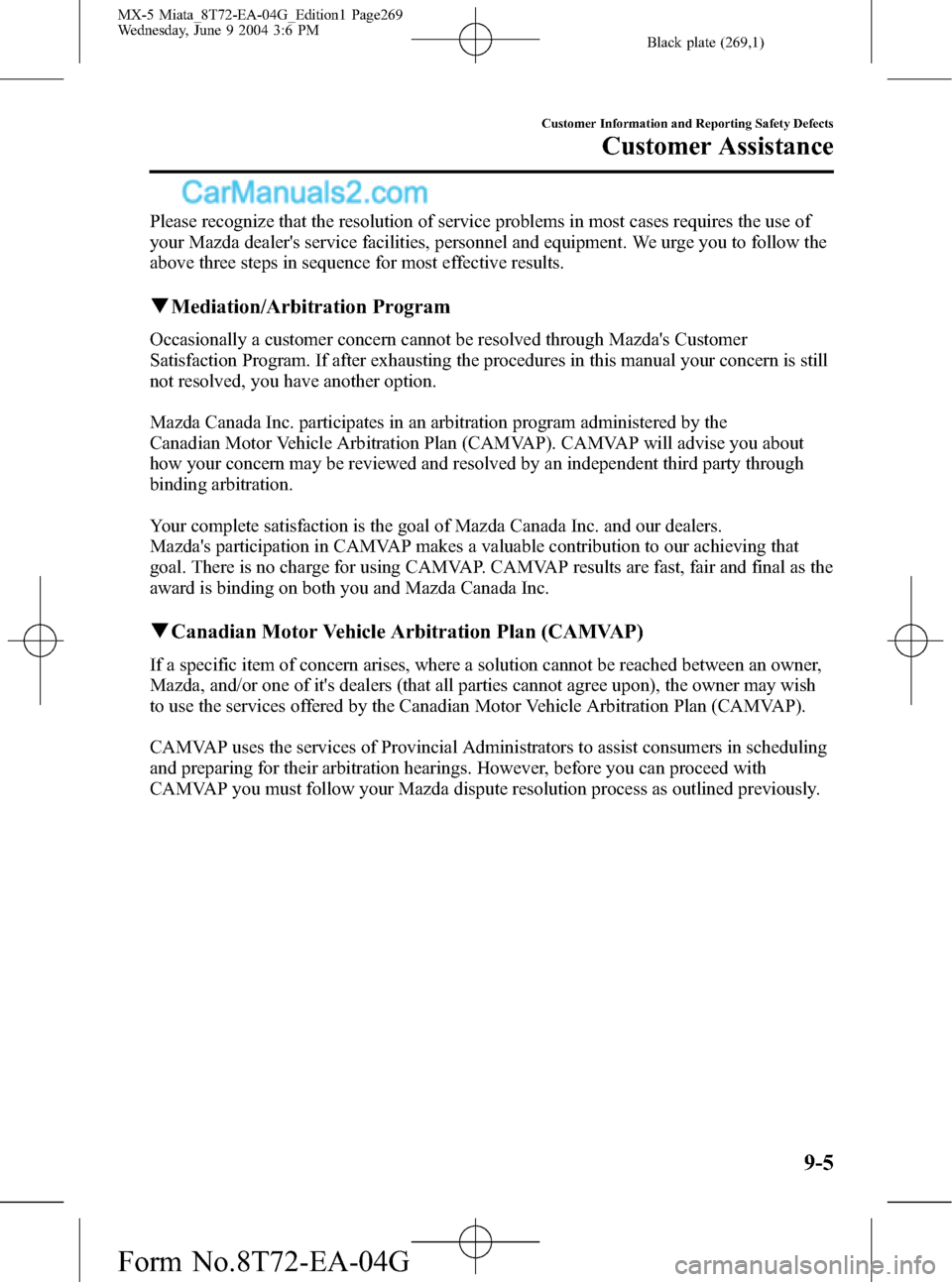

Please recognize that the resolution of service problems in most cases requires the use of
your Mazda dealer's service facilities, personnel and equipment. We urge you to follow the
above three steps in sequence for most effective results.
qMediation/Arbitration Program
Occasionally a customer concern cannot be resolved through Mazda's Customer
Satisfaction Program. If after exhausting the procedures in this manual your concern is still
not resolved, you have another option.
Mazda Canada Inc. participates in an arbitration program administered by the
Canadian Motor Vehicle Arbitration Plan (CAMVAP). CAMVAP will advise you about
how your concern may be reviewed and resolved by an independent third party through
binding arbitration.
Your complete satisfaction is the goal of Mazda Canada Inc. and our dealers.
Mazda's participation in CAMVAP makes a valuable contribution to our achieving that
goal. There is no charge for using CAMVAP. CAMVAP results are fast, fair and final as the
award is binding on both you and Mazda Canada Inc.
qCanadian Motor Vehicle Arbitration Plan (CAMVAP)
If a specific item of concern arises, where a solution cannot be reached between an owner,
Mazda, and/or one of it's dealers (that all parties cannot agree upon), the owner may wish
to use the services offered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
CAMVAP uses the services of Provincial Administrators to assist consumers in scheduling
and preparing for their arbitration hearings. However, before you can proceed with
CAMVAP you must follow your Mazda dispute resolution process as outlined previously.
Customer Information and Reporting Safety Defects
Customer Assistance
9-5
MX-5 Miata_8T72-EA-04G_Edition1 Page269
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (270,1)
CAMVAP is fully implemented in all provinces and territories.
Consumers wishing to obtain further information about the Program should contact the
Provincial Administrator at 1 (800) 207-0685, or by contacting the
Canadian Motor Vehicle Arbitration Plan Office at:
Canadian Motor Vehicle Arbitration Plan
235 Yorkland Boulevard, suite 300
North York, Ontario
M2J 4Y8
http://camvap.ca
Provincial Administrators may be reached locally as listed below:
Province/Territory CAMVAP Number
British Columbia & Yukon Territories 1 (800) 207-0685
Alberta & Northwest Territories 1 (800) 207-0685
Saskatchewan 1 (800) 207-0685
Manitoba 1 (800) 207-0685
Ontario 1 (800) 207-0685
Atlantic Canada 1 (800) 207-0685
Quebec 1 (800) 207-0685
qRegional Offices
REGIONAL OFFICES AREAS COVERED
MAZDA CANADA INC.
WESTERN REGION
8171 ACKROYD ROAD
SUITE 2000
RICHMOND B.C.
V6X 3K1
(604) 303-5670ALBERTA,
BRITISH COLUMBIA,
MANITOBA,
SASKATCHEWAN,
YUKON
MAZDA CANADA INC.
CENTRAL/ATLANTIC REGION
305 MILNER AVENUE
SUITE 400
SCARBOROUGH, ONTARIO
M1B 3V4
1 (800) 263-4680ONTARIO,
NEW BRUNSWICK,
NOVA SCOTIA,
PRINCE EDWARD ISLAND,
NEWFOUNDLAND
MAZDA CANADA INC.
QUEBEC REGION
6111 ROUTE TRANS
CANADIENNE
POINTE CLAIRE, QUEBEC
H9R 5A5
(514) 694-6390QUEBEC
9-6
Customer Information and Reporting Safety Defects
Customer Assistance
MX-5 Miata_8T72-EA-04G_Edition1 Page270
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G
