WARNING
Keep Flames Away:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames including
cigarettes and sparks away from open battery cells. When working near a battery, do
not allow metal tools to contact the positive (
) or negative () terminal of the
battery. Do not allow the positive (
) terminal to contact the vehicle body.
Battery-Related Explosion:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames, including
cigarettes, and sparks away from open battery cells.
Frozen Battery:
Jump-starting a frozen battery is dangerous. It may rupture or explode, causing
serious injury.
Don't jump-start a frozen battery .
Connecting to Negative Terminal:
Connecting the end of the second cable to the negative (
) terminal of the discharged
battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Connect the negative cable to a good ground point away from the battery.
CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor generator set).
In Case of an Emergency
Emergency Starting
7-23
MX-5_8U35-EA-05F_Edition1 Page251
Monday, April 18 2005 4:19 PM
Form No.8U35-EA-05F

Black plate (252,1)
Discharged battery
Connect cables in numerical order and disconnect in reverse order.
Jumper cables
Booster battery
1. Remove the rubber hose from the
battery cover.2. Remove the battery cover from its right
side.
3. Make sure the booster battery is 12 V
and that its negative terminal is
grounded.
4. If the booster battery is in another
vehicle, don't allow both vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.
7-24
In Case of an Emergency
Emergency Starting
MX-5_8U35-EA-05F_Edition1 Page252
Monday, April 18 2005 4:19 PM
Form No.8U35-EA-05F

Black plate (253,1)
5. Connect the jumper cables in the exact
sequence as in the illustration.
lConnect one end of a cable to the
positive terminal on the discharged
battery (1).
lAttach the other end to the positive
terminal on the booster battery (2).
lConnect one end of the other cable
to the negative terminal of the
booster battery (3).
lConnect the other end to a solid,
stationary, exposed metallic point
(for example, the hood latch) away
from the discharged battery (4).
6. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
7. When finished, carefully disconnect the
cables in the reverse order described in
the illustration.
8. If the battery cover has been removed,
install it in the reverse order of
removal.
NOTE
lBefore installing the battery cover,
make sure both of the cables
connecting the negative battery
terminal (right side of battery) are
connected with the cables routed
toward the right and back of the
battery as shown in the figure.
lVerify that the covers are securely
installed.
In Case of an Emergency
Emergency Starting
7-25
MX-5_8U35-EA-05F_Edition1 Page253
Monday, April 18 2005 4:19 PM
Form No.8U35-EA-05F

Black plate (254,1)
Push-Starting
WARNING
Towing a Vehicle to Start It:
Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured. Never tow a vehicle to start it.
You can't start a vehicle with an automatic
transmission by pushing it.
CAUTION
Do not push-start a vehicle that has a
manual transmission. It can damage the
emission control system.
7-26
In Case of an Emergency
Emergency Starting
MX-5_8U35-EA-05F_Edition1 Page254
Monday, April 18 2005 4:19 PM
Form No.8U35-EA-05F

Black plate (255,1)
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
rear wheels off the ground. If excessive
damage or other conditions prevent this,
use wheel dollies.
Wheel dollies
CAUTION
Don't tow the vehicle pointed forward
with driving wheels on the ground. This
may cause internal damage to the
transmission.
CAUTION
Don't tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.
In Case of an Emergency
Emergency Towing
7-27
MX-5_8U35-EA-05F_Edition1 Page255
Monday, April 18 2005 4:19 PM
Form No.8U35-EA-05F

Black plate (256,1)

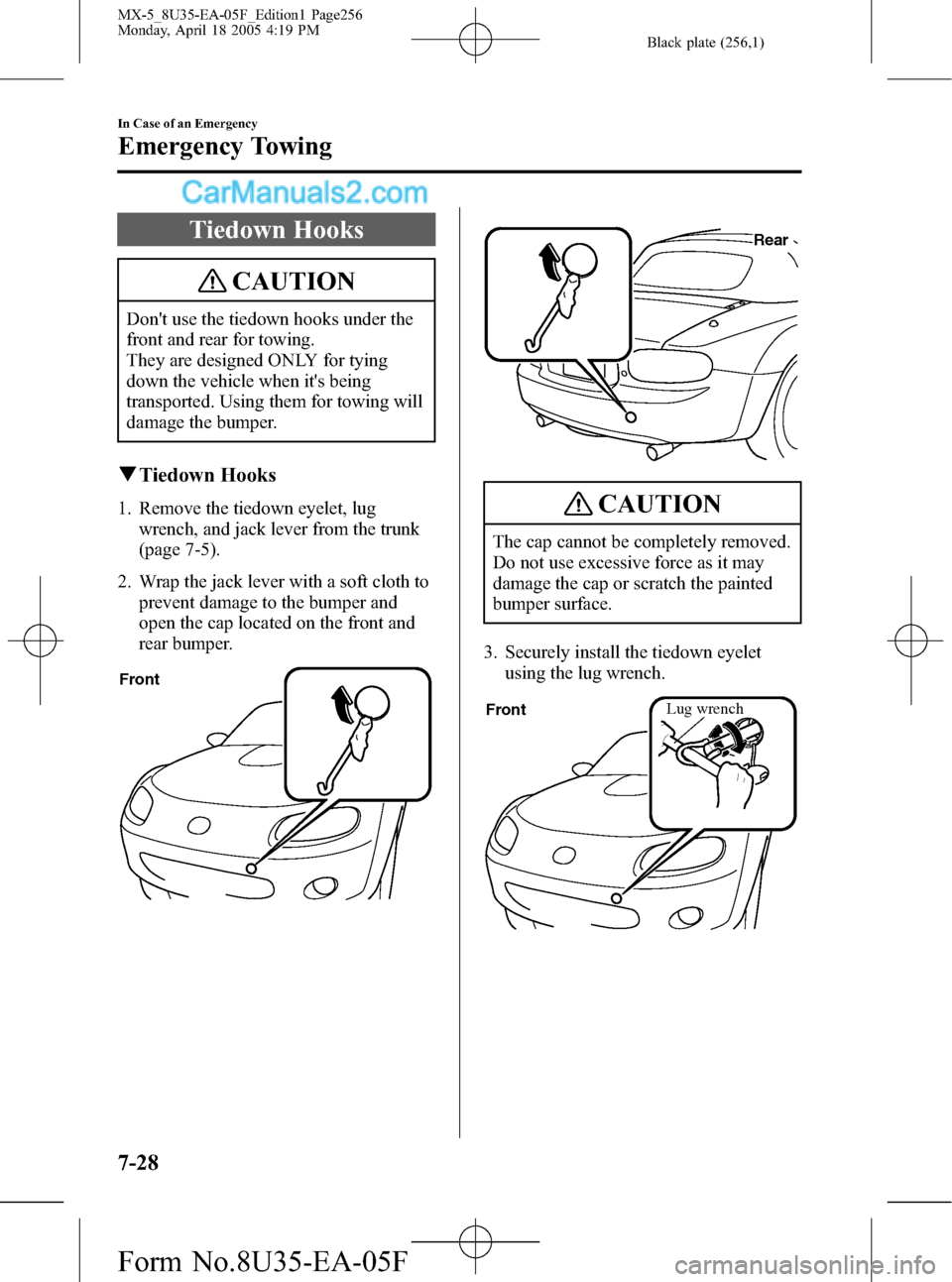

Tiedown Hooks
CAUTION
Don't use the tiedown hooks under the
front and rear for towing.
They are designed ONLY for tying
down the vehicle when it's being
transported. Using them for towing will
damage the bumper.
qTiedown Hooks
1. Remove the tiedown eyelet, lug
wrench, and jack lever from the trunk
(page 7-5).
2. Wrap the jack lever with a soft cloth to
prevent damage to the bumper and
open the cap located on the front and
rear bumper.
Front
Rear
CAUTION
The cap cannot be completely removed.
Do not use excessive force as it may
damage the cap or scratch the painted
bumper surface.
3. Securely install the tiedown eyelet
using the lug wrench.
Lug wrench
Front
7-28
In Case of an Emergency
Emergency Towing
MX-5_8U35-EA-05F_Edition1 Page256
Monday, April 18 2005 4:19 PM
Form No.8U35-EA-05F

Black plate (257,1)
Lug wrenchRear
4. Hook the tying rope to the tiedown
eyelet.
Front
Rear
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down the
vehicle. Make sure that the tiedown
eyelet is securely tightened to the
bumper.
In Case of an Emergency
Emergency Towing
7-29
MX-5_8U35-EA-05F_Edition1 Page257
Monday, April 18 2005 4:19 PM
Form No.8U35-EA-05F

Black plate (258,1)
Recreational Towing
An example of“recreational towing”is
towing your vehicle behind a motorhome.
The transmission is not designed for
towing this vehicle on all 4 wheels.
When doing recreational towing refer to
“Towing Description”(page 7-27) and
“Tiedown Hooks”(page 7-28) and
carefully follow the instructions.
7-30
In Case of an Emergency
Emergency Towing
MX-5_8U35-EA-05F_Edition1 Page258
Monday, April 18 2005 4:19 PM
Form No.8U35-EA-05F

Black plate (259,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3
Scheduled Maintenance (North America) ................................. 8-3
Scheduled Maintenance (Except North America) ..................... 8-8
Owner Maintenance .................................................................... 8-11
Owner Maintenance Schedule ................................................. 8-11
Owner Maintenance Precautions ............................................. 8-12
Engine Compartment Overview .............................................. 8-14
Engine Oil ............................................................................... 8-15
Engine Coolant ....................................................................... 8-18
Brake/Clutch Fluid .................................................................. 8-21
Power Steering Fluid ............................................................... 8-22
Washer Fluid ........................................................................... 8-22
Body Lubrication .................................................................... 8-23
Air Filter .................................................................................. 8-24
Wiper Blades ........................................................................... 8-25
Battery ..................................................................................... 8-27
Tires ........................................................................................ 8-29
Light Bulbs ............................................................................. 8-34
Fuses ....................................................................................... 8-41
Appearance Care ........................................................................ 8-46
How to Minimize Environmental Paint Damage .................... 8-46
Exterior Care ........................................................................... 8-48
Interior Care ............................................................................ 8-52
8-1
MX-5_8U35-EA-05F_Edition1 Page259
Monday, April 18 2005 4:19 PM
Form No.8U35-EA-05F

Black plate (260,1)
Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you're unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
The owner should retain evidence that proper maintenance has been performed as
prescribed.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda's original equipment may
perform maintenance.But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
