MAZDA MODEL MX-5 2006 Owners Manual (in English)

Black plate (291,1)
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
Maintenance and Care
Owner Maintenance
8-33
MX-5_8U35-EA-05F_Edition1 Page291
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (292,1)
Light Bulbs
High-mount brake light
License plate lights
Trunk light
Reverse lights
Rear turn signal lights
Brake lights / Taillights
Side-marker lights
Overhead light
Head lights (High beam)
Parking light
Fog lights
Headlights (Low beam)
Front turn signal lights
Side-marker lightsSome models.
8-34
Maintenance and Care
Owner Maintenance
MX-5_8U35-EA-05F_Edition1 Page292
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (293,1)
WARNING
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries could
be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
qReplacing Exterior Light Bulbs
Replacing the headlight bulbs
1. Make sure the headlight switch is off.
2. Lift the hood and find the high and low
beam bulbs in the rear of the headlight
body.
The outboard bulb is the LOW beam,
and the inboard one is the HIGH beam.
High-beam bulbs
1. Turn the socket and bulb assembly
counterclockwise, and carefully pull it
backward.
2. Disconnect the socket and bulb
assembly from the electrical connector
by pressing the tab on the connector
with your finger and pulling it.
3. Install the new socket and bulb
assembly in the reverse order of
removal.
NOTE
Use the protective cover and carton of
the replacement bulb to dispose of the
old bulb promptly out of the reach of
children.
Maintenance and Care
Owner Maintenance
8-35
MX-5_8U35-EA-05F_Edition1 Page293
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (294,1)
Low-beam bulbs
(Xenon fusion bulbs)
You cannot replace the low beam bulbs by
yourself.
The bulbs must be replaced at an
Authorized Mazda Dealer.
(Halogen bulbs)
1. If you are changing the right headlight
bulb, start the engine, turn the steering
wheel all the way to the left, and turn
off the engine. If you are changing the
left headlight bulb, turn the steering
wheel to the right.
2. Turn the screws counterclockwise and
remove them.
3. Turn the center section of the plastic
retainers counterclockwise and remove
them, then remove the mudguard.
Removal
Installation
4. Disconnect the electrical connector
from the bulb by pulling it to the rear.
5. Pull off the sealing cover.
6. Unhook the bulb retaining spring.
7. Swing the retaining spring out and
away to free the headlight bulb.
8. Carefully remove the socket and bulb
assembly by pulling it straight back.
8-36
Maintenance and Care
Owner Maintenance
MX-5_8U35-EA-05F_Edition1 Page294
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (295,1)
9. Remove the headlight bulb from the
socket.
10. Install the new socket and bulb
assembly in the reverse order of
removal.
NOTE
lUse the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.
lWhen reinstalling the sealing cover,
make sure
faces up.
Front fog light bulbsí
1. If you are changing the right Front fog
light bulb, start the engine, turn the
steering wheel all the way to the left,
and turn off the engine. If you are
changing the left Front fog light bulb,
turn the steering wheel to the right.2. Turn the screws counterclockwise and
remove them.
3. Turn the center section of the plastic
retainers counterclockwise and remove
them, then remove the mudguard.
Removal
Installation
4. Turn the socket and bulb assembly
counterclockwise, and carefully pull it
backward.
Maintenance and Care
Owner Maintenance
8-37íSome models. MX-5_8U35-EA-05F_Edition1 Page295
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

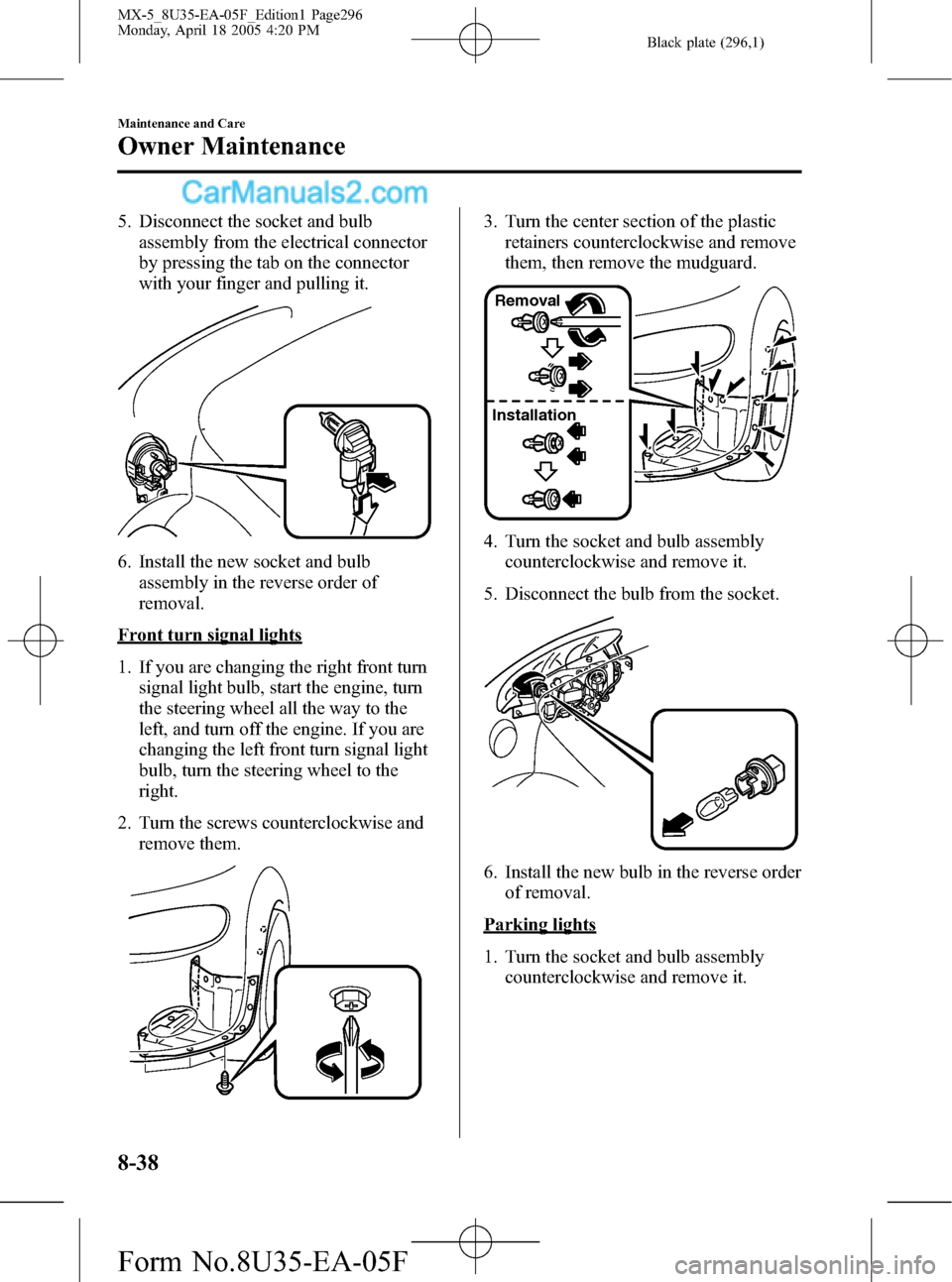

Black plate (296,1)
5. Disconnect the socket and bulb
assembly from the electrical connector
by pressing the tab on the connector
with your finger and pulling it.
6. Install the new socket and bulb
assembly in the reverse order of
removal.
Front turn signal lights
1. If you are changing the right front turn
signal light bulb, start the engine, turn
the steering wheel all the way to the
left, and turn off the engine. If you are
changing the left front turn signal light
bulb, turn the steering wheel to the
right.
2. Turn the screws counterclockwise and
remove them.
3. Turn the center section of the plastic
retainers counterclockwise and remove
them, then remove the mudguard.
Removal
Installation
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse order
of removal.
Parking lights
1. Turn the socket and bulb assembly
counterclockwise and remove it.
8-38
Maintenance and Care
Owner Maintenance
MX-5_8U35-EA-05F_Edition1 Page296
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (297,1)
2. Disconnect the bulb from the socket.
3. Install the new bulb in the reverse order
of removal.
Front side-marker lights
1. Slide the unit as shown in the figure to
remove it.
2. Turn the socket and bulb assembly
counterclockwise and remove it.3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
Brake lights/Taillights, Rear turn signal
lights, Reverse lights
1. Pull the center section of the plastic
retainers and remove them, then
remove the trunk end trim.
Removal
Installation
Maintenance and Care
Owner Maintenance
8-39
MX-5_8U35-EA-05F_Edition1 Page297
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (298,1)
2. On the side the bulb is to be replaced,
pull the center section of the plastic
retainers and remove them, then
remove the trunk side trim.
Removal
Installation
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
Brake lights/Taillights
Rear turn signal lights
Reverse lights
5. Install the new bulb in the reverse order
of removal.
qReplacing Interior Light Bulbs
Overhead light
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the cover.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
8-40
Maintenance and Care
Owner Maintenance
MX-5_8U35-EA-05F_Edition1 Page298
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (299,1)
Trunk light
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the luggage
compartment light as shown in the
figure, and then remove the luggage
compartment light unit.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system doesn't work, first
inspect fuses on the vehicle's left side.
1. Turn off the ignition switch and other
switches.
2. Remove the cover.
Maintenance and Care
Owner Maintenance
8-41
MX-5_8U35-EA-05F_Edition1 Page299
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (300,1)
3. Pull the fuse straight out with the fuse
puller provided on the inside of the
engine compartment fuse block cover.
Fuse puller
Fuse block cover
4. Inspect it and replace if it's blown.
NormalBlown
5. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components don't work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
3. If a fuse is blown, replace it with a new
oneof the same amperage rating.
Normal
Blown
NOTE
To replace the MAIN fuse, contact an
Authorized Mazda Dealer (page 8-43).
8-42
Maintenance and Care
Owner Maintenance
MX-5_8U35-EA-05F_Edition1 Page300
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F
