MAZDA MODEL MX-5 2006 Owners Manual (in English)

Black plate (281,1)
Inspect fluid level in the washer fluid
reservoir; add fluid if necessary.
Use plain water if washer fluid is
unavailable.
But use only washer fluid in cold weather
to prevent it from freezing.
Body Lubrication
All moving points of the body, such as
door and hood hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.
Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.
Maintenance and Care
Owner Maintenance
8-23
MX-5_8U35-EA-05F_Edition1 Page281
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (282,1)
Air Filter
CAUTION
Don't drive without an air filter. This
could result in excessive engine wear.
This air filter may be cleaned with
compressed air and reused, or replaced,
depending on its condition. Unless it is
very dirty, simply shake it to remove
foreign particles. Each time you inspect it,
wipe inside the air cleaner housing with a
damp cloth.
qReplacing the Air Filter
NOTE
If the vehicle is operated in very dusty
or sandy areas, replace the filter more
often than recommended intervals.
1. Make sure the ignition switch is turned
off.
2. Disconnect the electrical connector.
3. Unfasten the clamps.
4. Lift off the air filter cover and remove
the filter.
Air filter cover
Air filter
5. Wipe inside the air cleaner housing
with a damp cloth.
6. Clean or replace the filter.
7. Install in the reverse order of removal.
Replace the filter according to Scheduled
Maintenance (page 8-3).
NOTE
After installing the air filter cover, make
sure the electrical connector is securely
connected.
8-24
Maintenance and Care
Owner Maintenance
MX-5_8U35-EA-05F_Edition1 Page282
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (283,1)
Wiper Blades
CAUTION
lHot waxes applied by automatic car
washers have been known to affect
the wiper's ability to clean windows.
lTo prevent damage to the wiper
blades, don't use gasoline, kerosene,
paint thinner, or other solvents on or
near them.
Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
qReplacing Windshield Wiper Blades
When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.
CAUTION
To prevent damage to the wiper arms
and other components, don't try to
sweep the wiper arm by hand.1. Raise the wiper arm and turn the blade
assembly to expose the plastic locking
clip.
Compress the clip and slide the
assembly downward; then lift it off the
arm.
Plastic locking clip
CAUTION
To prevent damage to the windshield let
the wiper arm down easily, don't let it
slap down on the windshield.
2. Hold the end of the rubber and pull
until the tabs are free of the metal
support.
Metal support
Ta b
Maintenance and Care
Owner Maintenance
8-25
MX-5_8U35-EA-05F_Edition1 Page283
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (284,1)

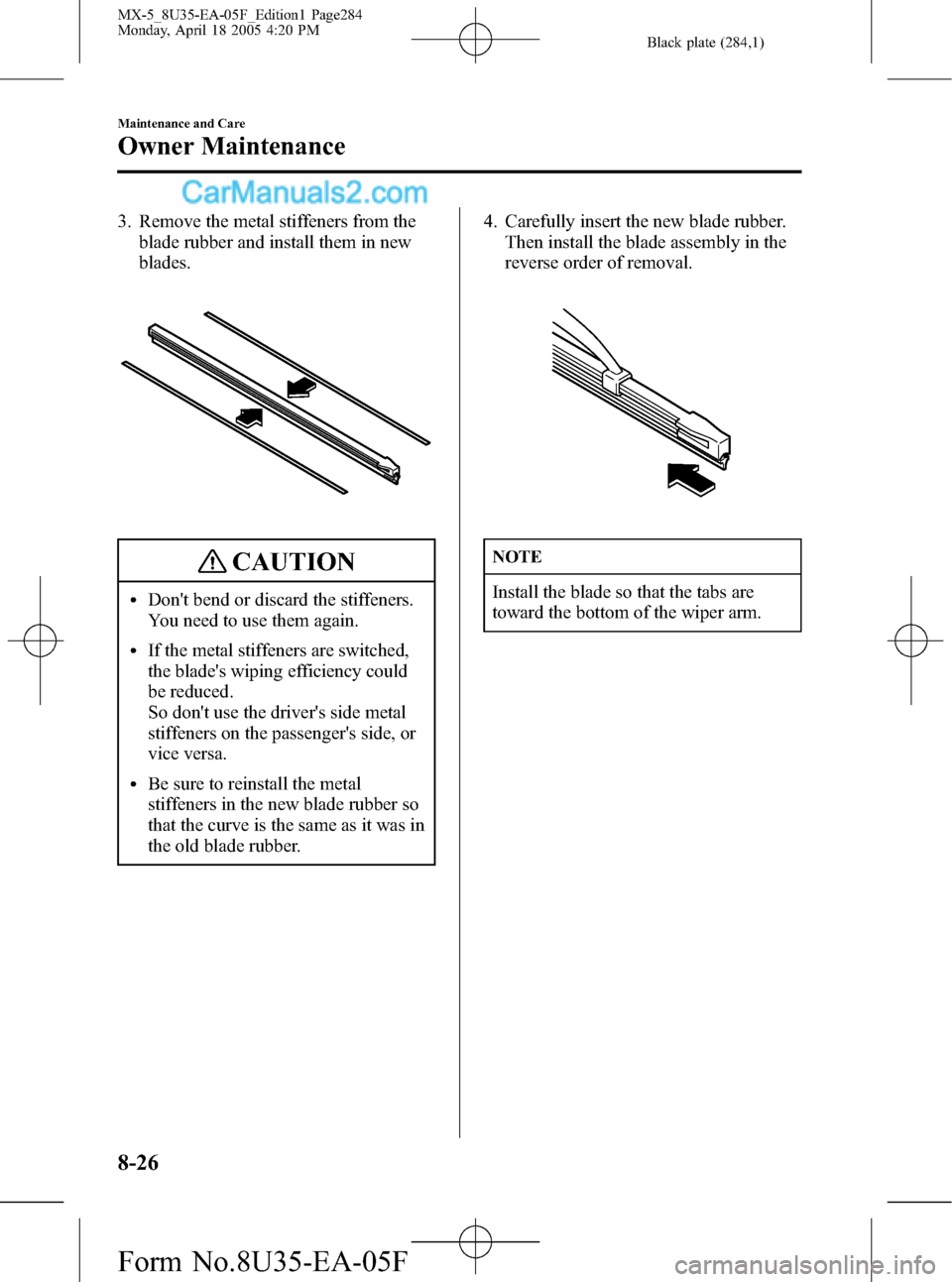

3. Remove the metal stiffeners from the
blade rubber and install them in new
blades.
CAUTION
lDon't bend or discard the stiffeners.
You need to use them again.
lIf the metal stiffeners are switched,
the blade's wiping efficiency could
be reduced.
So don't use the driver's side metal
stiffeners on the passenger's side, or
vice versa.
lBe sure to reinstall the metal
stiffeners in the new blade rubber so
that the curve is the same as it was in
the old blade rubber.4. Carefully insert the new blade rubber.
Then install the blade assembly in the
reverse order of removal.
NOTE
Install the blade so that the tabs are
toward the bottom of the wiper arm.
8-26
Maintenance and Care
Owner Maintenance
MX-5_8U35-EA-05F_Edition1 Page284
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (285,1)
Battery
WARNING
Battery-Related Lead Materials:
Battery posts, terminals and related accessories contain lead and lead compounds,
chemicals known to the State of California to cause cancer and reproductive harm.
Wash hands after handling.
Follow These Precautions Carefully:
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.
Eye Protection:
Working without eye protection is dangerous. Battery fluid contains SULFURIC
ACID which could cause blindness if splashed into your eyes. Also, hydrogen gas
produced during normal battery operation, could ignite and cause the battery to
explode. Always wear eye protection when working near the battery.
Spilled Battery Fluid:
Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets
in eyes, skin or clothing. If this happens, immediately flush your eyes with water for
15 minutes or wash your skin thoroughly and get medical attention. Wear eye
protection and protective gloves to prevent contact with battery fluid.
Children and Batteries:
Allowing children to play near batteries is dangerous. Battery fluid could cause
serious injuries if it gets in the eyes or on the skin. Always keep batteries out of the
reach of children.
Maintenance and Care
Owner Maintenance
8-27
MX-5_8U35-EA-05F_Edition1 Page285
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (286,1)
WARNING
Keep Flames Away:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames including
cigarettes and sparks away from open battery cells. When working near a battery, do
not allow metal tools to contact the positive (
) or negative () terminal of the
battery. Do not allow the positive (
) terminal to contact the vehicle body.
Battery-Related Explosion:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames, including
cigarettes, and sparks away from open battery cells.
NOTE
lRemove the battery cover before
performing battery maintenance.
Battery cover
NOTE
lBefore installing the battery cover,
make sure both of the cables
connecting the negative battery
terminal (right side of battery) are
connected with the cables routed
toward the right and back of the
battery as shown in the figure.
8-28
Maintenance and Care
Owner Maintenance
MX-5_8U35-EA-05F_Edition1 Page286
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (287,1)
qBattery Maintenance
To get the best service from a battery:
lKeep it securely mounted.
lKeep the top clean and dry.
lKeep terminals and connections clean,
tight, and coated with petroleum jelly
or terminal grease.
lRinse off spilled electrolyte
immediately with a solution of water
and baking soda.
lIf the vehicle will not be used for an
extended time, disconnect the battery
cables.
Tires
For reasons of proper performance, safety,
and better fuel economy, always maintain
recommended tire inflation pressures and
stay within the recommended load limits
and weight distribution.
WARNING
Using Different Tire Types:
Driving your vehicle with different
types of tires is dangerous. It could
cause poor handling and poor
braking; leading to loss of control.
Using Wrong-Sized Tires:
Using any other tire size than what is
specified for your Mazda (page 10-6)
is dangerous. It could seriously affect
ride, handling, ground clearance, tire
clearance, and speedometer
calibration. This could cause you to
have an accident. Use only tires that
are the correct size specified for your
Mazda.
qTire Inflation Pressure
WARNING
Incorrect Tire Inflation:
Overinflation or underinflation of tires
is dangerous. Adverse handling or
unexpected tire failure could result in
a serious accident. Always inflate the
tires to the correct pressure (page
10-6).
Maintenance and Care
Owner Maintenance
8-29
MX-5_8U35-EA-05F_Edition1 Page287
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (288,1)
The Tire Pressure Monitoring Systemí
does not alleviate the need to check the
tire condition every day, including
whether the tires all look inflated properly.
Inspect all tire pressure monthly when the
tires are cold. Maintain recommended
pressures for the best ride, top handling,
and minimum tire wear.
Refer to the specification charts (page
10-6).
NOTE
lAlways check tire pressure when
tires are cold.
lWarm tires normally exceed
recommended pressures. Don't
release air from warm tires to adjust
the pressure.
lUnderinflation can cause reduced
fuel economy and poor sealing of the
tire bead, which will deform the
wheel and cause separation of tire
from rim.
lOverinflation can produce a harsh
ride and a greater possibility of
damage from road hazards.
Keep your tire pressure at the correct
levels. If one frequently needs
inflating, have it inspected.
qTire Rotation
To equalize tread wear, rotate the tires
every 12,000 km (7,500 miles)/8,000 km*
(5,000 miles) or sooner if irregular wear
develops. During rotation, inspect them
for correct balance.
* Unique driving conditions for U.S.A.,
Canada and Puerto Rico
NOTE
Because your vehicle is not equipped
with a spare tire, you cannot do a tire
rotation safely with the jack that comes
with your vehicle. Have an Authorized
Mazda Dealer perform tire rotation.
Forward
Also, inspect them for uneven wear and
damage. Abnormal wear is usually caused
by one or a combination of the following:
lIncorrect tire pressure
lImproper wheel alignment
lOut-of-balance wheel
lSevere braking
After rotation, inflate all tire pressures to
specification (page 10-6) and inspect the
lug nuts for tightness.
8-30
Maintenance and Care
íSome models.
Owner Maintenance
MX-5_8U35-EA-05F_Edition1 Page288
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (289,1)
CAUTION
Rotate unidirectional tires and radial
tires that have an asymmetrical tread
pattern or studs only from front to rear,
not from side to side. Tire performance
will be weakened if rotated from side to
side.
CAUTION
Limited-Slip Differential system;
don't use the following:
lTires not of the designated size
lTires of different sizes or types at the
same time
lTires not sufficiently inflated
If these instructions aren't followed, the
rotation of the left and right wheels will
be different and will thus apply a
constant load on the limited-slip
differential.
This will cause a malfunction.
qReplacing a Tire
WARNING
Worn Tires:
Driving with worn tires is dangerous.
Reduced braking, steering, and
traction could result in an accident.
Always use tires that are in good
condition.
CAUTION
(With Tire Pressure Monitoring
System)
When replacing/repairing the tires or
wheels or both, have the work done by
an Authorized Mazda Dealer, or the tire
pressure sensors may be damaged.
NOTE
(With Tire Pressure Monitoring
System)
lWhen tires with steel wire
reinforcement in the sidewalls are
used, the system may not function
correctly even with a genuine wheel.
Refer to System Error Activation on
page 5-29.
lBe sure to install the tire pressure
sensors whenever tires or wheels are
replaced. Refer to Tires and Wheels
on page 5-30.
If a tire wears evenly, a wear indicator
will appear as a solid band across the
tread.
Replace the tire when this happens.
New treadTread wear indicator
Worn tread
Maintenance and Care
Owner Maintenance
8-31
MX-5_8U35-EA-05F_Edition1 Page289
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (290,1)
You should replace it before the band is
across the entire tread.
qReplacing a Wheel
WARNING
Using a Wrong-Sized Wheel:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident. Always use
wheels of the correct size on your
vehicle.
CAUTION
lA wrong-sized wheel may adversely
affect:
lTire fitlWheel and bearing lifelGround clearancelSnow-chain clearancelSpeedometer calibrationlHeadlight aimlBumper heightlTire Pressure Monitoring SystemlLimited-Slip Differential System
l(With Tire Pressure Monitoring
System)
lWhen replacing/repairing the tires
or wheels or both, have the work
done by an Authorized Mazda
Dealer, or the tire pressure sensors
may be damaged.
lThe wheels equipped on your
Mazda are specially designed for
installation of the tire pressure
sensors. Do not use non-genuine
wheels, otherwise it may not be
possible to install the tire pressure
sensors.
NOTE
Be sure to install the tire pressure
sensors whenever tires or wheels are
replaced. Refer to Tires and Wheels on
page 5-30.
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset.
8-32
Maintenance and Care
Owner Maintenance
MX-5_8U35-EA-05F_Edition1 Page290
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F
