MAZDA MODEL MX-5 2015 Owners Manual (in English)

Black plate (301,1)
Tool Storage
Tools are stored in the locations illustrated in the diagram.
Power retractable hardtop
emergency tool bag
Tool bagGlove box Lug wrench
Jack
Jack lever
Instant Mobility System (IMS) Emergency Flat Tire Repair Kit
Trunk room
Tiedown eyelet Allen
wrenchEyebolt
Rope
Some models.
In Case of an Emergency
Flat Tire
7-3
MX-5_8EN7-EA-14E_Edition1 Page301
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (302,1)
qJack
To remove the jack
1. Turn the knob and remove the cover.
2. Turn the wing bolt and jack screw
counterclockwise.
Wing bolt
Jack screw
To secure the jack
1. Insert the wing bolt into the jack withthe jack screw pointing back and turn
the wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction shown in the figure.
Wing bolt
Jack screw
3. Turn the wing bolt completely tosecure the jack.
NOTE
If the jack is not completely secured, it could
rattle while driving. Make sure the jack screw
is sufficiently tightened.
Maintenance
lAlways keep the jack clean.lMake sure the moving parts are kept
free from dirt or rust.
lMake sure the screw thread is
adequately lubricated.
7-4
In Case of an Emergency
Flat Tire
MX-5_8EN7-EA-14E_Edition1 Page302
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (303,1)
Instant Mobility System
(IMS) Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
included with your Mazda is for a
temporary repair of a slightly damaged
flat tire resulting from running over nails
or similar sharp objects on the road
surface.
Perform the emergency flat tire repair
without removing the nail or similar sharp
object which punctured the tire.
NOTE
Your vehicle is not equipped with a spare tire.
In the event of a flat tire, use the emergency
flat tire repair kit to repair the tire temporarily.
When doing the repair, refer to the instructions
included in the emergency flat tire repair kit. If
an emergency repair was performed on a flat
tire using the emergency flat tire repair kit,
have an Authorized Mazda Dealer, repair or
replace the tire as soon as possible.
qAbout the IMS Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
includes the following items.
Tire sealant
Injection hose Compressor
Repaired tire
sticker
Valve core
tool
Spare valve
core
Speed restriction
sticker
Instructions
Case
WARNING
Do not allow children to touch the tire
sealant: Ingestion of tire sealant is dangerous.
In the event tire sealant is
accidentally swallowed, drink large
amounts of water immediately and
seek medical assistance.
Do not allow children to touch the tire
sealant: Tire sealant that comes into contact
with the eyes and skin is dangerous.
If tire sealant enters the eyes or
contacts the skin, flush immediately
with large amounts of water and
seek medical assistance.
In Case of an Emergency
Flat Tire
7-5
MX-5_8EN7-EA-14E_Edition1 Page303
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (304,1)
NOTElThe tire sealant cannot be reused. Purchase
new tire sealant at an Authorized Mazda
Dealer.
lThe emergency flat tire repair kit cannot be
used in the following cases.
Consult an Authorized Mazda Dealer.
lThe period of effective use for the tire
sealant has expired. (The period of
effectiveness is indicated on the bottle
label.)
lThe tear or puncture exceeds about
4 mm (0.16 in).
lThe damage has occurred to an area of
the tire other than the tread.
lThe vehicle has been driven with nearly
no air remaining in the tire.
lThe tire has come off the wheel rim.lDamage to the wheel rim has occurred.lThe tire has two or more punctures.
qUsing the IMS Emergency Flat
Tire Repair Kit
1. Park on a level surface off the right-of-
way and set the parking brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher. 4. Unload passengers and luggage, and
remove the emergency flat tire repair
kit.
5. Shake the tire sealant well.
CAUTION
If the bottle is shaken after the
injection hose is screwed on, tire
sealant could spray out from the
injection hose. Tire sealant
contacting clothing or other objects
may be impossible to remove. Shake
the bottle before screwing on the
injection hose.
7-6
In Case of an Emergency
Flat Tire
MX-5_8EN7-EA-14E_Edition1 Page304
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (305,1)
NOTE
The tire sealant can be used at outside
temperatures down to_
30°C ( _
22°F).
In extremely cold temperatures (0°C (32°F) or
below), the tire sealant hardens easily and
injection of the sealant will be difficult. Warm
the sealant inside the vehicle before doing the
injection work.
6. Remove the cap from the bottle. Screw on the injection hose with the bottle's
inner cap left on to break the inner cap.
Injection hose
Bottle
7. Remove the valve cap from the flat tire. Press the back of a valve core tool
to the core of the tire valve and bleed
all the remaining air.
Valve core tool
Valve
Valve cap
CAUTION
If there is air remaining in the tire
when the valve core is removed, the
valve core could fly out. Remove the
valve core carefully.
8. Turn the valve core counterclockwise with the valve core tool and remove the
valve core.
Valve Valve core
NOTE
Store the valve core in a place where it won't
get dirty.
9. Remove the plug from the injection
hose and insert the injection hose into
the valve.
Plug
Injection hose
In Case of an Emergency
Flat Tire
7-7
MX-5_8EN7-EA-14E_Edition1 Page305
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (306,1)
10. Hold the bottom of the bottle upright,squeeze the bottle with your hands,
and inject the entire amount of tire
sealant into the tire.
Valve
NOTE
The tire sealant cannot be reused. Purchase a
new tire sealant kit at an Authorized Mazda
Dealer.
11. Pull out the injection hose from thevalve. Reinsert the valve core into the
valve and turn it clockwise to install
it.
12. Attach the sticker that indicates completion of the tire repair on a flat
outer surface of the repaired tire.
NOTE
Do not throw away the empty tire sealant
bottle after use. Return the empty tire sealant
bottle to an Authorized Mazda Dealer when
replacing the tire. The empty tire sealant bottle
will need to be used to extract and dispose of
the used sealant from the tire.
13. Attach the vehicle speed restrictionsticker in a place where the driver can
easily see it.
WARNING
Attach the speed restriction sticker in a
place where it can be viewed easily by
the driver:ØApplying the speed restriction
sticker to the steering wheel is
dangerous as it could interfere
with the air bag deployment and
result in serious injury.
Ø Do not apply the sticker to any
position other than the position
indicated in the illustration.
7-8
In Case of an Emergency
Flat Tire
MX-5_8EN7-EA-14E_Edition1 Page306
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (307,1)
14. Install the compressor hose to the tirevalve.
Valve Compressor hose
15. Insert the compressor plug into the
interior accessory socket and switch
the ignition to ACC (page 6-85).
Compressor plug
Center console
Compressor
CAUTION
ØBefore pulling out the compressor
plug from the electrical socket,
make sure the compressor power
switch is off.
Ø The compressor turns on and off
with the push-button switch.
16. Turn the compressor switch on and inflate the tire carefully to the correct
inflation pressure.
WARNING
Never operate the compressor above
300 kPa (3.1 kgf/cm2, 3 bar, 43.5 psi):
Operating the compressor above 300
kPa (3.1 kgf/cm
2, 3 bar, 43.5 psi) is
dangerous. When the inflation
pressure rises above 300 kPa (3.1
kgf/cm
2, 3 bar, 43.5 psi), heated air
will be exhausted from the back of
the compressor and you could be
burned.
CAUTION
If the compressor operates slowly or
becomes hot, it indicates
overheating. Turn the compressor off
immediately and leave it turned off
for 30 minutes or longer.
NOTE
lCheck the tire inflation pressure label
(driver's door frame) for the correct tire
inflation pressure.
lDo not use the compressor for longer than
10 minutes because using the compressor
for long periods could damage it.
lIf the tire does not inflate, repair of the tire
may not be possible. If the tire does not
reach the correct inflation pressure within a
10-minute period, it probably has received
more extensive damage. When this happens,
the emergency flat tire repair kit cannot be
used to repair the tire. Contact an
Authorized Mazda Dealer.
lIf the tire has been over-inflated, loosen the
screw cap on the compressor and bleed
some of the air out.
17. When the tire has been inflated to the proper inflation pressure, turn the
compressor switch off and remove the
compressor hose from the tire valve.
In Case of an Emergency
Flat Tire
7-9
MX-5_8EN7-EA-14E_Edition1 Page307
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (308,1)
18. Install the tire valve cap.
19. Put the emergency flat tire repair kitin the trunk and continue driving.
CAUTION
ØDrive carefully to an Authorized
Mazda Dealer and keep the
vehicle speed below 80 km/h (50
mph).
Ø If the vehicle is driven 80 km/h (50
mph) or higher, the vehicle might
begin to vibrate.
NOTE
(With Tire Pressure Monitoring System)
If the tire is not properly inflated, the tire
pressure monitoring system warning light will
illuminate (page 5-32).
20. After driving the vehicle for 10 minutes or 5 km (3 miles), check the
tire pressure with the tire pressure
gauge equipped with the compressor.
If the tire pressure has fallen below
the correct tire pressure, inflate the
tire to the correct pressure again
following the steps from number 15.
CAUTION
ØIf the tire inflation pressure falls
below 130 kPa (1.3 kgf/cm2or bar,
18.9 psi), repair cannot be done
with the repair kit. Park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer.
Ø If the tire inflation pressure
continues to remain low after
repeating steps 14 to 21, park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer. NOTE
When checking the tire inflation pressure with
the tire pressure gauge on the compressor unit,
make sure the compressor switch is turned off.
21. The emergency flat tire repair is
completed if the tire air pressure does
not decrease. Drive the vehicle
carefully to the nearest Authorized
Mazda Dealer promptly and have the
tire replaced. Mazda recommends that
the tire be replaced with a new one. If
the tire is to be repaired and reused,
consult an Authorized Mazda Dealer.
CAUTION
ØFor a tire which has undergone an
emergency flat tire repair using
the emergency flat tire repair kit,
Mazda recommends that the tire
be replaced with a new one as
soon as possible. If the tire is to be
repaired and reused, consult an
Authorized Mazda Dealer.
Ø The wheel can be reused after any
sealant adhering to it is wiped off
and carefully inspected. However,
replace the tire valve with a new
one.
qInspecting the IMS Emergency
Flat Tire Repair Kit
Inspect the emergency tire repair kit at
regular intervals.
lCheck the tire sealant period of
effective use.
lCheck the operation of the tire
compressor.
7-10
In Case of an Emergency
Flat Tire
MX-5_8EN7-EA-14E_Edition1 Page308
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (309,1)

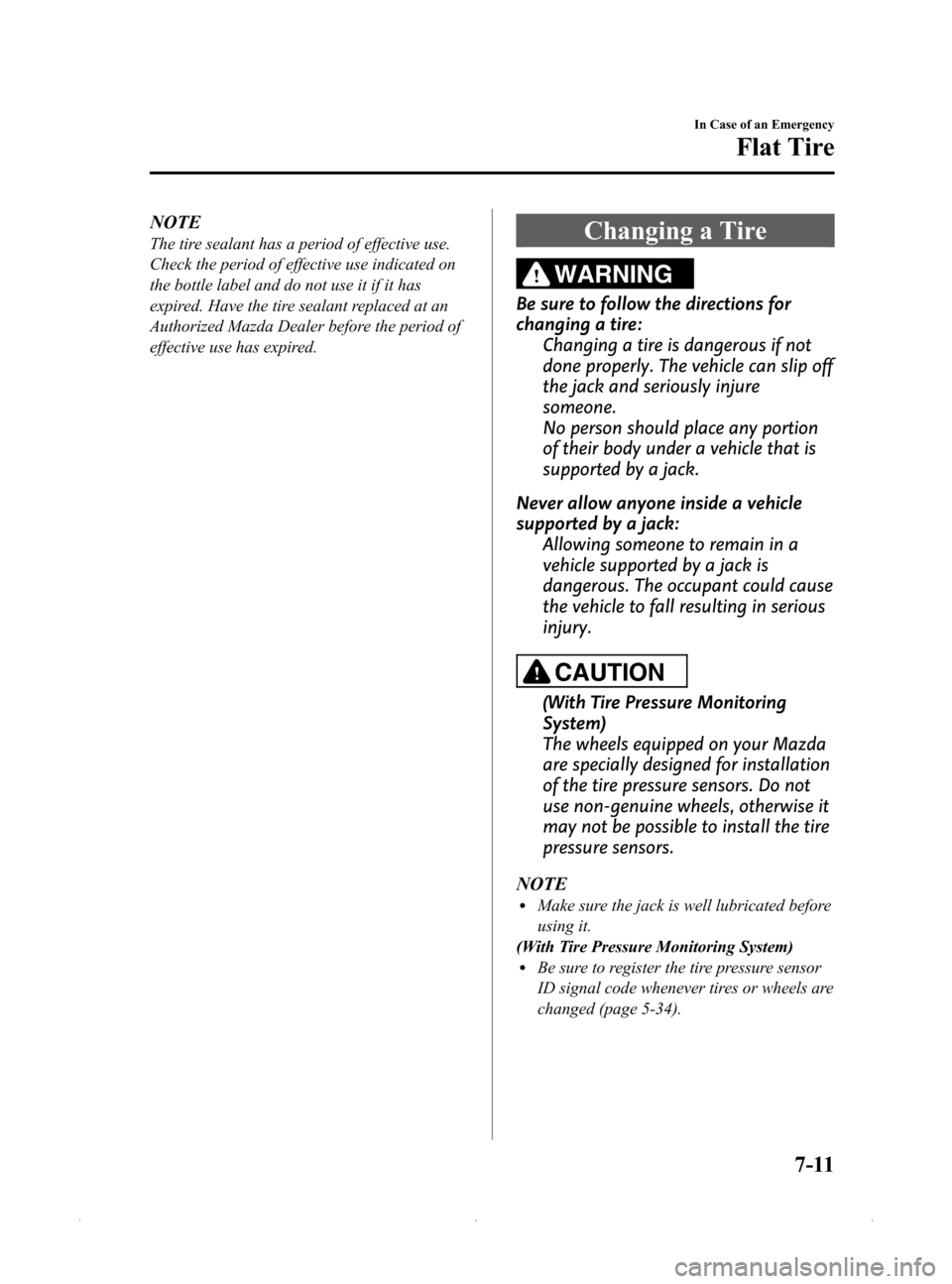

NOTE
The tire sealant has a period of effective use.
Check the period of effective use indicated on
the bottle label and do not use it if it has
expired. Have the tire sealant replaced at an
Authorized Mazda Dealer before the period of
effective use has expired.Changing a Tire
WARNING
Be sure to follow the directions for
changing a tire:Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure
someone.
No person should place any portion
of their body under a vehicle that is
supported by a jack.
Never allow anyone inside a vehicle
supported by a jack: Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
CAUTION
(With Tire Pressure Monitoring
System)
The wheels equipped on your Mazda
are specially designed for installation
of the tire pressure sensors. Do not
use non-genuine wheels, otherwise it
may not be possible to install the tire
pressure sensors.
NOTE
lMake sure the jack is well lubricated before
using it.
(With Tire Pressure Monitoring System)
lBe sure to register the tire pressure sensor
ID signal code whenever tires or wheels are
changed (page 5-34).
In Case of an Emergency
Flat Tire
7-11
MX-5_8EN7-EA-14E_Edition1 Page309
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (310,1)
1. Park on a level surface off the right-of-way and firmly set the parking brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle and away from the vehicle and traffic.
5. Remove the jack, and tool (page 7-3).
6. Block the wheel diagonally opposite the tire to be changed. When blocking
a wheel, place a tire block both in front
and behind the tire.
NOTE
When blocking a tire, use rocks or wood blocks
of sufficient size if possible to hold the tire in
place.
qRemoving a Tire
1. Loosen the lug nuts by turning them
counterclockwise one turn each, but do
not remove any until the tire has been
raised off the ground.
2. Place the jack on the ground.
3. Turn the jack screw in the directionshown in the figure and adjust the jack
head so that it is close to the jack-up
position.
Jack head
7-12
In Case of an Emergency
Flat Tire
MX-5_8EN7-EA-14E_Edition1 Page310
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E
