Black plate (431,1)
Reporting Safety Defects (Canada)
Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.
For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm
Customer Information and Reporting Safety Defects
Reporting Safety Defects
9-43
MX-5_8EN7-EA-14E_Edition1 Page431
Friday, March 28 2014 3:42 PM
Form No.8EN7-EA-14E

Black plate (432,1)
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they do not have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBERPUBLICATION DESCRIPTION
9999-95-042B-15 2015 WORKSHOP MANUAL (English)
9999-MX-042B-15 2015 WORKSHOP MANUAL (Spanish)
9999-95-026G-15 2015 WIRING DIAGRAM (English)
9999-MX-026G-15 2015 WIRING DIAGRAM (Spanish)
9999-95-031C-15 2015 OWNER'S MANUAL (English)
9999-EC-031C-15 2015 OWNER'S MANUAL (English and French)
9999-PR-031C-15 2015 OWNER'S MANUAL (Spanish)
9999-95-MODL-15 2015 SERVICE HIGHLIGHTS
qWORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
qSERVICE HIGHLIGHTS:
Provides description and operation of the many systems of your Mazda.
9-44
Customer Information and Reporting Safety Defects
Service Publications
MX-5_8EN7-EA-14E_Edition1 Page432
Friday, March 28 2014 3:42 PM
Form No.8EN7-EA-14E

Black plate (433,1)
10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................... 10-2Vehicle Information Labels ..................................................... 10-2
Specifications ............................................................................... 10-4 Specifications .......................................................................... 10-4
Personalization Features ............................................................ 10-8 Personalization Features .......................................................... 10-8
10-1
MX-5_8EN7-EA-14E_Edition1 Page433
Friday, March 28 2014 3:42 PM
Form No.8EN7-EA-14E

Black plate (434,1)
Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard
Labelí
qChassis Number
qVehicle Emission Control
Information Label
qTire Pressure Label
10-2íSome models.
Identification Numbers
MX-5_8EN7-EA-14E_Edition1 Page434
Friday, March 28 2014 3:42 PM
Form No.8EN7-EA-14E

Black plate (435,1)

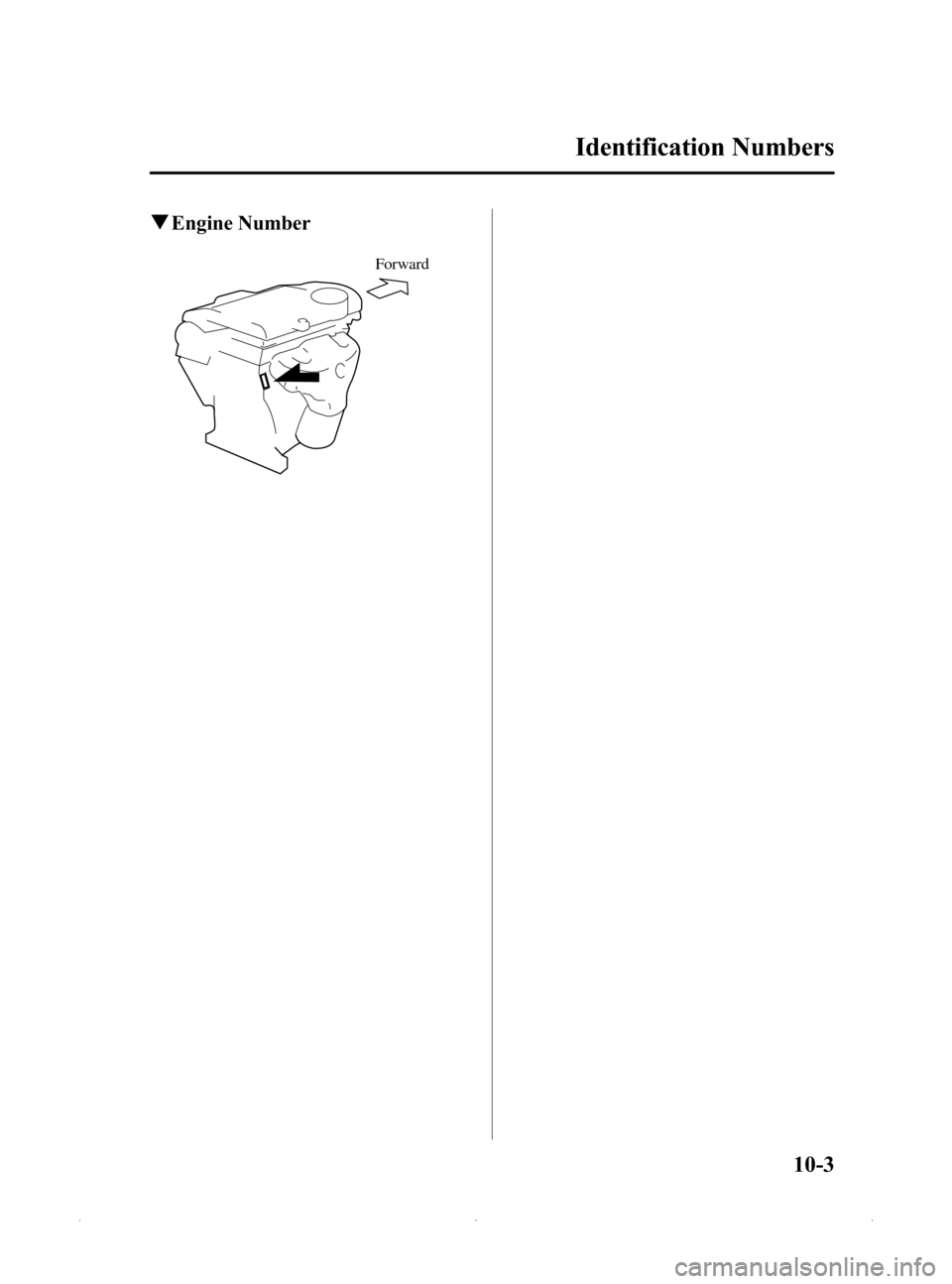

qEngine Number
Forward
Identification Numbers
10-3
MX-5_8EN7-EA-14E_Edition1 Page435
Friday, March 28 2014 3:42 PM
Form No.8EN7-EA-14E

Black plate (436,1)
Specifications
qEngine
Item Specification
Type DOHC-16V in-line, 4-cylinder
Bore×Stroke 87.5 × 83.1 mm (3.44 × 3.27 in)
Displacement 1,998.8 ml (1,998.8 cc)
Compression ratio 10.8
qElectrical System
Item Classification
Battery 12V-45Ah/20HR
Spark-plug number Mazda Genuine spark plug LFJR-18-110 or L3Y1-18-110
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
qLubricant Quality
Lubricant Classification
Engine oil Refer to Recommended Oil on page 8-20.
Manual transmission
oil 5-speed
transmission
Any temperature
API Service
GL-4 or GL-5
SAE 75W-90
Above 10 °C (50 °F) API Service
GL-4 or GL-5
SAE 80W-90
6-speed transmission API Service
GL-4
SAE 75W-90
Automatic transmission fluid Mazda Genuine JWS3309
Rear differential oil API Service
GL-5
SAE 90
80W-90
75W-90
*1
Power steering fluid Mazda Genuine ATF M-III or equivalent
(e.g. Dexron® II)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
*1 Not available from Mazda
NOTE
Refer to Introduction on (page 8-2) for owner's responsibility in protecting your investment.
10-4
Specifications
MX-5_8EN7-EA-14E_Edition1 Page436
Friday, March 28 2014 3:42 PM
Form No.8EN7-EA-14E

Black plate (437,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter
replacementU.S.A. and
Canada6-speed manual
transmission
4.55 L (4.81 US qt, 4.00 Imp qt)
Except 6-speed manual
transmission 4.45 L (4.70 US qt, 3.92 Imp qt)
Except U.S.A. and Canada 4.55 L (4.81 US qt, 4.00 Imp qt)
Without oil filter replacement 4.05 L (4.28 US qt, 3.56 Imp qt)
Coolant U.S.A. and
Canada5-speed manual transmission 7.3 L (7.7 US qt, 6.4 Imp qt)
6-speed manual transmission 7.6 L (8.0 US qt, 6.7 Imp qt)
Automatic transmission
7.2 L (7.6 US qt, 6.3 Imp qt)
Except U.S.A.
and Canada 6-speed manual transmission 7.6 L (8.0 US qt, 6.7 Imp qt)
Automatic transmission
7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transmission oil 5-speed transmission
2.0 L (2.1 US qt, 1.8 Imp qt)
6-speed transmission 2.1 L (2.2 US qt, 1.8 Imp qt)
Automatic transmission fluid 7.4 L (7.8 US qt, 6.5 Imp qt)
Rear differential oil 0.7 L (0.7 US qt, 0.6 Imp qt)
Fuel tank 48.0 L (12.7 US gal, 10.6 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Vehicle specification
Overall length With license plate holder
4,032 mm (158.7 in)
Without license plate holder 4,013 mm (158.0 in)
Overall width 1,720 mm (67.7 in)
Overall height Soft top
1,245 mm (49.0 in)
Hardtop 1,255 mm (49.4 in)
Front tread 1,490 mm (58.7 in)
Rear tread 1,495 mm (58.9 in)
Wheelbase 2,330 mm (91.7 in)
qWeights
(Manual transmission)
Item Weight
Without power retractable hardtop With power retractable
hardtop
GVWR (Gross Vehicle Weight Rating) 1,396 kg (3,078 lbs) 1,416 kg (3,122 lbs)
GAWR (Gross Axle Weight Rating) Front 714 kg (1,574 lbs) 714 kg (1,574 lbs)
Rear 682 kg (1,504 lbs) 702 kg (1,548 lbs)
Specifications
10-5
MX-5_8EN7-EA-14E_Edition1 Page437
Friday, March 28 2014 3:42 PM
Form No.8EN7-EA-14E

Black plate (438,1)
(Automatic transmission)Item Weight
Without power retractable hardtop With power retractable
hardtop
GVWR (Gross Vehicle Weight Rating) 1,396 kg (3,078 lbs) 1,416 kg (3,122 lbs)
GAWR (Gross Axle Weight Rating) Front 714 kg (1,574 lbs) 714 kg (1,574 lbs)
Rear 693 kg (1,528 lbs) 702 kg (1,548 lbs)
q
Air Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
Headlights High beam 65 H9 (H9)
Low beam
Halogen 55 H7 (H7)
Xenon fusion 35 D2S (D2S)
Front turn signal lights/Parking lights 28/8 ―(#7444NA)
Fog lights 55 H11 (H11)
Front side-marker lights 5 ―(― )
High-mount brake light LED
*1― (― )
Rear turn signal lights 21 WY21W (7443NA)
Brake lights/Taillights 21/5 W21/5W (7443)
Reverse lights 18 W16W (921)
License plate lights 5 W5W ( ―)
Rear side-marker lights LED
*1― (― )
*1 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulb Wattage
Overhead light 10
Trunk light 8
10-6
Specifications
MX-5_8EN7-EA-14E_Edition1 Page438
Friday, March 28 2014 3:42 PM
Form No.8EN7-EA-14E

Black plate (439,1)
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-32.
Standard tire
Tire size Inflation pressure
Front Rear
205/50R16 87V 200 kPa (29 psi) 200 kPa (29 psi)
205/45R17 84W 200 kPa (29 psi) 200 kPa (29 psi)
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
88 ―118 N·m (9 ―12 kgf·m, 65 ―87 ft·lbf)
q Fuses
Refer to Fuses on page 8-47.
Specifications
10-7
MX-5_8EN7-EA-14E_Edition1 Page439
Friday, March 28 2014 3:42 PM
Form No.8EN7-EA-14E

Black plate (440,1)
Personalization Features
The following“Personalization Features ”are available. These settings can only be changed by an Authorized
Mazda Dealer.
Item Feature Factory Setting Available Settings
Advanced keyless
entry The advanced key's remaining battery level
warning light in the instrument cluster can be
deactivated
Activated Deactivated
The beep sound which is heard when
locking/unlocking both doors or the trunk lid
can be deactivated
*1Activated Deactivated
The function to automatically lock the doors
when leaving the vehicle while carrying the key
can be activated
*2Deactivated Activated
*1 When the autolock function is operating, the warning sound will be heard regardless of the setting.
*2 When the autolock function is enabled, windows will not automatically close. You must close them before leaving vehicle.
10-8
