Interior Equipment (View B)
Audio control switch ......................................................................................... page 6-56
SRS air bags ...................................................................................................... page 2-25
Cruise control switch ......................................................................................... page 5-22
Audio system ..................................................................................................... page 6-15
Hazard warning flasher switch .......................................................................... page 5-59
Climate control system ........................................................................................ page 6-2
Parking brake ....................................................................................................... page 5-7
Seat warmer switches .......................................................................................... page 2-5
Power window switches .................................................................................... page 3-37
Manual transmission shift lever ......................................................................... page 5-11
Automatic transmission selector lever ............................................................... page 5-13
Accessory socket ............................................................................................... page 6-85
Multi-pocket ...................................................................................................... page 6-82
Your Vehicle at a Glance
Interior Overview
1-3The equipment and installation position varies by vehicle
MX-5_8EN7-EA-14E_Edition1 Page9
Friday, March 28 2014 3:37 PM
Form No.8EN7-EA-14E

Black plate (33,1)
Do not allow a child to lean over or against the side window of a vehicle with side air
bags:Allowing anyone to lean over or against the door is dangerous. If the vehicle is
equipped with side air bags, the impact of an inflating side air bag could cause
serious injury or death to the person. Children are more likely to sleep in the vehicle;
when they do, they are more at risk in the passenger's seat that has a side air bag
because they may slump over into the path of the seatback-mounted air bag.
Furthermore, leaning over or against the doors could block the side air bag and
eliminate the advantages of supplemental protection. Because the side air bag
deploys from the outboard shoulder of the seat, do not allow the child to lean over or
against the side window, even if the child is seated in a child-restraint system.
Never use one seat belt on more than one person at a time: Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.
Always use a child-restraint system designed for use without a tether: Using a child-restraint system that requires a tether is dangerous. Your Mazda does
not have a child-restraint tether. The child-restraint system cannot be properly
secured. In a collision, it could move and injure other occupants as well as result in
serious injuries or death to the child.
CAUTION
A seat belt or child-restraint system can become very hot when exposed to direct
sunlight during warm weather. To avoid burning yourself or a child, check them
before you or your child touches them.
Essential Safety Equipment
Child Restraint
2-21
MX-5_8EN7-EA-14E_Edition1 Page33
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (38,1)
Small children must be protected by a child-restraint system as stipulated by law in every
state and province. In certain states and provinces, larger children must use a child-restraint
system (page 2-18).
Carefully consider which child-restraint system is necessary for your child and follow the
installation directions in this Owner's Manual as well as the child-restraint system
manufacturer's instructions.
Do not use a child-restraint system which employs an upper tether because there is no
appropriate means to anchor the tether.
WARNING
Seat belts must be worn in air bag equipped vehicles:Depending only on the air bags for protection during an accident is dangerous.
Alone, air bags may not prevent serious injuries. The appropriate air bags can be
expected to inflate only in the first accident, such as frontal, near frontal, side
collisions that are at least moderate. Vehicle occupants should always wear seat
belts.
Always make sure the passenger air bag deactivation indicator light is illuminated
when using a child-restraint system: Seating a child in a child-restraint system that is installed on the passenger seat with
the passenger air bag deactivation indicator light not illuminated is extremely
dangerous. In an accident, an air bag could inflate and cause serious injuries or even
death to the child seated in the child-restraint system. Always make sure the
passenger air bag deactivation indicator light is illuminated.
Do not sit too close to the driver and passenger air bags: Sitting too close to the driver and passenger air bag modules or placing hands or
feet on them is extremely dangerous. The driver and passenger air bags inflate with
great force and speed. Serious injuries could occur if someone is too close. The driver
should always hold onto only the rim of the steering wheel. The seat passenger
should keep both feet on the floor. Seat occupants should adjust their seats as far
back as possible and always sit upright against the seatbacks with seat belts worn
properly.
Do not sit too close to a door or lean against doors in vehicles with side air bags: Sitting too close to the side air bag modules or placing hands on them is extremely
dangerous. A side air bag inflates with great force and speed directly out of the
outboard shoulder of the seat and expands along the door on the side the car is hit.
Serious injury could occur if someone is sitting too close to the door or leaning
against a window in the seats. Furthermore, sleeping up against the door or hanging
out the driver-side window while driving could block the side air bag and eliminate
the advantages of supplemental protection. Give the side air bags room to work by
sitting in the center of the seat while the vehicle is moving with seat belts worn
properly.
2-26
Essential Safety Equipment
SRS Air Bags
MX-5_8EN7-EA-14E_Edition1 Page38
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (44,1)
qSide Air Bagsí
The side air bags are mounted in the outboard sides of the front seatbacks.
When the air bag crash sensors detect a side impact of greater than moderate force, the
system inflates the side air bag only on the side in which the vehicle was hit. The side air
bag inflates quickly to reduce injury to the driver or front passenger's chest caused by
directly hitting interior parts such as a door or window.
For more details about air bag deployment, refer to “SRS Air Bag Deployment Criteria ”
(page 2-34).
In addition, the passenger side air bag is designed to only deploy in accordance with the
total seated weight on the passenger seat. For details, refer to the driver and passenger
occupant classification system (page 2-37).
q Air Bag/Seat Belt Pretensioner System Warning Light
If the air bag/seat belt pretensioner system is working properly, the warning light
illuminates when the ignition is switched ON or after the engine is cranked. The warning
light turns off after a specified period of time.
A system malfunction is indicated if the warning light constantly flashes, constantly
illuminates or does not illuminate at all when the ignition is switched ON. If any of these
occur, consult an Authorized Mazda Dealer as soon as possible. The system may not
operate in an accident.
2-32
Essential Safety Equipment
íSome models.
SRS Air Bags
MX-5_8EN7-EA-14E_Edition1 Page44
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (54,1)
WARNING
Do not operate a vehicle with damaged air bag/seat belt pretensioner system
components:Expended or damaged air bag/seat belt pretensioner system components must be
replaced after any collision which caused them to deploy or damage them. Only a
trained Authorized Mazda Dealer can fully evaluate these systems to see that they
will work in any subsequent accident. Driving with an expended or damaged air bag
or pretensioner unit will not afford you the necessary protection in the event of any
subsequent accident which could result in serious injury or death.
Do not remove interior air bag parts: Removing any components such as the seats, dashboard, the steering wheel or parts
on the front and rear window pillars and along the roof edge, containing air bag
parts or sensors is dangerous. These parts contain essential air bag components. The
air bag could accidentally activate and cause serious injuries. Always have an
Authorized Mazda Dealer remove these parts.
Dispose of the air bag properly: Improper disposal of an air bag or a vehicle with live air bags in it can be extremely
dangerous. Unless all safety procedures are followed, injury can result. Ask an
Authorized Mazda Dealer how to safely dispose of an air bag or how to scrap an air
bag equipped vehicle.
NOTE
If it becomes necessary to have the components or wiring system for the supplementary restraint
system modified to accommodate a person with certain medical conditions in accordance with a
certified physician, contact an Authorized Mazda Dealer, refer to “Customer Assistance (U.S.A.) ”
(page 9-2).
2-42
Essential Safety Equipment
SRS Air Bags
MX-5_8EN7-EA-14E_Edition1 Page54
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (55,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Advanced Keyless Entry and Start System ................................ 3-2Advanced Keysí...................................................................... 3-2
Operation Using Advanced Keyless Functions ......................... 3-7
Operation Using Advanced Key Functions ............................. 3-15
Advanced Key Suspend Function ........................................... 3-18
Warning and Beep Sounds ...................................................... 3-19
Setting Change (Function Customization) .............................. 3-21
When Warning Indicator/Beep is Activated ............................ 3-22
Doors and Locks ......................................................................... 3-23 Keys (without Advanced Key) ................................................ 3-23
Keyless Entry System (with Retractable Type Key)
í............ 3-24
Door Locks ............................................................................. 3-30
Trunk Lid ................................................................................ 3-33
Inside Trunk Release Lever ..................................................... 3-35
Power Windows ...................................................................... 3-37
Fuel-Filler Lid and Cap ........................................................... 3-40
Hood ....................................................................................... 3-41
Convertible Top (Soft Top)
í.................................................. 3-43
Convertible Top (Power Retractable Hardtop)í..................... 3-48
Security System ........................................................................... 3-63 Immobilizer System (with Advanced Key) ............................. 3-63
Immobilizer System (without Advanced Key) ........................ 3-67
Theft-Deterrent System
í........................................................ 3-71
Steering Wheel and Mirrors ...................................................... 3-73 Steering Wheel ........................................................................ 3-73
Mirrors .................................................................................... 3-73
3-1íSome models.
MX-5_8EN7-EA-14E_Edition1 Page55
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (56,1)
Advanced Keysí
The advanced keyless functions (advanced keyless entry and start system) enable the
following operations while the advanced key is being carried (page 3-7).
lLocking/unlocking the doors, and opening the trunk lid, without operating the key.lStarting the engine without operating the key.
Additional functions are available using the buttons on the advanced key.
Refer to Operation Using Advanced Key Functions on page 3-15.
lThe following operations are possible using the transmitter of the keyless entry system
from a distance (Lock/Unlock/Trunk/Panic button):
lLocking/unlocking the doors.lOpening the trunk lid.lOpening the power windowsí.lTurning on the alarm.lLocking/unlocking the doors, opening the trunk lid, or starting the engine using the
auxiliary key.
WARNING
Do not leave the key in your vehicle with children and keep them in a place where
your children will not find or play with them: Leaving children in a vehicle with the key is dangerous. This could result in someone
being badly injured or even killed. Children may find these new kinds of keys to be
an interesting toy to play with and could cause the power windows or other controls
to operate, or even make the vehicle move.
Radio waves from the advanced key may affect medical equipment such as
pacemakers: Before using the advanced key near people who use medical equipment, ask the
medical equipment manufacturer or your physician if radio waves from the
advanced key will affect the equipment.
NOTE
lThe driver must carry the advanced key to ensure the system functions properly.lRefer to Immobilizer System (page 3-63) for information regarding keys and engine starting.l(With theft-deterrent system)
Refer to Theft-Deterrent System (page 3-71) for information regarding keys and the prevention of
vehicle and vehicle contents theft.
3-2
Knowing Your Mazda
íSome models.
Advanced Keyless Entry and Start System
MX-5_8EN7-EA-14E_Edition1 Page56
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (61,1)
CAUTION
ØBe careful not to allow the rubber
ring shown in the figure to be
scratched or damaged.
Ø If the rubber ring detaches,
reattach it before inserting a new
battery.
Rubber ring
qService
If you have a problem with the advanced
keyless functions, consult an Authorized
Mazda Dealer.
If your advanced key is lost or stolen,
bring all remaining advanced keys to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen advanced key
inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
Operation Using Advanced
Keyless Functions
qOperational Range
The system operates only when the driver
is in the vehicle or within operational
range while the advanced key is being
carried.
NOTE
When the battery power is low, or in places
where there are high-intensity radio waves or
noise, the operational range may become
narrower or the system may not operate. For
determining battery replacement, Refer to
Advanced Keys on page 3-2.
Locking, unlocking the doors
The operational range for locking/
unlocking the doors is an area of up to 80
cm (31 in) from the center of the door
handles.
Exterior transmitter
Operational range
NOTE
The system may not operate if you are too
close to the windows, door handles.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-7
MX-5_8EN7-EA-14E_Edition1 Page61
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (62,1)
Opening the trunk lid
The operational range for opening the
trunk lid is an area of up to 80 cm (31 in)
from the center of the trunk lid.
Exterior transmitter
Operational range
Starting the engine
The operational range for starting the
engine includes nearly the entire cabin
area.
Operational range
Interior transmitter
NOTElThe trunk is out of the operational range,
however, starting the engine may be
possible.
lThe engine may not start if the advanced
key is placed in the following areas:
lAround the dashboardlIn the storage compartments such as the
glove box
lOn the rear parcel shelflStarting the engine may be possible even if
the advanced key is outside of the vehicle
and extremely close to a door and window,
however, always start the engine from the
driver's seat.
If the vehicle is started and driven away
while the advanced key is not in the vehicle,
the vehicle will not restart after it is turned
off and the ignition is switched off.
lIf the advanced key is detected within
operational range, the operation indicator
light on the transmitter flashes
momentarily.
q
Locking, Unlocking the Doors
with Request Switch
Both doors can be locked/unlocked by
pressing the request switch on a door
while the advanced key is being carried.
Request switch
3-8
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8EN7-EA-14E_Edition1 Page62
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E

Black plate (69,1)

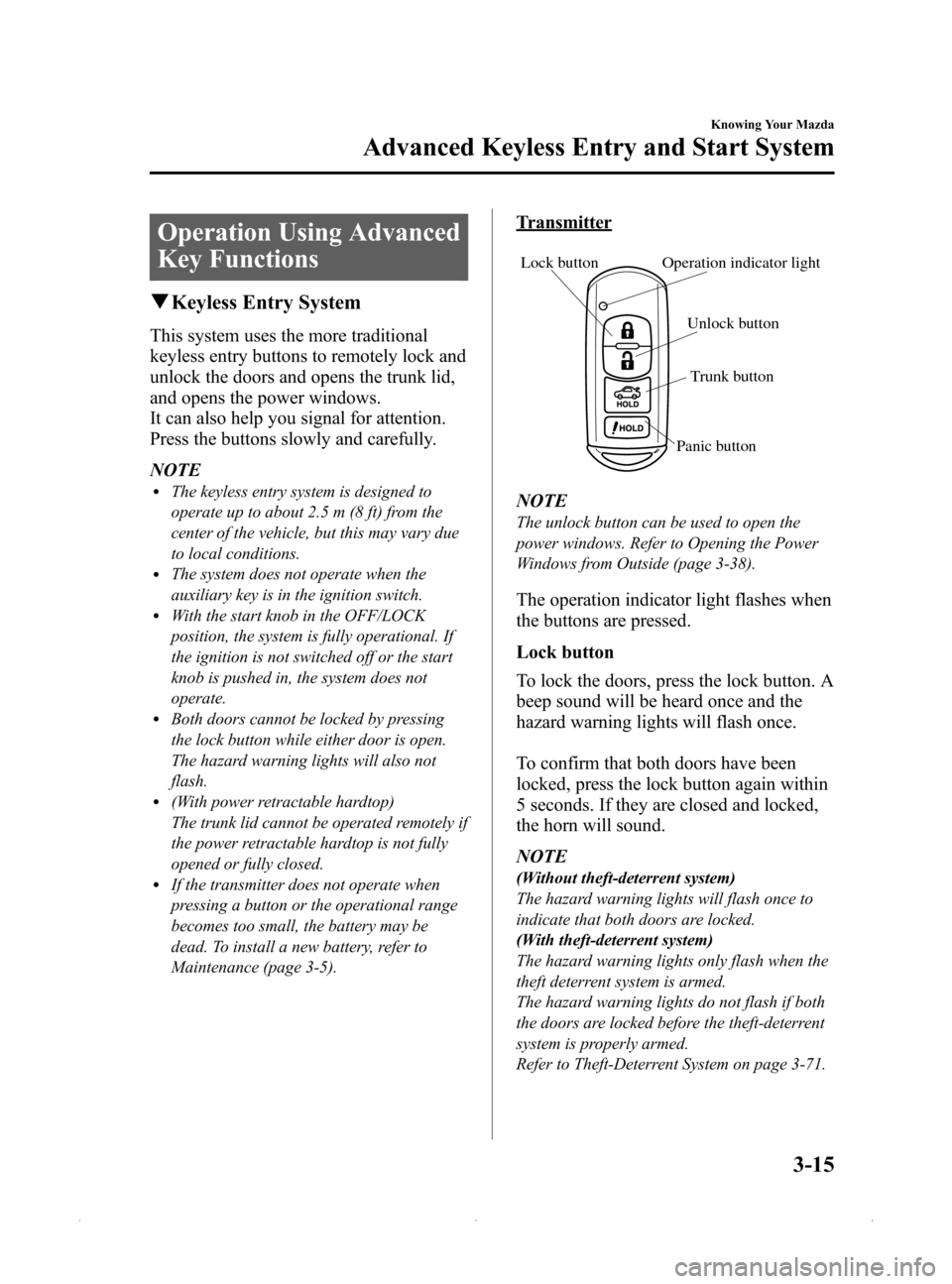

Operation Using Advanced
Key Functions
qKeyless Entry System
This system uses the more traditional
keyless entry buttons to remotely lock and
unlock the doors and opens the trunk lid,
and opens the power windows.
It can also help you signal for attention.
Press the buttons slowly and carefully.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the
auxiliary key is in the ignition switch.
lWith the start knob in the OFF/LOCK
position, the system is fully operational. If
the ignition is not switched off or the start
knob is pushed in, the system does not
operate.
lBoth doors cannot be locked by pressing
the lock button while either door is open.
The hazard warning lights will also not
flash.
l(With power retractable hardtop)
The trunk lid cannot be operated remotely if
the power retractable hardtop is not fully
opened or fully closed.
lIf the transmitter does not operate when
pressing a button or the operational range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-5).
Transmitter
Lock button
Unlock button
Trunk button
Operation indicator light
Panic button
NOTE
The unlock button can be used to open the
power windows. Refer to Opening the Power
Windows from Outside (page 3-38).
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors, press the lock button. A
beep sound will be heard once and the
hazard warning lights will flash once.
To confirm that both doors have been
locked, press the lock button again within
5 seconds. If they are closed and locked,
the horn will sound.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash once to
indicate that both doors are locked.
(With theft-deterrent system)
The hazard warning lights only flash when the
theft deterrent system is armed.
The hazard warning lights do not flash if both
the doors are locked before the theft-deterrent
system is properly armed.
Refer to Theft-Deterrent System on page 3-71.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-15
MX-5_8EN7-EA-14E_Edition1 Page69
Friday, March 28 2014 3:38 PM
Form No.8EN7-EA-14E
