Page 91 of 609

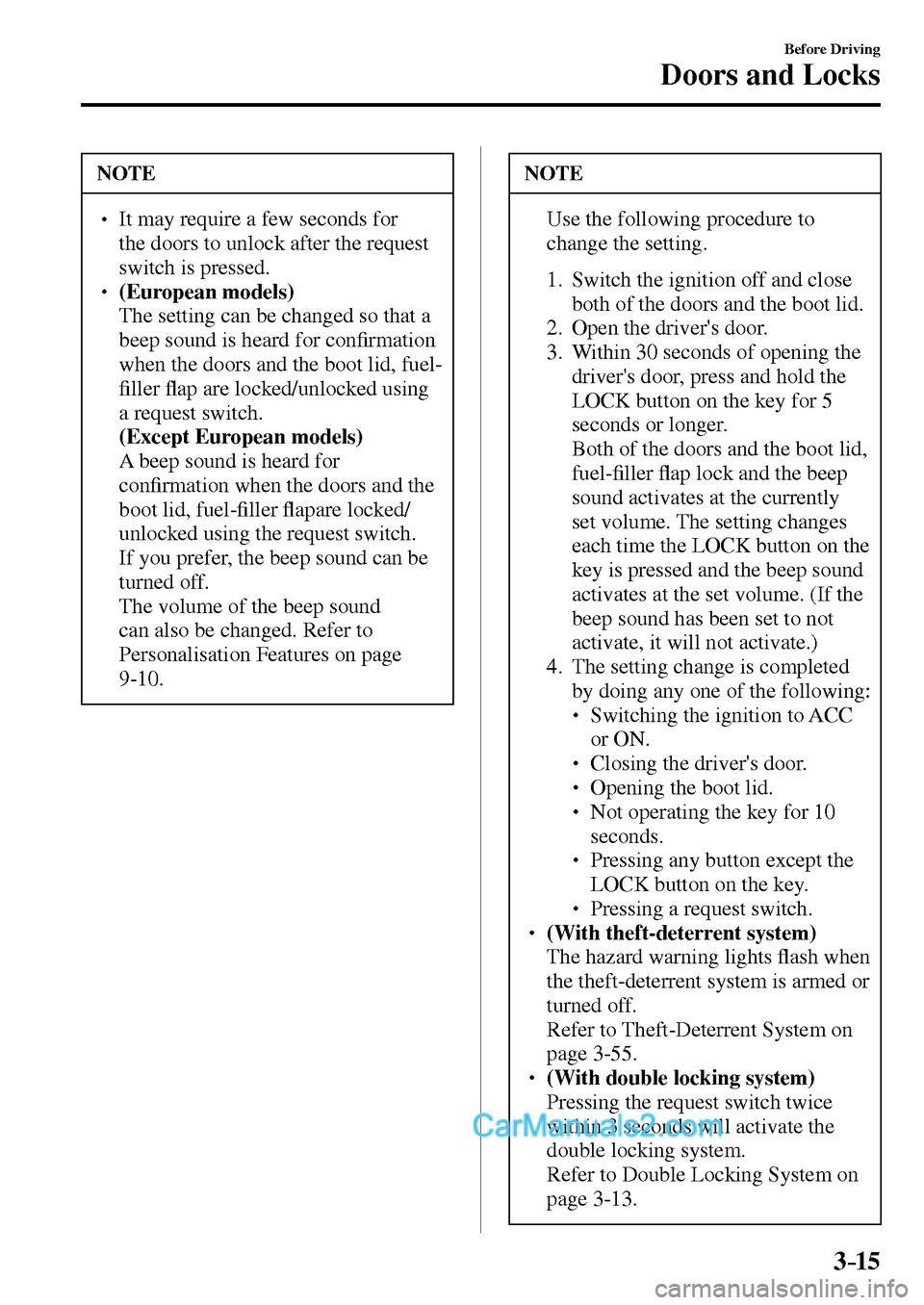

3–15
Before Driving
Doors and Locks
NOTE
It may require a few seconds for
the doors to unlock after the request
switch is pressed.
(European models) The setting can be changed so that a
beep sound is heard for con ¿ rmation
when the doors and the boot lid, fuel-
¿ ller À ap are locked/unlocked using
a request switch.
(Except European models) A beep sound is heard for
con ¿ rmation when the doors and the
boot lid, fuel- ¿ ller À apare locked/
unlocked using the request switch.
If you prefer, the beep sound can be
turned off.
The volume of the beep sound
can also be changed. Refer to
Personalisation Features on page
9-10 .
NOTE
Use the following procedure to
change the setting.
1. Switch the ignition off and close
both of the doors and the boot lid.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
LOCK button on the key for 5
seconds or longer.
Both of the doors and the boot lid,
fuel- ¿ ller À ap lock and the beep
sound activates at the currently
set volume. The setting changes
each time the LOCK button on the
key is pressed and the beep sound
activates at the set volume. (If the
beep sound has been set to not
activate, it will not activate.)
4. The setting change is completed
by doing any one of the following:
Switching the ignition to ACC
or ON.
Closing the driver's door.
Opening the boot lid.
Not operating the key for 10
seconds.
Pressing any button except the
LOCK button on the key.
Pressing a request switch.
(With theft-deterrent system) The hazard warning lights À ash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on
page 3-55 .
(With double locking system) Pressing the request switch twice
within 3 seconds will activate the
double locking system.
Refer to Double Locking System on
page 3-13 .
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 92 of 609

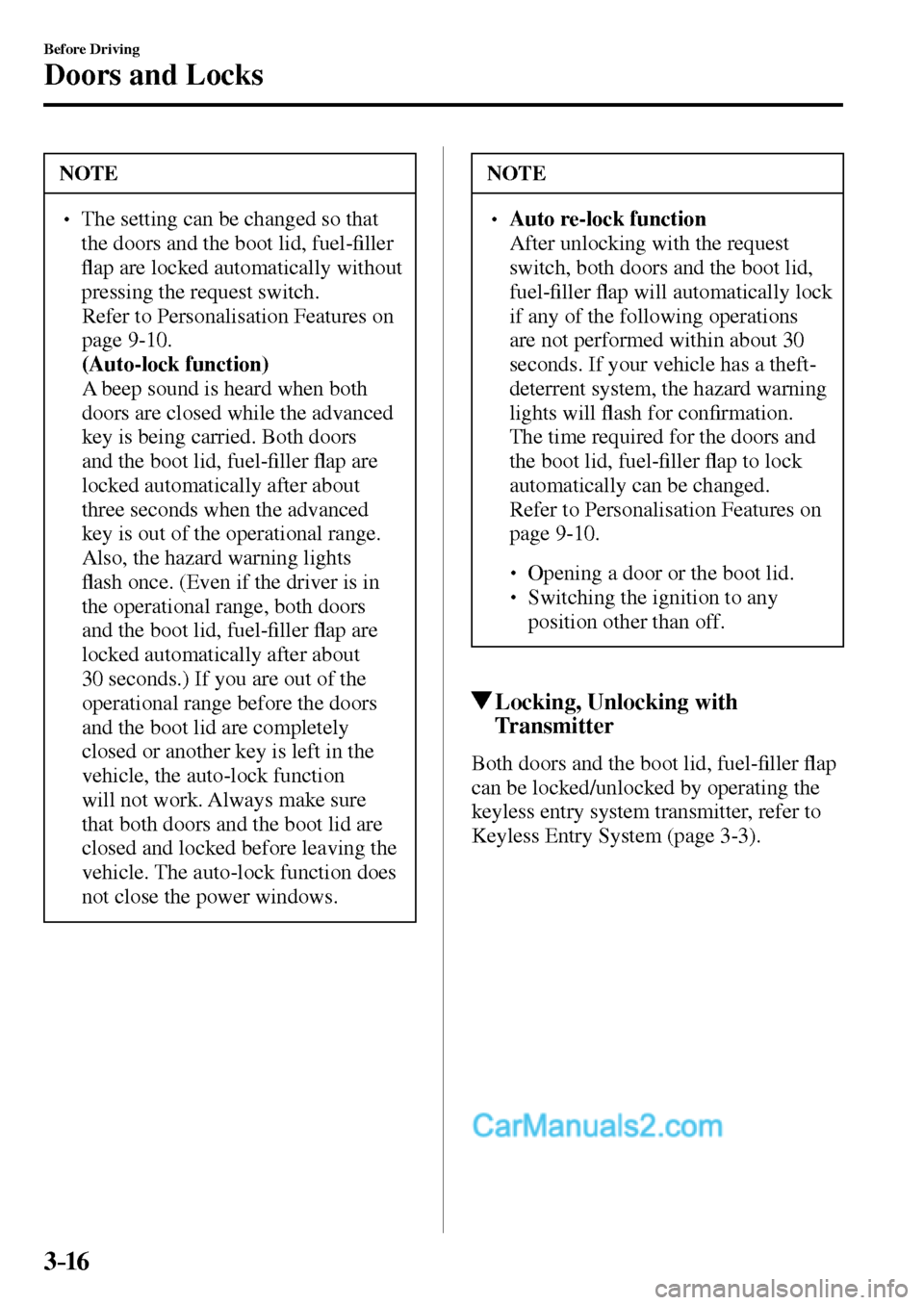

3–16
Before Driving
Doors and Locks
NOTE
The setting can be changed so that
the doors and the boot lid, fuel- ¿ ller
À ap are locked automatically without
pressing the request switch.
Refer to Personalisation Features on
page 9-10 .
(Auto-lock function) A beep sound is heard when both
doors are closed while the advanced
key is being carried. Both doors
and the boot lid, fuel- ¿ ller À ap are
locked automatically after about
three seconds when the advanced
key is out of the operational range.
Also, the hazard warning lights
À ash once. (Even if the driver is in
the operational range, both doors
and the boot lid, fuel- ¿ ller À ap are
locked automatically after about
30 seconds.) If you are out of the
operational range before the doors
and the boot lid are completely
closed or another key is left in the
vehicle, the auto-lock function
will not work. Always make sure
that both doors and the boot lid are
closed and locked before leaving the
vehicle. The auto-lock function does
not close the power windows.
NOTE
Auto re-lock function After unlocking with the request
switch, both doors and the boot lid,
fuel- ¿ ller À ap will automatically lock
if any of the following operations
are not performed within about 30
seconds. If your vehicle has a theft-
deterrent system, the hazard warning
lights will À ash for con ¿ rmation.
The time required for the doors and
the boot lid, fuel- ¿ ller À ap to lock
automatically can be changed.
Refer to Personalisation Features on
page 9-10 .
Opening a door or the boot lid.
Switching the ignition to any
position other than off.
Locking, Unlocking with
Transmitter
Both doors and the boot lid, fuel- ¿ ller À ap
can be locked/unlocked by operating the
keyless entry system transmitter, refer to
Keyless Entry System (page 3-3 ).
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 93 of 609

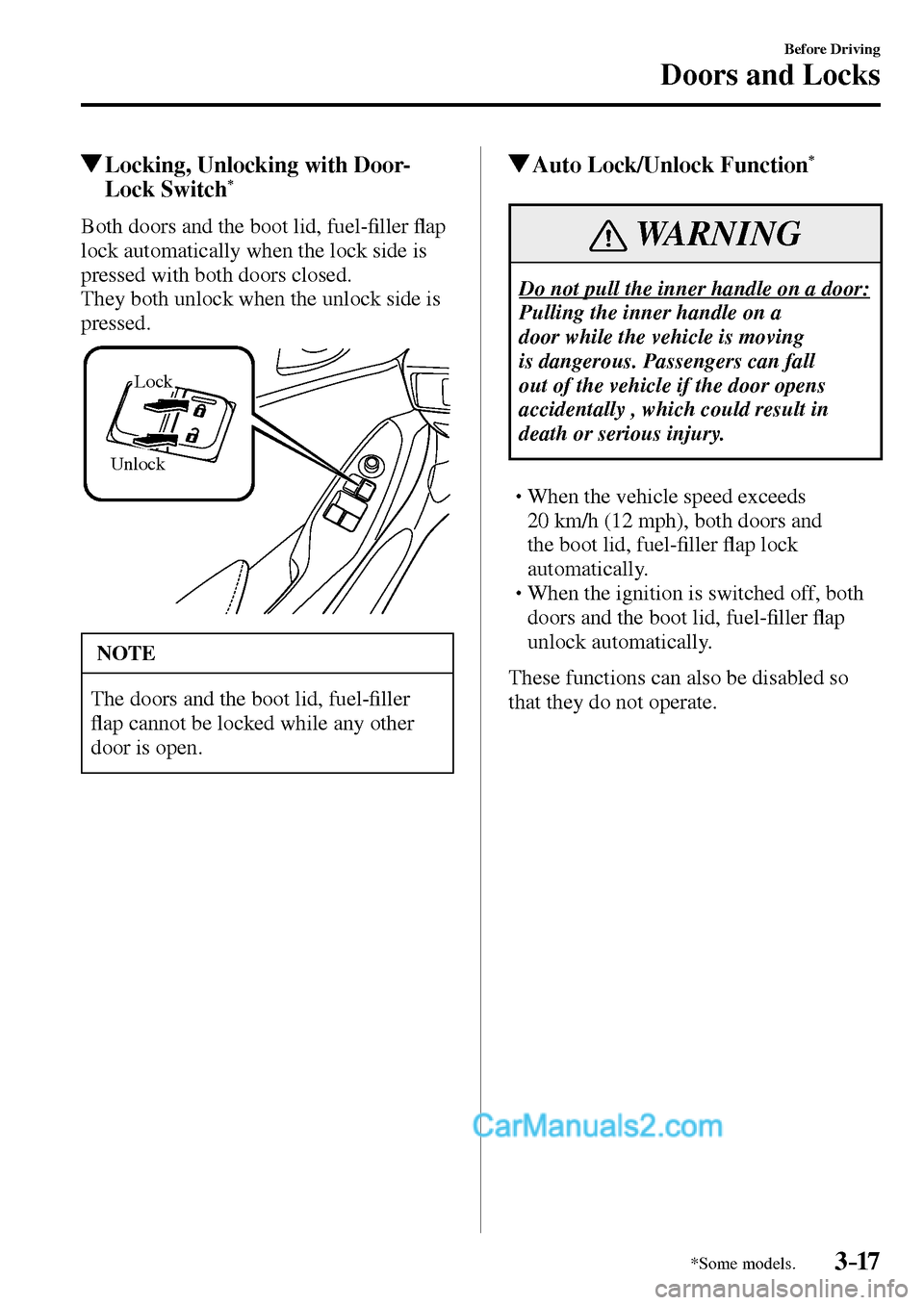

3–17
Before Driving
Doors and Locks
*Some models.
Locking, Unlocking with Door-
Lock Switch *
Both doors and the boot lid, fuel- ¿ ller À ap
lock automatically when the lock side is
pressed with both doors closed.
They both unlock when the unlock side is
pressed.
Unlock
Lock
NOTE
The doors and the boot lid, fuel- ¿ ller
À ap cannot be locked while any other
door is open.
Auto Lock/Unlock Function *
WARNING
Do not pull the inner handle on a door:
Pulling the inner handle on a
door while the vehicle is moving
is dangerous. Passengers can fall
out of the vehicle if the door opens
accidentally , which could result in
death or serious injury.
When the vehicle speed exceeds
20 km/h (12 mph), both doors and
the boot lid, fuel- ¿ ller À ap lock
automatically.
When the ignition is switched off, both
doors and the boot lid, fuel- ¿ ller À ap
unlock automatically.
These functions can also be disabled so
that they do not operate.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 94 of 609

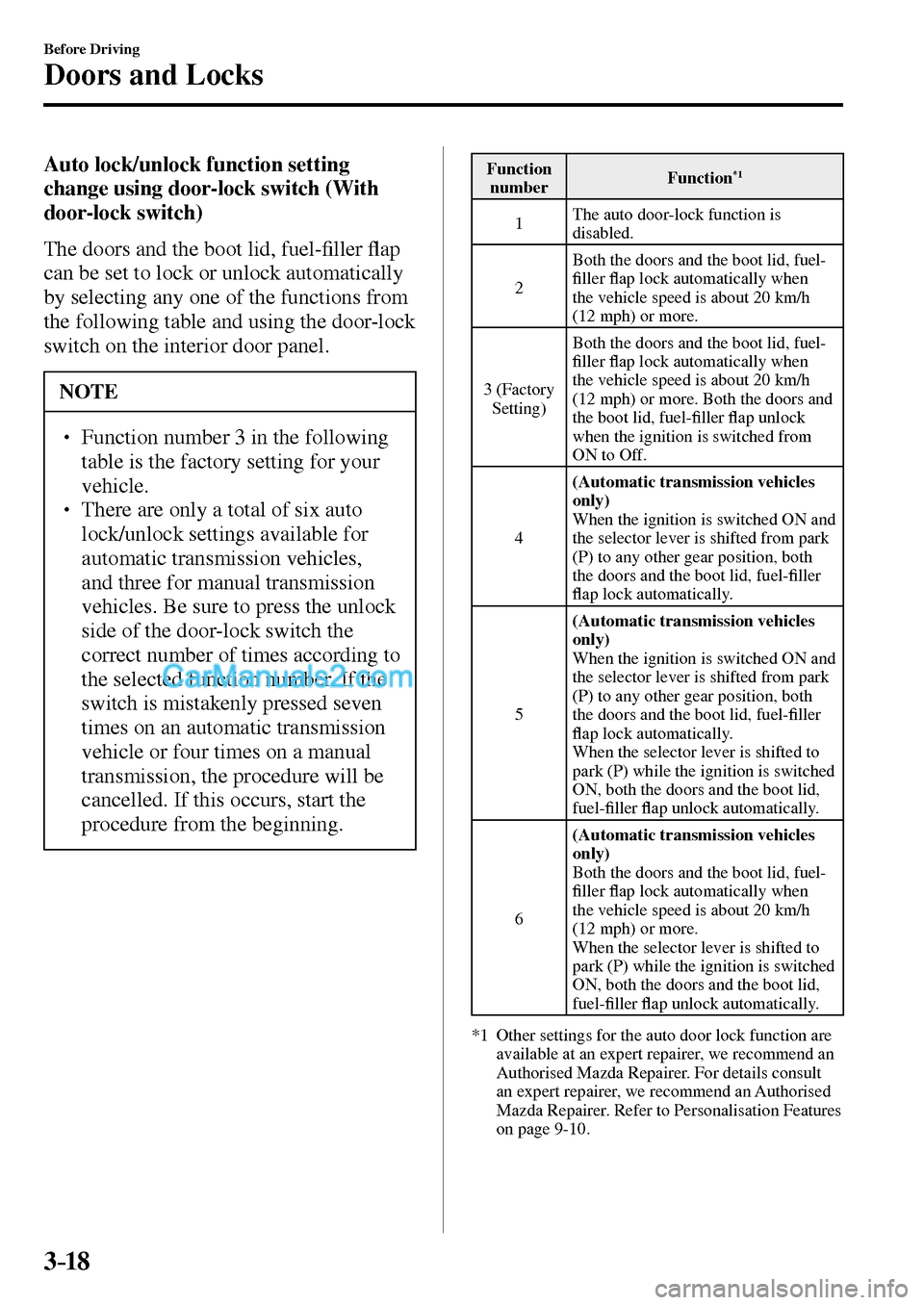

3–18
Before Driving
Doors and Locks
Auto lock/unlock function setting
change using door-lock switch (With
door-lock switch)
The doors and the boot lid, fuel- ¿ ller À ap
can be set to lock or unlock automatically
by selecting any one of the functions from
the following table and using the door-lock
switch on the interior door panel.
NOTE
Function number 3 in the following
table is the factory setting for your
vehicle.
There are only a total of six auto
lock/unlock settings available for
automatic transmission vehicles,
and three for manual transmission
vehicles. Be sure to press the unlock
side of the door-lock switch the
correct number of times according to
the selected function number. If the
switch is mistakenly pressed seven
times on an automatic transmission
vehicle or four times on a manual
transmission, the procedure will be
cancelled. If this occurs, start the
procedure from the beginning.
Function
number Function *1
1 The auto door-lock function is
disabled.
2 Both the doors and the boot lid, fuel-
¿ ller À ap lock automatically when
the vehicle speed is about 20 km/h
(12 mph) or more.
3 (Factory
Setting) Both the doors and the boot lid, fuel-
¿ ller À ap lock automatically when
the vehicle speed is about 20 km/h
(12 mph) or more. Both the doors and
the boot lid, fuel- ¿ ller À ap unlock
when the ignition is switched from
ON to Off.
4 (Automatic transmission vehicles
only)
When the ignition is switched ON and
the selector lever is shifted from park
(P) to any other gear position, both
the doors and the boot lid, fuel- ¿ ller
À ap lock automatically.
5 (Automatic transmission vehicles
only)
When the ignition is switched ON and
the selector lever is shifted from park
(P) to any other gear position, both
the doors and the boot lid, fuel- ¿ ller
À ap lock automatically.
When the selector lever is shifted to
park (P) while the ignition is switched
ON, both the doors and the boot lid,
fuel- ¿ ller À ap unlock automatically.
6 (Automatic transmission vehicles
only)
Both the doors and the boot lid, fuel-
¿ ller À ap lock automatically when
the vehicle speed is about 20 km/h
(12 mph) or more.
When the selector lever is shifted to
park (P) while the ignition is switched
ON, both the doors and the boot lid,
fuel- ¿ ller À ap unlock automatically.
*1 Other settings for the auto door lock function are
available at an expert repairer, we recommend an
Authorised Mazda Repairer. For details consult
an expert repairer, we recommend an Authorised
Mazda Repairer. Refer to Personalisation Features
on page 9-10 .
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 95 of 609

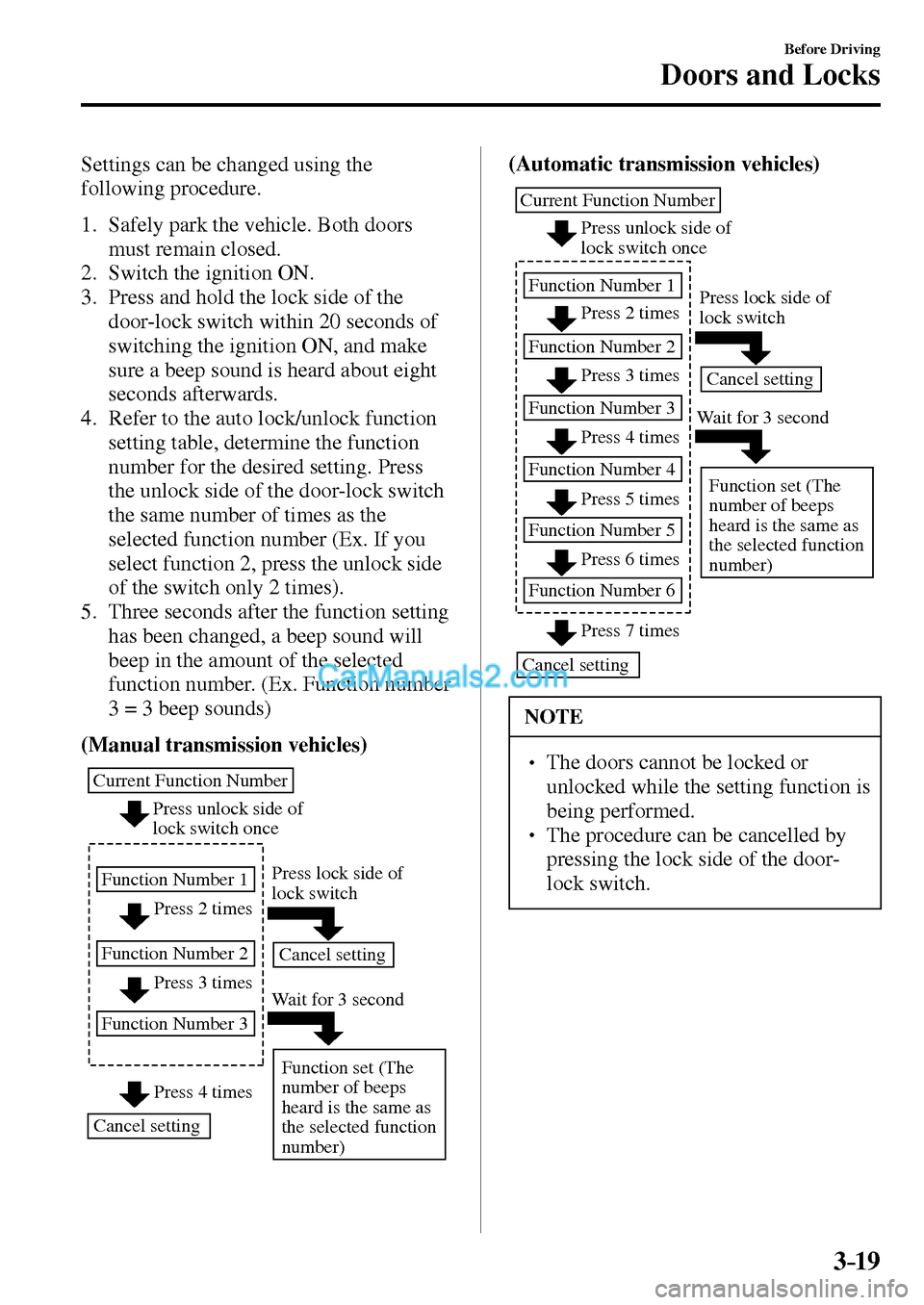

3–19
Before Driving
Doors and Locks
Settings can be changed using the
following procedure.
1. Safely park the vehicle. Both doors
must remain closed.
2. Switch the ignition ON.
3. Press and hold the lock side of the
door-lock switch within 20 seconds of
switching the ignition ON, and make
sure a beep sound is heard about eight
seconds afterwards.
4. Refer to the auto lock/unlock function
setting table, determine the function
number for the desired setting. Press
the unlock side of the door-lock switch
the same number of times as the
selected function number (Ex. If you
select function 2, press the unlock side
of the switch only 2 times).
5. Three seconds after the function setting
has been changed, a beep sound will
beep in the amount of the selected
function number. (Ex. Function number
3 = 3 beep sounds)
(Manual transmission vehicles)
Press 2 times
Press 3 times Current Function Number
Function Number 1
Function Number 2
Function Number 3
Press 4 times Press unlock side of
lock switch once
Cancel settingCancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number) Press lock side of
lock switch
Wait for 3 second
(Automatic transmission vehicles)
Press unlock side of
lock switch once
Press 2 times
Press 3 times Current Function Number
Function Number 1
Function Number 2
Press 4 times Function Number 3
Press 5 times Function Number 4
Press 7 times Function Number 5
Press 6 times
Function Number 6
Cancel settingCancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number) Press lock side of
lock switch
Wait for 3 second
NOTE
The doors cannot be locked or
unlocked while the setting function is
being performed.
The procedure can be cancelled by
pressing the lock side of the door-
lock switch.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 96 of 609

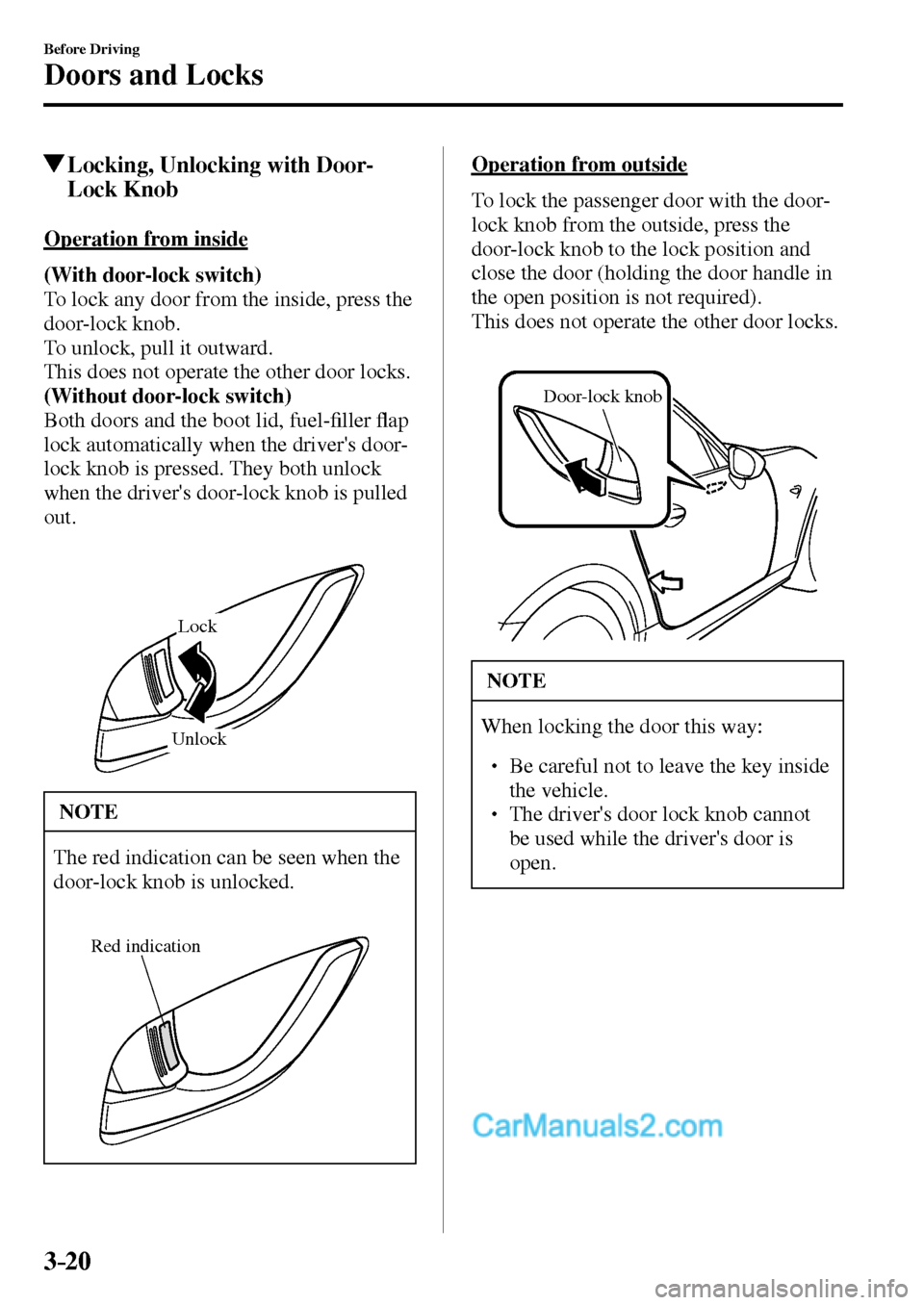

3–20
Before Driving
Doors and Locks
Locking, Unlocking with Door-
Lock Knob
Operation from inside
(With door-lock switch)
To lock any door from the inside, press the
door-lock knob.
To unlock, pull it outward.
This does not operate the other door locks.
(Without door-lock switch)
Both doors and the boot lid, fuel- ¿ ller À ap
lock automatically when the driver's door-
lock knob is pressed. They both unlock
when the driver's door-lock knob is pulled
out.
Lock
Unlock
NOTE
The red indication can be seen when the
door-lock knob is unlocked.
Red indication
Operation from outside
To lock the passenger door with the door-
lock knob from the outside, press the
door-lock knob to the lock position and
close the door (holding the door handle in
the open position is not required).
This does not operate the other door locks.
Door-lock knob
NOTE
When locking the door this way:
Be careful not to leave the key inside
the vehicle.
The driver's door lock knob cannot
be used while the driver's door is
open.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 97 of 609
3–21
Before Driving
Doors and Locks
Boot Lid
WARNING
Never allow a person to ride in the
boot:
Allowing a person to ride in the boot
is dangerous. The person in the boot
could be seriously injured or killed
during sudden braking or a collision.
Do not drive with the boot lid open:
Exhaust gas in the cabin of a vehicle
is dangerous. An open boot lid in a
moving vehicle will cause exhaust gas
to be drawn into the cabin. This gas
contains CO (carbon monoxide), which
is colourless, odourless, and highly
poisonous, and it can cause loss of
consciousness and death. Moreover, an
open boot lid could cause occupants to
fall out in an accident.
CAUTION
Before opening the boot lid, remove
any snow and ice accumulation on it.
Otherwise, the boot lid could close
under the weight of the snow and ice
resulting in injury.
Be careful when opening/closing
the boot lid during strong winds. If
a strong gust blows against the boot
lid, it could close suddenly resulting
in injury.
Fully open the boot lid and make
sure that it stays open. If the boot
lid is only opened partially, it could
slam shut by vibration or wind gusts
resulting in injury.
When loading or unloading luggage
in the boot, turn off the engine.
Otherwise, you could get burned by
the heat of the exhaust gas.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 98 of 609

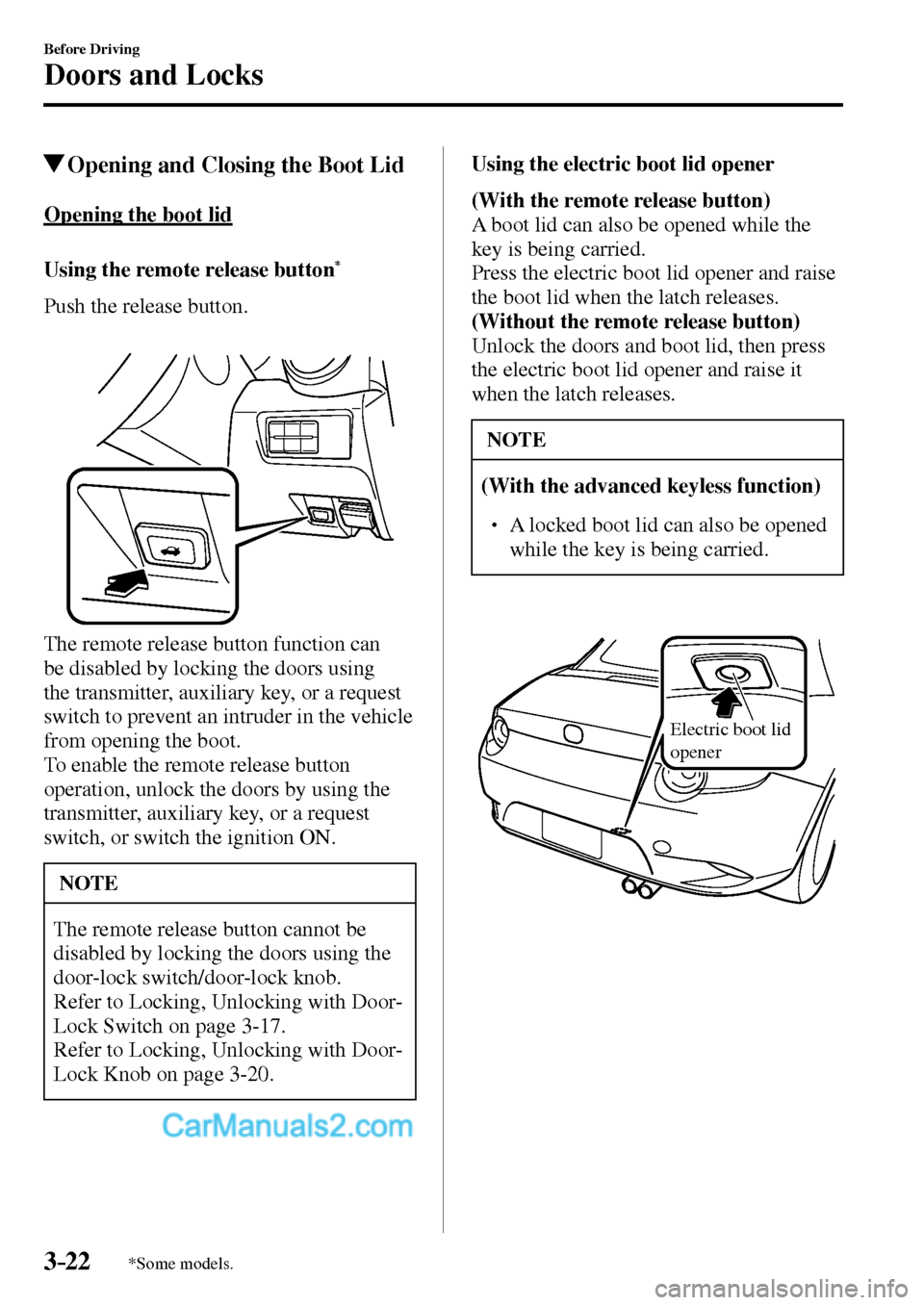

3–22
Before Driving
Doors and Locks
*Some models.
Opening and Closing the Boot Lid
Opening the boot lid
Using the remote release button
*
Push the release button.
The remote release button function can
be disabled by locking the doors using
the transmitter, auxiliary key, or a request
switch to prevent an intruder in the vehicle
from opening the boot.
To enable the remote release button
operation, unlock the doors by using the
transmitter, auxiliary key, or a request
switch, or switch the ignition ON.
NOTE
The remote release button cannot be
disabled by locking the doors using the
door-lock switch/door-lock knob.
Refer to Locking, Unlocking with Door-
Lock Switch on page 3-17 .
Refer to Locking, Unlocking with Door-
Lock Knob on page 3-20 . Using the electric boot lid opener
(With the remote release button)
A boot lid can also be opened while the
key is being carried.
Press the electric boot lid opener and raise
the boot lid when the latch releases.
(Without the remote release button)
Unlock the doors and boot lid, then press
the electric boot lid opener and raise it
when the latch releases.
NOTE
(With the advanced keyless function)
A locked boot lid can also be opened
while the key is being carried.
Electric boot lid
opener
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 99 of 609

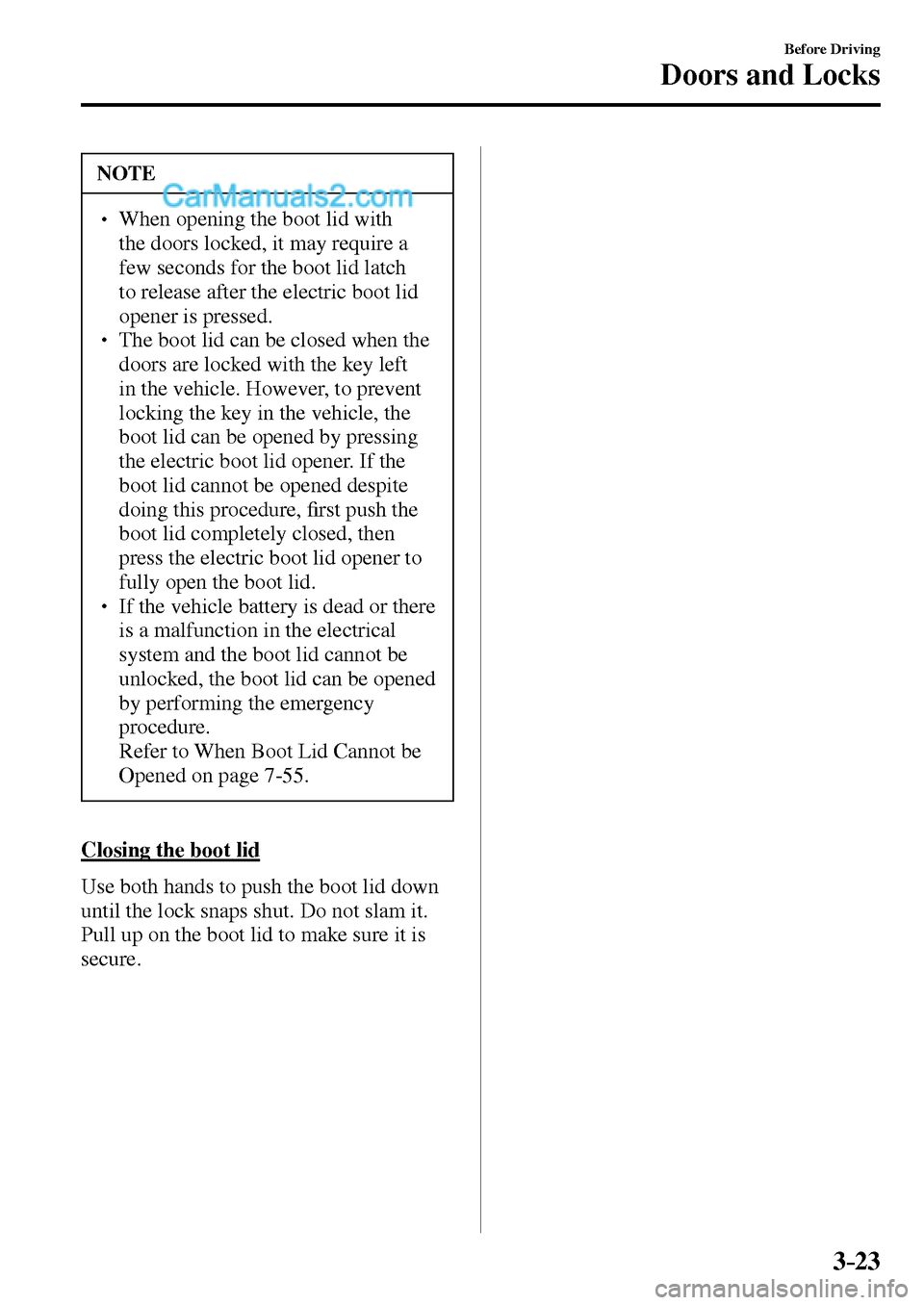

3–23
Before Driving
Doors and Locks
NOTE
When opening the boot lid with
the doors locked, it may require a
few seconds for the boot lid latch
to release after the electric boot lid
opener is pressed.
The boot lid can be closed when the
doors are locked with the key left
in the vehicle. However, to prevent
locking the key in the vehicle, the
boot lid can be opened by pressing
the electric boot lid opener. If the
boot lid cannot be opened despite
doing this procedure, ¿ rst push the
boot lid completely closed, then
press the electric boot lid opener to
fully open the boot lid.
If the vehicle battery is dead or there
is a malfunction in the electrical
system and the boot lid cannot be
unlocked, the boot lid can be opened
by performing the emergency
procedure.
Refer to When Boot Lid Cannot be
Opened on page 7-55 .
Closing the boot lid
Use both hands to push the boot lid down
until the lock snaps shut. Do not slam it.
Pull up on the boot lid to make sure it is
secure.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 100 of 609
3–24
Before Driving
Fuel and Emission
Fuel and Engine Exhaust Precautions
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
The vehicle will perform best with fuel listed in the table.
Fuel Research Octane
Number Country
Premium unleaded fuel
(Conforming to EN 228
and within E10)
*1 95 or above New Caledonia, Turkey, Canary Islands, Reunion,
Morocco, Austria, Greece, Italy, Switzerland, Belgium,
Denmark, Finland, Norway, Portugal, Spain, Sweden,
Hungary, Germany, Poland, Bulgaria, Croatia, Slovenia,
Luxembourg, Slovakia, Latvia, Lithuania, France, Czech,
Estonia, Romania, The Netherlands, Macedonia, Bosnia and
Herzegovina, Serbia, Montenegro, Guadeloupe, Martinique,
Singapore, Hong Kong, Malaysia, Thailand, Brunei, Macau,
Sri Lanka, South Africa, Jamaica, Surinam, Trinidad and
Tobago, Commonwealth of Dominica, Myanmar, Taiwan,
The Philippines, Cambodia, Laos, Tahiti, Kuwait, Oman,
Qatar, Saudi Arabia, UAE, Bahrain, Lebanon, Israel,
Tunisia, Egypt, Chile, El Salvador, Guatemala, Costa Rica,
Ecuador, Bolivia, Colombia, Dominican Republic (LHD),
Panama, Uruguay, Honduras, Peru, Cyprus, Malta, Ireland,
UK
Regular unleaded fuel 90 or above Fiji
*1 Europe
Fuel with a lower rating will negatively affect the emission control system performance and
could also cause engine knocking and serious engine damage.
CAUTION
USE ONLY UNLEADED FUEL. Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead to
deterioration of the emission control system and or failures.
The use of E10 fuel with 10 % ethanol in Europe is safe for your vehicle. Damage to
your vehicle may occur when ethanol exceeds this recommendation.
Never add fuel system additives, otherwise the emission control system could be
damaged. Consult an expert repairer, we recommend an Authorised Mazda Repairer
for details.
/ : A ( . ' ' , A ' F K V K Q P K P F D
