When Driving
Switches and Controls
NOTE
  The time until the headlights turn off
after all of the doors are closed can
be changed.
 Refer to Personalisation Features on
page 9-10 .
  If no operations are done for 3
minutes after the lever is pulled, the
headlights turn off.
  The headlights turn off if the lever is
pulled again while the headlights are
illuminated.

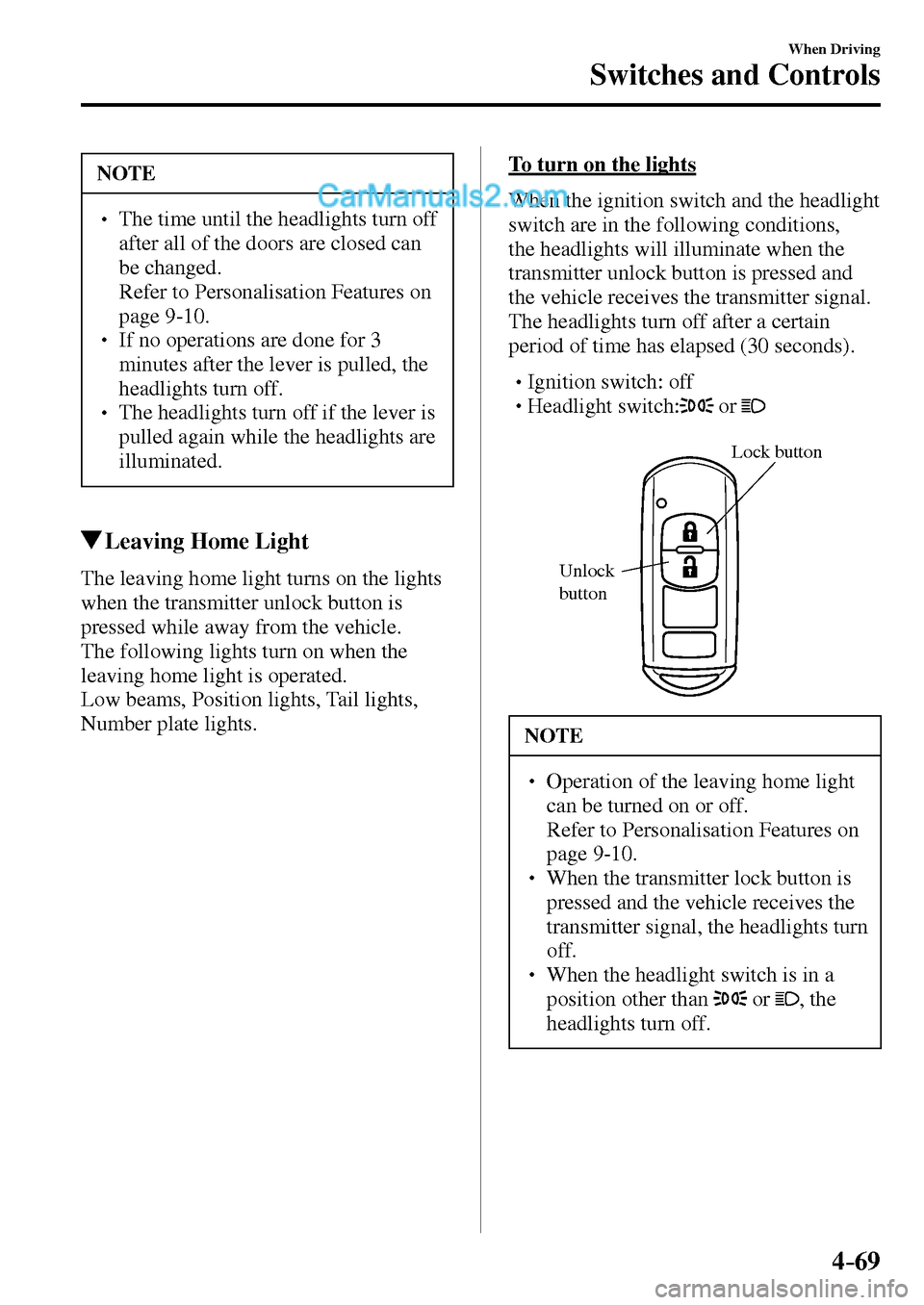

Leaving Home Light
The leaving home light turns on the lights
when the transmitter unlock button is
pressed while away from the vehicle.
The following lights turn on when the
leaving home light is operated.
Low beams, Position lights, Tail lights,
Number plate lights.
To turn on the lights
When the ignition switch and the headlight
switch are in the following conditions,
the headlights will illuminate when the
transmitter unlock button is pressed and
the vehicle receives the transmitter signal.
The headlights turn off after a certain
period of time has elapsed (30 seconds).



 Ignition switch: off



 Headlight switch: or
Lock button
Unlock
button
NOTE
  Operation of the leaving home light
can be turned on or off.
 Refer to Personalisation Features on
page 9-10 .
  When the transmitter lock button is
pressed and the vehicle receives the
transmitter signal, the headlights turn
off.
  When the headlight switch is in a
position other than
or , the
headlights turn off.
/:A(.'',A'FKVKQPKPFD

4–70

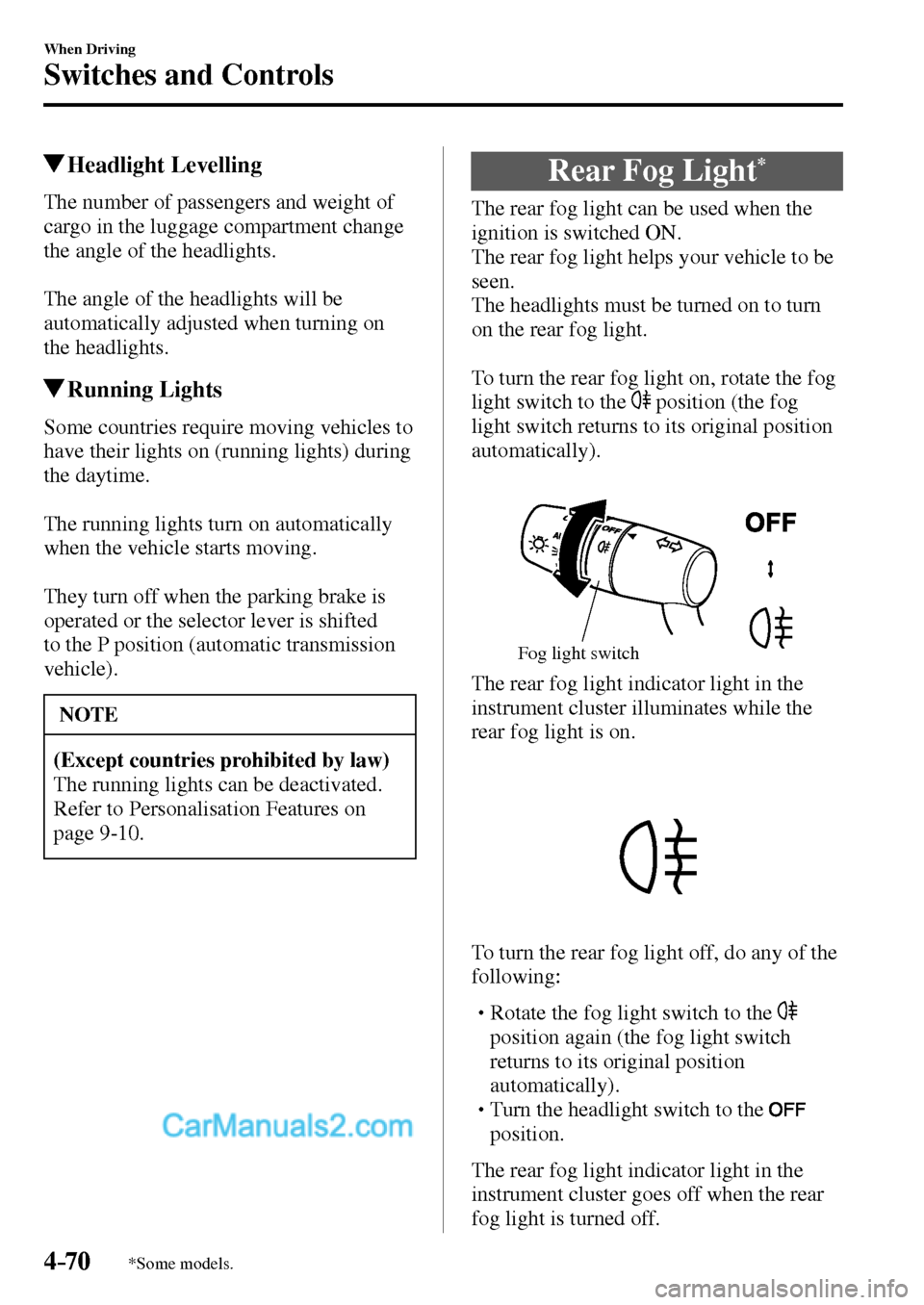

When Driving
Switches and Controls
*Some models.
Headlight Levelling
The number of passengers and weight of
cargo in the luggage compartment change
the angle of the headlights.
The angle of the headlights will be
automatically adjusted when turning on
the headlights.
Running Lights
Some countries require moving vehicles to
have their lights on (running lights) during
the daytime.
The running lights turn on automatically
when the vehicle starts moving.
They turn off when the parking brake is
operated or the selector lever is shifted
to the P position (automatic transmission
vehicle).
NOTE
(Except countries prohibited by law)
The running lights can be deactivated.
Refer to Personalisation Features on
page 9-10 .
Rear Fog Light *
The rear fog light can be used when the
ignition is switched ON.
The rear fog light helps your vehicle to be
seen.
The headlights must be turned on to turn
on the rear fog light.
To turn the rear fog light on, rotate the fog
light switch to the
position (the fog
light switch returns to its original position
automatically).
Fog light switch
The rear fog light indicator light in the
instrument cluster illuminates while the
rear fog light is on.
To turn the rear fog light off, do any of the
following:



 Rotate the fog light switch to the
position again (the fog light switch
returns to its original position
automatically).



 Turn the headlight switch to the
position.
The rear fog light indicator light in the
instrument cluster goes off when the rear
fog light is turned off.
/:A(.'',A'FKVKQPKPFD

4–71

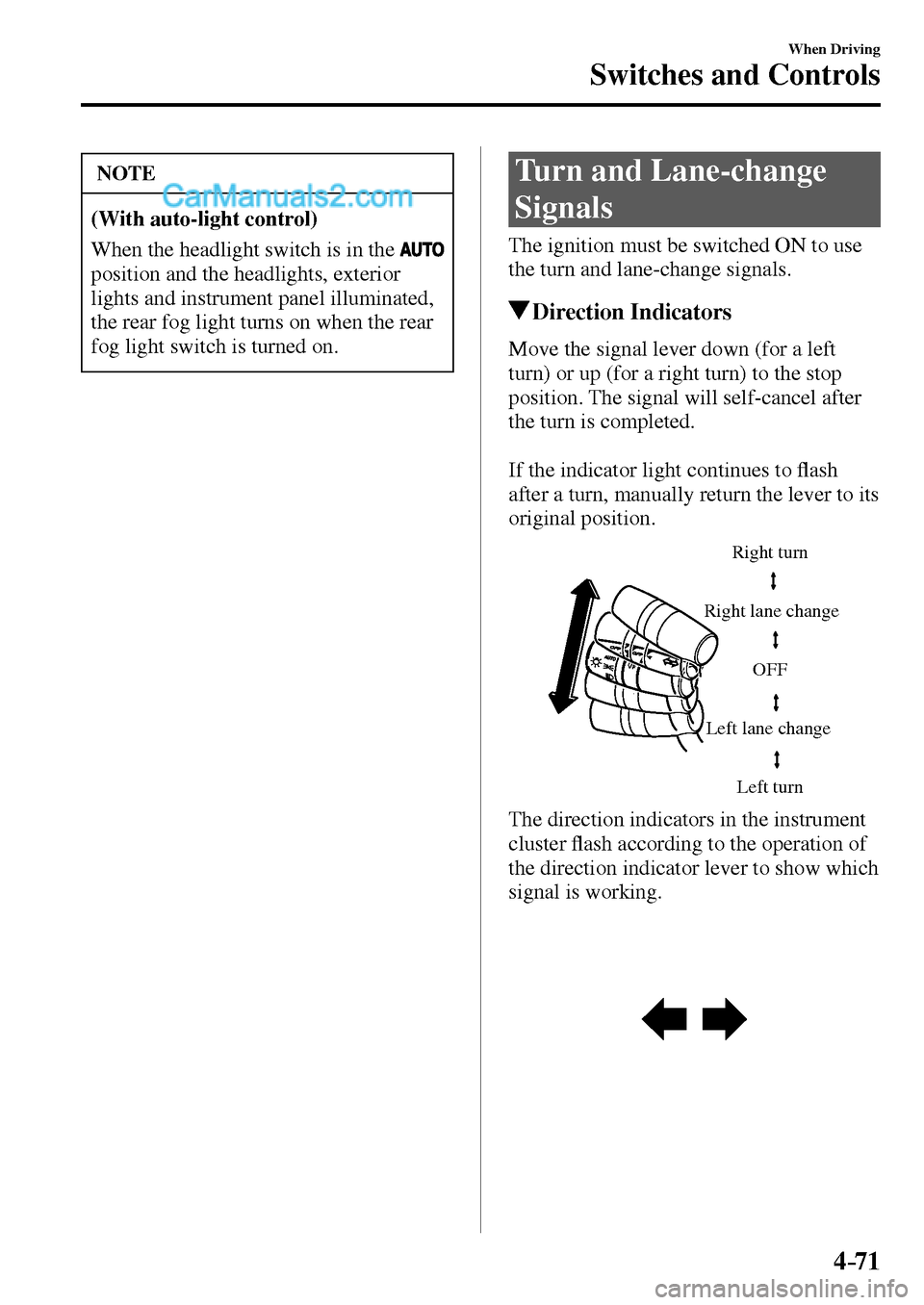

When Driving
Switches and Controls
NOTE
(With auto-light control)
When the headlight switch is in the
position and the headlights, exterior
lights and instrument panel illuminated,
the rear fog light turns on when the rear
fog light switch is turned on.
Turn and Lane-change
Signals
The ignition must be switched ON to use
the turn and lane-change signals.
Direction Indicators
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to À ash
after a turn, manually return the lever to its
original position.
Right turn
Left turn Right lane change
Left lane changeOFF
The direction indicators in the instrument
clusterÀ ash according to the operation of
the direction indicator lever to show which
signal is working.
/:A(.'',A'FKVKQPKPFD

4–72
When Driving
Switches and Controls
NOTE
  If an indicator light stays on without
À ashing or if it À ashes abnormally,
one of the direction indicator bulbs
may be burned out.

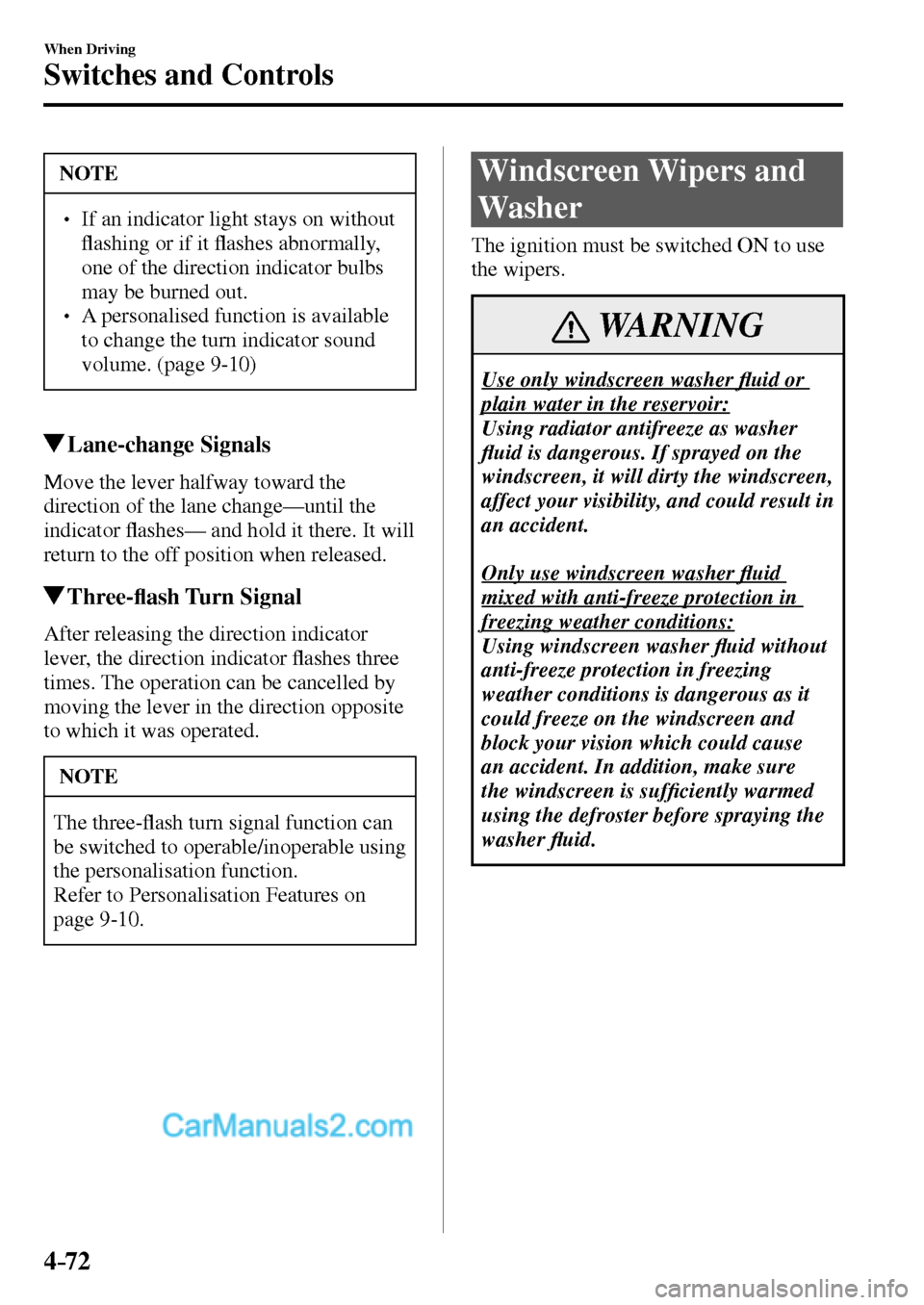

  A personalised function is available
to change the turn indicator sound
volume. (page 9-10 )
Lane-change Signals
Move the lever halfway toward the
direction of the lane change—until the
indicatorÀ ashes— and hold it there. It will
return to the off position when released.
Three-À ash Turn Signal
After releasing the direction indicator
lever, the direction indicator À ashes three
times. The operation can be cancelled by
moving the lever in the direction opposite
to which it was operated.
NOTE
The three-À ash turn signal function can
be switched to operable/inoperable using
the personalisation function.
Refer to Personalisation Features on
page 9-10 .
Windscreen Wipers and
Washer
The ignition must be switched ON to use
the wipers.
WARNING
Use only windscreen washer À uid or
plain water in the reservoir:
Using radiator antifreeze as washer
À uid is dangerous. If sprayed on the
windscreen, it will dirty the windscreen,
affect your visibility, and could result in
an accident.
Only use windscreen washer À uid
mixed with anti-freeze protection in
freezing weather conditions:
Using windscreen washer À uid without
anti-freeze protection in freezing
weather conditions is dangerous as it
could freeze on the windscreen and
block your vision which could cause
an accident. In addition, make sure
the windscreen is suf¿ ciently warmed
using the defroster before spraying the
washerÀ uid.
/:A(.'',A'FKVKQPKPFD

4–73
When Driving
Switches and Controls
NOTE
If the windscreen wipers are operated
under cold weather conditions or
during snowfall, they could stop due to
accumulated snow on the windscreen.
If the windscreen wipers stop due to
accumulated snow on the windscreen,
park the vehicle in a safe place, turn the
wiper switch off, and then remove the
accumulated snow. If the wiper switch
is turned to another position other than
OFF, the wipers will operate. If the
wipers do not operate even though the
wiper switch is turned to a position other
than OFF, consult an expert repairer,
we recommend an Authorised Mazda
Repairer as soon as possible.

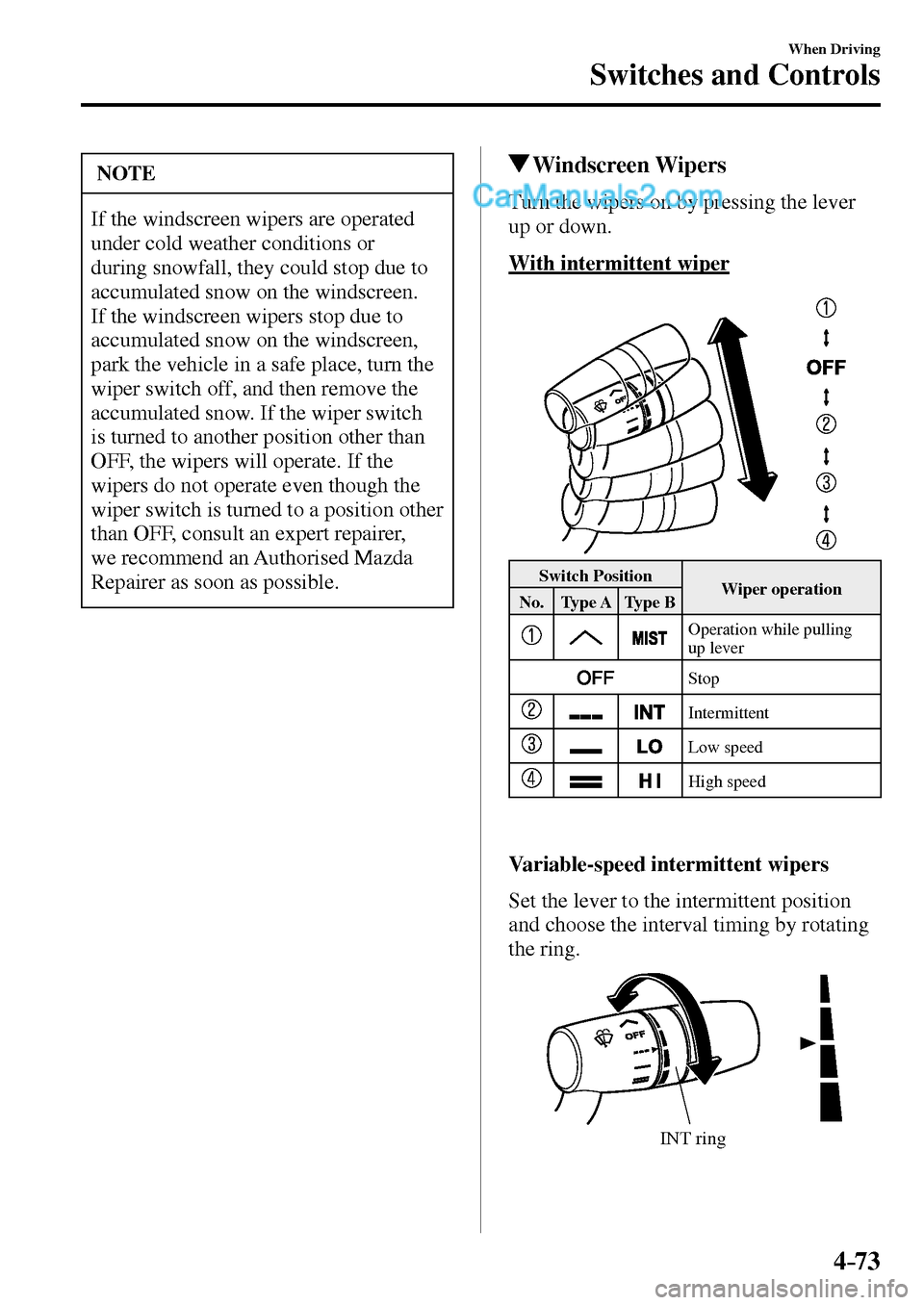

Windscreen Wipers
Turn the wipers on by pressing the lever
up or down.
With intermittent wiper
Switch Position
Wiper operation
N o . Ty p e A Ty p e B
Operation while pulling
up lever
Stop
Intermittent
Low speed
High speed
Variable-speed intermittent wipers
Set the lever to the intermittent position
and choose the interval timing by rotating
the ring.
INT ring
/:A(.'',A'FKVKQPKPFD

4–74
When Driving
Switches and Controls

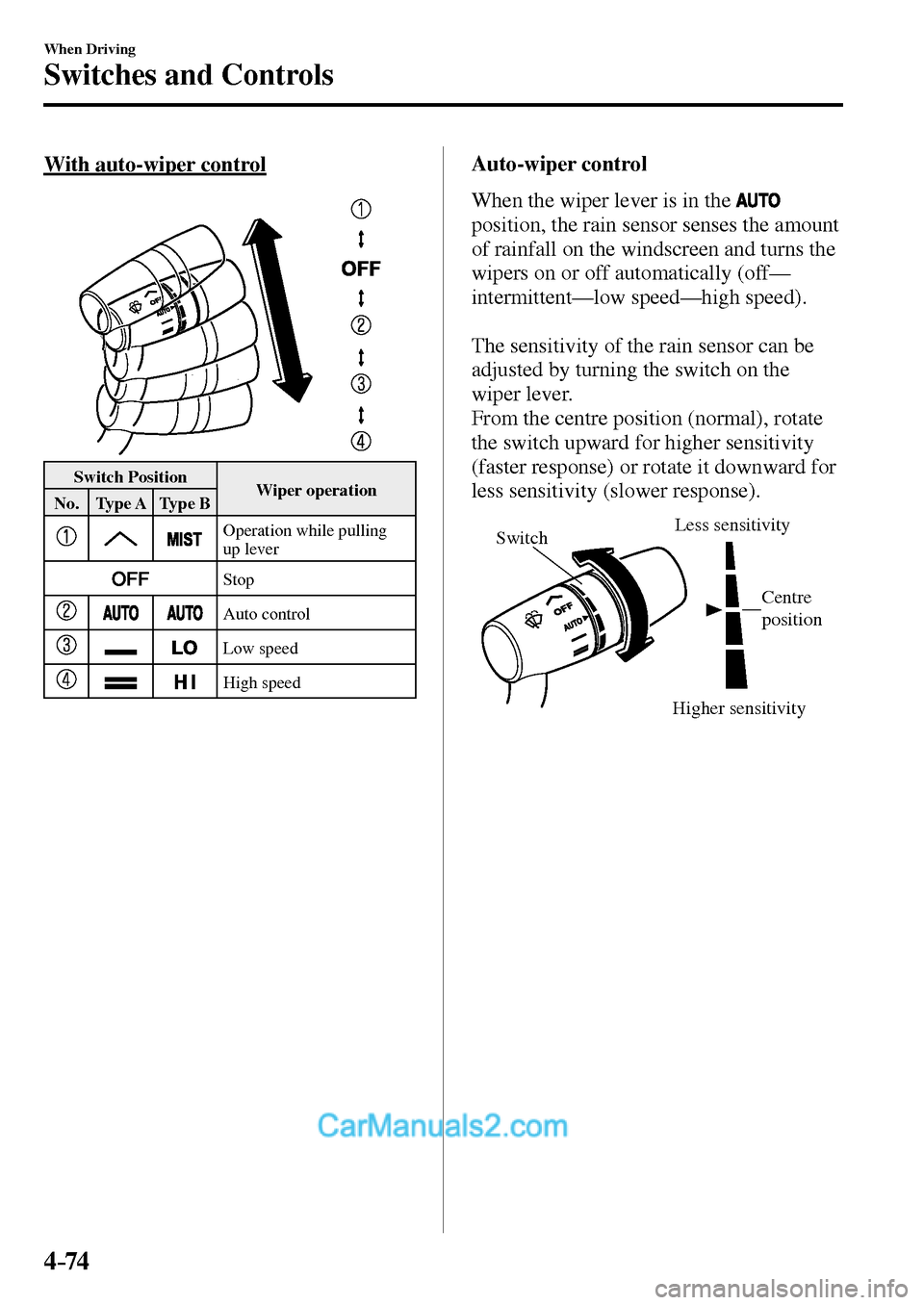

With auto-wiper control
Switch Position
Wiper operation
No. Type A Type B
Operation while pulling
up lever
Stop
Auto control
Low speed
High speed
Auto-wiper control
When the wiper lever is in the
position, the rain sensor senses the amount
of rainfall on the windscreen and turns the
wipers on or off automatically (off—
intermittent—low speed—high speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the centre position (normal), rotate
the switch upward for higher sensitivity
(faster response) or rotate it downward for
less sensitivity (slower response).
Higher sensitivity
Less sensitivitySwitch
Centre
position
/:A(.'',A'FKVKQPKPFD

4–75
When Driving
Switches and Controls

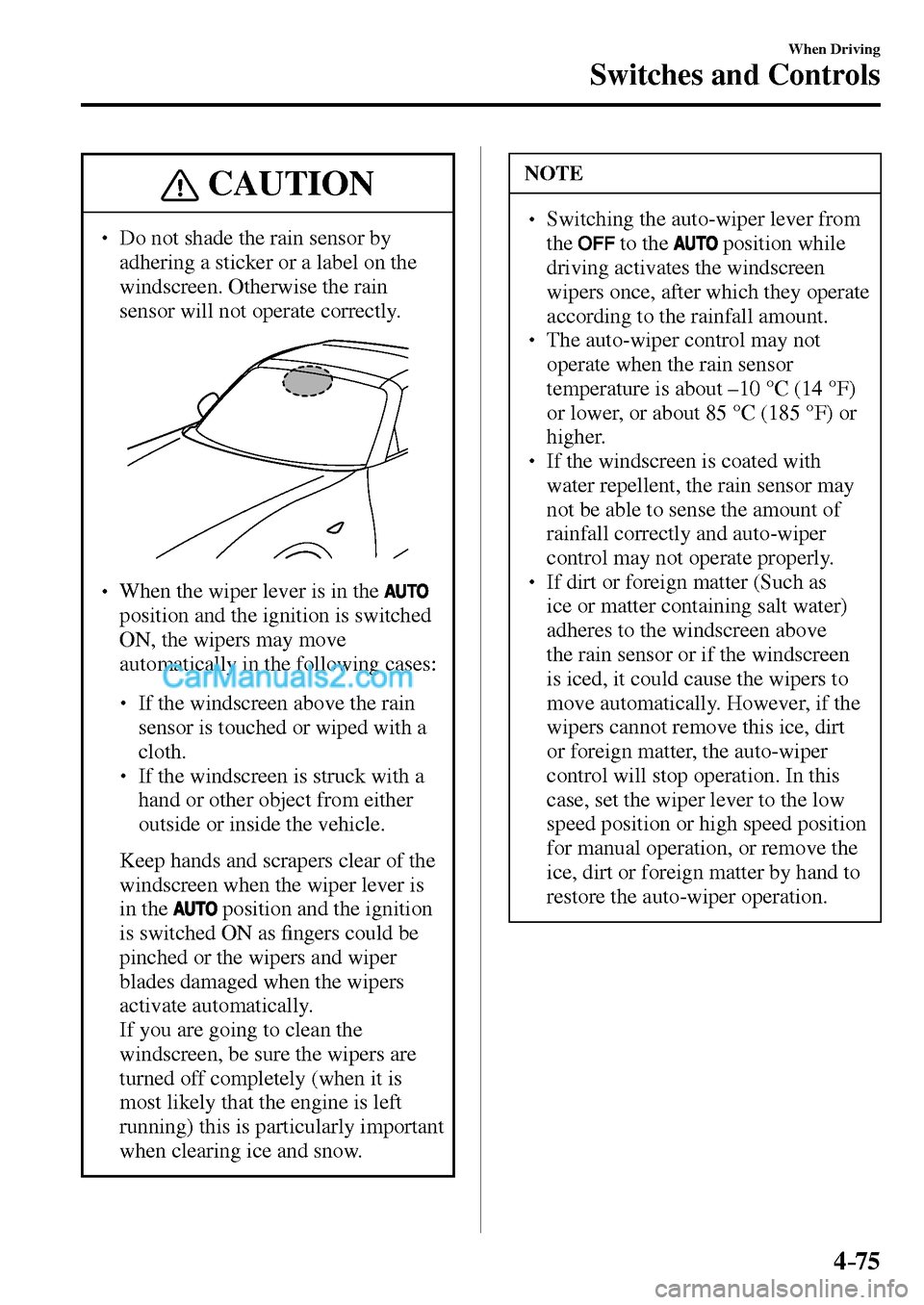

CAUTION
  Do not shade the rain sensor by
adhering a sticker or a label on the
windscreen. Otherwise the rain
sensor will not operate correctly.

 When the wiper lever is in the
position and the ignition is switched
ON, the wipers may move
automatically in the following cases:



 If the windscreen above the rain
sensor is touched or wiped with a
cloth.



 If the windscreen is struck with a
hand or other object from either
outside or inside the vehicle.
  Keep hands and scrapers clear of the
windscreen when the wiper lever is
in the
position and the ignition
is switched ON as ¿ ngers could be
pinched or the wipers and wiper
blades damaged when the wipers
activate automatically.
 If you are going to clean the
windscreen, be sure the wipers are
turned off completely (when it is
most likely that the engine is left
running) this is particularly important
when clearing ice and snow.
NOTE
  Switching the auto-wiper lever from
the
to the position while
driving activates the windscreen
wipers once, after which they operate
according to the rainfall amount.
  The auto-wiper control may not
operate when the rain sensor
temperature is about –10 °C (14 °F)
or lower, or about 85 °C (185 °F) or
higher.
  If the windscreen is coated with
water repellent, the rain sensor may
not be able to sense the amount of
rainfall correctly and auto-wiper
control may not operate properly.
  If dirt or foreign matter (Such as
ice or matter containing salt water)
adheres to the windscreen above
the rain sensor or if the windscreen
is iced, it could cause the wipers to
move automatically. However, if the
wipers cannot remove this ice, dirt
or foreign matter, the auto-wiper
control will stop operation. In this
case, set the wiper lever to the low
speed position or high speed position
for manual operation, or remove the
ice, dirt or foreign matter by hand to
restore the auto-wiper operation.
/:A(.'',A'FKVKQPKPFD

4–76
When Driving
Switches and Controls
NOTE
  If the auto-wiper lever is left in the
position, the wipers could
operate automatically from the effect
of strong light sources,
electromagnetic waves, or infrared
light because the rain sensor uses an
optical sensor. It is recommended
that the auto-wiper lever be switched
to the
position other than when
driving the vehicle under rainy
conditions.
  The auto-wiper control functions can
be turned off.
 Refer to Personalisation Features on
page 9-10 .

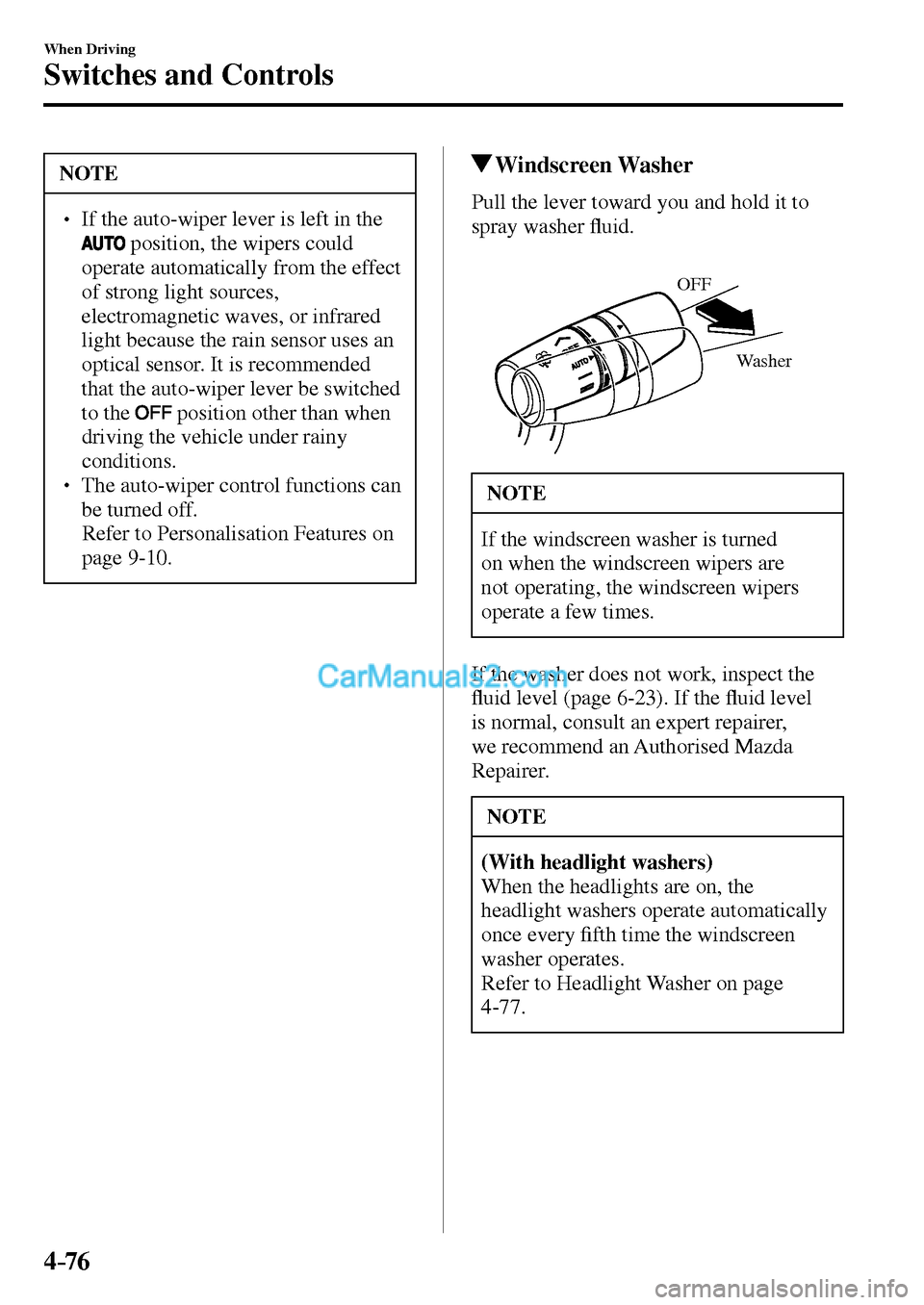

Windscreen Washer
Pull the lever toward you and hold it to
spray washer À uid.
Washer OFF
NOTE
If the windscreen washer is turned
on when the windscreen wipers are
not operating, the windscreen wipers
operate a few times.
If the washer does not work, inspect the
À uid level (page 6-23 ). If the À uid level
is normal, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
NOTE
(With headlight washers)
When the headlights are on, the
headlight washers operate automatically
once every ¿ fth time the windscreen
washer operates.
Refer to Headlight Washer on page
4-77 .
/:A(.'',A'FKVKQPKPFD

4–77
When Driving
Switches and Controls
*Some models.

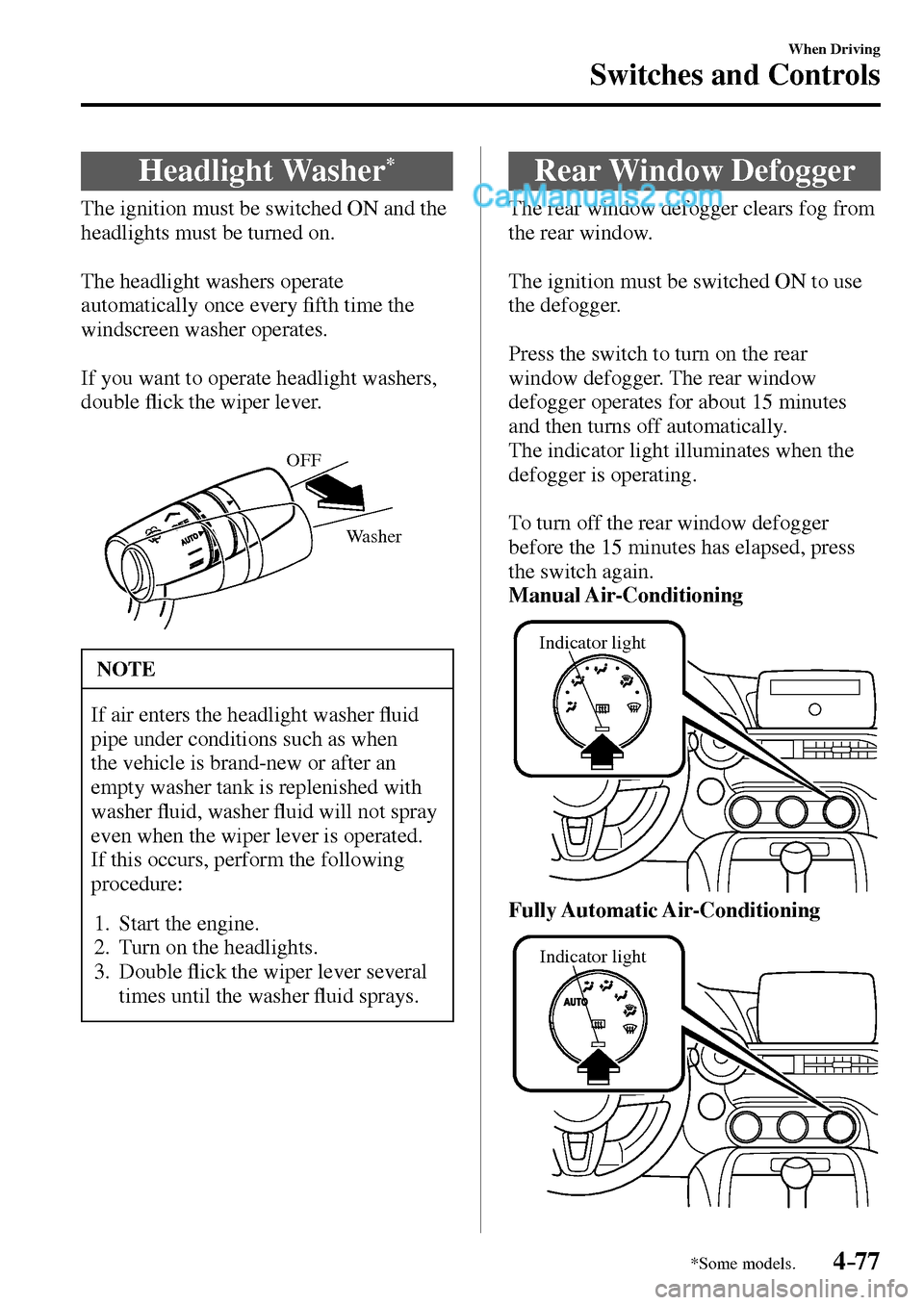

Headlight Washer *
The ignition must be switched ON and the
headlights must be turned on.
The headlight washers operate
automatically once every ¿ fth time the
windscreen washer operates.
If you want to operate headlight washers,
doubleÀ ick the wiper lever.
Washer OFF
NOTE
If air enters the headlight washer À uid
pipe under conditions such as when
the vehicle is brand-new or after an
empty washer tank is replenished with
washerÀ uid, washer À uid will not spray
even when the wiper lever is operated.
If this occurs, perform the following
procedure:
1. Start the engine.
2. Turn on the headlights.
3. Double À ick the wiper lever several
times until the washer À uid sprays.
Rear Window Defogger
The rear window defogger clears fog from
the rear window.
The ignition must be switched ON to use
the defogger.
Press the switch to turn on the rear
window defogger. The rear window
defogger operates for about 15 minutes
and then turns off automatically.
The indicator light illuminates when the
defogger is operating.
To turn off the rear window defogger
before the 15 minutes has elapsed, press
the switch again.
Manual Air-Conditioning
Indicator light
Fully Automatic Air-Conditioning
Indicator light
/:A(.'',A'FKVKQPKPFD

4–78
When Driving
Switches and Controls
*Some models.

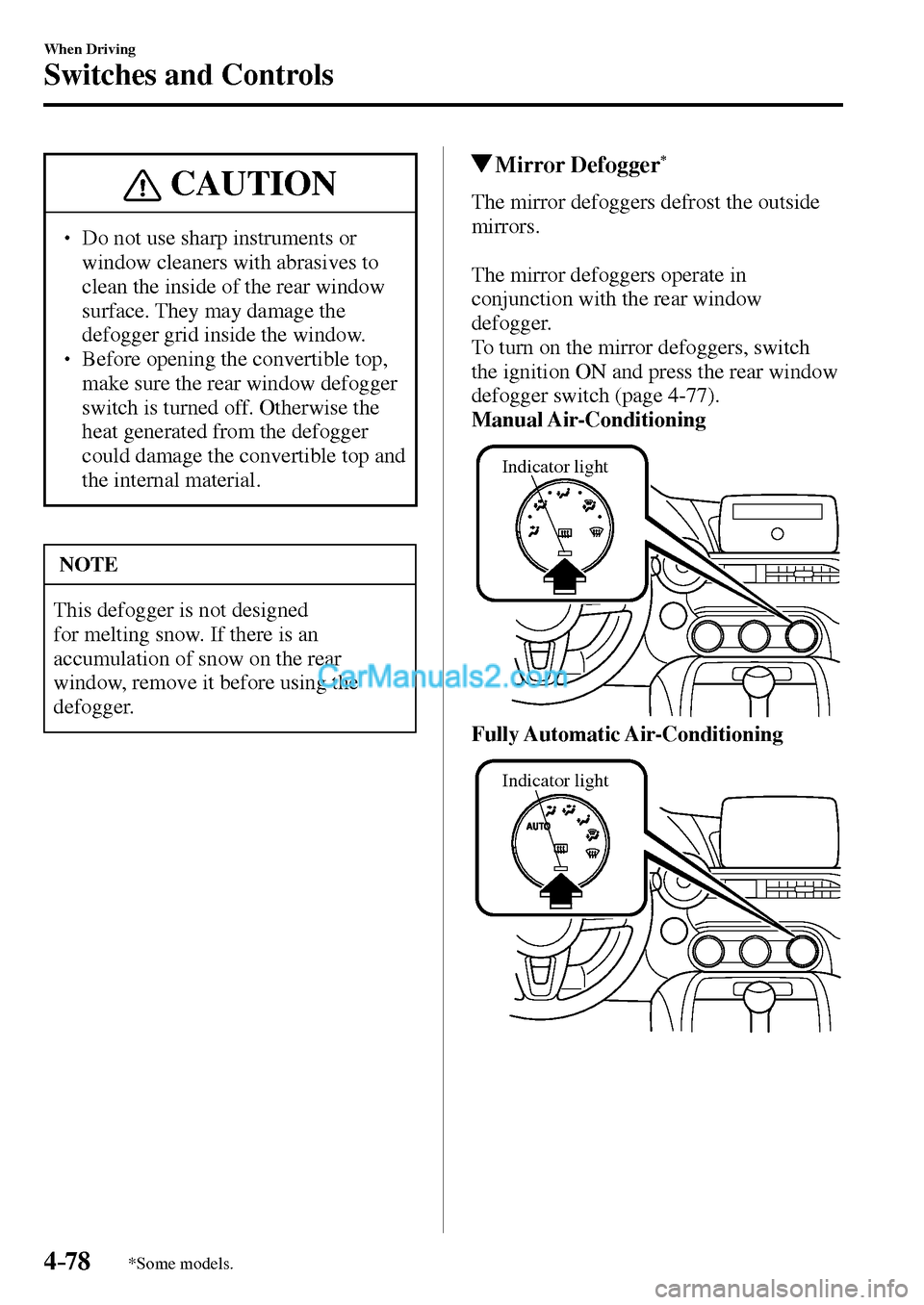

CAUTION
  Do not use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defogger grid inside the window.
  Before opening the convertible top,
make sure the rear window defogger
switch is turned off. Otherwise the
heat generated from the defogger
could damage the convertible top and
the internal material.
NOTE
This defogger is not designed
for melting snow. If there is an
accumulation of snow on the rear
window, remove it before using the
defogger.
Mirror Defogger *
The mirror defoggers defrost the outside
mirrors.
The mirror defoggers operate in
conjunction with the rear window
defogger.
To turn on the mirror defoggers, switch
the ignition ON and press the rear window
defogger switch (page 4-77 ).
Manual Air-Conditioning
Indicator light
Fully Automatic Air-Conditioning
Indicator light
/:A(.'',A'FKVKQPKPFD
