1–5
Pictorial Index
Interior Overview
Interior Equipment (View C)
Convertible Top (Soft Top)
Windblocker ........................................................................................................ page 5-140
Seat side box ....................................................................................................... page 5-138
Cup holders ......................................................................................................... page 5-135
Console box......................................................................................................... page 5-138
Interior light ........................................................................................................ page 5-132
Rearview mirror .................................................................................................... page 3-29
Sunvisor .............................................................................................................. page 5-132
Vanity mirror ....................................................................................................... page 5-132
Parking brake ........................................................................................................ page 4-62
Seats ........................................................................................................................page 2-4
CD player .............................................................................................................. page 5-13
SRS air bag............................................................................................................ page 2-24
Back trim storage boxes ...................................................................................... page 5-139
Seat belt ................................................................................................................... page 2-7
The equipment and installation position varies by vehicle
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 12 of 568
1–6
Pictorial Index
Interior Overview
Convertible Top (Retractable Fastback)
Windblocker ........................................................................................................ page 5-140
Seat side box ....................................................................................................... page 5-138
Cup holders ......................................................................................................... page 5-135
Console box......................................................................................................... page 5-138
Interior light ........................................................................................................ page 5-132
Rearview mirror .................................................................................................... page 3-29
Sunvisor .............................................................................................................. page 5-132
Vanity mirror ....................................................................................................... page 5-132
Parking brake ........................................................................................................ page 4-62
Seats ........................................................................................................................page 2-4
CD player .............................................................................................................. page 5-13
SRS air bag............................................................................................................ page 2-24
Back trim storage box ......................................................................................... page 5-139
Seat belt ................................................................................................................... page 2-7
The equipment and installation position varies by vehicle
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 13 of 568
1–7
Pictorial Index
Exterior Overview
Convertible Top (Soft Top)
Hood ...................................................................................................................... page 6-24
Windshield wiper blades ....................................................................................... page 6-33
Convertible Top (Soft Top) ................................................................................... page 3-34
Doors and keys ...................................................................................................... page 3-12
Fuel- ¿ ller lid ......................................................................................................... page 3-25
Wheels and Tires ................................................................................................... page 6-41
Exterior lights ........................................................................................................ page 6-45
Trunk Lid .............................................................................................................. page 3-19
Antenna ................................................................................................................. page 5-13
Outside mirror ....................................................................................................... page 3-28
The equipment and installation position varies by vehicle
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 14 of 568
1–8
Pictorial Index
Exterior Overview
Convertible Top (Retractable Fastback)
Hood ...................................................................................................................... page 6-24
Windshield wiper blades ....................................................................................... page 6-33
Convertible Top (Retractable Fastback) ................................................................ page 3-39
Doors and keys ...................................................................................................... page 3-12
Fuel- ¿ ller lid ......................................................................................................... page 3-25
Wheels and Tires ................................................................................................... page 6-41
Exterior lights ........................................................................................................ page 6-45
Trunk Lid .............................................................................................................. page 3-19
Antenna ................................................................................................................. page 5-13
Outside mirror ....................................................................................................... page 3-28
The equipment and installation position varies by vehicle
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 15 of 568
2–1*Some models.
2Essential Safety Equipment
Important information about safety equipment, including seats, seat belt
system, child-restraint systems and SRS air bags.
Seats ..................................................................................................... 2-2
Seat Precautions ............................................................................ 2-2
Seat ................................................................................................ 2-4
Head Restraints ............................................................................. 2-6
Seat Belt Systems ................................................................................ 2-7
Seat Belt Precautions .................................................................... 2-7
Seat Belt ...................................................................................... 2-10
Seat Belt Warning Systems ......................................................... 2-11
Seat Belt Pretensioner and Load Limiting Systems .................... 2-12
Seat Belt Extender ....................................................................... 2-13
Child Restraint ................................................................................. 2-15
Child-Restraint Precautions ........................................................ 2-15
Child-Restraint System Installation ............................................ 2-20
Installing Child-Restraint Systems ............................................. 2-21
SRS Air Bags .................................................................................... 2-24
Supplemental Restraint System (SRS) Precautions .................... 2-24
Supplemental Restraint System Components ............................. 2-29
How the SRS Air Bags Work ...................................................... 2-31
SRS Air Bag Deployment Criteria .............................................. 2-34
Limitations to SRS Air Bag ........................................................ 2-35
Passenger Occupant Classi ¿ cation System
*................................ 2-37
Constant Monitoring ................................................................... 2-42
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 16 of 568
2–2
Essential Safety Equipment
Seats
Seat Precautions
WARNING
Make sure the adjustable components of a seat are locked in place:
Adjustable seats and seatbacks that are not securely locked are dangerous. In a
sudden stop or collision, the seat or seatback could move, causing injury. Make sure the
adjustable components of the seat are locked in place by attempting to slide the seat
forward and backward and rocking the seatback.
Never allow children to adjust a seat:
Allowing children to adjust a seat is dangerous as it could result in serious injury if a
child's hands or feet become caught in the seat.
Do not drive with the seatback unlocked:
All of the seatbacks play an important role in your protection in a vehicle. Leaving the
seatback unlocked is dangerous as it can allow passengers to be ejected or thrown
around and baggage to strike occupants in a sudden stop or collision, resulting in severe
injury. After adjusting the seatback at any time, even when there are no other passengers,
rock the seatback to make sure it is locked in place.
Adjust the driver's seat only when the vehicle is stopped:
Adjusting the driver's seat while the vehicle is moving is dangerous. The driver could lose
control of the vehicle and have an accident.
Do not modify or replace the seats:
Modifying or replacing the seats such as replacing the upholstery or loosening any
bolts is dangerous. The seats contain air bag components essential to the supplemental
restraint system. Such modifi cations could damage the supplemental restraint system
and result in serious injury. Consult an Authorized Mazda Dealer if there is any need to
remove or reinstall the seats.
Do not drive with damaged seats:
Driving with damaged seats, such as seat cushions torn or damaged down to the
urethane, is dangerous. A collision, even one not strong enough to infl ate the air bags,
could damage the seats which contain essential air bag components. If there was a
subsequent collision, an air bag may not deploy which could lead to injuries. Always have
an Authorized Mazda Dealer inspect the seats, seat belt pretensioners and air bags after
a collision.
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 17 of 568
2–3
Essential Safety Equipment
Seats

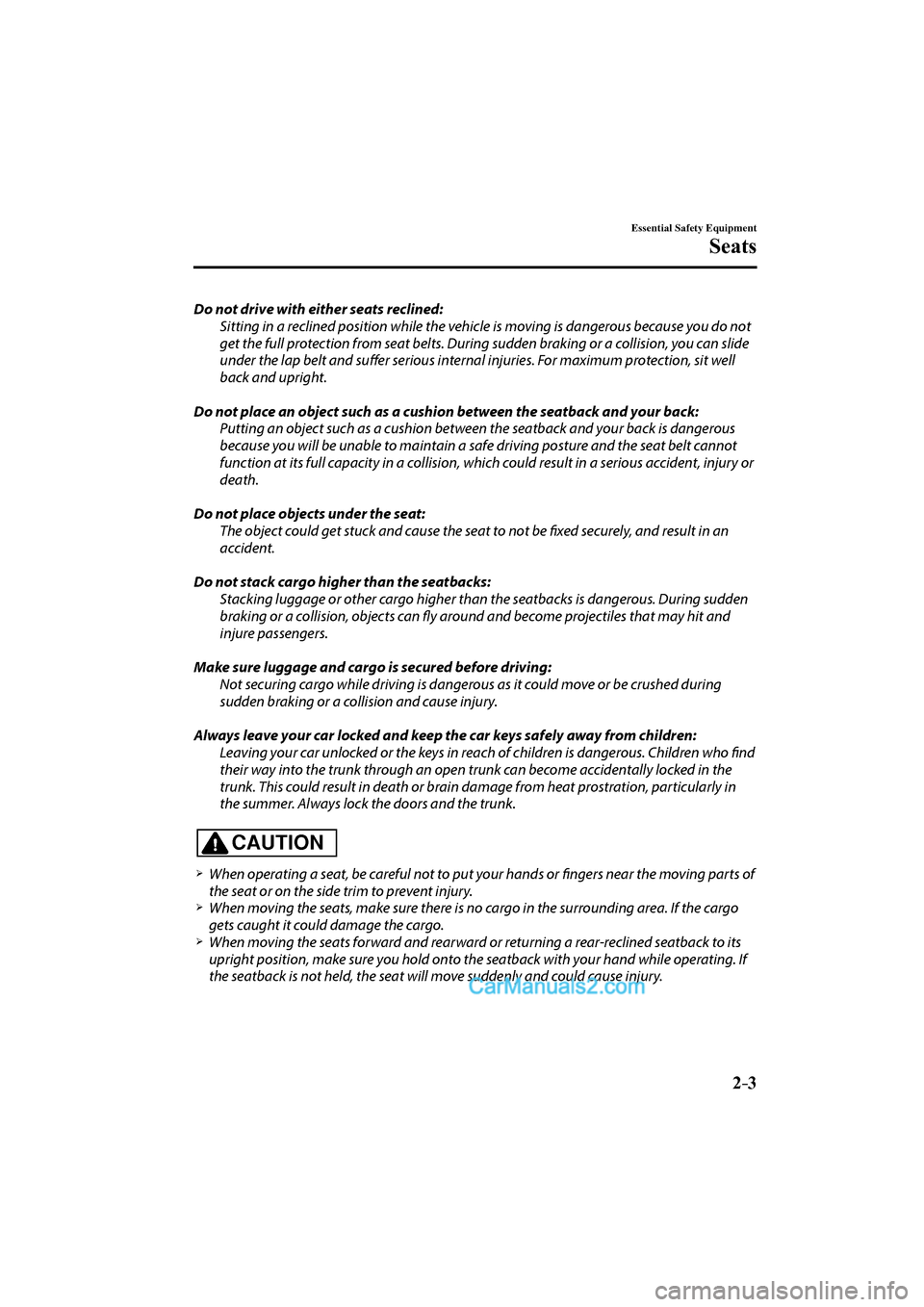

Do not drive with either seats reclined:
Sitting in a reclined position while the vehicle is moving is dangerous because you do not
get the full protection from seat belts. During sudden braking or a collision, you can slide
under the lap belt and suff er serious internal injuries. For maximum protection, sit well
back and upright.
Do not place an object such as a cushion between the seatback and your back:
Putting an object such as a cushion between the seatback and your back is dangerous
because you will be unable to maintain a safe driving posture and the seat belt cannot
function at its full capacity in a collision, which could result in a serious accident, injury or
death.
Do not place objects under the seat:
The object could get stuck and cause the seat to not be fi xed securely, and result in an
accident.
Do not stack cargo higher than the seatbacks:
Stacking luggage or other cargo higher than the seatbacks is dangerous. During sudden
braking or a collision, objects can fl y around and become projectiles that may hit and
injure passengers.
Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as it could move or be crushed during
sudden braking or a collision and cause injury.
Always leave your car locked and keep the car keys safely away from children:
Leaving your car unlocked or the keys in reach of children is dangerous. Children who fi nd
their way into the trunk through an open trunk can become accidentally locked in the
trunk. This could result in death or brain damage from heat prostration, particularly in
the summer. Always lock the doors and the trunk.
CAUTION
¾ When operating a seat, be careful not to put your hands or fi ngers near the moving parts of
the seat or on the side trim to prevent injury.
¾ When moving the seats, make sure there is no cargo in the surrounding area. If the cargo
gets caught it could damage the cargo.
¾ When moving the seats forward and rearward or returning a rear-reclined seatback to its
upright position, make sure you hold onto the seatback with your hand while operating. If
the seatback is not held, the seat will move suddenly and could cause injury.
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 18 of 568
2–4
Essential Safety Equipment
Seats
Seat
Seat Operation
Seat Slide
To move a seat forward or backward, raise the lever and slide the seat to the desired position
and release the lever.
Make sure the lever returns to its original position and the seat is locked in place by
attempting to push it forward and backward.
Height Adjustment for Front Edge of Seat Bottom (Driver's Seat)
To adjust the height for front edge of the seat bottom, rotate the dial to the desired position.
Seat Recline
To change the seatback angle, lean forward slightly while raising the lever. Then lean back
to the desired position and release the lever.
Make sure the lever returns to its original position and the seatback is locked in place by
attempting to push it forward and backward.
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 19 of 568
2–5
Essential Safety Equipment
Seats
*Some models.
Seat Warmer *
The seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch while the
ignition is switched ON to operate the seat
warmer. The indicator lights turn on to
indicate that the seat warmer is operating.
The mode changes as follows each time
the seat warmer switch is pressed.
Low Mid High OFF
WARNING
Be careful when using the seat warmer:
The heat from the seat warmer may be
too hot for some people, as indicated
as follows, and could cause a low-
temperature burn.
¾ Infants, small children, elderly
people, and physically challenged
people
¾ People with delicate skin
¾ People who are excessively fatigued
¾ People who are intoxicated
¾ People who have taken sleep-
inducing medicine such as sleeping
pills or cold medicine
Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket or
cushion on the seat:
The seat may be heated excessively
and cause a low-temperature burn.
Do not use the seat warmer even when
taking a short nap in the vehicle:
The seat may be heated excessively
and cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it:
This could cause the seat to become
excessively heated and result in injury
from a minor burn.
CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
N O T E
y If the ignition is switched off while the
seat warmer is operating (High, Mid or
Low) and then switched ON again, the
seat warmer will automatically operate
at the temperature set before switching
off the ignition.
y Use the seat warmer when the engine
is running. Leaving the seat warmer
on for long periods with the engine not
running could cause the battery power
to be depleted.
y The temperature of the seat warmer
cannot be adjusted beyond High, Mid
and Low because the seat warmer is
controlled by a thermostat.
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 20 of 568
2–6
Essential Safety Equipment
Seats
Head Restraints
Non-Adjustable Head Restraints
Your vehicle is equipped with non-adjustable head restraints on the driver's and passenger's
seatbacks. The non-adjustable head restraints consist of a trimmed foam covering over the
upper structure of the seatbacks and are intended to help protect you and the passenger from
neck injury. Adjust the seatbacks to their upright, on-road positions so that the head restraint
is positioned as close as possible to the back of your head.
WARNING
Make sure the seatbacks are properly adjusted to their upright, on-road positions
before the vehicle is driven:
Driving with the seatbacks not adjusted properly is dangerous. With no support behind
your head, your neck could be seriously injured in a collision.
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
