window MAZDA MODEL MX-5 MIATA 2002 Owner's Manual

5-1
Form No. 8Q42-EA-01F
5Driving Your Mazda
Explanation of instruments and controls.
Starting and Driving ................................................................... 5- 2
Ignition Switch ........................................................................ 5- 2
Starting the Engine .................................................................. 5- 3
Brake System ........................................................................... 5- 4
Manual Transmission Operation ............................................. 5- 8
Automatic Transmission Controls ........................................... 5- 9
Power Steering ......................................................................... 5-13
Cruise Control ......................................................................... 5-13
Instrument Cluster and Indicators ............................................ 5-17
Meters and Gauges .................................................................. 5-17
Warning/Indicator Lights and Beeps ........................................ 5-22
Warning/Indicator Lights ......................................................... 5-22
Beeps ....................................................................................... 5-28
Switches and Controls ................................................................. 5-29
Lighting Control ...................................................................... 5-29
Turn and Lane-Change Signals ............................................... 5-30
Fog Lights ................................................................................ 5-30
Daytime Running Lights ......................................................... 5-31
Windshield Wipers and Washer ............................................... 5-31
Rear Window Defroster ........................................................... 5-33
Horn ......................................................................................... 5-33
Hazard Warning Flasher .......................................................... 5-34
J07L(02MY).book Page 1 Monday, June 11, 2001 4:52 PM

5-33
Driving Your Mazda
Switches and Controls
Form No. 8Q42-EA-01F
The rear defroster clears frost, fog, and
thin ice from the rear window.
The ignition switch must be in the ON
position.
Push the switch to turn on the rear
window defroster; the indicator light will
come on.
Push the switch again to turn it off.To sound the horn, press around the
mark of the steering wheel.
Rear Window Defroster
Don
’t use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.
NOTE
This defroster is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, brush it off before using the
defroster.
CAUTION
Horn
J07L(02MY).book Page 33 Monday, June 11, 2001 4:52 PM

6-2

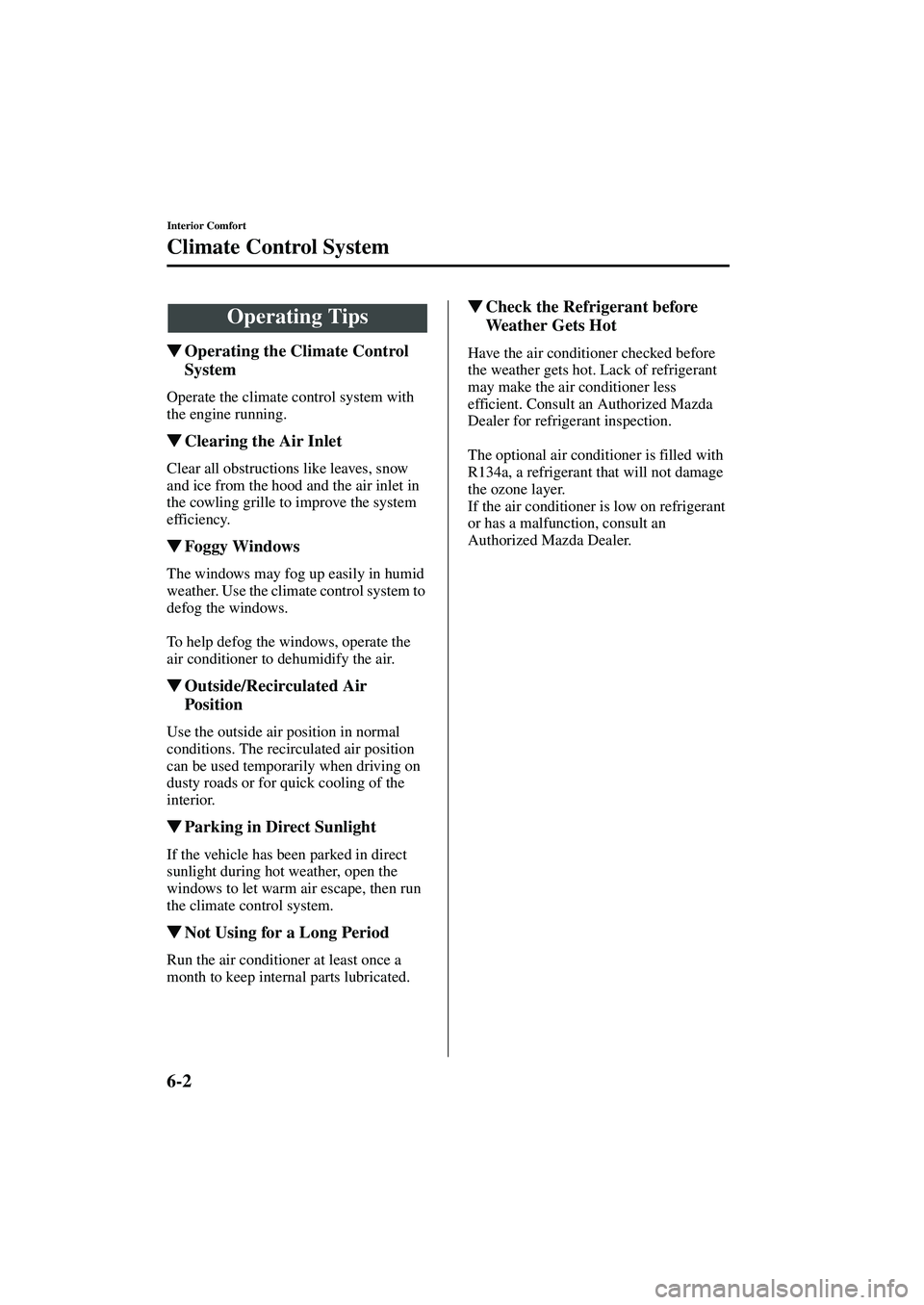

Interior Comfort
Form No. 8Q42-EA-01F
Climate Control System

Operating the Climate Control
System
Operate the climate control system with
the engine running.

Clearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowling grille to improve the system
efficiency.

Foggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.

Outside/Recirculated Air
Position
Use the outside air position in normal
conditions. The recirculated air position
can be used temporarily when driving on
dusty roads or for quick cooling of the
interior.

Parking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.

Not Using for a Long Period
Run the air conditioner at least once a
month to keep internal parts lubricated.

Check the Refrigerant before
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The optional air conditioner is filled with
R134a, a refrigerant that will not damage
the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
Operating Tips
J07L(02MY).book Page 2 Monday, June 11, 2001 4:52 PM

6-5
Interior Comfort
Climate Control System
Form No. 8Q42-EA-01F

Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold. Fan control dial
This dial allows variable fan speeds.
0
—Fan off
1 —Low speed
2 —Medium low speed
3 —Medium high speed
4 —High speed
Manual Type
A/C switch Fan control dial
Rear window defroster switch
Temperature control dial Air intake selector Mode selector dial(page 5-33)
Hot
Cold
J07L(02MY).book Page 5 Monday, June 11, 2001 4:52 PM

6-9
Interior Comfort
Climate Control System
Form No. 8Q42-EA-01F
3. Set the temperature control dial to the desired position.
4. Set the fan control dial to the desired speed.
Dehumidifying (With Air
Conditioner)
Operate the air conditioner in cool or cold
weather to help defog the windshield and
side windows.
1. Set the mode selector dial to the
desired position.
2. Set the air intake selector to the position.
3. Set the temperature control dial to the desired position.
4. Set the fan control dial to the desired speed.
5. Turn on the air conditioner.
Foggy Windshield:
Using the position with the
temperature control set to the cold
position will cause the outside of the
glass to fog up. Your vision will be
hampered, which could lead to a
serious accident. Set the temperature
control to the hot or warm position
when using the position.
NOTE
• For maximum defrosting, set the
temperature control dial to the
extreme hot position and the fan
control dial to position 4.
• If warm air is desired at the floor,
set the mode selector dial to the
position.
WARNING
1
23
45
J07L(02MY).book Page 9 Monday, June 11, 2001 4:52 PM

8-8
Maintenance and Care
Scheduled Maintenance
Form No. 8Q42-EA-01F
I: Inspect: Inspect and clean, repair, adjust, or replace if necessary.
(Oil-permeated air filter cannot be cleaned using the air-blow method.)
R : Replace
T: Tighten
L : Lubricate
*1: Also inspect and adjust the power steering and air conditioner drive belts, if installed.
*2: Replacement of the timing belt is required at every 100,000 km {60,000 miles}. Failure to replace the timing belt may result in damage to the engine.
*3: If the vehicle is operated under any of the following conditions, change the engine oil and oil filter more often than recommended intervals.
a) Driving in dusty conditions.
b) Extended periods of idling or low speed operation.
c) Driving for long period in cold temperatures or driving regularly at short distance only.
*4: If the vehicle is operated in very dusty or sandy areas, inspect and if necessary, clean or replace the air filter more often than the recommended intervals.
*5: If the brakes are used extensively (for example, continuous hard driving or mountain driving)
or if the vehicle is operated in extremely humid climates, change the brake fluid annually.
*6: This is a full function check of electrical systems such as lights, wiper and washer systems (including wiper blades), and power windows.
Maintenance
Interval
Maintenance
Item Number of months or kilometers (miles), whichever comes first
Months 6 121824 30 36 42485460667278849096
× 1000 Km 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
(× 1000 Miles) (6) (12) (18) (24) (30) (36) (42) (48) (54) (60) (66) (72) (78) (84) (90) (96)
Engine valve clearance Inspect every 100,000 km (60,000 miles) or 60 months
Drive belts
*1IIII I I IIIIIIIIII
Engine timing belt*2Replace every 100,000 km (60,000 miles)
Engine oil*3RRRR R R RRRRRRRRRR
Engine oil filter*3RRRR R R RRRRRRRRRR
Cooling system II I IIIII
Engine coolant Replace every 2 years
Idle speed II I IIIII
Air filter
*4IR I RIRIR
Fuel filter R RRR
Fuel lines and hoses II I IIIII
Spark plugs R R RRR
Evaporative system II I IIIII
E.G.R. system II I IIIII
All electrical system
*6 II I IIIII
Head light alignment I I III
Brake pedals and clutch pedals IIII I I IIIIIIIIII
Brake lines, hoses and
connections II I IIIII
Clutch fluid IIII I I IIIIIIIIII
Brake fluid
*5I I IR I I IRI I IRI I IR
Parking brake IIII I I IIIIIIIIII
Power brake unit and hoses II I IIIII
Disc brakes IIII I I IIIIIIIIII
J07L(02MY).book Page 8 Monday, June 11, 2001 4:52 PM

8-24
Maintenance and Care
Owner Maintenance
Form No. 8Q42-EA-01F
2. Lift off the air filter cover and remove the filter.
3. Wipe inside the air cleaner housing with a damp cloth.
4. Replace the filter.
5. Install in the reverse order of removal.
Replace the filter according to Scheduled
Maintenance (page 8-3). Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
Air filter cover
Air filter
Wiper Blades
Hot waxes applied by automatic car
washes have been known to affect the
cleanability of windows.
To prevent damage to the wiper blades,
don’t use gasoline, kerosene, paint
thinner, or other solvents on or near
them.
CAUTION
CAUTION
J07L(02MY).book Page 24 Monday, June 11, 2001 4:52 PM

8-40
Maintenance and Care
Owner Maintenance
Form No. 8Q42-EA-01F
Fuse panel (Driver’s side)
DESCRIPTION FUSE
RATING PROTECTED
COMPONENT
1 ADD FAN 20A Add fan motor,
Magnet clutch
2 HEAD.LH 15A Headlights (LH)
3 HEAD.RH 15A Headlights (RH)
4 —— —
5ST.SIG 7.5A Instrument
cluster, Cruise
control
6 —— —
7 CIGAR 20A Cigar lighter
8 RADIO 10A Audio
9 F.FOG 15A Fog lights
10 TAIL 15A Taillights, Front
parking lights,
Side-marker
lights
11 ENGINE 15A Engine control
system
12 METER 15A Instrument
clusterDESCRIPTIONFUSE
RATING PROTECTED
COMPONENT
13 TURN 7.5A Turn signal
lights
14 A/B 10A Supplemental
restraint system,
Antilock brake
system
15 WIPER 20A Windshield
wipers and
washer
16 P.WIND 30A Power windows
17 A/C 7.5A Air conditioner
18 HAZARD 10A Turn signal
lights
19 D.LOCK 10A Power door lock
20 AUDIO 20A Audio amp
21 DEFOG 15A Rear defroster
22 ROOM 10A Interior light,
Auto antenna,
Warning buzzers
J07L(02MY).book Page 40 Monday, June 11, 2001 4:52 PM

8-46
Maintenance and Care
Appearance Care
Form No. 8Q42-EA-01F

Aluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.

Convertible Top Maintenance
The convertible top is made of a special
high-grade material, but if it
’s not taken
good care of, hardening, staining, and loss
of luster will result. Maintain it under
these guidelines.
Wa s h i n g
Don ’t wait until the top gets really dirty
before cleaning it. Dirt that ’s there too
long will cause deterioration.
1. Gently clean the top with a synthetic neutral detergent, lots of water, and a
soft brush.
2. Rinse it thoroughly with clean water to remove all the soap.
3. Wipe it as dry as you can before the water dries on it.
4. Then allow it to dry completely before lowering it.
NOTE
•Don
’t use a wire brush or any
abrasive cleaner, polishing
compound, or solvent on aluminum
wheels. They may damage the
coating.
• Only use a mild soap or neutral
detergent and always use a sponge
or soft cloth to clean the wheels.
Rinse thoroughly with lukewarm or
cold water. Also, be sure to clean
the wheels after driving on dusty or
salted roads. This helps prevent
corrosion.
• Avoid washing your vehicle in an
automatic car wash that uses high-
speed or hard brushes.
• If your aluminum wheels lose
luster, wax the wheels.
•Automatic and high-pressure car
washes are harmful to a convertible
top. Avoid them.
• Don
’t spray water directly on the
area where the window glass and
the top meet. This would probably
cause water to enter the cabin.
CAUTION
J07L(02MY).book Page 46 Monday, June 11, 2001 4:52 PM

8-49
Maintenance and Care
Appearance Care
Form No. 8Q42-EA-01F

Cleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them
with glass cleaner. Follow the directions
on the container.
Don ’t scrape or scratch the inside of
the rear window. You may damage the
rear window defroster grid.
CAUTION
J07L(02MY).book Page 49 Monday, June 11, 2001 4:52 PM
