Strong signal noise
This occurs very close to a transmitter
tower. The broadcast signals are
extremely strong, so the result is noise and
sound breakup at the radio receiver.
Station drift noise
When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.
Operating Tips for Cassette Tape
Player
Cleaning the cassette tape player
The tape head, capstans, and pinch rollers
will gather oxide residue from cassette
tapes. This can cause weak or wavering
sounds and damage to the cassette tapes
and player. Use a good quality head-
cleaning tape or a liquid cleaner cassette
tape to remove it.
Should the unit not operate normally,
consult an Authorized Mazda Dealer.
Never attempt to repair it or insert a
screwdriver or anything else.
Handling the cassette tape player
The following precautions should be
observed.
• Do not spill any liquid on the audio
system.
• Do not insert any objects, other than
cassette tape, into the slot.
Station 1
88.1 MHz Station 2
88.3 MHz
J07S_8S15-EA-03G_Edition2.book Page 11 Thursday, August 21, 2003 10:04 AM

6-12
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
•If the cassette tape is loose, it may
produce poor sound or performance
during playback. Use a pencil or
something similar to remove any slack.
• Only cassette tapes that play no longer
than 90 minutes should be used.
Cassette tape exceeding 90 minutes are
thin and may easily break.
• Do not leave a cassette tape in the tape
player slot when not in use. Remove it
completely to permit the slot door to
close and to protect the mechanism
from dust.
• Store cassette tapes away from extreme
heat, magnetic fields, and direct
sunlight. Protect the exposed cassette
tape from dirt and damage. Store
cassette tapes in their original cases or
other protective cases.

Operating Tips for Mini Disc
(MD) Player
The following precautions should be
observed.
• Do not spill any liquid on the audio
system.
• Do not insert any objects, other than
MDs, into the slot.
• The MD player has been designed to
play MDs bearing the identification
logo as shown. No other MDs can be
played.
J07S_8S15-EA-03G_Edition2.book Page 12 Thursday, August 21, 2003 10:04 AM

6-13
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
•The MD player can also play MDLPs
that have been recorded in MDLP
mode. (MDLPs bearing the
identification logo as shown below).
• When inserting the MD, make sure the
MD label is facing up, and the MD is
oriented to the insertion slot in the
direction of the arrow. If not inserted
correctly, the MD will be ejected, or
may remain stuck in the MD deck.
• Do not touch the internal part of the
MD. If the MD shutter is slid open for
no reason, it may be broken.
• Store MDs in their cases and away
from direct sunlight.

Operating Tips for CD Player/In-
Dash CD Changer
Condensation phenomenon
Immediately after turning on the heater
when the vehicle is cold, the CD or optical
components (prism and lens) in the CD
player/changer may become clouded with
condensation. At this time, the CD will
eject immediately when placed in the unit.
A clouded CD can be corrected simply by
wiping it with a soft cloth. Clouded
optical components will clear naturally in
about an hour. Wait for normal operation
to return before attempting to use the unit.
Handling the CD player/In-dash CD
changer
The following precautions should be
observed.
• Do not spill any liquid on the audio
system.
• Do not insert any objects, other than
CDs, into the slot.
J07S_8S15-EA-03G_Edition2.book Page 13 Thursday, August 21, 2003 10:04 AM

6-14
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G

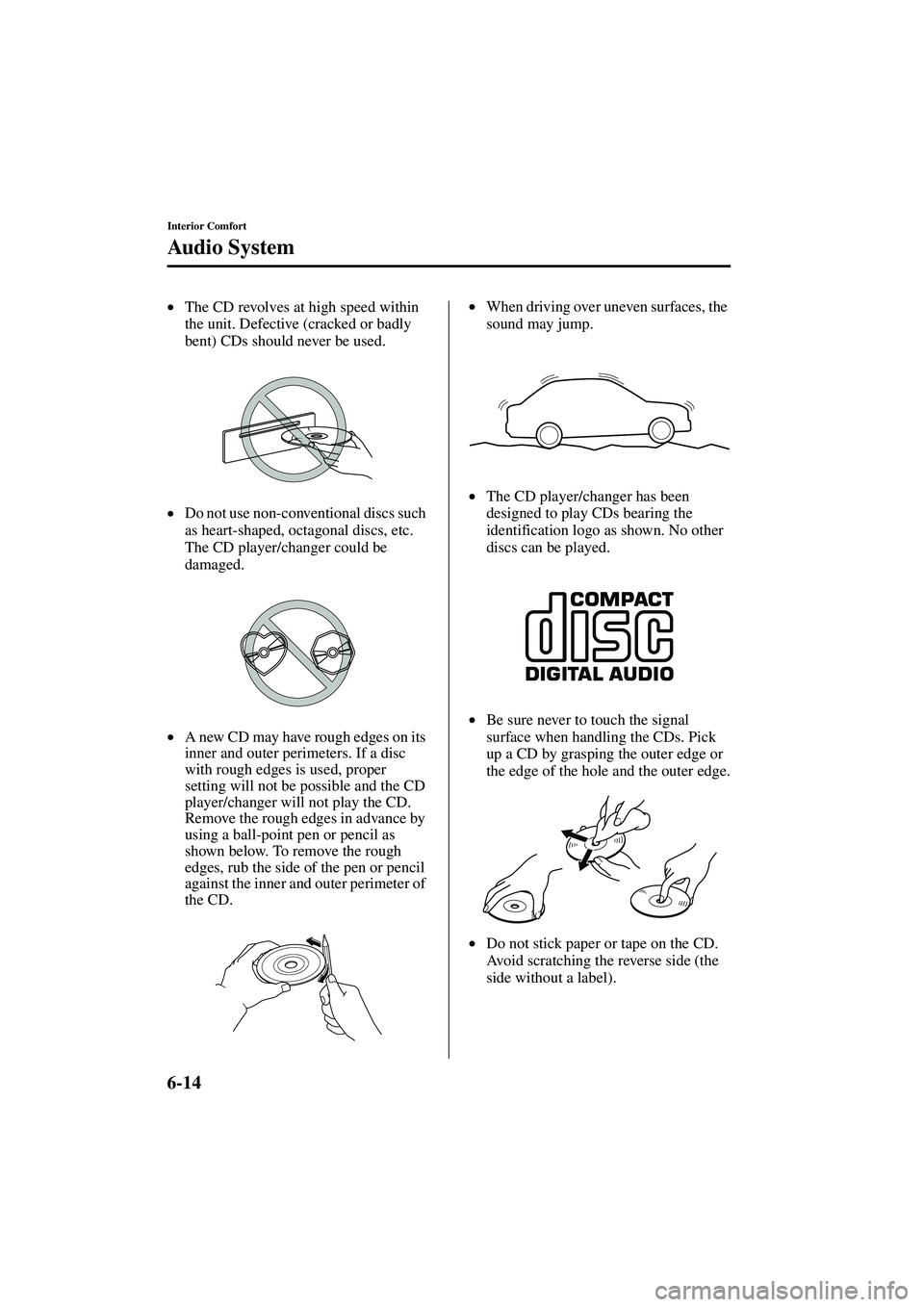

•The CD revolves at high speed within
the unit. Defective (cracked or badly
bent) CDs should never be used.
• Do not use non-conventional discs such
as heart-shaped, octagonal discs, etc.
The CD player/changer could be
damaged.
• A new CD may have rough edges on its
inner and outer perimeters. If a disc
with rough edges is used, proper
setting will not be possible and the CD
player/changer will not play the CD.
Remove the rough edges in advance by
using a ball-point pen or pencil as
shown below. To remove the rough
edges, rub the side of the pen or pencil
against the inner and outer perimeter of
the CD. •
When driving over uneven surfaces, the
sound may jump.
• The CD player/changer has been
designed to play CDs bearing the
identification logo as shown. No other
discs can be played.
• Be sure never to touch the signal
surface when handling the CDs. Pick
up a CD by grasping the outer edge or
the edge of the hole and the outer edge.
• Do not stick paper or tape on the CD.
Avoid scratching the reverse side (the
side without a label).
J07S_8S15-EA-03G_Edition2.book Page 14 Thursday, August 21, 2003 10:04 AM

6-15
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
•Dust, finger smudges, and dirt can
decrease the amount of light reflected
from the signal surface, thus affecting
sound quality. If the CD should
become soiled, gently wipe it with a
soft cloth from the center of the CD to
the edge.
• Do not use record sprays, antistatic
agents, or household spray cleaners.
Volatile chemicals such as benzine and
thinner can also damage the surface of
the CD and must not be used. Anything
that can damage, warp, or fog plastic
should never be used to clean CDs.
• CDs, like traditional audio records, are
made of plastic. To avoid warping,
keep the CDs in their cases and do not
store them where they will be exposed
to direct sunlight.
• The CD player/changer ejects the CD if
the CD is inserted upside down. Also
dirty and/or defective CDs may be
ejected.
• 8 cm (3 in) CDs and CD accessories
(e.g. 8 cm disc adapter) cannot be used
in the CD player/changer.
• Do not insert cleaning discs in the CD
player/changer.
• Do not insert any disc with a peel-off
or seal on it.
J07S_8S15-EA-03G_Edition2.book Page 15 Thursday, August 21, 2003 10:04 AM

6-17
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
Power/Volume/Sound Controls ............................................................................................. 6-18
Clock ..................................................................................................................................... 6-22
Operating the Radio ........................................................................................................... .... 6-24
Operating the Cassette Tape Player* ...................................................................................... 6-26
Operating the Mini Disc (MD) Player* ................................................................................. 6-28
Operating the Compact Disc (CD) Player* ........................................................................... 6-30
Operating the In-Dash CD Changer* .................................................................................... 6-32
Error Indications ............................................................................................................. ....... 6-36
Audio Set (Type A)*
CD Player* In-dash CD Changer*
Cassette Tape Player* Mini Disc (MD) Player* Illustration is of a representative audio unit.
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 17 Thursday, August 21, 2003 10:04 AM

6-26
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G

Operating the Cassette Tape Player*
Cassette tape insert
Insert the cassette tape into the slot, open
edge to the right and cassette tape will
begin play and "TAPE" will be displayed.
At the end of the cassette tape, the unit
automatically reverses cassette tape play.
When is lit, the cassette tape’
s top
side is playing. When is lit, the
bottom side is on. PlayingPress the cassette tape play button
( ) to start playing when a
cassette tape is in the unit. If there isn
’t a
cassette tape in the unit when the cassette
tape play button ( ) is pressed,
"No TAPE" will flash on and off in
sequence.
Dolby noise reduction
When using a tape with Dolby NR*, push
the Dolby NR button ( ). The
symbol will be displayed. To play a tape
without Dolby NR, push the button once
again.
* Noise reduction system manufactured
under license from Dolby Laboratories
Licensing Corporation.
Dolby and the double-D symbol are
trademarks of Dolby Laboratories
Licensing Corporation.
Display
APC button:
(next program) (one being
played) Cassette tape play button
Cassette tape eject button Fast-forward button
Program button
Dolby NR button Rewind
button
Repeat button
NOTE
When a metal tape is inserted, the
player will automatically compensate
for it.
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 26 Thursday, August 21, 2003 10:04 AM

6-28
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G

Operating the Mini Disc (MD) Player*
Inserting the MD
Insert the MD, label-side up with the
arrow pointed to the slot. The auto-
loading mechanism will set the MD and
begin play. There will be a short lapse
before play begins while the player reads
the digital signals on the MD.
The track number and the elapsed play
back time for the current track will be
displayed on the display. PlayingPress the MD play button ( ) to
start playing when a MD is in the unit.
Ejecting the MD
Press the MD eject button ( ) to eject the
MD.
Fast-forward/Reverse
Press and hold the fast-forward button
( ) to advance through a track at high
speed.
Press and hold the reverse button ( )
to reverse through a track at high speed.
Main display
Fast-forward button
Track up
button
Track down
button MD play button
Reverse button Scan
button
Repeat button
MD display
MD slot
Random buttonMD eject
button
MD display button Display
button
Display
feed dial
NOTE
When the clock is displayed, the
elapsed play back time will not be
displayed. To display the elapsed play
back time, turn the audio control dial
to the right. Turn the dial to the left to
return to the previous display.
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 28 Thursday, August 21, 2003 10:04 AM

6-29
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
Track search
Press the track up button ( ) once to
skip forward to the beginning of the next
track.
Press the track down button ( ) once to
skip back to the beginning of the current
track.
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button ( ) during play
to start scan play operation (the track
number will flash).
Press the scan button ( ) once again
to cancel scan play.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button ( ) during play.
The current selection will be repeated
("RPT" will be displayed).
Press the repeat button ( ) once again
to cancel repeat play.
Random play
This feature allows the MD player to
randomly select the order of the songs.
Press the random button ( ) during
play. The next selection will be randomly
selected ("RDM" will be displayed).
Press the random button ( ) once again
to cancel random play.Changing the display
Display
To change the display during MD play,
press the display button ( ) to advance
through each of the following displays:
Track number/Elapsed play back
time
→Song title→Disc title.
When long disc or song titles cannot be
completely displayed, rotate the display
feed dial ( ) to the right.
The remainder of the title will proceed and
appear on the display to the end of the title.
MD display
To change the MD display during MD
play, press and hold the MD display
button ( ) for about half a second to
advance through each of the following
displays:
Song title
→Disc title→No display.
When long disc or song titles cannot be
completely displayed, press the MD
display button ( ) to display the
remaining part of the title.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
NOTE
• If there is no song or disc title
recorded on the MD, "No TITLE"
will be displayed.
• The display can only display
English (including numerals) one-
byte characters. If any other
character is included "No TITLE"
will be displayed.
NOTE
If there is no song or disc title recorded
on the MD, "No TITLE" will be
displayed.
J07S_8S15-EA-03G_Edition2.book Page 29 Thursday, August 21, 2003 10:04 AM

6-30
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G

Operating the Compact Disc (CD) Player*
Inserting the CD
Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play. There will be a short
lapse before play begins while the player
reads the digital signals on the CD.
The disc-in indicator will illuminate, and
the track number and the elapsed play
back time for the current track will be
displayed. PlayingPress the CD play button ( ) to start
playing when a CD is in the unit.
Ejecting the CD
Press the CD eject button ( ) to eject the
CD.
Fast-forward/Reverse
Press and hold the fast-forward button
( ) to advance through a track at high
speed.
Press and hold the reverse button ( )
to reverse through a track at high speed.
Display
CD slot
Disc-in indicator
CD ejectbutton
CD play button
Random button
Repeat button Scan
button
Fast-forward button
Reverse
button
Track up
button
Track down
button
NOTE
When the clock is displayed, the
elapsed play back time will not be
displayed. To display the elapsed play
back time, turn the audio control dial
to the right. Turn the dial to the left to
return to the previous display.
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 30 Thursday, August 21, 2003 10:04 AM
