MAZDA MODEL MX-5 MIATA 2006 Owners Manual

Black plate (361,1)
Steps for Determining the Correct Load Limit:
Steps for Determining Correct Load Limit:
(1) Locate the statement“The combined weight of occupants and cargo should never
exceed XXX kg or XXX lbs” on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and luggage load capacity. For example, if the “XXX ”amount equals 1400 lbs. and there will be five 150 lb
passengers in your vehicle, the amount of available cargo and luggage load capacity is
650 lbs. (1400 _
750 (5 × 150) = 650 lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity
calculated in Step 4.
(6) If your vehicle will be towing a trailer, the load from your trailer will be transferred to your vehicle. Consult this manual to determine how this reduces the available cargo
and luggage load capacity of your vehicle.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-37
MX-5_8U35-EA-05F_Edition4 Page361
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (362,1)
Reporting Safety Defects (U.S.A.)
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying Mazda Motor
Corporation (Your Mazda Importer/Distributor).
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or Mazda Motor Corporation (Your Mazda
Importer/Distributor).
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153) ; go to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh Street, SW., Washington, DC 20590. You
can also obtain other information about motor vehicle safety from http://
www.safercar.gov.
NOTE
If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be
forwarded to:
Mazda North American Operations
7755 Irvine Center Drive
Irvine, California 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500
If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown
(page 9-8) in this booklet.
9-38
Customer Information and Reporting Safety Defects
Reporting Safety Defects
MX-5_8U35-EA-05F_Edition4 Page362
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (363,1)
Reporting Safety Defects (Canada)
Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.
For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm
Customer Information and Reporting Safety Defects
Reporting Safety Defects
9-39
MX-5_8U35-EA-05F_Edition4 Page363
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (364,1)
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they don't have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBERPUBLICATION DESCRIPTION
9999-95-042B-06 2006 WORKSHOP MANUAL (English)
9999-95-026G-06 2006 WIRING DIAGRAM (English)
9999-95-031C-06 (U.S.A. only) 2006 OWNER'S MANUAL
9999-EC-031C-06 (Canada only) 2006 OWNER'S MANUAL
9999-PR-031C-06 (Puerto Rico only) 2006 OWNER'S MANUAL
qWORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
9-40
Customer Information and Reporting Safety Defects
Service Publications
MX-5_8U35-EA-05F_Edition4 Page364
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (365,1)
10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................... 10-2Vehicle Information Labels ..................................................... 10-2
Specifications ............................................................................... 10-4 Specifications .......................................................................... 10-4
10-1
MX-5_8U35-EA-05F_Edition4 Page365
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (366,1)
Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the left top side of the
dashboard. This plate can easily be seen
through the windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
qVehicle Emission Control
Information Label
qTire Pressure Label
10-2
Identification Numbers
MX-5_8U35-EA-05F_Edition4 Page366
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (367,1)

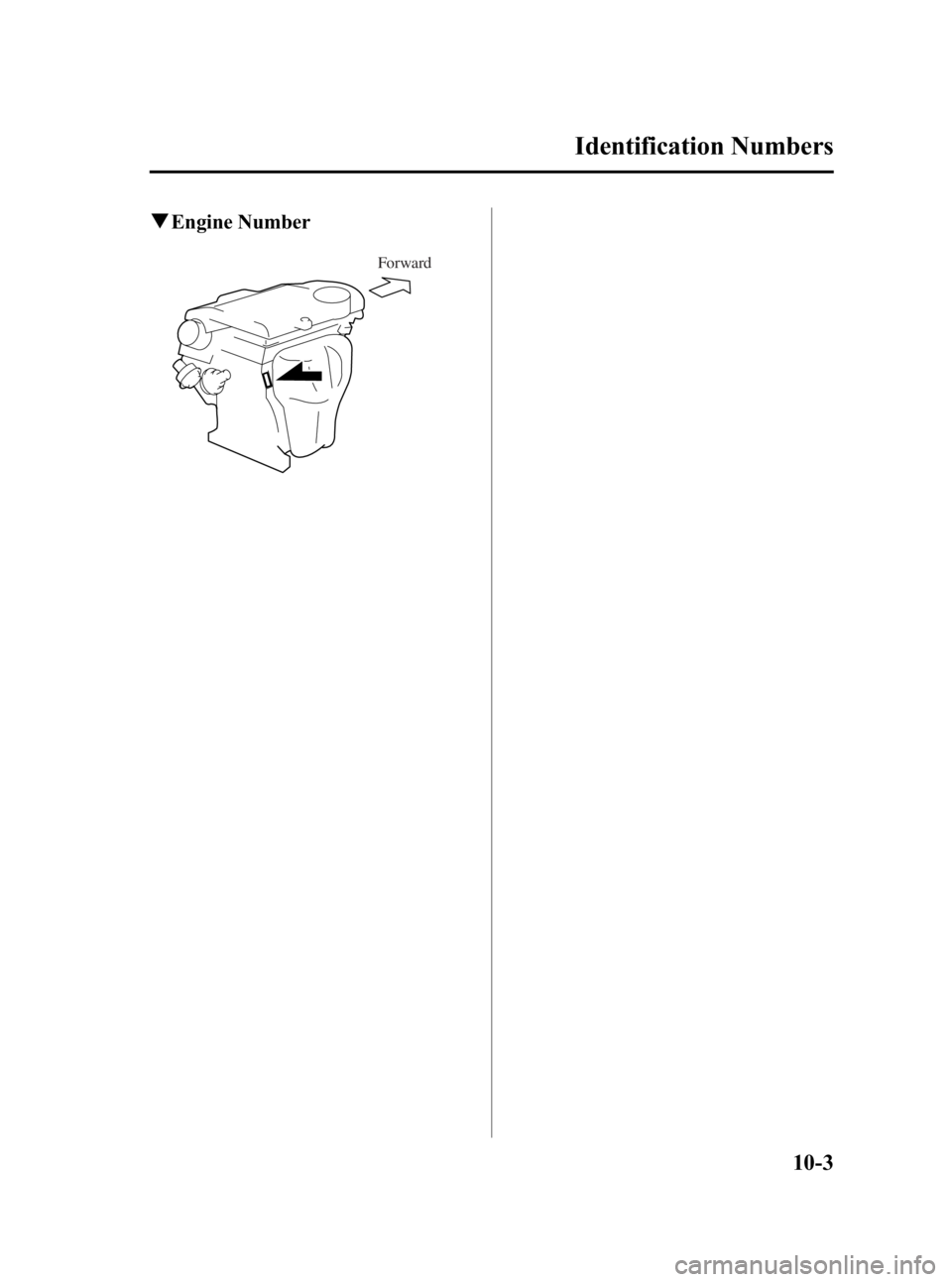

qEngine Number
Forward
Identification Numbers
10-3
MX-5_8U35-EA-05F_Edition4 Page367
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (368,1)
Specifications
qEngine
Item Specification
Type DOHC-16V in-line, 4-cylinder
Bore×Stroke 87.5 × 83.1 mm (3.44 × 3.27 in)
Displacement 1,999 ml (1,999 cc, 122.0 cu in)
Compression ratio 10.8
qElectrical System
Item Model
Battery 12V-36AH/5HR
Alternator 12 V - 100 A
Starter 12 V - 1.4 kW
Spark-plug number L3G2 18 110
*1, L3Y1 18 110
Spark-plug gap 1.25 ―1.35mm (0.050 ―0.053 in)
*1 ex factory
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on
the iridium alloy and platinum tips could be damaged.
q Lubricant Quality
Lubricant type and classification
Engine oil Refer to the recommended SAE viscosity numbers on page 8-15.
Manual transmission oil Any temperature
API Service GL-4 or GL-5
SAE 75W-90
Above 10°C (50°F) API Service GL-4 or GL-5
SAE 80W-90
Automatic transmission fluid JWS3309
Power steering fluid ATF M-III or equivalent (e.g. Dexron® II)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
Rear differential oil API Service GL-5
SAE
90
80W-90
75W-90
*
* Not available from Mazda
10-4
Specifications
MX-5_8U35-EA-05F_Edition4 Page368
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (369,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter
replacement
4.3 L (4.5 US qt, 3.7 Imp qt)
Without oil filter
replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.5 Imp qt)
Manual transmission oil 5-speed transmission
2.0 L (2.10 US qt, 1.7 Imp qt)
6-speed transmission 2.1 L (2.2 US qt, 1.8 Imp qt)
Automatic transmission fluid 7.4 L (7.8 US qt, 6.5 Imp qt)
Rear differential oil 0.7 L (0.7 US qt, 0.6 Imp qt)
Fuel tank 48 L (12 US gal, 10 Imp gal)
Check oil and fluid levels with dipstick or reservoir gauges.
q Dimensions
Item Model
Overall length 4,425 mm (174.2 in), 4,430 mm*(174.4 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,340 mm (52.8 in)
Front tread 1,500 mm (59.1 in)
Rear tread 1,505 mm (59.3 in)
Wheelbase 2,700 mm (106.3 in)
* With license plate holder
q Weights
Item Weight
GVWR (Gross Vehicle Weight Rating) 1,396 kg (3,078 lbs)
GAWR (Gross Axle Weight Rating) Front
714 kg (1,574 lbs)
Rear 682 kg (1,504 lbs)
qAir Conditioner
Gas complies with SAE J639 Maximum operating charge
HFC134a (R-134a) 0.45 kg (15.87 oz)
Specifications
10-5
MX-5_8U35-EA-05F_Edition4 Page369
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (370,1)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
Headlights High beam 65 H9 (H9)
Low beam
Halogen 55 H7 (H7)
Xenon fusion 35 D2S (D2S)
Front turn signal lights 21 WY21W (12W21W)
Parking lights 5 W5W (4CP)
Fog lights
í55 H11 (―)
Side-marker lights 5―(― )
High-mount brake light
*11 ―(― )
Rear turn signal lights 21 WY21W (12W21W)
Brake lights/Taillights (Rear side-marker lights) 21/5 W21/5W (#7443)
Reverse lights 21 W21W (#7440)
License plate lights 5 W5W (4CP)
*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
Interior light Light bulb Wattage
Overhead light 10
Trunk light 8
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-30.
Standard tire Tire size Inflation pressure
205/50R16 87V 200 kPa (29 psi)
205/45R17 84W 200 kPa (29 psi)
10-6íSome models.
Specifications
MX-5_8U35-EA-05F_Edition4 Page370
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F
