MAZDA MODEL MX-5 MIATA 2012 Owners Manual

Black plate (301,1)
Mazda Bluetooth Hands-
Free Customer Service
lU.S.A.
Phone: 800-430-0153 (Toll-free)
www.MazdaUSA.com/bluetooth
lCanada
Phone: 800-430-0153 (Toll-free)
www.mazdahandsfree.ca
Interior Comfort
Bluetooth Hands-Free
6-79
MX-5_8CC1-EA-11F_Edition2 Page301
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (302,1)
Sunvisors
When you need a sunvisor, lower it for
use in front.
qVanity Mirrors
To use the vanity mirror, lower the
sunvisor.
Interior Lights
qOverhead Light
Switch
Position Overhead Light
Light off
Light is on when any door is open
Light on
q
Trunk Light
Switch
Position Trunk Light
Light off
Light on when the trunk is open
6-80
Interior Comfort
Interior Equipment
MX-5_8CC1-EA-11F_Edition2 Page302
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (303,1)
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups or
drink cans in cup holders: Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
CAUTION
To reduce the possibility of injury in
an accident or a sudden stop, keep
cup holders closed when not in use.
To open the cup holder lid, press the
switch rearward and slide the lid open.
Switch
Multi-Pocket
Multi-pockets are on the inside of the
doors.
Multi-pocket
CAUTION
Do not use the multi-pockets for
containers without caps. The
contents may spill when the door is
opened or closed.
Interior Comfort
Interior Equipment
6-81
MX-5_8CC1-EA-11F_Edition2 Page303
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (304,1)
Storage Compartments
WARNING
Keep storage boxes closed when
driving:Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
qGlove Compartment
To open the glove compartment, pull the
latch toward you.
Insert the key (auxiliary key
*) and turn it
clockwise to lock, counterclockwise to
unlock.
* Advanced key equipped vehicle
Lock
Unlock
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
q Seat Side Box
To open, pull the release catch.
Insert the key and turn it clockwise to
lock, counterclockwise to unlock.
Lock
Unlock
qBack Trim Storage Boxí
Small items can be stored in the back trim
storage box.
To use the back trim storage box
1. To use the desired storage box, slide
the seat in front of it all the way
forward.
Refer to Seat Slide on page 2-2.
2. Fold the seatback forward all the way down.
Refer to Seat Recline on page 2-3.
6-82
Interior Comfort
íSome models.
Interior Equipment
MX-5_8CC1-EA-11F_Edition2 Page304
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (305,1)
3. If your vehicle has a lid, pull the latchto open.
When finished, return the seat to its
original position and secure it. After
returning the seat to its original position,
make sure the seat is secured by
attempting to lightly move it forward and
backward.
CAUTION
Do not store excessive weight in the
back trim storage box as it could be
damaged.
q Mesh Pocket
Maps or pamphlets can be placed in the
mesh pocket.
Mesh pocket
CAUTION
Do not place thick objects in the
mesh pocket as they could damage
the pocket.
Accessory Socket
Switch the ignition to ACC or ON.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Interior Comfort
Interior Equipment
6-83
MX-5_8CC1-EA-11F_Edition2 Page305
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (306,1)

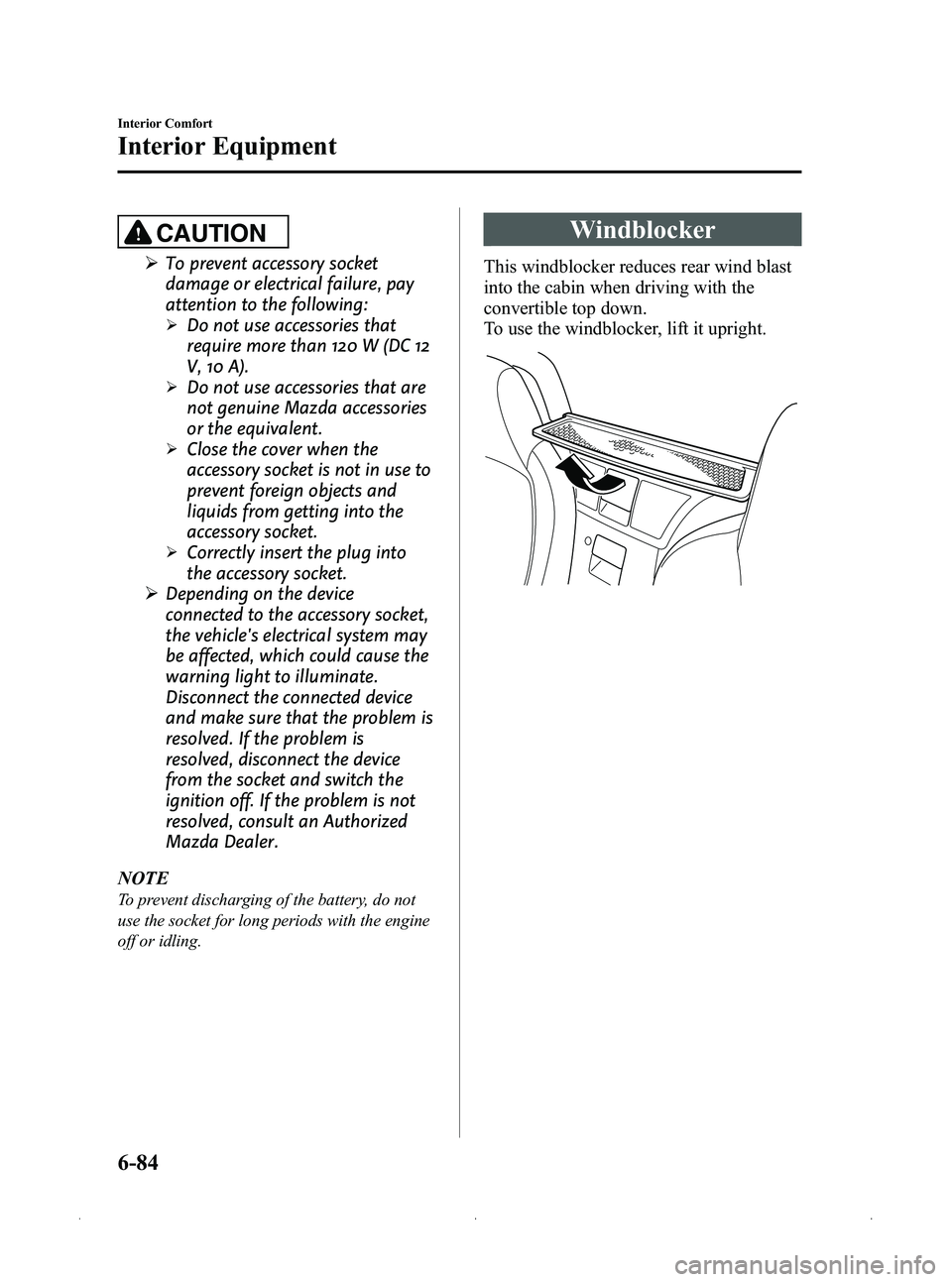

CAUTION
ØTo prevent accessory socket
damage or electrical failure, pay
attention to the following:
ØDo not use accessories that
require more than 120 W (DC 12
V, 10 A).
ØDo not use accessories that are
not genuine Mazda accessories
or the equivalent.
ØClose the cover when the
accessory socket is not in use to
prevent foreign objects and
liquids from getting into the
accessory socket.
ØCorrectly insert the plug into
the accessory socket.
Ø Depending on the device
connected to the accessory socket,
the vehicle's electrical system may
be affected, which could cause the
warning light to illuminate.
Disconnect the connected device
and make sure that the problem is
resolved. If the problem is
resolved, disconnect the device
from the socket and switch the
ignition off. If the problem is not
resolved, consult an Authorized
Mazda Dealer.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Windblocker
This windblocker reduces rear wind blast
into the cabin when driving with the
convertible top down.
To use the windblocker, lift it upright.
6-84
Interior Comfort
Interior Equipment
MX-5_8CC1-EA-11F_Edition2 Page306
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (307,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3 Flat Tire
í.................................................................................. 7-3
Tool Storage .............................................................................. 7-5
Instant Mobility System (IMS) Emergency Flat Tire Repair
Kit
í.......................................................................................... 7-7
Changing a Tire ....................................................................... 7-13
Overheating ................................................................................. 7-19 Overheating ............................................................................. 7-19
Emergency Starting .................................................................... 7-21 Starting a Flooded Engine ....................................................... 7-21
Jump-Starting .......................................................................... 7-22
Push-Starting ........................................................................... 7-25
Emergency Towing ..................................................................... 7-26 Towing Description ................................................................. 7-26
Tiedown Hooks ....................................................................... 7-27
Recreational Towing ............................................................... 7-29
7-1íSome models.
MX-5_8CC1-EA-11F_Edition2 Page307
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (308,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
MX-5_8CC1-EA-11F_Edition2 Page308
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (309,1)
Flat Tireí
Either run-flat tires or conventional tires
are equipped on your Mazda depending
on the specification, therefore the
procedure for repairing a flat tire differs
depending on the type of tire. Before
driving, make sure which type of tire is
equipped on your Mazda. If you cannot
identify your tire type, consult an
Authorized Mazda Dealer.
qHow to identify your tire type
Run-flat tire
A run-flat tire has a “RFT ”mark on the
side wall.
Conventional tire
A conventional tire does not have a
“ RFT ”mark on the side wall.
q Vehicle with run-flat tires
WARNING
Have the tires checked or perform the
appropriate repair as soon as possible
by an Authorized Mazda Dealer:
When the flat tire warning light
illuminates or the tire pressure
warning beep sound is heard, it is
dangerous to drive the vehicle at high
speeds, or perform sudden
maneuvering or braking. Vehicle
drivability could worsen and result in
an accident.
When the flat tire warning light
illuminates or the tire pressure
warning beep sound is heard,
decrease vehicle speed immediately
and avoid sudden maneuvering and
braking.
If a run-flat tire is punctured, the FLAT
TIRE warning light illuminates in the
instrument cluster, and a beep sound is
heard for about 30 seconds.
NOTE
Until the flat tire is changed, the beep sound is
heard for about 30 seconds every time the
ignition switch is turned to the ON position.
Vehicles with run-flat tires can be driven
even with a punctured tire under the
following conditions.
In Case of an Emergency
Flat Tire
7-3íSome models.
MX-5_8CC1-EA-11F_Edition2 Page309
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (310,1)
Maximum vehicle speed with a
punctured run-flat tire: 80 km/h (49
mph)
Maximum driving distance with a
punctured run-flat tire: 80 km (49
miles)
CAUTION
The maximum driving distance may
be shorter depending on the driving
conditions.
If a run-flat tire is punctured, carefully
drive the vehicle to the nearest Mazda
Dealer and have the tire changed.
NOTE
lA spare tire or Instant Mobility System
(IMS) emergency flat tire repair kit is not
equipped on vehicles with run-flat tires as
standard.
lReplacing a punctured run-flat tire with a
new run-flat tire is recommended.
lDo not use run-flat tires and conventional
tires on the same vehicle.
q Vehicle with conventional tires
If the following occurs while driving, it
could indicate a flat tire.
lSteering becomes difficult.lThe vehicle begins to vibrate
excessively.
lThe vehicle pulls in one direction. If a
conventional tire is punctured, refer to
“Tool Storage ”(page 7-5) and “Instant
Mobility System (IMS) Emergency
Flat Tire Repair Kit ”(page 7-7).
7-4
In Case of an Emergency
Flat Tire
