MAZDA MODEL MX-5 MIATA RF 2022 Owner's Manual

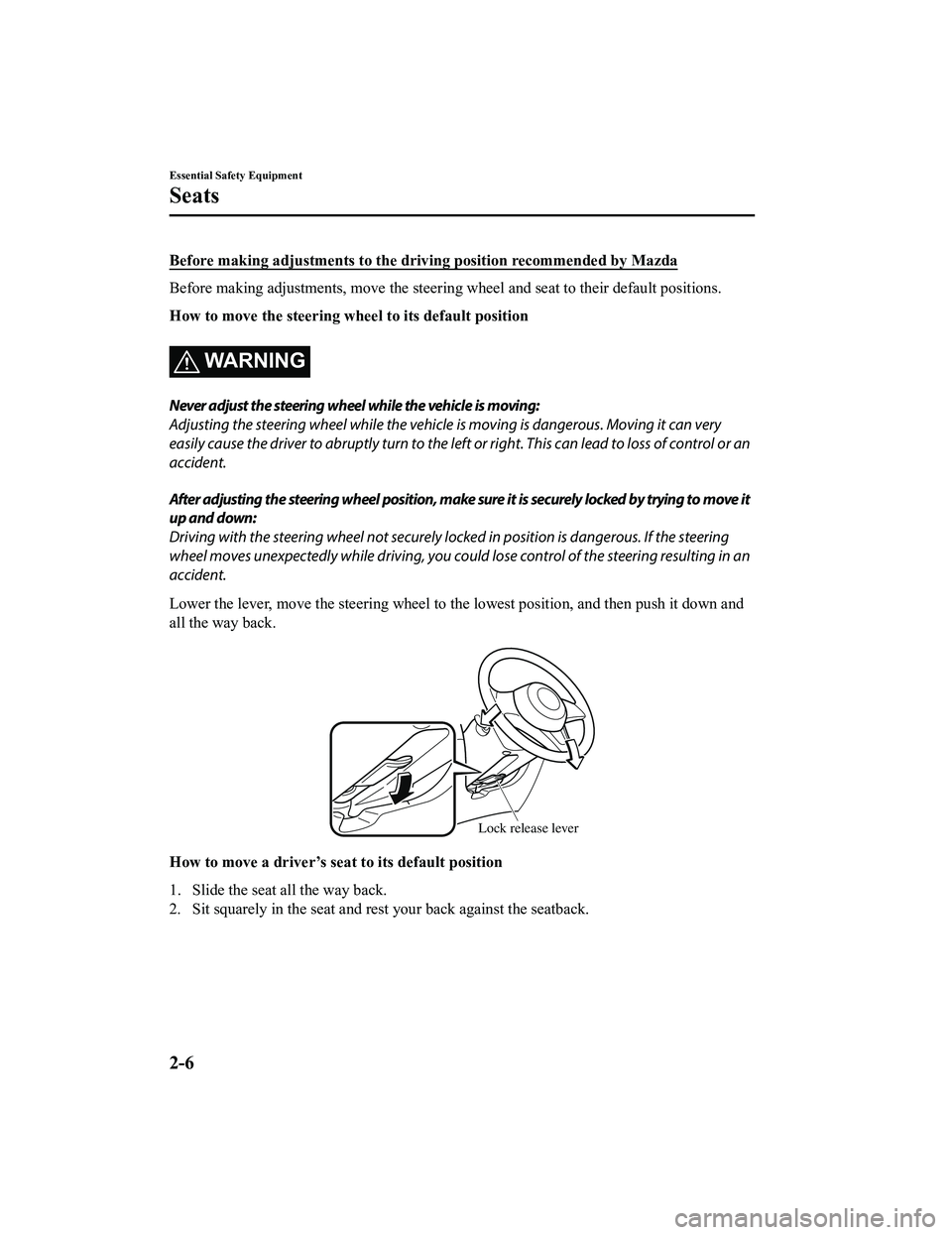

Before making adjustments to the driving position recommended by Mazda
Before making adjustments, move the steering wheel and seat to their default positions.
How to move the steering wheel to its default position
WA R N I N G
Never adjust the steering wheel while the vehicle is moving:
Adjusting the steering wheel while the vehicle is moving is dangerous. Moving it can very
easily cause the driver to abruptly turn to the left or right. This can lead to loss of control or an
accident.
After adjusting the steering wheel position, make sure it is securely locked by trying to move it
up and down:
Driving with the steering wheel not securely locked in position is dangerous. If the steering
wheel moves unexpectedly while driving, you coul d lose control of the steering resulting in an
accident.
Lower the lever, move the stee ring wheel to the lowest position, and then push it down and
all the way back.
Lock release lever
How to move a driver’s seat to its default position
1. Slide the seat all the way back.
2. Sit squarely in the seat and rest your back against the seatback.
Essential Safety Equipment
Seats
2-6
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

Seat adjustment procedure for the driving position recommended by Mazda
Adjusting the seatback angle (reclining)
Adjust the seatback to the angle providing a comfortable seated posture.
1. With your posture slightly slouched, move the seatback forward to the angle where your waist feels slightly cramped.
2. Move the seatback backward to a comfortable seated posture without any feeling of
cramping in your waist.
Essential Safety Equipment
Seats
2-7
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

Adjusting the seat position forward and back (sliding)
Adjust the seat to the position best for operating the accelerator and brake pedals.
1. Place your left foot on the footrest, your right foot between the accelerator and brake
pedals, and position your heel to the position allowing easy switching between the
pedals.
2. With your heel set on the floor, set your ri ght foot on the brake pedal and move the seat
forward as far as possible until you f eel a slight cramping in your ankle.
3. With your right foot set on the brake pedal, move the seat back until you no longer feel
cramping in your ankle.
4. With your heel set on the floor, make sure you can move your foot between the brake
pedal and accelerator pedal smoothly.
5. Depress the accelerator pedal completely with your heel set on the floor and make sure that your ankle does not feel over-stretched.
Essential Safety Equipment
Seats
2-8
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

Adjusting the steering wheel position
Adjust the steering wheel to the position where it can be operated easily and the gauges can
be viewed easily.
1. With your back resting against the seatback, extend both arms, place them on the top ofthe steering wheel, and pull the steering wh eel towards you to the position of your
wrists.
2. Adjust the steering wheel height so that the gauges can be viewed easily.
3. Raise the lever to securely lock the steering wheel.
Essential Safety Equipment
Seats
2-9
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

▼Adjusting the Passenger's Seat
Seat Slide
To move a seat forward or backward, raise the lever and slide the seat to the desired position
and release the lever.
Make sure the lever returns to its original position and the seat is locked in place by
attempting to push it forward and backward.
Seat Recline
To change the seatback angle, lean forward sl ightly while raising the lever. Then lean back
to the desired position and release the lever.
Make sure the lever returns to its original po sition and the seatback is locked in place by
attempting to push it forward and backward.
Essential Safety Equipment
Seats
2-10
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

Head Restraints
▼Non-Adjustable Head Restraints
Your vehicle is equipped with non-adjustable head restraints on the driver's and passenger's
seatbacks. The non-adjustable head restraints consist of a trimmed foam covering over the
upper structure of the seatbacks and are intended to help protect you and the passenger from
neck injury. Adjust the seatback
s to their upright, on-road positions so that the head restraint
is positioned as close as possible to the back of your head.
WARNING
Make sure the seatbacks are properly adjusted to their upright, on-road positions before the
vehicle is driven:
Driving with the seatbacks not adjusted properly is dangerous. With no support behind your
head, your neck could be seri ously injured in a collision.
Essential Safety Equipment
Seats
2-11
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

Seat Warmer*
The seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch while the
ignition is switched ON to operate the seat
warmer. The indicator lights turn on to
indicate that the seat warmer is operating.
The mode changes as follows each time
the seat warmer switch is pressed.
Low Mid
High
OFF
WA R N I N G
Be careful when using the seat warmer:
The heat from the seat warmer may be too
hot for some people, as indicated as
follows, and could cause a
low-temperature burn.
Infants, small children, elderly people,
and physically challenged people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken sleep-inducing
medicine such as sleeping pills or cold
medicine
Do not use the seat warmer with anything
having high moisture-retention ability such
as a blanket or cushion on the seat:
The seat may be heated excessively and
cause a low-temperature burn.
Do not use the seat warmer even when
taking a short nap in the vehicle:
The seat may be heated excessively and
cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert needles or
pins into it:
This could cause the seat to become
excessively heated and result in injury from
a minor burn.
CAUTION
Do not use organic solvents to clean the
seat. It may damage the seat surface and
the heater.
NOTE
Use the seat warmer when the engine is
running. Leaving the seat warmer on for
long periods with the engine not running
could cause the battery power to be
depleted.
If the ignition is switched off while the
seat warmer is operating (High, Mid or
Low) and then switched ON again, the
seat warmer will automatically operate
at the temperature set before switching
off the ignition.
The temperature of the seat warmer
cannot be adjusted beyond High, Mid
and Low because the seat warmer is
controlled by a thermostat.
Essential Safety Equipment
Seat Warmer
2-12*Some models.
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and passenger always wear seat belts.

(Except Mexico)
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way when
not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the passenger's seat lap/shoulder belt retractor operates in two modes: emergency
locking mode, and for child-restraint systems, automatic locking mode. If you must use the
passenger seat for a chil d, slide the passenger seat as far b ack as possible and make sure any
child-restraint system is secured properly.

(Mexico)
All the seats have lap/shoulder belts. These belts have retractors with inertia locks that keep
them out of the way when not in use. The lo cks allow the belts to remain comfortable on
users, but they will lock in position during a collision.
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerou s. During a collision, occupants not wearing
seat belts could hit someone or things inside the vehicle or even be thrown out of the vehicle.
They could be seriously injured or even killed. In the same collision, occupants wearing seat
belts would be much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not available to
absorb the impact. This puts more force on the bones beneath the belt, which could cause
serious injury or death. So, if your seat belt is twisted, you must straighten the seat belt to
remove any twists and to allow the full width of the belt to be used.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt used in this
way cannot spread the impact forces properly and the two passengers could be crushed
together and seriously injured or even killed. Ne ver use one belt for more than one person at a
time and always operate the vehicle wi th each occupant properly restrained.
Essential Safety Equipment
Seat Belt Systems
2-13
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing of the
seat belt in use. A damaged seat belt cannot pr ovide adequate protection in a collision. Have
an Authorized Mazda Dealer inspect all seat be lt systems in use during an accident before
they are used again.
Have your seat belts changed immediately if the pretensioner or load limiter has been
expended:
Always have an Authorized Mazda Dealer imme diately inspect the seat belt pretensioners
and air bags after any collision. Like the air ba gs, the seat belt pretensioners and load limiters
will only function once and must be replaced aft er any collision that caused them to deploy. A
seat belt with an expended pret ensioner or load limiter is still better than wearing no seat belt
at all; however, if the seat belt pretensioners and load limiters are not replaced, the risk of
injury in a collision will increase.
Positioning the Shoulder Portion of the Seat Belt:
Improper positioning of the shoulder portion of the seat belt is dangerous. Always make sure
the shoulder portion of the seat belt is positioned across your shoulder and near your neck,
but never under your arm, on yo ur neck, or on your upper arm.
Positioning the Lap Portion of the Seat Belt:
The lap portion of the seat belt worn too high is dangerous. In a collision, this would
concentrate the impact force directly on the abdominal area, causing serious injury. Wear the
lap portion of the belt snugly and as low as possible.
CAUTION
Belt retraction may become difficult if the belts an d seat belt guides are soiled, so try to keep
them clean. For more details about cleaning th e seat belts, refer to "Seat Belt Maintenance"
(page 6-63).

Seat belt guide
Essential Safety Equipment
Seat Belt Systems
2-14
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

▼Pregnant Women and Persons wi
th Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your doctor
for any special instructions regarding specific medical conditions.
▼Emergency Locking Mode
When the seat belt is fastened, it will
always be in the emergency locking mode.
In the emergency locking mode , the belt remains comfortable on the occupant and the
retractor will lock in position during a collision.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it out
slowly. If this fails, pull the belt strongly 1 time and loosen, then pull it out again slowly.
(Seat Belt with Auto matic Locking Mode)
When the seat belt is fastened, it will always be in the emergency locking mode until it is
switched to automatic locking mode by pulling it all the way out to its full length. If the belt
feels tight and hinders comfortable movement while the vehicle is stopped or in motion, it
may be in the automatic locking mode because the belt has been pulled too far out. To return
the belt to the more comfortable emergency lo cking mode, wait until the vehicle has stopped
in a safe, level area, retract the belt fully to convert it back to emergency locking mode and
then extend it around you again.
▼ Automatic Locking Mode*
Always use the automatic locking mode to keep
the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will retract
down to the child-restra int system and stay locked on it. See the section on child restraint
(page 2-21).
Essential Safety Equipment
Seat Belt Systems
*Some models.2-15
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56
