Page 191 of 609
4–49
When Driving
Transmission
NOTE
A natural driving posture can be
realized by lightly gripping the shift
lever from the side without having to
rest your elbow on the centre console
box.
If shifting to R is dif ¿ cult, shift back
into neutral, release the clutch pedal,
and try again.
(With i-stop function) If the engine has stopped due to
stalling, it can be restarted by
depressing the clutch pedal within 3
seconds of the engine stopping.
The engine cannot be restarted even
if the clutch pedal is depressed under
the following conditions:
The driver's door is open.
The driver's seat belt is unfastened.
The clutch pedal is not released
completely after the engine stalled.
The clutch pedal is depressed with
the engine not stopped completely.
NOTE
(With parking sensor system) When the shift lever is shifted to the
R position with the ignition switched
ON, the parking sensor system is
activated and a beep sound is heard.
Refer to Parking Sensor System on
page 4-148 .
Gear Shift Indicator
The gear shift indicator supports you to
obtain optimum fuel economy and smooth
driving. It displays the selected gear
position in the instrument cluster as well
as noti ¿ es the driver to change to the most
suitable gear position corresponding to the
actual driving condition.
Selected gear position Suitable gear position
Indication Condition
Numeral The selected gear position is
displayed.
and numeral Shift up or down to the indicated
gear position is recommended.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 192 of 609
4–50
When Driving
Transmission

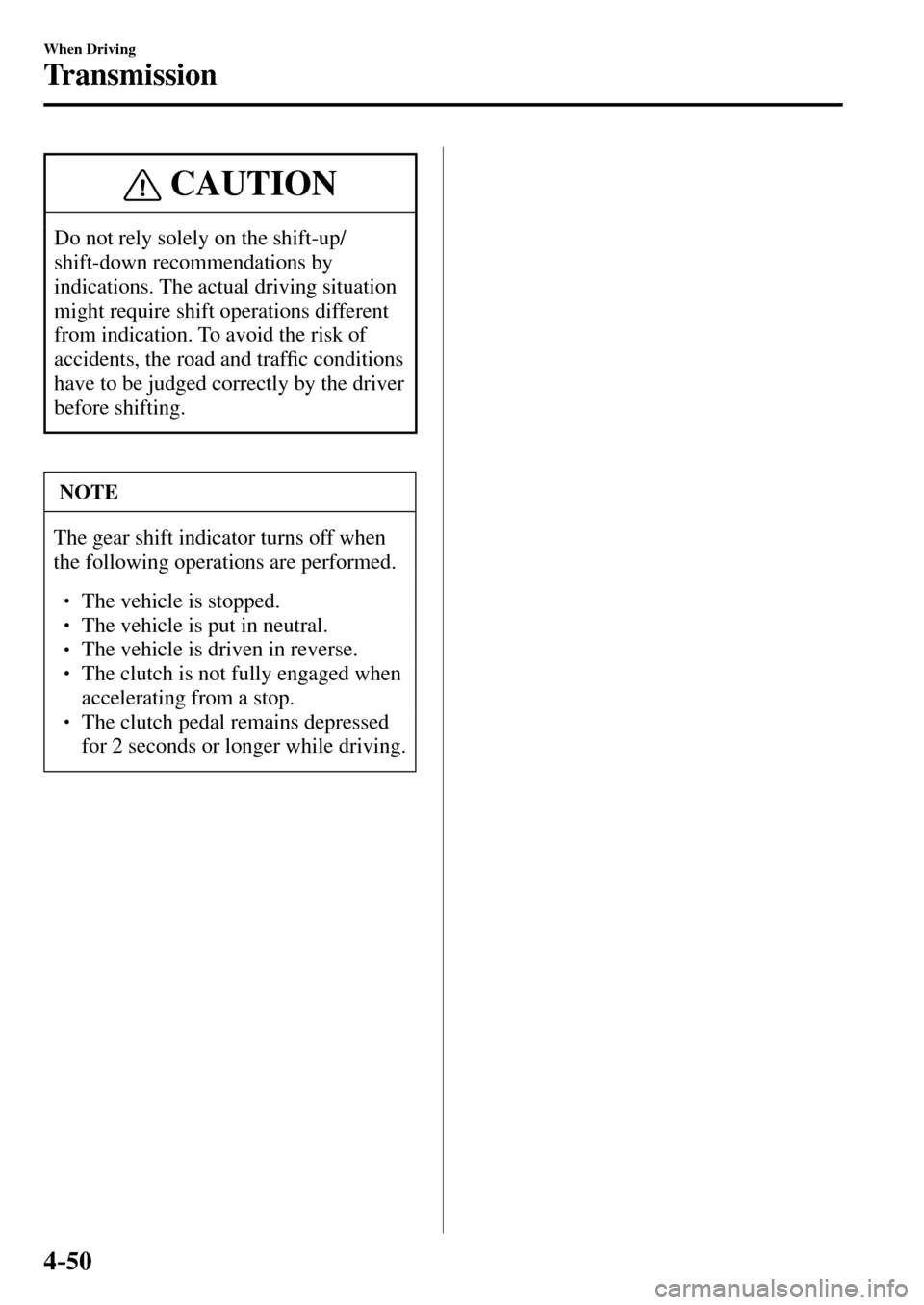

CAUTION
Do not rely solely on the shift-up/
shift-down recommendations by
indications. The actual driving situation
might require shift operations different
from indication. To avoid the risk of
accidents, the road and traf ¿ c conditions
have to be judged correctly by the driver
before shifting.
NOTE
The gear shift indicator turns off when
the following operations are performed.
The vehicle is stopped.
The vehicle is put in neutral.
The vehicle is driven in reverse.
The clutch is not fully engaged when
accelerating from a stop.
The clutch pedal remains depressed
for 2 seconds or longer while driving.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 224 of 609
4–82
When Driving
Brake

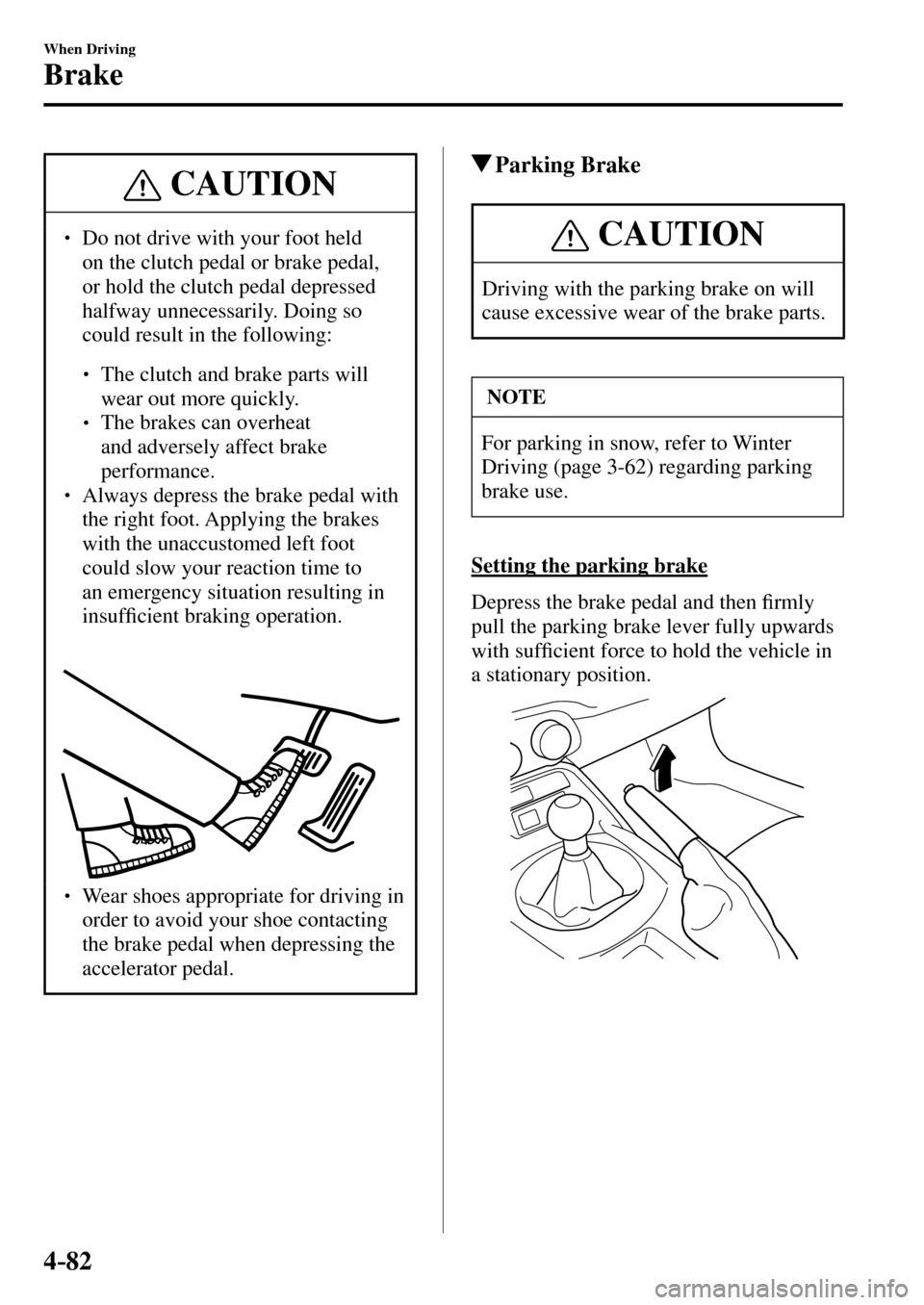

CAUTION
Do not drive with your foot held
on the clutch pedal or brake pedal,
or hold the clutch pedal depressed
halfway unnecessarily. Doing so
could result in the following:
The clutch and brake parts will
wear out more quickly.
The brakes can overheat
and adversely affect brake
performance.
Always depress the brake pedal with
the right foot. Applying the brakes
with the unaccustomed left foot
could slow your reaction time to
an emergency situation resulting in
insuf ¿ cient braking operation.
Wear shoes appropriate for driving in
order to avoid your shoe contacting
the brake pedal when depressing the
accelerator pedal.
Parking Brake
CAUTION
Driving with the parking brake on will
cause excessive wear of the brake parts.
NOTE
For parking in snow, refer to Winter
Driving (page 3-62 ) regarding parking
brake use.
Setting the parking brake
Depress the brake pedal and then ¿ rmly
pull the parking brake lever fully upwards
with suf ¿ cient force to hold the vehicle in
a stationary position.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 227 of 609
4–85
When Driving
Brake
WARNING
Do not rely completely on Hill Launch
Assist (HLA):
Hill Launch Assist (HLA) is an
auxiliary device for accelerating from
a stop on a slope. The system only
operates for about two seconds and
therefore, relying only on the system,
when accelerating from a stop is
dangerous because the vehicle may
move (roll) unexpectedly and cause an
accident.
The vehicle could roll depending on
the vehicle's load or if it is towing
something. In addition, for vehicles
with a manual transmission, the vehicle
could still roll depending on how the
clutch pedal or the accelerator pedal is
operated.
Always con ¿ rm the safety around the
vehicle before starting to drive the
vehicle.
NOTE
Hill Launch Assist (HLA) does not
operate on a gentle slope. In addition,
the gradient of the slope on which
the system will operate changes
depending on the vehicle's load.
Hill Launch Assist (HLA) does
not operate if the parking brake is
applied, the vehicle has not stopped
completely, or the clutch pedal is
released.
While Hill Launch Assist (HLA) is
operating, the brake pedal may feel
stiff and vibrate, however, this does
not indicate a malfunction.
Hill Launch Assist (HLA) does not
operate while the TCS/DSC indicator
light is illuminated.
Refer to Warning/Indicator Lights on
page 4-42 .
Hill Launch Assist (HLA) does not
turn off even if the DSC OFF switch
is pressed to turn off the TCS/DSC.
(Automatic Transmission) Although the Hill Launch Assist
(HLA) does not operate during idling
stop, the vehicle roll prevention
function operates to prevent vehicle
roll.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 280 of 609
4–138
When Driving
Cruise Control
To Resume Cruising Speed at
More Than 25 km/h (16 mph)
If some other method besides the OFF/
CANCEL switch was used to cancel
cruising speed (such as applying the brake
pedal) and the system is still activated, the
most recent set speed will automatically
resume when the RESUME/
switch is
pressed.
If vehicle speed is below 25 km/h (16
mph), increase the vehicle speed up to 25
km/h (16 mph) or more and press the
RESUME/
switch.
To Temporarily Cancel
To temporarily cancel the system, use one
of these methods:
Slightly depress the brake pedal.
(Manual transmission)
Depress the clutch pedal.
Press the OFF/CANCEL switch.
If the RESUME/
switch is pressed when
the vehicle speed is 25 km/h (16 mph) or
higher, the system reverts to the previously
set speed.
NOTE
If any of the following conditions
occur, the cruise control system is
temporarily cancelled.
The parking brake is applied.
(Vehicles with adjustable speed
limiter)
The MODE switch for the
adjustable speed limiter is pressed.
(Automatic transmission)
The selector lever is in the P or N
position.
(Manual transmission)
The shift lever is in the neutral
position.
When the cruise control system is
temporarily cancelled by even one of
the applicable cancel conditions, the
speed cannot be re-set.
(Automatic transmission) The cruise control cannot be
cancelled while driving in manual
mode (selector lever shifted from
D to M position). Therefore, engine
braking will not be applied even
if the transmission is shifted down
to a lower gear. If deceleration is
required, lower the set speed or
depress the brake pedal.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 429 of 609
6–1 6–1
6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information ........................................................................ 6-2
Introduction ................................................................................... 6-2
Scheduled Maintenance ..................................................................... 6-3
Scheduled Maintenance ................................................................ 6-3
Maintenance Monitor .................................................................. 6-10
Owner Maintenance ......................................................................... 6-12
Owner Maintenance Precautions ................................................ 6-12
Bonnet ......................................................................................... 6-14
Engine Compartment Overview ................................................. 6-16
Engine Oil ................................................................................... 6-17
Engine Coolant ............................................................................ 6-20
Brake/Clutch Fluid ...................................................................... 6-22
Window and Headlight Washer Fluid ......................................... 6-23
Body Lubrication ........................................................................ 6-24
Wiper Blades ............................................................................... 6-24
Battery ......................................................................................... 6-28
Key Battery Replacement ........................................................... 6-31
Tyres ............................................................................................ 6-33
Light Bulbs .................................................................................. 6-38
Fuses ........................................................................................... 6-47
Appearance Care.............................................................................. 6-53
Exterior Care ............................................................................... 6-53
Interior Care ................................................................................ 6-64
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 440 of 609
6–12
Maintenance and Care
Owner Maintenance
Owner Maintenance Precautions
R o u t i n e S e r v i c e
We highly recommend that these items be inspected daily, or at least every week.
Engine Oil Level (page 6-20 )
Engine Coolant Level (page 6-20 )
Brake and clutch Fluid Level (page 6-22 )
Washer Fluid Level (page 6-23 )
Battery Maintenance (page 6-30 )
Tyre In À ation Pressure (page 6-34 )
Improper or incomplete service may result in problems. This section gives instructions only
for items that are easy to perform.
As explained in the Introduction (page 6-2 ), several procedures can be done only by a
quali ¿ ed service technician with special tools.
Improper do-it yourself maintenance during the warranty period may affect warranty
coverage. For details, read the separate Mazda Warranty statement provided with the
vehicle. If you are unsure about any servicing or maintenance procedure, have it done by an
expert repairer, we recommend an Authorised Mazda Repairer.
There are strict environmental laws regarding the disposal of waste oil and À uids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and À uid changes of your vehicle to an Authorised
Mazda Repairer.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 444 of 609
6–16
Maintenance and Care
Owner Maintenance
Engine Compartment Overview
Windscreen washer fluid reservoirBrake/Clutch fluid reservoir
Engine oil dipstick
Battery
Fuse blockCooling system cap
Engine coolant reservoir Engine oil-filler cap
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 450 of 609
6–22
Maintenance and Care
Owner Maintenance
If the coolant reservoir is empty or new
coolant is required frequently, consult
an expert repairer, we recommend an
Authorised Mazda Repairer. Brake/Clutch Fluid
Inspecting Brake/Clutch Fluid
Level
WARNING
If the brake/clutch À uid level is low,
have the brakes inspected:
A low brake/clutch À uid level is
dangerous.
A low level could indicate brake lining
wear or a brake system leak which
could cause the brakes to fail and lead
to an accident.
The brakes and clutch draw À uid from the
same reservoir.
Inspect the À uid level in the reservoir
regularly. It should be kept between the
MAX and MIN lines.
The level normally drops with
accumulated distance, a condition
associated with wear of brake and clutch
linings. If it is excessively low, have the
brake/clutch system inspected by an expert
repairer, we recommend an Authorised
Mazda Repairer.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 517 of 609
7–23
If Trouble Arises
Emergency Starting
Starting a Flooded Engine
If the engine fails to start, it may be
À ooded (excessive fuel in the engine).
Follow this procedure:
1. If the engine does not start within
¿ ve seconds on the ¿ rst try, wait ten
seconds and try again.
2. Make sure the parking brake is on.
3. Depress the accelerator all the way and
hold it there.
4. Depress the clutch pedal (Manual
transmission) or the brake pedal
(Automatic transmission), then
press the push button start. If the
engine starts, release the accelerator
immediately because the engine will
suddenly rev up.
5. If the engine fails to start, crank it
without depressing the accelerator.
If the engine still does not start using
the previous procedure, have your
vehicle inspected by an expert repairer,
we recommend an Authorised Mazda
Repairer.
Push-Starting
Do not push-start your Mazda.
WARNING
Never tow a vehicle to start it:
Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured.
CAUTION
Do not push-start a vehicle that has a
manual transmission. It can damage the
emission control system.
NOTE
You cannot start a vehicle with an
automatic transmission by pushing it.
/ : A ( . ' ' , A ' F K V K Q P K P F D
