Page 67 of 609
2–47
Essential Safety Equipment
SRS Air Bags
*Some models.
Passenger Occupant Classi ¿ cation System *
First, please read "Supplementary Restraint System (SRS) Precautions" (page 2-33 )
carefully.
Passenger Occupant Classi ¿ cation Sensor
Your vehicle is equipped with a passenger occupant classi ¿ cation sensor as a part of the
supplementary restraint system. This sensor is equipped in the passenger's seat cushion. This
sensor measures the electrostatic capacity of the passenger's seat. The SAS unit is designed
to prevent the passenger front and side air bags and seat belt pretensioner system from
deploying if the passenger air bag deactivation OFF indicator light turns on.
To reduce the chance of injuries caused by deployment of the passenger air bag, the system
deactivates the passenger front and side air bags and also the seat belt pretensioner system
when the passenger air bag deactivation OFF indicator light turns on. Refer to the following
table for the passenger air bag deactivation indicator light illumination conditions.
This system shuts off the passenger front and side air bags and seat belt pretensioner system,
so make sure the passenger air bag deactivation indicator light turns on according to the
following table.
The air bag/seat belt pretensioner system warning light À ashes and the passenger air bag
deactivation OFF indicator light illuminates if the sensors have a possible malfunction. If
this happens, the passenger front and side air bags and seat belt pretensioner system will not
deploy.
Passenger air bag deactivation indicator lights
These indicator lights turn on to remind you that the passenger front and side air bags and
seat belt pretensioner will or will not deploy during a collision.
If the passenger occupant classi ¿ cation sensor is normal, both indicator lights turn on when
the ignition is switched ON. The lights turn off after a few seconds. Then, the indicator
lights turn on or off under the following conditions:
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 68 of 609
2–48
Essential Safety Equipment
SRS Air Bags

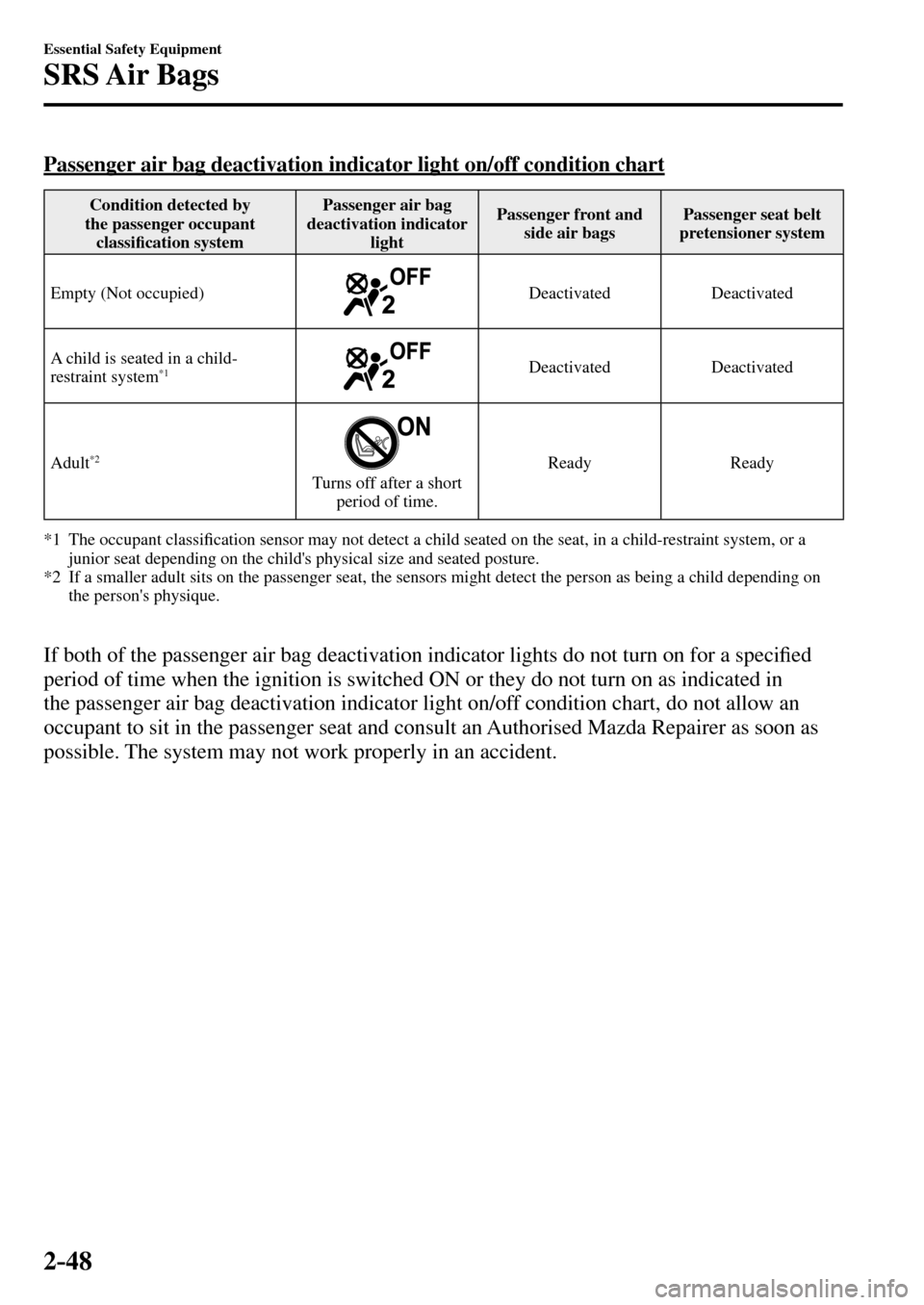

Passenger air bag deactivation indicator light on/off condition chart
Condition detected by
the passenger occupant
classi ¿ cation system Passenger air bag
deactivation indicator
light Passenger front and
side air bags Passenger seat belt
pretensioner system
Empty (Not occupied)
Deactivated Deactivated
A child is seated in a child-
restraint system
*1 Deactivated Deactivated
Adult
*2
Turns off after a short
period of time. Ready Ready
*1 The occupant classi ¿ cation sensor may not detect a child seated on the seat, in a child-restraint system, or a
junior seat depending on the child's physical size and seated posture.
*2 If a smaller adult sits on the passenger seat, the sensors might detect the person as being a child depending on
the person's physique.
If both of the passenger air bag deactivation indicator lights do not turn on for a speci ¿ ed
period of time when the ignition is switched ON or they do not turn on as indicated in
the passenger air bag deactivation indicator light on/off condition chart, do not allow an
occupant to sit in the passenger seat and consult an Authorised Mazda Repairer as soon as
possible. The system may not work properly in an accident.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 69 of 609
2–49
Essential Safety Equipment
SRS Air Bags
WARNING
Do not allow an occupant in the passenger's seat to sit with a posture which makes
it dif ¿ cult for the passenger occupant classi ¿ cation sensor to detect the occupant
correctly:
Sitting in the passenger's seat with a posture which makes it dif ¿ cult for the passenger
occupant classi ¿ cation sensor to detect the occupant correctly is dangerous. If the
passenger occupant classi ¿ cation sensor cannot detect the occupant sitting on the
passenger's seat correctly, the passenger front and side air bags and pretensioner
system may not operate (non-deploy) or they may operate (deploy) accidentally. The
passenger will not have the supplementary protection of the air bags or the accidental
operation (deployment) of the air bags could result in serious injury or death.
Under the following conditions, the passenger occupant classi ¿ cation sensor cannot
detect a passenger sitting on the passenger's seat correctly and the deployment/non-
deployment of the air bags cannot be controlled as indicated in the passenger air bag
deactivation indicator light on/off condition chart. For example:
A passenger is seated as shown in the following ¿ gure:
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 70 of 609
2–50
Essential Safety Equipment
SRS Air Bags
WARNING
Luggage or other items placed under the passenger seat or between the passenger
seat and driver seat that push up the passenger seat bottom.
An object, such as a seat cushion, is put on the passenger's seat or between the
passenger's back and the seatback.
A seat cover is put on the passenger's seat.
Luggage or other items are placed on the seat with the child in the child-restraint
system.
The seat is washed.
Liquids are spilled on the seat.
The passenger seat is moved backward, pushing into luggage or other items placed
behind it.
Luggage or other items are placed between the passenger seat and driver seat.
An electric device is put on the passenger's seat.
An additional electrical device, such as a seat warmer is installed to the surface of
the passenger seat.
The passenger front and side air bags and seat belt pretensioner systems will deactivate
if the passenger air bag deactivation OFF indicator light turns on.
CAUTION
To assure proper deployment of the front air bag and to prevent damage to the sensor
in the seat cushion:
Do not place sharp objects on the seat cushion or leave heavy luggage on them.
Do not spill any liquids on the seats or under the seats.
To allow the sensors to function properly, always perform the following:
Adjust the seats as far back as possible and always sit upright against the seatbacks
with seat belts worn properly.
If you place your child on the passenger seat, secure the child-restraint system
properly and slide the passenger seat as far back as possible within the position in
which the child-restraint system can be installed.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 72 of 609
2–52
Essential Safety Equipment
SRS Air Bags
Constant Monitoring
The following components of the air bag systems and the active bonnet are monitored by a
diagnostic system:
Crash sensors, and diagnostic module (SAS unit)
Front air bag sensors
Air bag modules
Side crash sensors
Air bag/Seat belt pretensioner system warning light
Seat belt pretensioners
Related wiring
(With Passenger Occupant Classi ¿ cation System)
Passenger air bag deactivation indicator light
Passenger occupant classi ¿ cation sensor
Passenger occupant classi ¿ cation module
(With Active Bonnet)
Active bonnet sensors
Active bonnet modules
Active bonnet warning light
The diagnostic module continuously monitors the system's readiness. This begins when the
ignition is switched ON and continues while the vehicle is being driven.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 73 of 609
2–53
Essential Safety Equipment
Active Bonnet
*Some models.
Active Bonnet precautions *
In the unlikely event that the vehicle were to hit a pedestrian and a certain amount of impact
is applied to the front of the vehicle, impact to the head of the pedestrian if it were to hit the
bonnet is lessened by the rear area of the bonnet raising instantly to maintain a wide space
between it and the parts in the engine compartment. If the sensor installed to the back of the
front bumper detects a certain amount of impact by a collision with a pedestrian or other
obstruction while the vehicle is being driven at a speed suf ¿ cient to activate the system, the
system is activated and the bonnet is raised.
Actuator
Actuator
SensorActive bonnet warning light
Electronic control unit
WARNING
If the active bonnet has activated, always consult an expert repairer, we recommend an
Authorised Mazda Repairer.
If the bonnet release handle is pulled after the active bonnet has activated, the bonnet
will rise even further. If the vehicle is driven with the bonnet raised it will obstruct
visibility and could result in an accident. In addition, do not attempt to push the bonnet
back down. Otherwise, it could deform the bonnet or cause injury because the activated
bonnet cannot be lowered manually. Before driving the vehicle to an expert repairer, we
recommend an Authorised Mazda Repairer after the active bonnet has activated, make
sure that the raised bonnet does not obstruct vision and drive the vehicle at a low speed.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 74 of 609
2–54
Essential Safety Equipment
Active Bonnet
CAUTION
Do not touch the actuator directly after the active bonnet has activated. Otherwise, it could
result in a burn as the actuator is hot directly after the activation.
Operation and Handling
Always make sure that the bonnet is closed completely before driving. Otherwise, the
system may not operate normally.
The system may not operate for about 8 seconds after the ignition is switched ON.
Use tyres of the same speci ¿ ed size on all four wheels. If tyres with different sizes are
used, the system may not operate normally.
If something hits the area around the front bumper, the sensor could be damaged even if
the active bonnet does not activate. Always consult an expert repairer, we recommend an
Authorised Mazda Repairer to have the vehicle inspected.
Do not remove or repair parts or wiring for the active bonnet. In addition, do not test
the system’s circuitry using an electric tester. Otherwise, the active bonnet may activate
mistakenly or not operate normally. Consult an expert repairer, we recommend an
Authorised Mazda Repairer for when repairs or replacement servicing is required.
Do not replace the front bumper, bonnet, suspension, aero parts, or wheels with non-
genuine Mazda parts. Otherwise, the system may not operate normally.
Do not install non-genuine Mazda accessories to the front bumper. In addition, do not
install objects on the bonnet. Otherwise, the system may not operate normally.
Do not close the bonnet excessively or apply a load to the actuator. Otherwise, the
actuator could be damaged and cause the system to not operate normally.
Do not modify the suspension. If the vehicle height or the damping force of the
suspensions is changed, the system may not operate normally.
When equipping parts, consult an expert repairer, we recommend an Authorised Mazda
Repairer. If parts are installed incorrectly, the active bonnet may not activate normally due
to the inability to detect an impact.
When disposing of the vehicle, consult an expert repairer, we recommend an Authorised
Mazda Repairer. If the vehicle is not handled correctly, it could result in injury.
The active bonnet cannot be reused if it has been activated. Have the system replaced at
an expert repairer, we recommend an Authorised Mazda Repairer.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 83 of 609
3–7
Before Driving
Keys
*Some models.

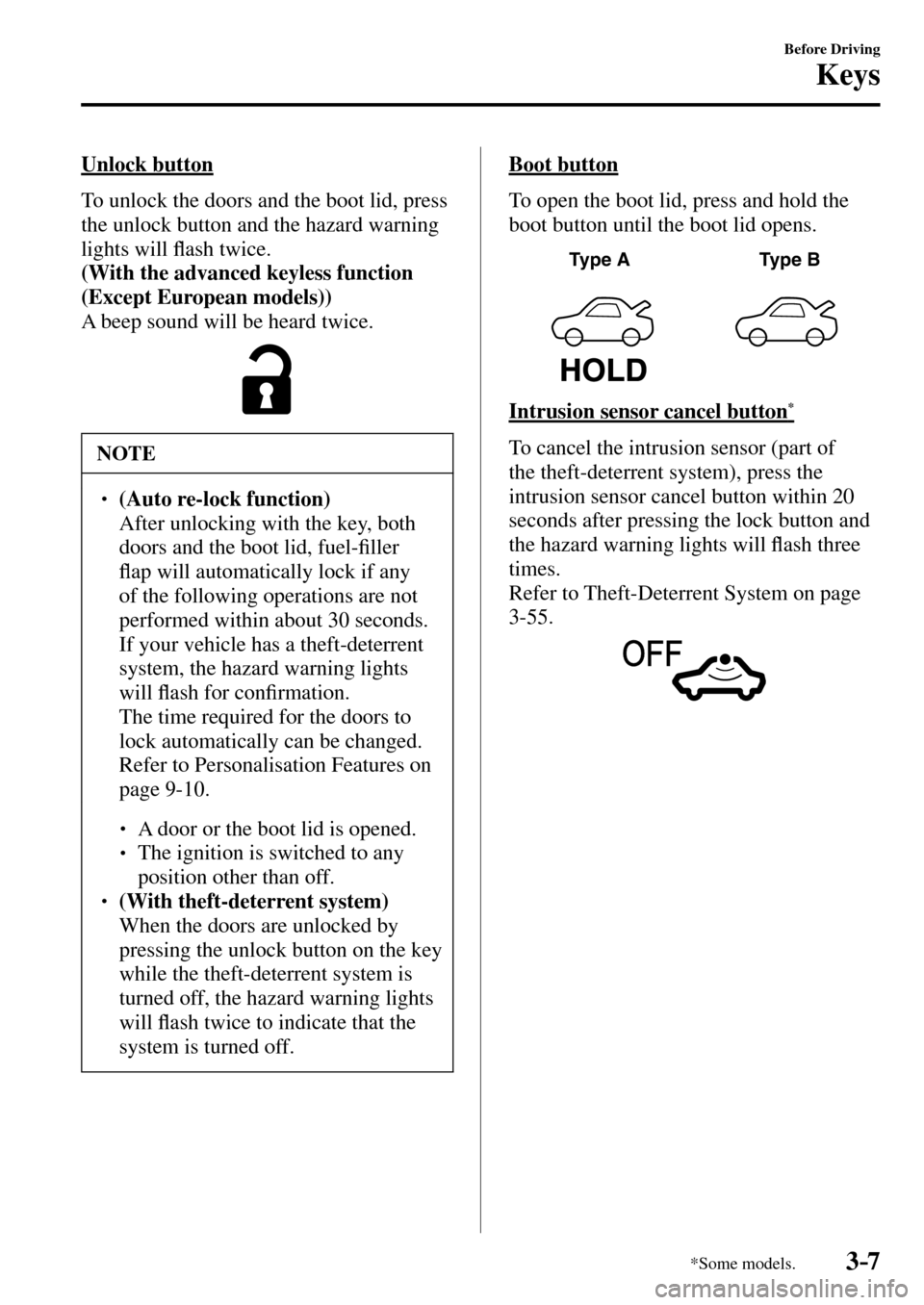

Unlock button
To unlock the doors and the boot lid, press
the unlock button and the hazard warning
lights will À ash twice.
(With the advanced keyless function
(Except European models))
A beep sound will be heard twice.
NOTE
(Auto re-lock function) After unlocking with the key, both
doors and the boot lid, fuel- ¿ ller
À ap will automatically lock if any
of the following operations are not
performed within about 30 seconds.
If your vehicle has a theft-deterrent
system, the hazard warning lights
will À ash for con ¿ rmation.
The time required for the doors to
lock automatically can be changed.
Refer to Personalisation Features on
page 9-10 .
A door or the boot lid is opened.
The ignition is switched to any
position other than off.
(With theft-deterrent system) When the doors are unlocked by
pressing the unlock button on the key
while the theft-deterrent system is
turned off, the hazard warning lights
will À ash twice to indicate that the
system is turned off.
Boot button
To open the boot lid, press and hold the
boot button until the boot lid opens.
Type A Type B
Intrusion sensor cancel button *
To cancel the intrusion sensor (part of
the theft-deterrent system), press the
intrusion sensor cancel button within 20
seconds after pressing the lock button and
the hazard warning lights will À ash three
times.
Refer to Theft-Deterrent System on page
3-55 .
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 100 of 609
3–24
Before Driving
Fuel and Emission
Fuel and Engine Exhaust Precautions
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
The vehicle will perform best with fuel listed in the table.
Fuel Research Octane
Number Country
Premium unleaded fuel
(Conforming to EN 228
and within E10)
*1 95 or above New Caledonia, Turkey, Canary Islands, Reunion,
Morocco, Austria, Greece, Italy, Switzerland, Belgium,
Denmark, Finland, Norway, Portugal, Spain, Sweden,
Hungary, Germany, Poland, Bulgaria, Croatia, Slovenia,
Luxembourg, Slovakia, Latvia, Lithuania, France, Czech,
Estonia, Romania, The Netherlands, Macedonia, Bosnia and
Herzegovina, Serbia, Montenegro, Guadeloupe, Martinique,
Singapore, Hong Kong, Malaysia, Thailand, Brunei, Macau,
Sri Lanka, South Africa, Jamaica, Surinam, Trinidad and
Tobago, Commonwealth of Dominica, Myanmar, Taiwan,
The Philippines, Cambodia, Laos, Tahiti, Kuwait, Oman,
Qatar, Saudi Arabia, UAE, Bahrain, Lebanon, Israel,
Tunisia, Egypt, Chile, El Salvador, Guatemala, Costa Rica,
Ecuador, Bolivia, Colombia, Dominican Republic (LHD),
Panama, Uruguay, Honduras, Peru, Cyprus, Malta, Ireland,
UK
Regular unleaded fuel 90 or above Fiji
*1 Europe
Fuel with a lower rating will negatively affect the emission control system performance and
could also cause engine knocking and serious engine damage.
CAUTION
USE ONLY UNLEADED FUEL. Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead to
deterioration of the emission control system and or failures.
The use of E10 fuel with 10 % ethanol in Europe is safe for your vehicle. Damage to
your vehicle may occur when ethanol exceeds this recommendation.
Never add fuel system additives, otherwise the emission control system could be
damaged. Consult an expert repairer, we recommend an Authorised Mazda Repairer
for details.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 109 of 609
3–33
Before Driving
Mirrors
NOTE
Do not use glass cleaner or suspend
objects on or around the light sensor.
Otherwise, light sensor sensitivity
will be affected and may not operate
normally.
Light sensor
The auto-dimming function is cancelled
when the ignition is switched ON and
the shift/selector lever is in reverse (R).
/ : A ( . ' ' , A ' F K V K Q P K P F D
