Page 274 of 609
4–132
When Driving
i-ACTIVSENSE
*Some models.
Radar Sensors (Rear) *
Your vehicle is equipped with radar sensors (rear). The following systems also use the radar
sensors (rear).
Blind Spot Monitoring system (BSM)
Rear Cross Traf ¿ c Alert (RCTA)
The radar sensors (rear) function by detecting the radio waves re À ected off a vehicle
approaching from the rear or an obstruction sent from the radar sensor.
Radar sensors (rear)
The radar sensors (rear) are installed inside the rear bumper, one each on the left and right
sides.
Always keep the surface of the rear bumper near the radar sensors (rear) clean so that the
radar sensors (rear) operate normally. Also, do not apply items such as stickers.
Refer to Exterior Care on page 6-53 .
CAUTION
If the rear bumper receives a severe impact, the system may no longer operate normally.
Stop the system immediately and have the vehicle inspected at an expert repairer, we
recommend an Authorised Mazda Repairer.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 275 of 609

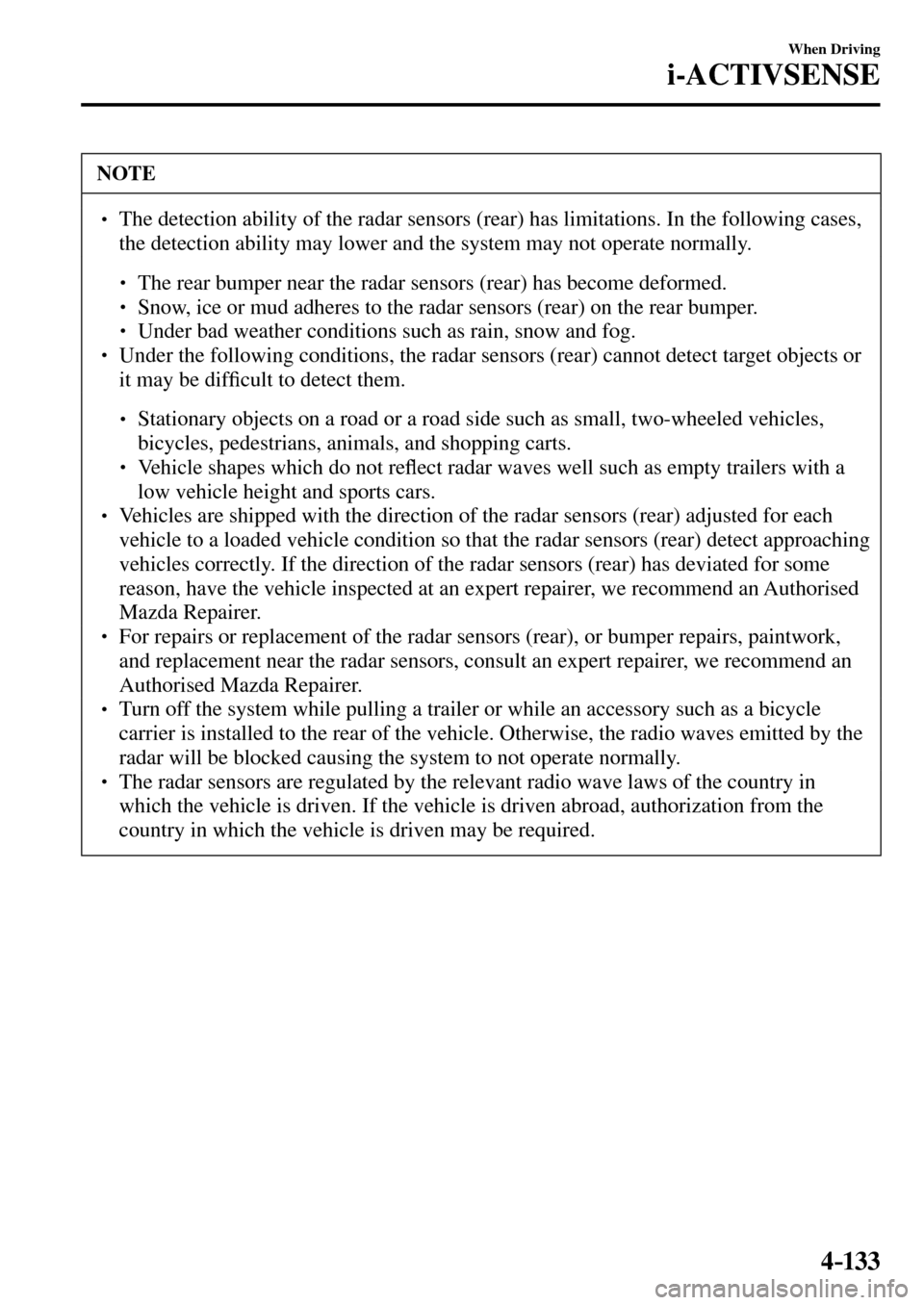

4–133
When Driving
i-ACTIVSENSE
NOTE
The detection ability of the radar sensors (rear) has limitations. In the following cases,
the detection ability may lower and the system may not operate normally.
The rear bumper near the radar sensors (rear) has become deformed.
Snow, ice or mud adheres to the radar sensors (rear) on the rear bumper.
Under bad weather conditions such as rain, snow and fog.
Under the following conditions, the radar sensors (rear) cannot detect target objects or
it may be dif ¿ cult to detect them.
Stationary objects on a road or a road side such as small, two-wheeled vehicles,
bicycles, pedestrians, animals, and shopping carts.
Vehicle shapes which do not re À ect radar waves well such as empty trailers with a
low vehicle height and sports cars.
Vehicles are shipped with the direction of the radar sensors (rear) adjusted for each
vehicle to a loaded vehicle condition so that the radar sensors (rear) detect approaching
vehicles correctly. If the direction of the radar sensors (rear) has deviated for some
reason, have the vehicle inspected at an expert repairer, we recommend an Authorised
Mazda Repairer.
For repairs or replacement of the radar sensors (rear), or bumper repairs, paintwork,
and replacement near the radar sensors, consult an expert repairer, we recommend an
Authorised Mazda Repairer.
Turn off the system while pulling a trailer or while an accessory such as a bicycle
carrier is installed to the rear of the vehicle. Otherwise, the radio waves emitted by the
radar will be blocked causing the system to not operate normally.
The radar sensors are regulated by the relevant radio wave laws of the country in
which the vehicle is driven. If the vehicle is driven abroad, authorization from the
country in which the vehicle is driven may be required.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 282 of 609
4–14 0
When Driving
Tyre Pressure Monitoring System
*Some models.
Tyre Pressure Monitoring System (Vehicle with
Conventional Tyres)
*
The Tyre Pressure Monitoring System (TPMS) monitors the air pressure of all four tyres. If
the air pressure of one or more tyres is too low, the system warns the driver by indicating the
tyre pressure monitoring system warning light in the instrument cluster and operating a beep
sound. The system monitors the tyre pressures indirectly using the data sent from the ABS
wheel speed sensors.
To allow the system to operate correctly, the system needs to be initialized with the speci ¿ ed
tyre pressure (value on the tyre pressure label). Follow the procedure and perform the
initialization.
Refer to Tyre Pressure Monitoring System Initialization on page 4-143 .
The warning light À ashes when the system has a malfunction.
Refer to Warning Indication/Warning Lights on page 4-42 .
ABS wheel speed sensor
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 286 of 609
4–14 4
When Driving
Tyre Pressure Monitoring System
*Some models.
Tyre Pressure Monitoring System (Vehicle with Run- À at
Ty r e s )
*
The Tyre Pressure Monitoring System (TPMS) monitors the pressure for each tyre.
If tyre pressure is too low in one or more tyres, the system will inform the driver via the
warning light in the instrument cluster and by the warning beep sound.
Refer to Warning Indication/Warning Lights on page 4-42 .
Refer to Tyre In À ation Pressure Warning Beep on page 7-53 .
The tyre pressure sensors installed on each wheel send tyre pressure data by radio signal to
the receiver unit in the vehicle.
Tyre pressure sensors
NOTE
When the ambient temperature is low due to seasonal changes, tyre temperatures are also
lower. When the tyre temperature decreases, the air pressure decreases as well. The TPMS
warning light may illuminate more frequently. Visually inspect the tyres daily before
driving, and check tyre pressures monthly with a tyre pressure gauge. When checking tyre
pressures, use of a digital tyre pressure gauge is recommended.
TPMS does not alleviate your need to check the pressure and condition of all four tyres
regularly.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 288 of 609
4–14 6
When Driving
Tyre Pressure Monitoring System
System Error Activation
When the TPMS warning light À ashes,
there may be a system malfunction.
Consult an Authorised Mazda Dealer.
A system error activation may occur in the
following cases:
When there is equipment or a device
near the vehicle using the same radio
frequency as that of the tyre pressure
sensors.
When a metallic device such as a non-
genuine navigation system is equipped
near the centre of the instrument panel,
which may block radio signals from the
tyre pressure sensor to the receiver unit.
When using the following devices in the
vehicle that may cause radio interference
with the receiver unit.
A digital device such as a personal
computer.
A current converter device such as a
DC-AC converter.
When excess snow or ice adheres to the
vehicle, especially around the wheels.
When the tyre pressure sensor batteries
are exhausted.
When using a wheel with no tyre
pressure sensor installed.
When using tyres with steel wire
reinforcement in the side walls.
When using tyre chains.
Tyres and Wheels
CAUTION
When inspecting or adjusting the tyre air
pressures, do not apply excessive force
to the stem part of the wheel unit. The
stem part could be damaged.
Changing tyres and wheels
The following procedure allows the TPMS
to recognise a tyre pressure sensor's
unique ID signal code whenever tyres or
wheels are changed, such as changing to
and from winter tyres.
NOTE
Each tyre pressure sensor has a unique
ID signal code. The signal code must be
registered with the TPMS before it can
work. The easiest way to do it is to have
an Authorised Mazda Dealer change
your tyre and complete ID signal code
registration.
When having tyres changed at an
Authorised Mazda Dealer
When an Authorised Mazda Dealer
changes your vehicle's tyres, they will
complete the tyre pressure sensor ID signal
code registration.
When changing tyres yourself
If you or someone else changes tyres, you
or someone else can also undertake the
steps for the TPMS to complete the ID
signal code registration.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 289 of 609
4–147
When Driving
Tyre Pressure Monitoring System
1. After tyres have been changed, switch
the ignition ON, then back to ACC or
OFF.
2. Wait for about 15 minutes.
3. After about 15 minutes, drive the
vehicle at a speed of at least 25 km/h
(16 mph) for 10 minutes and the tyre
pressure sensor ID signal code will be
registered automatically.
NOTE
If the vehicle is driven within about
15 minutes of changing tyres, the tyre
pressure monitoring system warning
light will À ash because the sensor
ID signal code would not have been
registered. If this happens, park the
vehicle for about 15 minutes, after
which the sensor ID signal code will
register upon driving the vehicle for 10
minutes.
Replacing tyres and wheels
CAUTION
When replacing/repairing the tyres or
wheels or both, have the work done
by an Authorised Mazda Dealer, or
the tyre pressure sensors may be
damaged.
The wheels equipped on your Mazda
are specially designed for installation
of the tyre pressure sensors. Do not
use non-genuine wheels, otherwise it
may not be possible to install the tyre
pressure sensors. Be sure to have the tyre pressure sensors
installed whenever tyres or wheels are
replaced.
When having a tyre or wheel or both
replaced, the following types of tyre
pressure sensor installations are possible.
The tyre pressure sensor is removed
from the old wheel and installed to the
new one.
The same tyre pressure sensor is used
with the same wheel. Only the tyre is
replaced.
A new tyre pressure sensor is installed to
a new wheel.
NOTE
The tyre pressure sensor ID signal
code must be registered when a new
tyre pressure sensor is purchased. For
purchase of a tyre pressure sensor
and registration of the tyre pressure
sensor ID signal code, consult an
Authorised Mazda Dealer.
When reinstalling a previously
removed tyre pressure sensor to a
wheel, replace the grommet (seal
between valve body/sensor and
wheel) for the tyre pressure sensor.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 290 of 609
4–14 8
When Driving
Parking Sensor System
*Some models.
Parking Sensor System *
The parking sensor system uses ultrasonic sensors to detect obstructions around the vehicle
while parking the vehicle in a garage or during parallel parking when the shift lever (manual
transmission)/selector lever (automatic transmission) is in reverse (R). The system is
equipped with an assist device to notify the driver of the approximate distance from the
vehicle to the surrounding obstruction using a beep sound.
Rear corner sensorRear sensor
WARNING
Do not rely completely on the parking sensor system and be sure to con ¿ rm the safety
around your vehicle visually when driving.
This system can assist the driver in operating the vehicle in the backward directions
while parking. The detection ranges of the sensors are limited, therefore, driving the
vehicle while relying only on the system may cause an accident. Always con ¿ rm the
safety around your vehicle visually when driving.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 291 of 609
4–149
When Driving
Parking Sensor System
NOTE
Do not install any accessories within the detection ranges of the sensors. It may affect
the system operation.
Depending on the type of obstruction and the surrounding conditions, the detection
range of a sensor may narrow, or the sensors may not be able to detect obstructions.
The system may not operate normally under the following conditions:
Mud, ice, or snow is adhering to the sensor area (Returns to normal operation when
removed).
The sensor area is frozen (Returns to normal operation when the ice is thawed).
The sensor is covered by a hand.
The sensor is excessively shocked.
The vehicle is excessively tilted.
Under extremely hot or cold weather conditions.
The vehicle is driven on bumps, inclines, gravel, or grass covered roads.
Anything which generates ultrasound is near the vehicle, such as another vehicle's
horn, the engine sound of a motorcycle, the air brake sound of a large-sized vehicle,
or another vehicle's sensors.
The vehicle is driven in heavy rain or in road conditions causing water-splash.
A commercially-available wing pole or an aerial for a radio transmitter is installed to
the vehicle.
The vehicle is moving towards a tall or square curbstone.
An obstruction is too close to the sensor.
Obstructions under the bumper may not be detected. Obstructions that are lower than
the bumper or thin which may have been initially detected but are no longer detected
as the vehicle approaches more closely.
The following types of obstructions may not be detected:
Thin objects such as wire or rope
Things which absorb sonic waves easily such as cotton or snow
Angular shaped objects
Very tall objects, and those which are wide at the top
Small, short objects
Always have the system inspected at an expert repairer, we recommend an Authorised
Mazda Repairer if any shock is applied to the bumpers, even in a minor accident. If the
sensors are deviated, they cannot detect obstructions.
The system may have a malfunction if the beep does not operate. Consult an expert
repairer, we recommend an Authorised Mazda Repairer.
The beeper which indicates a system malfunction may not be heard if the ambient
temperature is extremely cold, or mud, ice, or snow adheres to the sensor area.
Remove any foreign material from the sensor area.
When installing a trailer hitch, consult an expert repairer, we recommend an
Authorised Mazda Repairer.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 292 of 609
4–150
When Driving
Parking Sensor System
Sensor Detection Range
The sensors detect obstructions within the following range.
Rear sensor detection range Rear corner sensor detection rangeB AA: About 50 cm (About 19 in)
B: About 150 cm (About 59.0 in)
Park Assist Sensor System Operation
When the ignition is switched ON and the shift lever (manual transmission)/selector lever
(automatic transmission) is shifted to the reverse (R), the beep sound activates and the
system is enabled for use.
Parking Sensor Warning Beep
The beeper sounds as follows while the system is operating.
Rear Sensor
Distance detection area Distance between vehicle and obstruction Beeper sound *1
Farthest distance Approx. 150 cm—60 cm (59.0—23.0 in) Slow intermittent sound
Far distance Approx. 60—45 cm (23—17 in)
Medium intermittent sound
Middle distance Approx. 45—35 cm (17—13 in)
Fast intermittent sound
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 293 of 609
4–151
When Driving
Parking Sensor System
Distance detection area Distance between vehicle and obstruction Beeper sound *1
Close distance Within approx. 35 cm (13 in) Continuous sound
*1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
Rear Corner Sensor
Distance detection area Distance between vehicle and obstruction Beeper sound *1
Far distance Approx. 50—38 cm (19—14 in) Medium intermittent sound
Middle distance Approx. 38—25 cm (14.0—9.8 in)
Fast intermittent sound
Close distance Within approx. 25 cm (9.8 in)
Continuous sound
*1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
NOTE
If an obstruction is detected in a zone for 6 seconds or more, the beep sound is stopped
(except for the close-distance zone). If the same obstruction is detected in another zone,
the corresponding beep sound is heard.
/ : A ( . ' ' , A ' F K V K Q P K P F D
