Page 131 of 609
3–55
Before Driving
Security System
*Some models.
Theft-Deterrent System *
If the theft-deterrent system detects an
inappropriate entry into the vehicle or
the intrusion sensor detects movement
in the vehicle which could result in the
vehicle (with the intrusion sensor) or its
contents being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the siren/horn and À ashing the
hazard warning lights.
The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
Intrusion sensor
*
The intrusion sensor uses ultrasonic waves
to detect movement inside the vehicle and
to raise an alert of an intrusion into the
vehicle.
The intrusion sensor detects certain kinds
of movement inside the vehicle, however,
it may also respond to phenomenon
outside the vehicle such as vibrations, loud
noise, wind, and air currents.
CAUTION
In order for the intrusion sensor to
operate appropriately, be aware of the
following:
Do not hang clothing or objects from
a head restraint.
Return the sunvisors to their original
positions.
Do not blind the intrusion sensor by
covering it or placing objects over it.
Do not allow the intrusion sensor to
get soiled or wipe it with a liquid.
Do not shock or cause an impact to
the intrusion sensor or the intrusion
sensor bezel.
Do not install seats that are not
Mazda genuine products.
To prevent obstruction of intrusion
sensor, do not place objects or cargo
near the intrusion sensor that are
higher than the head restraints.
Intrusion sensor and
intrusion sensor bezel
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 132 of 609
3–56
Before Driving
Security System
Operation
Siren/Horn triggering conditions
The siren/horn sounds intermittently and
the hazard warning lights À ash for about
30 seconds when the system is triggered
by any one of the following:
Unlocking a door with an inside door-
lock knob.
Forcing open a door, the bonnet or the
boot lid.
Opening the bonnet by operating the
bonnet release handle.
Switching the ignition ON without using
the push button start.
(With the intrusion sensor)
The intrusion sensor detects a movement
in the vehicle.
The system will be triggered again (up to
10 times) if one of the above conditions
remains.
(With the intrusion sensor)
Disconnecting the battery terminal (the
hazard warning lights do not À ash).
The system will be triggered about 10
times.
NOTE
The boot lid does not open while the
theft-deterrent system is operating.
If the battery goes dead while the
theft-deterrent system is armed,
the siren/horn will activate and the
hazard warning lights will À ash when
the battery is charged or replaced.
How to Arm the System
1. Close the windows and the convertible
top securely.
NOTE
(With the intrusion sensor)
The intrusion sensor function can be
armed only when the convertible top is
closed.
Even with a window open, the system
can be armed, however, leaving the
windows even partially open can invite
theft, and wind blowing into the vehicle
could trigger the alarm.
The intrusion sensor function can also
be cancelled.
Refer to Cancelling the Intrusion Sensor
(With Intrusion Sensor) on page 3-57 .
2. Switch the ignition OFF.
3. Make sure the bonnet, convertible top,
the doors, and the boot lid are closed.
4. Press the lock button on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will À ash
once.
(With the advanced keyless function)
Press a request switch.
The security indicator light in the
instrument cluster À ashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully
armed.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 133 of 609
3–57
Before Driving
Security System
NOTE
The theft-deterrent system can also
be armed by activating the auto
relock function with all the doors, the
boot lid and the bonnet closed.
Refer to Transmitter on page 3-5 . The system will disarm if one of
the following operations takes place
within 20 seconds after pressing the
lock button:
Unlocking any door.
Opening any door.
Opening the bonnet.
Switching the ignition ON.
To rearm the system, do the arming
procedure again.
When the doors are locked by
pressing the lock button on the
transmitter or using the auxiliary key
while the theft-deterrent system is
armed, the hazard warning lights will
À ash once to indicate that the system
is armed.
Cancelling the Intrusion Sensor
(With Intrusion Sensor)
If the theft deterrent system has been
armed while any of the following
conditions are present, cancel the intrusion
sensor to prevent the alarm from triggering
unnecessarily.
(Intrusion sensor)
Leaving the vehicle with a movable
object, passengers or pets remaining
inside.
Leaving an object inside the vehicle
that can roll around, such as when the
vehicle is placed on a tilting, unstable
surface when being shipped.
Hanging small objects/accessories in the
vehicle, or placing other items which
can move easily inside the vehicle.
Parking in an area where there is strong
vibration or loud noise.
When using a high pressure or automatic
car wash.
Continuous shock and vibration
from hail or thunder and lightning is
transmitted to the vehicle.
Doors are locked with a window left
open.
An accessory heater or device that
produces moving air and vibration
operates while the theft deterrent system
is armed.
NOTE
If any door or the boot lid remains
closed for 30 seconds, both doors and
the boot lid automatically re-lock and
the theft deterrent system arms even if
a window or the convertible top is left
open.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 134 of 609
3–58
Before Driving
Security System
To cancel the intrusion sensor, press
the intrusion sensor cancel button on
the transmitter within 20 seconds after
pressing the lock button.
The hazard warning lights will À ash three
times.
NOTE
To reactivate the intrusion sensor,
turn off the armed theft-deterrent
system and then rearm it.
The intrusion sensor is operational
when the theft-deterrent system
is armed. To cancel the intrusion
sensor, press the intrusion sensor
cancel button each time the theft-
deterrent system is armed.
To Turn Off an Armed System
An armed system can be turned off using
any one of the following methods:
Pressing the unlock button on the
transmitter.
Starting the engine with the push button
start.
(With the advanced keyless function)
Pressing a request switch on the doors.
The hazard warning lights will À ash twice.
NOTE
When the doors are unlocked by
pressing the unlock button on the
transmitter while the theft-deterrent
system is turned off, the hazard warning
lights will À ash twice to indicate that the
system is turned off.
To Stop the Alarm
A triggered alarm can be turned off using
any one of the following methods:
Pressing the unlock button on the
transmitter.
Starting the engine with the push button
start.
(With the advanced keyless function)
Pressing a request switch on the doors.
Pressing the electric boot lid opener
while the key is being carried.
The hazard warning lights will À ash twice.
Theft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the console box.
Mazda recommends that you af ¿ x it to the
lower rear corner of a front door window.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 144 of 609
4–2*Some models.
i-ACTIVSENSE............................... 4-100
i-ACTIVSENSE *........................ 4-100
Adaptive Front Lighting System
(AFS)
* ........................................ 4-102
High Beam Control System
(HBC)
*........................................ 4-103
Lane Departure Warning System
(LDWS)
* .................................... 4-106
Blind Spot Monitoring (BSM)
System
* ....................................... 4-112
Rear Cross Traf ¿ c Alert
(RCTA)
* ..................................... 4-119
Adjustable Speed Limiter * ......... 4-122
Forward Sensing Camera
(FSC)
* ......................................... 4-129
Radar Sensors (Rear) * ................ 4-132
Cruise Control ................................. 4-134
Cruise Control
* ........................... 4-134
Tyre Pressure Monitoring
System .............................................. 4-140
Tyre Pressure Monitoring System
(Vehicle with Conventional
Tyres)
* ........................................ 4-140
Tyre Pressure Monitoring System
(Vehicle with Run- À at Tyres)
* .... 4-144
Parking Sensor System ................... 4-148
Parking Sensor System
* ............. 4-148
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 189 of 609
4–47
When Driving
Instrument Cluster and Display
*Some models.
Signal Indicator Lights Page
(Green)
* Cruise Set Indication/Indicator Light 4-135
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
expert repairer, we recommend an Authorised Mazda Repairer.
Wrench Indication/Indicator
Lights*
Type A instrument cluster
Perform maintenance in accordance with
the message.
Type B instrument cluster
When the ignition is switched ON, the
wrench indicator light is illuminated and
then turns off after a few seconds.
The wrench indicator light is illuminated
when the preset maintenance period
arrives. Verify the content and perform
maintenance.
Refer to Maintenance Monitor on page
6-10 .
Low Engine Coolant Temperature
Indicator Light (Blue)
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been suf ¿ ciently warmed
up, the temperature sensor could have a
malfunction. Consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 191 of 609
4–49
When Driving
Transmission
NOTE
A natural driving posture can be
realized by lightly gripping the shift
lever from the side without having to
rest your elbow on the centre console
box.
If shifting to R is dif ¿ cult, shift back
into neutral, release the clutch pedal,
and try again.
(With i-stop function) If the engine has stopped due to
stalling, it can be restarted by
depressing the clutch pedal within 3
seconds of the engine stopping.
The engine cannot be restarted even
if the clutch pedal is depressed under
the following conditions:
The driver's door is open.
The driver's seat belt is unfastened.
The clutch pedal is not released
completely after the engine stalled.
The clutch pedal is depressed with
the engine not stopped completely.
NOTE
(With parking sensor system) When the shift lever is shifted to the
R position with the ignition switched
ON, the parking sensor system is
activated and a beep sound is heard.
Refer to Parking Sensor System on
page 4-148 .

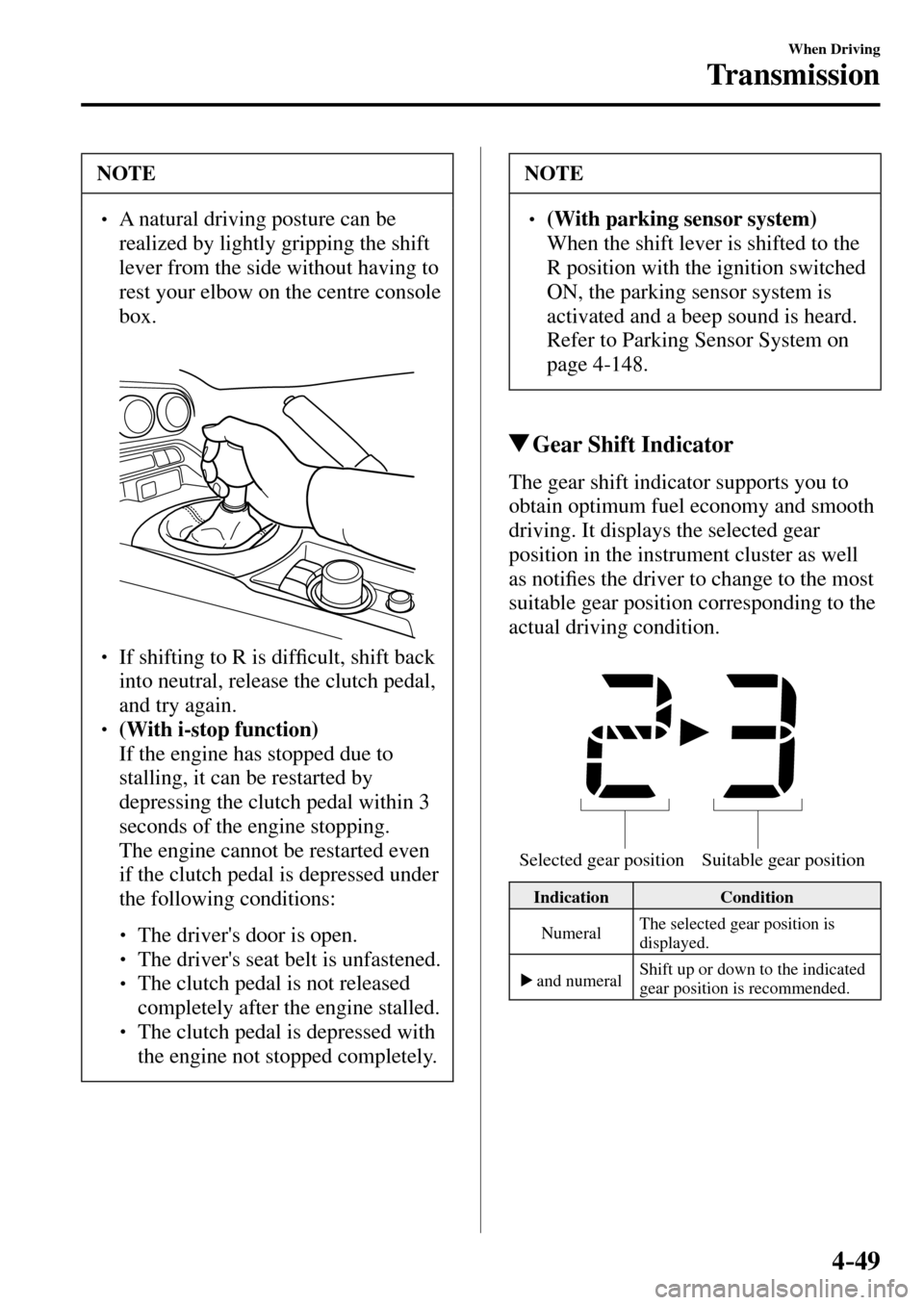

Gear Shift Indicator
The gear shift indicator supports you to
obtain optimum fuel economy and smooth
driving. It displays the selected gear
position in the instrument cluster as well
as noti ¿ es the driver to change to the most
suitable gear position corresponding to the
actual driving condition.
Selected gear position Suitable gear position
Indication Condition
Numeral The selected gear position is
displayed.
and numeral Shift up or down to the indicated
gear position is recommended.
/ : A ( . ' ' , A ' F K V K Q P K P F D

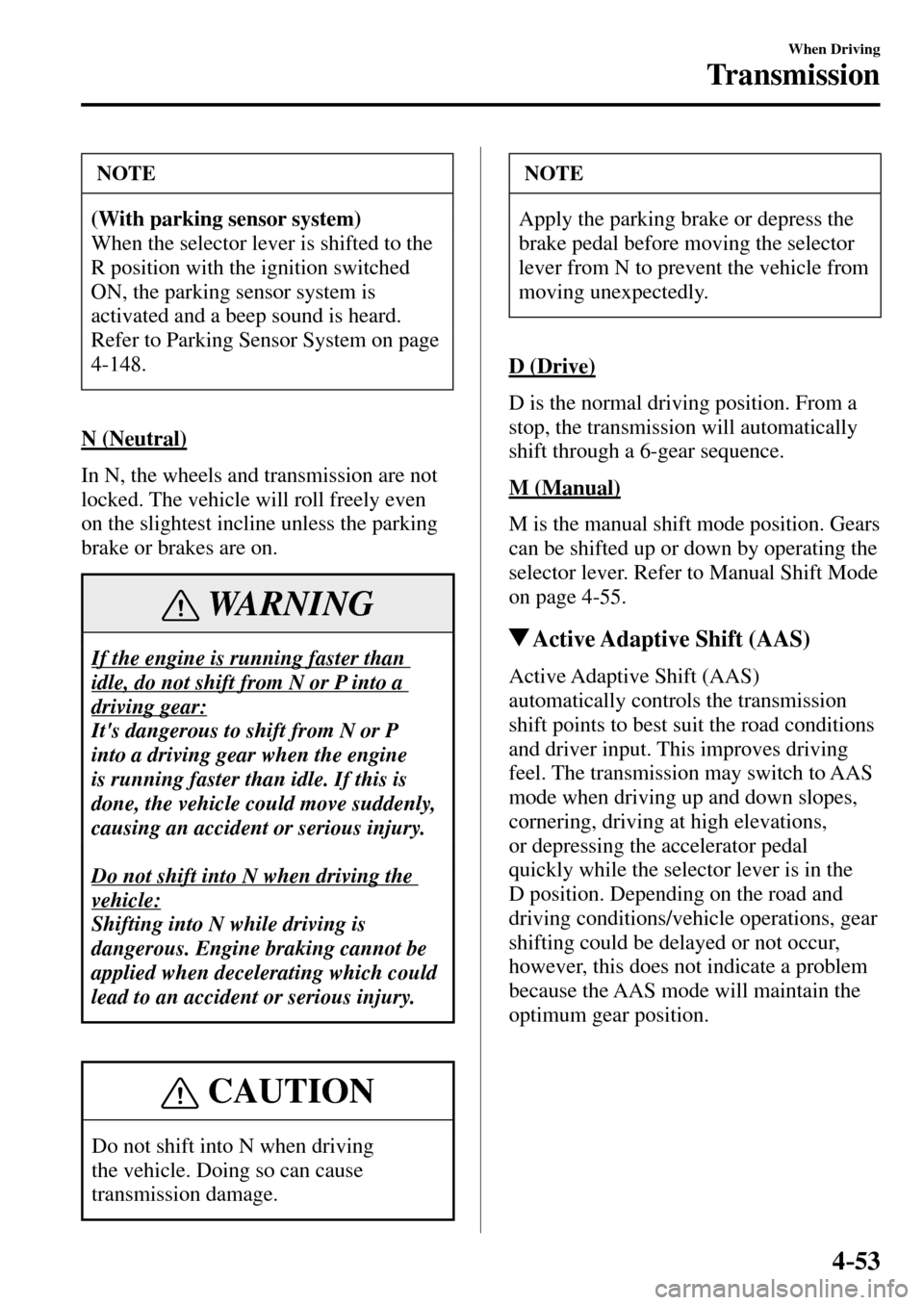

Page 195 of 609
4–53
When Driving
Transmission
NOTE
(With parking sensor system)
When the selector lever is shifted to the
R position with the ignition switched
ON, the parking sensor system is
activated and a beep sound is heard.
Refer to Parking Sensor System on page
4-148 .
N (Neutral)
In N, the wheels and transmission are not
locked. The vehicle will roll freely even
on the slightest incline unless the parking
brake or brakes are on.
WARNING
If the engine is running faster than
idle, do not shift from N or P into a
driving gear:
It's dangerous to shift from N or P
into a driving gear when the engine
is running faster than idle. If this is
done, the vehicle could move suddenly,
causing an accident or serious injury.
Do not shift into N when driving the
vehicle:
Shifting into N while driving is
dangerous. Engine braking cannot be
applied when decelerating which could
lead to an accident or serious injury.
CAUTION
Do not shift into N when driving
the vehicle. Doing so can cause
transmission damage.
NOTE
Apply the parking brake or depress the
brake pedal before moving the selector
lever from N to prevent the vehicle from
moving unexpectedly.
D (Drive)
D is the normal driving position. From a
stop, the transmission will automatically
shift through a 6-gear sequence.
M (Manual)
M is the manual shift mode position. Gears
can be shifted up or down by operating the
selector lever. Refer to Manual Shift Mode
on page 4-55 .
Active Adaptive Shift (AAS)
Active Adaptive Shift (AAS)
automatically controls the transmission
shift points to best suit the road conditions
and driver input. This improves driving
feel. The transmission may switch to AAS
mode when driving up and down slopes,
cornering, driving at high elevations,
or depressing the accelerator pedal
quickly while the selector lever is in the
D position. Depending on the road and
driving conditions/vehicle operations, gear
shifting could be delayed or not occur,
however, this does not indicate a problem
because the AAS mode will maintain the
optimum gear position.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 207 of 609
4–65
When Driving
Switches and Controls
With auto-light control
Switch Position
Ignition Position ON ACC
or OFF O N ACC
or OFF O N ACC
or OFF O N ACC
or OFF
Headlights Off Off Auto
*1 Off Off Off On Off
Running lights On *2 Off Auto *1 Off Off Off Off Off
Tail lights
Position lights
Number plate lights
Instrument panel illumination On
*3 Off Auto *1 On *4 /
Off *5 On On On On *6
*1 The headlight and other light settings switch automatically depending on the surrounding brightness detected by
the sensor.
*2 It turns on while driving the vehicle.
*3 When the running lights are turned on, the position lights, tail lights, and number plate lights turn on. The
instrument panel illumination does not turn on.
*4 While the lights are turned on, they will remain on even if the ignition is switched to a position other than ON .
If the driver’s door is opened or 30 s have elapsed with the lights turned on, the lights turn off.
*5 When the ignition is switched to a position other than ON , the lights will not turn on even if the light switch is
switched to
.
*6 If the driver’s door is opened or 30 s have elapsed with the lights turned on, the lights turn off.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 208 of 609
4–66
When Driving
Switches and Controls
Auto-light control
When the headlight switch is in the
position and the ignition is switched ON, the light
sensor senses the surrounding lightness or darkness and automatically turns the headlights,
other exterior lights and instrument panel illumination on or off (see chart above).
CAUTION
Do not shade the light sensor by adhering a sticker or a label on the windscreen.
Otherwise the light sensor will not operate correctly.
The light sensor also works as a rain sensor for the auto-wiper control. Keep hands and
scrapers clear of the windscreen when the wiper lever is in the
position and the
ignition is switched ON as ¿ ngers could be pinched or the wipers and wiper blades
damaged when the wipers activate automatically. If you are going to clean the
windscreen, be sure the wipers are turned off completely — this is particularly
important when clearing ice and snow — when it is particularly tempting to leave the
engine running.
/ : A ( . ' ' , A ' F K V K Q P K P F D
