Page 505 of 609
7–11
If Trouble Arises
Flat Tyre
WARNING
Do not adhere the speed restriction
sticker to the padded area on the
steering wheel:
Adhering the speed restriction sticker
to the padded area on the steering
wheel is dangerous because the air
bag may not operate (deploy) normally
resulting in serious injury. In addition,
do not adhere the sticker to areas where
warning lights or the speedometer
cannot be viewed.
16. Pull out the air compressor hose and
the air compressor plug from the air
compressor.
Compressor hose
17. Install the air compressor hose to the
tyre valve.
Valve
Compressor hose
18. Insert the air compressor plug into the
accessory socket inside the vehicle and
switch the ignition to ACC.
Refer to Accessory Sockets on page
5-125 .
Compressor
Compressor plug
CAUTION
When inserting the air compressor
plug into or removing it from the
accessory socket, make sure that the air
compressor switch is off. When turning
the air compressor on/off, use the air
compressor switch.
19. Turn the air compressor switch on and
in À ate the tyre carefully to the correct
in À ation pressure.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 507 of 609
7–13

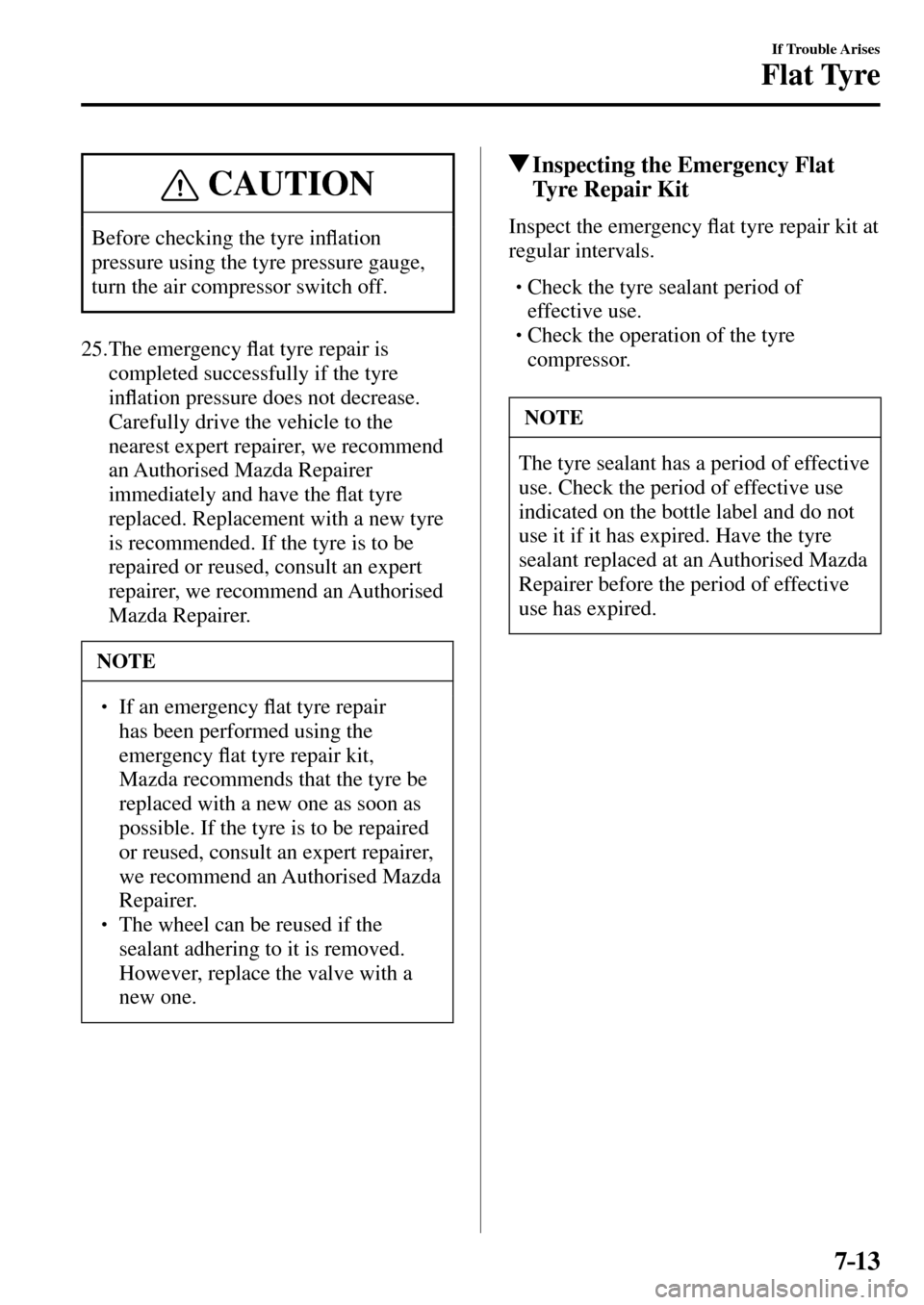

If Trouble Arises
Flat Tyre
CAUTION
Before checking the tyre in À ation
pressure using the tyre pressure gauge,
turn the air compressor switch off.
25. The emergency À at tyre repair is
completed successfully if the tyre
in À ation pressure does not decrease.
Carefully drive the vehicle to the
nearest expert repairer, we recommend
an Authorised Mazda Repairer
immediately and have the À at tyre
replaced. Replacement with a new tyre
is recommended. If the tyre is to be
repaired or reused, consult an expert
repairer, we recommend an Authorised
Mazda Repairer.
NOTE
If an emergency À at tyre repair
has been performed using the
emergency À at tyre repair kit,
Mazda recommends that the tyre be
replaced with a new one as soon as
possible. If the tyre is to be repaired
or reused, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
The wheel can be reused if the
sealant adhering to it is removed.
However, replace the valve with a
new one.
Inspecting the Emergency Flat
Tyre Repair Kit
Inspect the emergency À at tyre repair kit at
regular intervals.
Check the tyre sealant period of
effective use.
Check the operation of the tyre
compressor.
NOTE
The tyre sealant has a period of effective
use. Check the period of effective use
indicated on the bottle label and do not
use it if it has expired. Have the tyre
sealant replaced at an Authorised Mazda
Repairer before the period of effective
use has expired.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 508 of 609
7–14
If Trouble Arises
Flat Tyre
Changing a Tyre
WARNING
Be sure to follow the directions for
changing a tyre:
Changing a tyre is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
No person should place any portion
of their body under a vehicle that is
supported by a jack.
Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in
a vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
NOTE
Make sure the jack is well lubricated
before using it.
1. Park on a hard, level surface off the
right-of-way and ¿ rmly set the parking
brake.
2. Put a vehicle with an automatic
transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning À asher.
4. Have everyone get out of the vehicle
and away from the vehicle and traf ¿ c.
5. Remove the jack and tool (page
7-5 ). 6. Block the wheel diagonally opposite
the tyre to be changed. When blocking
a wheel, place a tyre block both in front
and behind the tyre.
NOTE
When blocking a tyre, use rocks or
wood blocks of suf ¿ cient size if possible
to hold the tyre in place.
Removing a Tyre
1. Loosen the wheel nuts by turning them
anticlockwise one turn each, but do not
remove any wheel nuts until the tyre
has been raised off the ground.
2. Place the jack on the ground.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 510 of 609
7–16
If Trouble Arises
Flat Tyre
WARNING
Use only the front and rear jacking
positions recommended in this manual:
Attempting to jack the vehicle
in positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended in
this manual.
Do not jack up the vehicle in a position
other than the designated jack-up
position or place any objects on or
under the jack:
Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or
under the jack is dangerous as it could
deform the vehicle body or the vehicle
could fall off the jack resulting in an
accident.
Use only the jack provided with your
Mazda:
Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.
Never place objects under the jack:
Jacking the vehicle with an object
under the jack is dangerous. The
jack could slip and someone could be
seriously injured by the jack or the
falling vehicle. 6. Insert the jack lever and attach the
wheel brace to tyre jack.
7. Turn the jack handle clockwise and
raise the vehicle high enough so that
the tyre is raised off the ground and
can be removed. Before removing the
wheel nuts, make sure your Mazda is
¿ rmly in position and that it cannot slip
or move.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 511 of 609
7–17
If Trouble Arises
Flat Tyre
WARNING
Do not jack up the vehicle higher than
is necessary:
Jacking up the vehicle higher than
is necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.
Do not start the engine or shake the
vehicle while it is jacked up:
Starting the engine or shaking
the vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.
Never go under the vehicle while it is
jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if the
vehicle were to fall off the jack.
8. Remove the wheel nuts by turning
them anticlockwise; then remove the
wheel.
Mounting the Tyre
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Make sure the mounting surfaces of
the wheel, hub and wheel nuts are
clean before changing or replacing
tyres:
When changing or replacing a tyre,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The wheel
nuts could loosen while driving and
cause the tyre to come off, resulting in
an accident.
2. Mount the tyre.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 512 of 609
7–18
If Trouble Arises
Flat Tyre
3. Install the wheel nuts with the bevelled
edge inward; tighten them by hand.
WARNING
Do not apply oil or grease to wheel
nuts and bolts and do not tighten the
wheel nuts beyond the recommended
tightening torque:
Applying oil or grease to wheel nuts
and bolts is dangerous. The wheel nuts
could loosen while driving and cause
the tyre to come off, resulting in an
accident. In addition, wheel nuts and
bolts could be damaged if tightened
more than necessary. 4. Turn the wheel brace anticlockwise and
lower the vehicle. Use the wheel brace
to tighten the nuts in the order shown.
If you are unsure of how tight the nuts
should be, have them inspected at an
expert repairer, we recommend an
Authorised Mazda Repairer.
Nut tightening torque
N·m (kgf·m, ft·lbf) 108—147 (12—14, 80—108)
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 513 of 609
7–19
If Trouble Arises
Flat Tyre
WARNING
Always securely and correctly tighten
the wheel nuts:
Improperly or loosely tightened wheel
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same con ¿ guration:
Because the wheel studs and wheel
nuts on your Mazda have metric
threads, using a non-metric nut is
dangerous. On a metric stud, it would
not secure the wheel and would
damage the stud, which could cause the
wheel to slip off and cause an accident.
5. Remove the tyre blocks and store the
tools and jack.
6. Check the in À ation pressure. Refer to
Tyres on page 9-8 .
NOTE
(With tyre pressure monitoring
system)
Do not press the tyre pressure
monitoring system set switch after
installing the spare tyre. The switch
is only to be pressed after installing
the repaired À at tyre or installing a
replacement tyre (page 4-42 ).
WARNING
Do not drive with any tyres that have
incorrect air pressure:
Driving on tyres with incorrect air
pressure is dangerous. Tyres with
incorrect pressure could affect
handling and result in an accident.
When you check the regular tyres' air
pressure, check the spare tyre, too.
NOTE
To prevent the jack and tool from
rattling, store them properly.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 521 of 609
7–27
If Trouble Arises
Emergency Towing
Towing Description
We recommend that towing be done only
by an expert repairer, we recommend
an Authorised Mazda Repairer or a
commercial tow-truck service.
Proper lifting and towing are necessary
to prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
drive wheels (rear wheels) off the ground.
If excessive damage or other conditions
prevent this, use wheel dollies.
Wheel dollies
When towing with the rear wheels on the
ground, release the parking brake.
CAUTION
Do not tow the vehicle pointed
backward with driving wheels on
the ground. This may cause internal
damage to the transmission.
Do not tow with sling-type
equipment. This could damage your
vehicle. Use wheel-lift or À atbed
equipment.
If towing service is not available in an
emergency, the vehicle may be towed with
all four wheels on the ground using the
towing hook at the front of the vehicle.
Only tow the vehicle on paved surfaces for
short distances at low speeds.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 522 of 609
7–28
If Trouble Arises
Emergency Towing
CAUTION
Follow these instructions when towing
the vehicle with all wheels on the
ground.
Shift to neutral (Manual
transmission), or the N position
(Automatic transmission).
Switch the ignition to ACC.
Release the parking brake.
Remember that power assist for the
brakes and steering will not be available
when the engine is not running.
Towing Hooks
CAUTION
The towing eyelet should be used
in an emergency (to get the vehicle
out of a ditch or a snow bank, for
example).
When using the towing eyelets,
always pull the lead or chain in a
straight direction with respect to the
eyelet. Never apply a sideways force.
NOTE
When towing with chain or lead, wrap
the chain or lead with a soft cloth near
the bumper to prevent damage to the
bumper.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 523 of 609
7–29
If Trouble Arises
Emergency Towing
Towing Hooks
1. Remove the towing eyelet and
the wheel brace from the luggage
compartment (page 7-5 ).
2. Wrap a À athead screwdriver or similar
tool with a soft cloth to prevent damage
to a painted bumper, and open the cap
located on the front or rear bumper.
Front
Rear
CAUTION
Do not use excessive force as it may
damage the cap or scratch the painted
bumper surface.
NOTE
Remove the cap completely and store it
so as not to lose it.
3. Securely install the towing eyelet using
the wheel brace or equivalent.
Consult an Authorised Mazda Repairer.
Front
Wheel brace
Towing eyelet
Rear
Wheel brace
Towing eyelet
4. Hook the towing rope to the towing
eyelet.
/ : A ( . ' ' , A ' F K V K Q P K P F D
