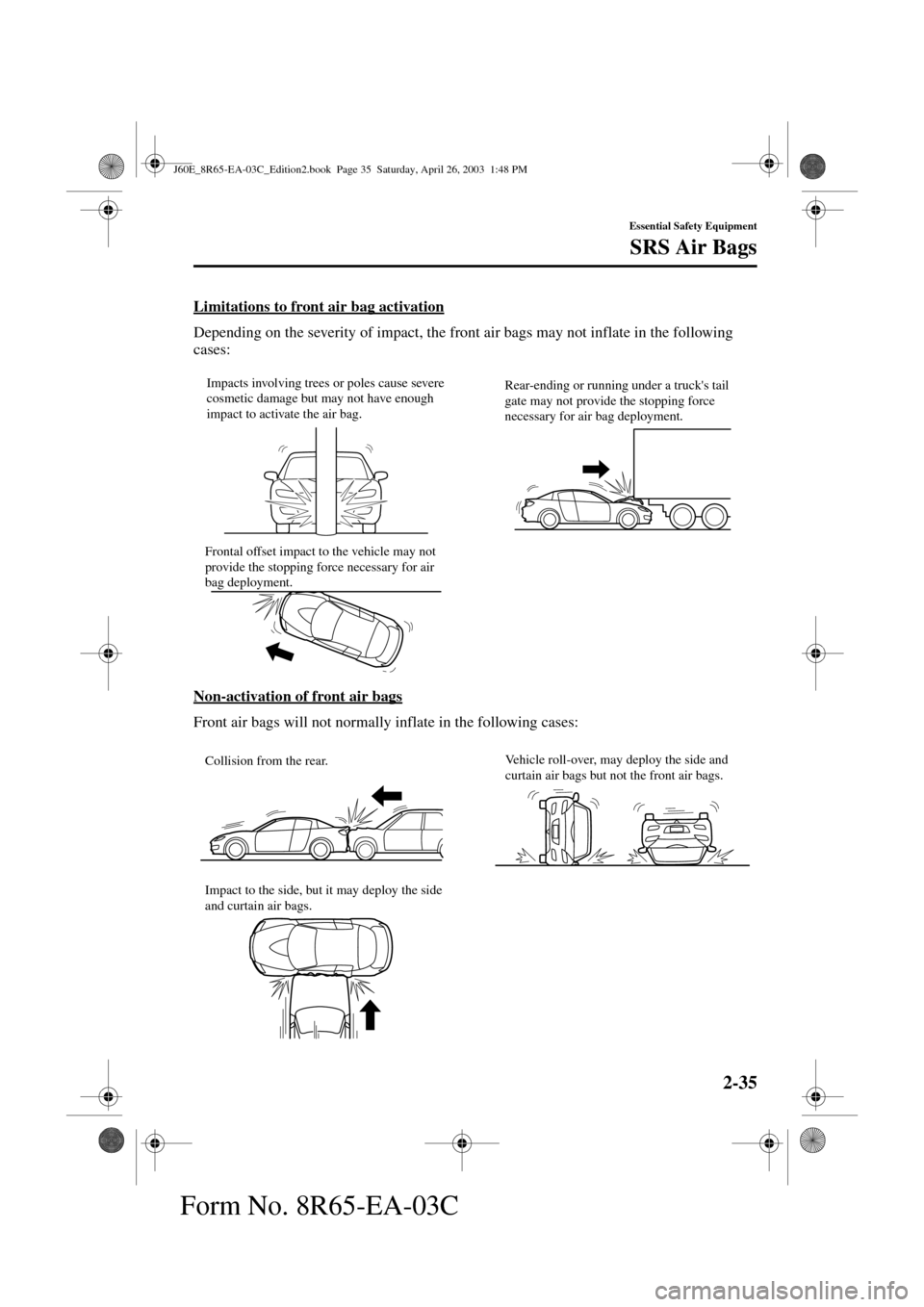

2-35
Essential Safety Equipment
SRS Air Bags
Form No. 8R65-EA-03C
Limitations to front air bag activation
Depending on the severity of impact, the front air bags may not inflate in the following
cases:
Non-activation of front air bags
Front air bags will not normally inflate in the following cases:
Impacts involving trees or poles cause severe
cosmetic damage but may not have enough
impact to activate the air bag.Rear-ending or running under a truck's tail
gate may not provide the stopping force
necessary for air bag deployment.
Frontal offset impact to the vehicle may not
provide the stopping force necessary for air
bag deployment.
Collision from the rear.
Impact to the side, but it may deploy the side
and curtain air bags.Vehicle roll-over, may deploy the side and
curtain air bags but not the front air bags.
J60E_8R65-EA-03C_Edition2.book Page 35 Saturday, April 26, 2003 1:48 PM

4-7
Before Driving Your Mazda
Form No. 8R65-EA-03C
Driving Tips
No special break-in is necessary, but a
few precautions in the first 1,000 km
(600 miles) may add to the performance,
economy, and life of your Mazda.
•Don’t race the engine.
•Don’t maintain one constant speed for
long.
•Don’t drive constantly at full-throttle or
high engine rpm (over 7,000 rpm) for
extended periods of time.
•Avoid unnecessary hard stops.
•Avoid full-throttle starts.How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
•Avoid long warm-ups. Once the engine
runs smoothly, begin driving.
•Avoid fast starts.
•Keep the engine tuned. Follow the
maintenance schedule (page 8-3) and
have an Authorized Mazda Dealer
perform inspections and servicing.
•Use the air conditioner only when
necessary.
•Slow down on rough roads.
•Keep the tires properly inflated.
•Don’t carry unnecessary weight.
•Don’t rest your foot on the brake pedal
while driving.
•Keep the wheels in correct alignment.
•Keep windows closed at high speeds.
•Slow down when driving in crosswinds
and headwinds.
Break-In PeriodMoney-Saving Suggestions
Coasting:
Stopping the engine when going down
a hill is dangerous. This causes the
loss of power steering and power
brake control, and may cause damage
to the drivetrain. Any loss of steering
or braking control could cause an
accident. Never stop the engine when
going down a hill.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 7 Saturday, April 26, 2003 1:48 PM

7-5
In Case of an Emergency
Flat Tire
Form No. 8R65-EA-03C
The IMS emergency flat tire repair kit
included with your Mazda is for a
temporary repair of a slightly damaged
flat tire resulting from running over nails
or similar sharp objects on the road
surface. To avoid damage to the temporary
spare or to the vehicle, observe the
following precautions:
•Don’t exceed 80 km/h (50 mph).
•Avoid driving over obstacles.
Also, don’t drive through an
automatic car wash. This tire’s
diameter is smaller than a
conventional tire’s, so the ground
clearance is reduced about 25 mm
(1 in).
•Don’t use a tire chain on this tire
because it won’t fit properly.
•Don’t use your temporary spare on
any other vehicle; it has been
designed only for your Mazda.
•Use only one temporary spare tire
on your vehicle at the same time.
(With limited slip differential)

When using the temporary spare tire
on the rear axle, replace it with a
standard tire as soon as possible. The
size difference between the spare and
the standard tire will cause the limited
slip differential to malfunction.
NOTE
(With Tire Pressure Monitoring
System)

A tire pressure sensor is not installed
to the temporary spare tire. The
warning light will flash continuously
while the temporary spare tire is being
used (page 5-25).
CAUTIONInstant Mobility System
(IMS) Emergency Flat Tire
Repair Kit
NOTE
Your vehicle is not equipped with a
spare tire. In the event of a flat tire, use
the emergency flat tire repair kit to
repair the tire temporarily. When doing
the repair, refer to the instructions
included in the emergency flat tire
repair kit. After temporarily repairing a
tire with the emergency flat tire repair
kit, take your vehicle to an Authorized
Mazda Dealer to have the tire replaced.
J60E_8R65-EA-03C_Edition2.book Page 5 Saturday, April 26, 2003 1:48 PM

7-11
In Case of an Emergency
Flat Tire
Form No. 8R65-EA-03C
17. When the tire has been inflated to the
proper inflation pressure, turn the
compressor switch off and remove the
compressor hose from the tire valve.
18. Install the tire valve cap.
19. Put the emergency flat tire repair kit
in the trunk and continue driving.20. After driving the vehicle for 10 minutes
or 5 km (3 miles), check the tire
pressure with the tire pressure gauge
equipped with the compressor. If the
tire pressure has fallen below the
correct tire pressure, inflate the tire to
the correct pressure again following the
steps from number 15.
NOTE
•Check the tire inflation pressure
label (driver’s door) for the correct
tire inflation pressure.
•Do not use the compressor for
longer than 10 minutes because
using the compressor for long
periods could damage it.
•If the tire does not inflate, repair of
the tire may not be possible. If the
tire does not reach the correct
inflation pressure within a 10-
minute period, it probably has
received more extensive damage.
When this happens, the emergency
flat tire repair kit cannot be used to
repair the tire. Contact an
Authorized Mazda Dealer.
•If the tire has been over-inflated,
loosen the screw cap on the
compressor and bleed some of the
air out.•Drive carefully to an Authorized
Mazda Dealer and keep the vehicle
speed below 80 km/h (50 mph).
•If the vehicle is driven 80 km/h
(50 mph) or higher, the vehicle
might begin to vibrate.
NOTE
(With Tire Pressure Monitoring
System)

If the tire is not properly inflated, the
tire pressure monitoring system
warning light will illuminate (page
5-25).
CAUTION
J60E_8R65-EA-03C_Edition2.book Page 11 Saturday, April 26, 2003 1:48 PM

11-3
Index
Form No. 8R65-EA-03C
D
Dashboard Illumination ................... 5-34
Daytime Running Lights
.................. 5-49
Defroster
Rear window
............................. 5-53
Dimensions
...................................... 10-5
Door Locks
......................................... 3-7
Driving In Flooded Area
.................. 4-10
Driving Tips
....................................... 4-7
Automatic transmission
............ 5-15
Break-in period
........................... 4-7
Driving in flooded area
............. 4-10
Hazardous driving
....................... 4-8
Money-saving suggestions
.......... 4-7
Rocking the vehicle
.................... 4-8
Winter driving
............................. 4-9
Dynamic Stability Control (DSC)
.... 5-21
DSC OFF indicator light
........... 5-22
DSC OFF switch
....................... 5-23
TCS/DSC Indicator light
.......... 5-22
E
Emergency Starting .......................... 7-20
Flooded engine
.......................... 7-20
Jump-starting
............................ 7-20
Push-starting
............................. 7-22
Emergency Towing
.......................... 7-23
Emission Control System
................... 4-3
Engine
Coolant
...................................... 8-12
Exhaust gas
................................. 4-5
Hood release
............................. 3-18
Oil
............................................... 8-9
Overheating
............................... 7-18
Starting
........................................ 5-3
Engine Compartment Overview
........ 8-8
Engine Coolant
Overheating
............................... 7-18
E
Engine Coolant Temperature
Gauge
...............................................5-32
Exhaust Gas
........................................4-5
Exterior Care
....................................8-41
F
Flasher
Hazard warning
.........................5-55
Headlights
.................................5-48
Flat Tire
..............................................7-3
Changing
...................................7-13
Instant Mobility System (IMS)
Emergency Flat Tire Repair
Kit
................................................7-5
Spare tire and tool storage
...........7-3
Fluids
Classification
.............................10-5
Owner maintenance
.....................8-6
Fog Lights
........................................5-50
Foot Brake
..........................................5-4
Front seats
..........................................2-2
Fuel
Filler lid and cap
.......................3-16
Gauge
........................................5-33
Requirements
..............................4-2
Tank capacity
............................10-5
Fuses
.................................................8-33
Panel description
.......................8-36
Replacement
..............................8-33
G
Gauges ..............................................5-29
Glove Box
........................................6-45
J60E_8R65-EA-03C_Edition2.book Page 3 Saturday, April 26, 2003 1:48 PM

11-6
Index
Form No. 8R65-EA-03C
S
Sunroof ............................................ 3-19
Sunshade
.......................................... 3-20
Sunvisors
.......................................... 6-37
T
Tachometer ...................................... 5-31
Temporary Spare Tire
...................... 8-25
Theft-Deterrent System
................... 3-23
Tiedown
Hook
......................................... 7-24
Tire Pressure Monitoring System
.... 5-24
System error activation
............. 5-26
Tire pressure monitoring system
warning light
............................. 5-25
Tires and wheels
....................... 5-27
Tires
Flat tire
........................................ 7-3
Inflation pressure
...................... 8-23
Replacement
............................. 8-24
Rotation
.................................... 8-24
Snow tires
................................... 4-9
Spare tire and tool storage
.......... 7-3
Specifications
........................... 10-7
Tire chains
................................ 4-10
Uniform tire quality grading
system (UTQGS)
...................... 9-15
Tool
.................................................... 7-3
Towing
Description
............................... 7-23
Emergency towing
.................... 7-23
Recreational towing
.................. 7-26
Trailer towing
........................... 4-12
Traction Control System (TCS)
....... 5-20
TCS/DSC indicator light
.......... 5-21
Trailer Towing
................................. 4-12
Trip Meter
........................................ 5-30
Trunk Lid
......................................... 3-11
T
Trunk Light ...................................... 3-12
Trunk Release Slide Lever
............... 3-13
Turn and Lane-Change Signals
........ 5-50
V
Vanity Mirrors .................................. 6-37
Vehicle Information Labels
............. 10-2
W
Warning Lights ................................ 5-35
ABS
........................................... 5-40
Air bag system
.......................... 5-40
Automatic transmission
............ 5-42
Brake system
............................. 5-37
Charging system
....................... 5-38
Check engine
............................. 5-39
Door-ajar
................................... 5-41
Engine coolant level
.................. 5-39
Engine oil level
......................... 5-38
Front seat belt pretensioner
system
....................................... 5-40
Low fuel
.................................... 5-41
Low washer fluid level
............. 5-41
Seat belt
..................................... 5-41
Tire pressure monitoring
system
....................................... 5-42
Warranty
............................................. 9-8
Washer Fluid
.................................... 8-17
Weights
............................................ 10-6
Wheel Replacement
......................... 8-26
Windows
Power windows
......................... 3-14
Rear quarter windows
............... 3-16
Windshield Washer
.......................... 5-52
J60E_8R65-EA-03C_Edition2.book Page 6 Saturday, April 26, 2003 1:48 PM
