MAZDA MODEL RX 8 2005 Owners Manual (in English)

Black plate (131,1)

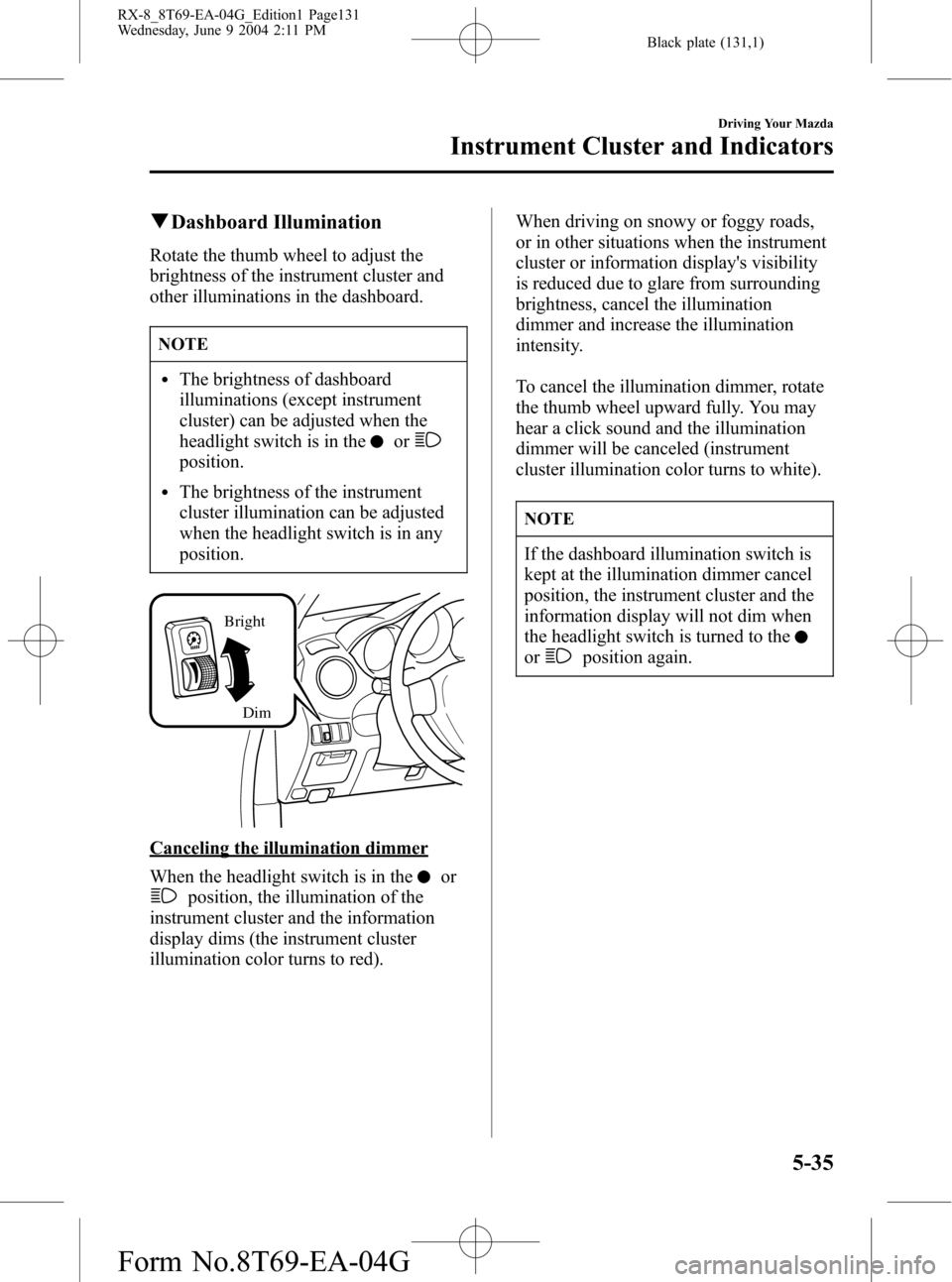

qDashboard Illumination
Rotate the thumb wheel to adjust the
brightness of the instrument cluster and
other illuminations in the dashboard.
NOTE
lThe brightness of dashboard
illuminations (except instrument
cluster) can be adjusted when the
headlight switch is in the
or
position.
lThe brightness of the instrument
cluster illumination can be adjusted
when the headlight switch is in any
position.
Bright
Dim
Canceling the illumination dimmer
When the headlight switch is in the
or
position, the illumination of the
instrument cluster and the information
display dims (the instrument cluster
illumination color turns to red).When driving on snowy or foggy roads,
or in other situations when the instrument
cluster or information display's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer and increase the illumination
intensity.
To cancel the illumination dimmer, rotate
the thumb wheel upward fully. You may
hear a click sound and the illumination
dimmer will be canceled (instrument
cluster illumination color turns to white).
NOTE
If the dashboard illumination switch is
kept at the illumination dimmer cancel
position, the instrument cluster and the
information display will not dim when
the headlight switch is turned to the
orposition again.
Driving Your Mazda
Instrument Cluster and Indicators
5-35
RX-8_8T69-EA-04G_Edition1 Page131
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (132,1)
Warning/Indicator Lights
Warning/Indicator lights will appear in any of the highlighted areas
Signal Warning/Indicator Lights Page
Brake System Warning Light 5-38
Charging System Warning Light 5-39
Engine Oil Level Warning Light 5-39
Engine Coolant Level Warning Light 5-40
Check Engine Light 5-40
ABS Warning Light 5-41
Air Bag/Front Seat Belt Pretensioner System Warning Light 5-41
Low Fuel Warning Light 5-42
Seat Belt Warning Light 5-42
5-36
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
RX-8_8T69-EA-04G_Edition1 Page132
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (133,1)
Signal Warning/Indicator Lights Page
Door-Ajar Warning Light 5-42
Low Washer Fluid Level Warning Light 5-42
Automatic Transmission Warning Light 5-42
Tire Pressure Monitoring System Warning Light 5-43
Security Indicator Light 5-44
Headlight High-Beam Indicator Light 5-44
Shift Position Indicator Light 5-45
TCS/DSC Indicator Light 5-45
DSC OFF Indicator Light 5-45
Cruise Main Indicator Light 5-46
Cruise Set Indicator Light 5-46
Light-On Indicator Light 5-46
Power Steering Malfunction Indicator Light 5-46
Headlight Auto-Leveling Malfunction Indicator Light 5-47
Turn-Signal/Hazard Warning Indicator Lights 5-47
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-37
RX-8_8T69-EA-04G_Edition1 Page133
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (134,1)
qBrake System Warning Light
This warning has the following functions:
Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Low brake fluid level warning/
Electronic brake force distribution
system warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
Low brake fluid level warning
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-18).
2. After adding fluid, check the light
again.
If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.Even if the light goes off, have your brake
system inspected as soon as possible.
Electronic brake force distribution
system warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light on.
In this case, the ABS warning light comes
on at the same time (page 5-41).
WARNING
Brake Warning Light:
Driving with the brake system warning
light on is dangerous. It indicates that
your brakes may not work at all or
that they could completely fail at any
time. If this light remains on, after
checking that the parking brake is
fully released, have the brakes
inspected immediately. Don't drive
with this light on, and contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible.
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don't drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
5-38
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
RX-8_8T69-EA-04G_Edition1 Page134
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (135,1)
qCharging System Warning Light
This warning light illuminates when the
ignition switch is turned to the ON
position and turns off when the engine is
started.
If the warning light illuminates while
driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Don't continue driving when the
charging system warning light is
illuminated.
qEngine Oil Level Warning Light
This warning light indicates low engine
oil level.
If the light illuminates while driving:
1. Drive to the side of the road and park
off the right-of-way.2. Turn off the engine and inspect the
engine oil level (page 8-13). If it's low,
add oil.
3. Check the light.
If the engine oil level warning light is
illuminated and you are unable to
immediately add engine oil, do not drive
at high speed, keep the engine speed low
and get to a location where oil can be
added as soon as possible. We recommend
an Authorized Mazda Dealer.
If the light remains illuminated even after
you add oil, have your vehicle checked at
an Authorized Mazda Dealer.
CAUTION
Don't run the engine if the oil level is
low. It could result in extensive engine
damage.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-39
RX-8_8T69-EA-04G_Edition1 Page135
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (136,1)
NOTE
The Mazda RX-8 requires regular
checking of the engine oil level. The
compact, high performance RENESIS
rotary engine in your vehicle consumes
a small amount of engine oil due to its
structural design. An oil pump
optimizes the amount of oil injected to
lubricate the rotor seals in the
combustion cycle. Although your
vehicle is equipped with an engine oil
level warning light and an engine oil
pressure gauge, it is best to keep the
engine oil level in the range between
full and low by checking the oil
dipstick regularly. Mazda recommends
checking the oil level at every second
fuel filling. The oil consumption of the
engine depends on engine speed and
engine load. Under extreme driving
conditions, oil consumption can be
higher.
qEngine Coolant Level Warning
Light
This warning light indicates low engine
coolant level.
If the light illuminates while driving:
1. Drive to the side of the road and park
off the right-of-way.
2. Turn off the engine and inspect the
engine coolant level (page 8-15). If it's
low, add engine coolant.3. Check the light.
If the light remains illuminated even after
you add engine coolant, have your vehicle
towed to an Authorized Mazda Dealer.
CAUTION
Don't run the engine if the engine
coolant level is low. It could result in
extensive engine damage.
qCheck Engine Light
If this light comes on while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light came on and consult an
Authorized Mazda Dealer.
The check engine light may come on in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
lThe fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on or
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
5-40
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
RX-8_8T69-EA-04G_Edition1 Page136
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (137,1)
qABS Warning Light
The warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
WARNING
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don't drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
NOTE
When the engine is jump-started to
charge the battery, uneven rpm occurs
and the ABS warning light comes on.
This is due to a weak battery, not a
malfunction.
Recharge the battery.
qAir Bag/Front Seat Belt
Pretensioner System Warning
Light
If the air bag/front seat belt pretensioner
system is normal, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds
it goes out.
A system malfunction is indicated when
the warning light constantly flashes,
illuminates or doesn't illuminate at all
when the ignition switch is turned to the
ON position. If any of these occur, consult
an Authorized Mazda Dealer as soon as
possible. The system may not work in an
accident.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-41
RX-8_8T69-EA-04G_Edition1 Page137
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (138,1)
WARNING
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
performs all servicing and repairs.
qLow Fuel Warning Light
Low fuel warning light
This warning light in the fuel gauge
signals that the fuel tank will soon be
empty.
Refuel as soon as possible.
qSeat Belt Warning Light
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, the seat belt warning light
will remain on until the belt is fastened.
If the system does not operate correctly,
consult an Authorized Mazda Dealer.
qDoor-Ajar Warning Light
This warning light comes on when any
door isn't securely closed.
qLow Washer Fluid Level
Warning Lightí
This warning light indicates that little
washer fluid remains. Add fluid (page
8-21).
qAutomatic Transmission Warning
Light
This warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
The light illuminates when the
transmission has a problem.
5-42
Driving Your Mazda
íSome models.
Warning/Indicator Lights and Beep Sounds
RX-8_8T69-EA-04G_Edition1 Page138
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (139,1)
CAUTION
If the automatic transmission warning
light illuminates, the transmission has
an electrical problem. Continuing to
drive your Mazda in this condition
could cause damage to your
transmission. Consult an Authorized
Mazda Dealer as soon as possible.
qTire Pressure Monitoring System
Warning Lightí
This warning light illuminates for a few
seconds when the ignition switch is turned
to the ON position.
Thereafter, the warning light illuminates
when tire pressure is too low or too high
in one or more tires, and flashes when
there is a system malfunction.
WARNING
Vehicle Handling When Tire Pressure
Monitoring System Warning Light
Illuminates/Flashes:
When the tire pressure monitoring
system warning light illuminates or
flashes, or the tire pressure warning
beep sound is heard, it is dangerous to
drive the vehicle at high speeds, or
perform sudden maneuvering or
braking. Vehicle drivability could
worsen and result in an accident.
When the tire pressure monitoring
system warning light illuminates or
flashes, or the tire pressure warning
beep sound is heard, decrease vehicle
speed immediately and avoid sudden
maneuvering and braking. Have the
system and tires checked or perform
the appropriate repair as soon as
possible.
Ignoring the Warning Light:
Ignoring the warning light is
dangerous, even if you know why it is
illuminated. Have the problem taken
care of as soon as possible before it
develops into a more serious situation
that could lead to tire failure and a
dangerous accident.
Warning light illuminates/Warning
beep sounds
When the warning light illuminates, and
the warning beep sound is heard (about 3
seconds), tire pressure is too low or too
high in one or more tires.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-43íSome models. RX-8_8T69-EA-04G_Edition1 Page139
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (140,1)
Adjust the tire pressure to the correct tire
pressure at an Authorized Mazda Dealer
or the nearest service station. Refer to the
specification charts (page 10-6).
CAUTION
When replacing/repairing the tires or
wheels or both, have the work done by
an Authorized Mazda Dealer, or the tire
pressure sensors may be damaged.
If the warning light illuminates again even
after the tire pressures are adjusted, there
may be a tire puncture.
Vehicles with Instant Mobility System
(IMS) emergency flat tire repair kit
If an emergency tire repair is needed,
repair the punctured tire with the
emergency flat tire repair kit (page 7-5).
CAUTION
Do not use non-genuine tire sealant. It
may damage the tire pressure sensor.
Vehicles with optional temporary spare
tire
If you have bought the optional temporary
spare tire, replace the punctured tire with
the temporary spare tire . Refer to the
manufacturer's instructions.
NOTE
A tire pressure sensor is not installed to
the temporary spare tire. The warning
light will flash continuously while the
temporary spare tire is being used.
Warning light flashes
When the warning light flashes, there may
be a system malfunction. Consult an
Authorized Mazda Dealer.
qSecurity Indicator Light
This indicator light starts flashing every 2
seconds when the ignition switch is turned
from the ON to the ACC position and the
immobilizer system is armed.
The light stops flashing when the ignition
switch is turned to the ON position with
the correct ignition key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about 3 seconds and then goes out.
If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
qHeadlight High-Beam Indicator
Light
This light indicates one of two things:
lThe high-beam headlights are on.
5-44
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
RX-8_8T69-EA-04G_Edition1 Page140
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G
