Black plate (141,1)
lThe turn signal lever is in the flash-to-
pass position.
qShift Position Indicator Light
(Automatic Transmission)
This indicates the selected shift position
when the ignition switch is in the ON
position.
Gear position indicator
Gear position indicator
When the shift lever is in the D or M
position, the numeral for the selected gear
illuminates.
qTCS/DSC Indicator Lightí
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS or DSC is
operating, the indicator light flashes.
If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.
qDSC OFF Indicator Lightí
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position.
It also comes on when the DSC OFF
switch is pressed and TCS/DSC is
switched off.
If the light stays on when the TCS/DSC is
not switched off, take your vehicle to an
Authorized Mazda Dealer. The dynamic
stability control may have a malfunction.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-45íSome models. RX-8_8T69-EA-04G_Edition1 Page141
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (142,1)
NOTE
If the battery is disconnected, the DSC
will be inoperable. In this case, the DSC
OFF indicator light flashes and the
TCS/DSC indicator light illuminates.
To make the DSC operable, do the
following procedure.
1. Turn the ignition switch to the ON
position.
2. Turn the steering clockwise fully,
then turn it counterclockwise fully.
3. Make sure the DSC OFF indicator
goes off.
4. Turn the ignition switch to the OFF
position, then turn it to the ON
position again.
5. Make sure the TCS/DSC indicator
light goes off.
If the TCS/DSC indicator light and the
DSC OFF indicator light remain
illuminated even after turning the
ignition switch to the ON position,
consult an Authorized Mazda Dealer.
qCruise Main Indicator Light
This light comes on when the ON/OFF
switch is pressed and the cruise control
system is activated.
qCruise Set Indicator Light
This light comes on when a cruising speed
is set.
qLight-On Indicator Light
This indicator light comes on when the
exterior lights are on.
qPower Steering Malfunction
Indicator Light
This indicator light illuminates when the
ignition switch is turned to the ON
position and goes off when the engine is
started.
If this light illuminates while driving, it
indicates a malfunction of the power
steering system. Consult an Authorized
Mazda Dealer.
5-46
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
RX-8_8T69-EA-04G_Edition1 Page142
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

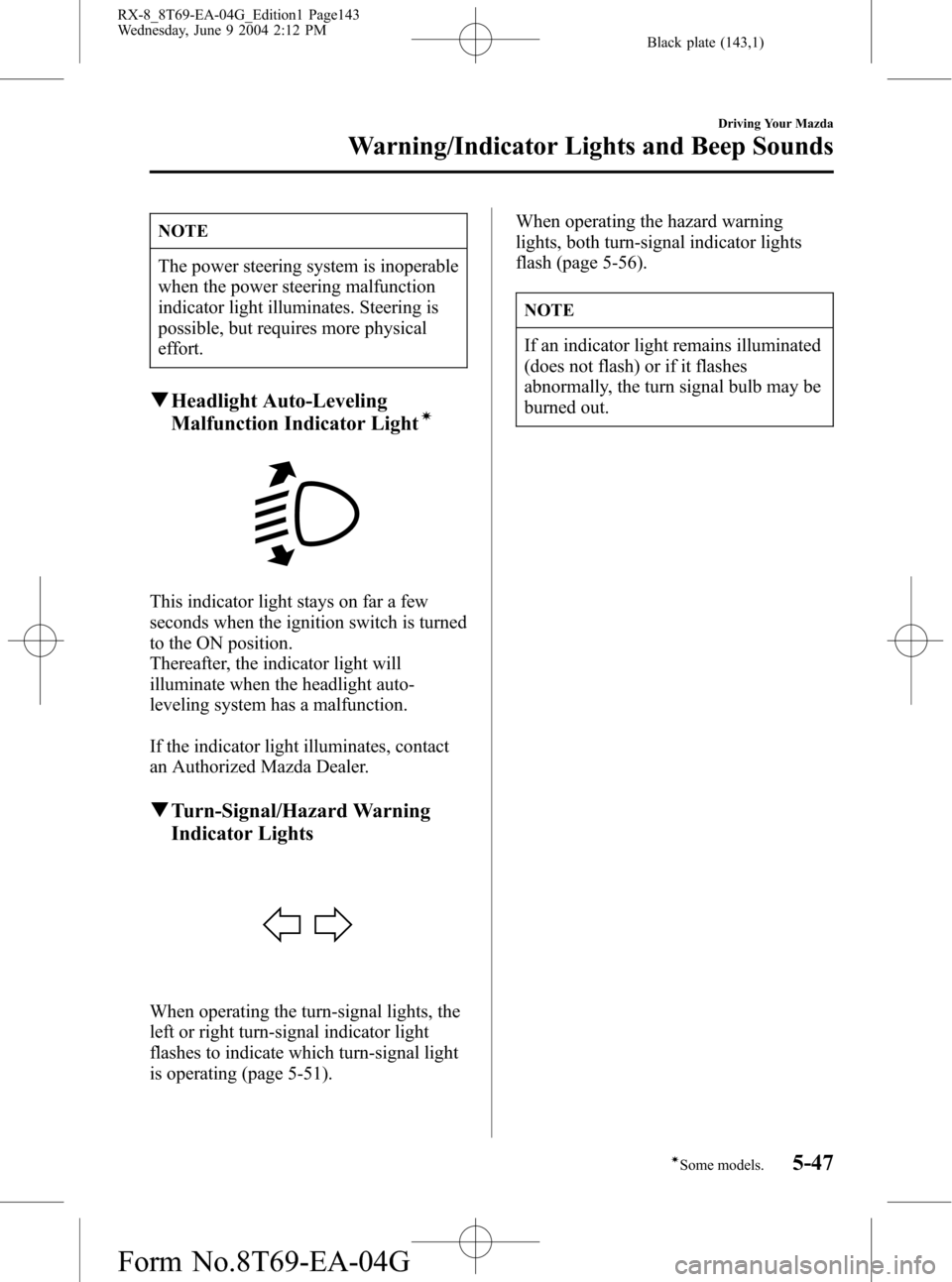

Black plate (143,1)
NOTE
The power steering system is inoperable
when the power steering malfunction
indicator light illuminates. Steering is
possible, but requires more physical
effort.
qHeadlight Auto-Leveling
Malfunction Indicator Lightí
This indicator light stays on far a few
seconds when the ignition switch is turned
to the ON position.
Thereafter, the indicator light will
illuminate when the headlight auto-
leveling system has a malfunction.
If the indicator light illuminates, contact
an Authorized Mazda Dealer.
qTurn-Signal/Hazard Warning
Indicator Lights
When operating the turn-signal lights, the
left or right turn-signal indicator light
flashes to indicate which turn-signal light
is operating (page 5-51).When operating the hazard warning
lights, both turn-signal indicator lights
flash (page 5-56).
NOTE
If an indicator light remains illuminated
(does not flash) or if it flashes
abnormally, the turn signal bulb may be
burned out.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-47íSome models. RX-8_8T69-EA-04G_Edition1 Page143
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (144,1)
Beep Sounds
qSeat Belt Warning Beep
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep sound will be heard
for about 6 seconds.
qIgnition Key Reminder
If the ignition switch is in the LOCK or
ACC position, a beep sound will be heard
when the driver's door is opened.
qLights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep sound
will be heard when the driver's door is
opened.
qEngine Overrev Warning Beep
The beep sounds to indicate engine
overrev when the tachometer needle
enters the striped zone (page 5-32).
qTire Inflation Pressure Warning
Beepí
The warning beep sound will be heard for
about 3 seconds when there is any
abnormality in tire inflation pressures
(page 5-25).
5-48
Driving Your Mazda
íSome models.
Warning/Indicator Lights and Beep Sounds
RX-8_8T69-EA-04G_Edition1 Page144
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (145,1)
Lighting Control
qHeadlights
To turn on the lights, turn the headlight
switch on the end of the control lever.
Switch Position
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lightsOff On On
NOTE
To prevent discharging the battery, don't
leave the lights on while the engine is
off.
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.
WARNING
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs by
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs by yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
NOTE
If the headlights flash, or the brightness
weakens, the bulb-life may be depleted
and a replacement is necessary. Consult
an Authorized Mazda Dealer.
qLights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep sound
will be heard when the driver's door is
opened.
qHeadlight High-Low Beam
Push the lever forward for high beam.
Pull it back for low.
High beam
Low beam
Driving Your Mazda
Switches and Controls
5-49íSome models. RX-8_8T69-EA-04G_Edition1 Page145
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (146,1)
qFlashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch need
not be on, and the lever will return to the
normal position when released.
qHeadlight Levelingí
The number of riders and weight of cargo
in the luggage compartment change the
angle of the headlights.
The angle of the headlights will be
automatically adjusted when turning on
the headlights.
Headlight auto-leveling malfunction
indicator light
This indicator light stays on far a few
seconds when the ignition switch is turned
to the ON position.
Thereafter, the indicator light will
illuminate when the headlight auto-
leveling system has a malfunction.If the indicator light illuminates, contact
an Authorized Mazda Dealer.
qDaytime Running Lights
(Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.
NOTE
The Daytime Running Lights turn off
when the parking brake is applied.
5-50
Driving Your Mazda
íSome models.
Switches and Controls
RX-8_8T69-EA-04G_Edition1 Page146
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (147,1)
Turn and Lane-Change
Signals
qTurn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turnOFFRight lane
change
Left lane
change
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change―until the
indicator flashes―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Fog Lightsí
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn the front fog lights on, rotate the
fog light switch to the
position.
The headlight switch must be in the
position to turn on the front fog lights.
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
or OFF
position.
NOTE
The fog lights will turn off when the
headlights are set at high beam.
Driving Your Mazda
Switches and Controls
5-51íSome models. RX-8_8T69-EA-04G_Edition1 Page147
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (148,1)
Windshield Wipers and
Washer
The ignition switch must be in the ON
position.
WARNING
Frozen Washer Fluid:
Using windshield washer fluid without
anti-freeze protection in freezing
temperatures is dangerous. The
washer fluid could freeze on the
windshield and block your vision. You
could have an accident. Don't use the
washer without first warming the
windshield and never use plain tap
water.
NOTE
Because heavy ice and snow can jam
the wiper blades, the wiper motor is
protected from motor breakdown,
overheating and possible fire by a
circuit breaker. This mechanism will
automatically stop operation of the
blades, but only for about 5 minutes.
If this happens, turn off the wiper
switch and park off the right-of-way,
and remove the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they don't resume functioning, consult
an Authorized Mazda Dealer as soon as
possible.
qWindshield Wipers
Turn the wipers on by pulling the lever
down.
INT―Intermittent
1―Normal
2―Fast
Variable-speed intermittent wipers
Set the lever to INT and choose the
interval timing by rotating the ring.
INT ring
5-52
Driving Your Mazda
Switches and Controls
RX-8_8T69-EA-04G_Edition1 Page148
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (149,1)
One-touch wipers
For a single wiping cycle, push the lever
up to MIST.
qWindshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
OFF
Washer
NOTE
With the wiper lever in the OFF or INT
position, the wipers will operate
continuously until the lever is released.
If the washer doesn't work, inspect the
fluid level (page 8-21). If it's OK, consult
an Authorized Mazda Dealer.
NOTE
(With headlight washers)
When the headlights are on, the
headlight washers operate automatically
once every fifth time the windshield
washer operates.
Refer to Headlight Washer (page 5-54).
Driving Your Mazda
Switches and Controls
5-53
RX-8_8T69-EA-04G_Edition1 Page149
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (150,1)
Headlight Washerí
The ignition switch must be in the ON
position and the headlights must be turned
on.
The headlight washers operate
automatically once every fifth time the
windshield washer operates.
If you want to operate only the headlight
washers, pull the windshield wiper lever
toward you twice rapidly.
OFF
Washer
NOTE
When you pull the windshield wiper
lever twice, the windshield washer may
spray a little.
Rear Window Defroster
The rear window defroster clears frost,
fog, and thin ice from the rear window.
The ignition switch must be in the ON
position.
Press the switch to turn on the rear
window defroster. The rear window
defroster operates for about 15 minutes
and turns off automatically.
The indicator light illuminates during
operation.
To turn off the rear window defroster
before the 15 minutes has elapsed, press
the switch again.
Indicator light
CAUTION
Don't use sharp instruments or window
cleaners with abrasives to clean the
inside of the rear window surface. They
may damage the defroster grid inside
the window.
5-54
Driving Your Mazda
íSome models.
Switches and Controls
RX-8_8T69-EA-04G_Edition1 Page150
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G
