Black plate (51,1)
A system malfunction is indicated when
the warning light constantly flashes,
illuminates or doesn't illuminate at all
when the ignition switch is turned to the
ON position. If any of these occur, consult
an Authorized Mazda Dealer as soon as
possible. The system may not work in an
accident.
WARNING
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
performs all servicing and repairs.
qMaintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
lThe air bag system warning light
flashes.
lThe air bag system warning light
remains illuminated.
lThe air bag system warning light
remains off when the ignition switch is
turned to the ON position.
lThe air bags inflate.
WARNING
Damaged Air Bag Sensors:
Driving with damaged air bag sensors
is dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the sensors. If there was
a subsequent collision, a damaged
sensor would not inflate the air bags.
Always have an Authorized Mazda
Dealer inspect the air bag systems
after a collision.
Removing Interior Parts:
Removing any components such as the
front seat, front dashboard, the
steering wheel or parts on the front
and rear window pillars and along the
roof edge, containing air bag parts or
sensors is dangerous. These parts
contain essential air bag parts. The air
bag could accidentally activate and
cause serious injuries. Always have an
Authorized Mazda Dealer remove
these parts.
Air Bag Disposal:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all safety
procedures are followed, injury can
result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
Essential Safety Equipment
SRS Air Bags
2-39
RX-8_8T69-EA-04G_Edition1 Page51
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (52,1)
2-40
RX-8_8T69-EA-04G_Edition1 Page52
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (53,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks ........................................................................... 3-2
Keys .......................................................................................... 3-2
Keyless Entry System ............................................................... 3-3
Door Locks ............................................................................... 3-8
Trunk Lid ................................................................................ 3-12
Inside Trunk Release Slide Lever ............................................ 3-15
Power Windows ...................................................................... 3-16
Rear Quarter Windows ............................................................ 3-18
Fuel-Filler Lid and Cap ........................................................... 3-19
Hood ....................................................................................... 3-21
Moonroof
í............................................................................. 3-22
Security System ........................................................................... 3-24
Immobilizer System ................................................................ 3-24
Theft-Deterrent System
í........................................................ 3-27
Steering Wheel and Mirrors ...................................................... 3-29
Steering Wheel ........................................................................ 3-29
Mirrors .................................................................................... 3-29
3-1íSome models.
RX-8_8T69-EA-04G_Edition1 Page53
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (54,1)
Keys
WARNING
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don't leave the
keys in your vehicle with children and
keep them in a place where your
children will not find or play with
them.
NOTE
Refer to Immobilizer System (page
3-24) for information regarding keys
and engine starting on vehicles
equipped with the immobilizer system.
Your Mazda has two kinds of keys.
Valet key Master key
Key code number plate
Here's what the keys are used for:
Lock Operates Master key Valet key
Ignition switch and
steering column lockYe s Ye s
Driver's door Yes Yes
Glove box Yes No
Storage box Yes No
Trunk lid Yes No
If you must leave your vehicle with
another person, such as a parking
attendant, protect items by locking the
glove box, storage box and trunk lid with
the master key. Keep that key and give the
other person only the valet key.
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
Also write down the code number and
keep it in another safe and handy place,
but not in the vehicle.
If your key is lost, consult your
Authorized Mazda Dealer with the code
number ready.
3-2
Knowing Your Mazda
Doors and Locks
RX-8_8T69-EA-04G_Edition1 Page54
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (55,1)
Key unfold/fold method (Retractable
key type)
To unfold the key, press the release
button.
To fold the key, press the release button
and rotate the key into the holder.Keyless Entry System
This system locks and unlocks the doors
and opens the trunk.
It can also help you signal for attention in
an emergency.
Press the button slowly and accurately.
CAUTION
To avoid damage to the transmitter, do
not:
lDrop it.
lGet it wet.
lDisassemble it.
lExpose it to heat or sunlight.
Knowing Your Mazda
Doors and Locks
3-3
RX-8_8T69-EA-04G_Edition1 Page55
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (56,1)
NOTE
lThe keyless entry system is designed
to operate up to about 2.5 m (8 ft)
from the center of the vehicle, but
this may vary because of local
conditions.
lThe system doesn't operate when the
key is in the ignition switch.
lDoors cannot be locked by pressing
the LOCK button while any other
door is open. The hazard warning
lights will also not flash.
lIf the transmitter does not operate
when pressing a button or the
operation range becomes too small,
the battery may be dead. To install a
new battery, refer to Maintenance
(page 3-6).
lAdditional transmitters can be
obtained at an Authorized Mazda
Dealer. Up to 3 transmitters can be
used with the keyless entry system
per vehicle. Bring all transmitters to
an Authorized Mazda Dealer when
the electronic codes need to be reset.
qTransmitter
Lock button
Unlock button
Trunk buttonPanic button
NOTE
l(U.S.A.)
This device complies with part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
l(CANADA)
This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
NOTE
If the lock and unlock buttons are
pressed sequentially, the hazard
warning lights may not flash correctly.
3-4
Knowing Your Mazda
Doors and Locks
RX-8_8T69-EA-04G_Edition1 Page56
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (57,1)
Lock button
To lock the doors, press the lock button
and the hazard warning lights will flash
once.
To confirm that all the doors have been
locked, press the lock button again within
5 seconds. If they are closed and locked,
the horn will sound and the hazard
warning lights will flash once.
NOTE
lAll doors cannot be locked when any
door is open and the key is in the
ignition switch.
lConfirm that all the doors are locked
visually or audibly by use of the
double click.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
To unlock all the doors, press the unlock
button again within 5 seconds and the
hazard warning lights will flash twice.
NOTE
After unlocking with the transmitter, all
doors will automatically lock if one of
the doors is not opened within about 30
seconds.
Trunk button
To open the trunk, press the trunk button.
NOTE
The trunk button is disabled when the
glove box-mounted trunk lid release
lock-out button is in the OFF position.
Refer to Remote Trunk Lid Release
Lock-Out on page 3-14.
Panic button
You can use the panic button to turn on
the alarm, which allows you to signal for
attention in an emergency.
NOTE
The alarm will work whether any door
is open or closed.
Turning on the alarm
Pressing the panic button for about a
second will trigger the alarm for about 2
minutes and 30 seconds, and do the
following:
lThe horn sounds intermittently.
lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter or
insert the key into the ignition switch.
Knowing Your Mazda
Doors and Locks
3-5
RX-8_8T69-EA-04G_Edition1 Page57
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (58,1)
qTransmitter Maintenance
CAUTION
lMake sure the battery is installed
with the correct pole facing upward.
Battery leakage could occur if it is
not installed correctly.
lWhen replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also be
careful not to get dirt in the
transmitter as it could damage it.
lDanger of battery explosion if it is
incorrectly replaced.
lReplace only with the same type
battery (CR1620 or equivalent).
lDispose of used batteries according
to the following instructions.
lInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
lNever disassemble.lNever throw the battery into fire
and/or water.
lNever deform or crush.
Replacing the transmitter battery
1. Insert a small screwdriver into the slot
and push the tab to remove the key
from the transmitter.
Ta b
2. Insert a small screwdriver into the slot
and gently pry open the transmitter.
3-6
Knowing Your Mazda
Doors and Locks
RX-8_8T69-EA-04G_Edition1 Page58
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (59,1)

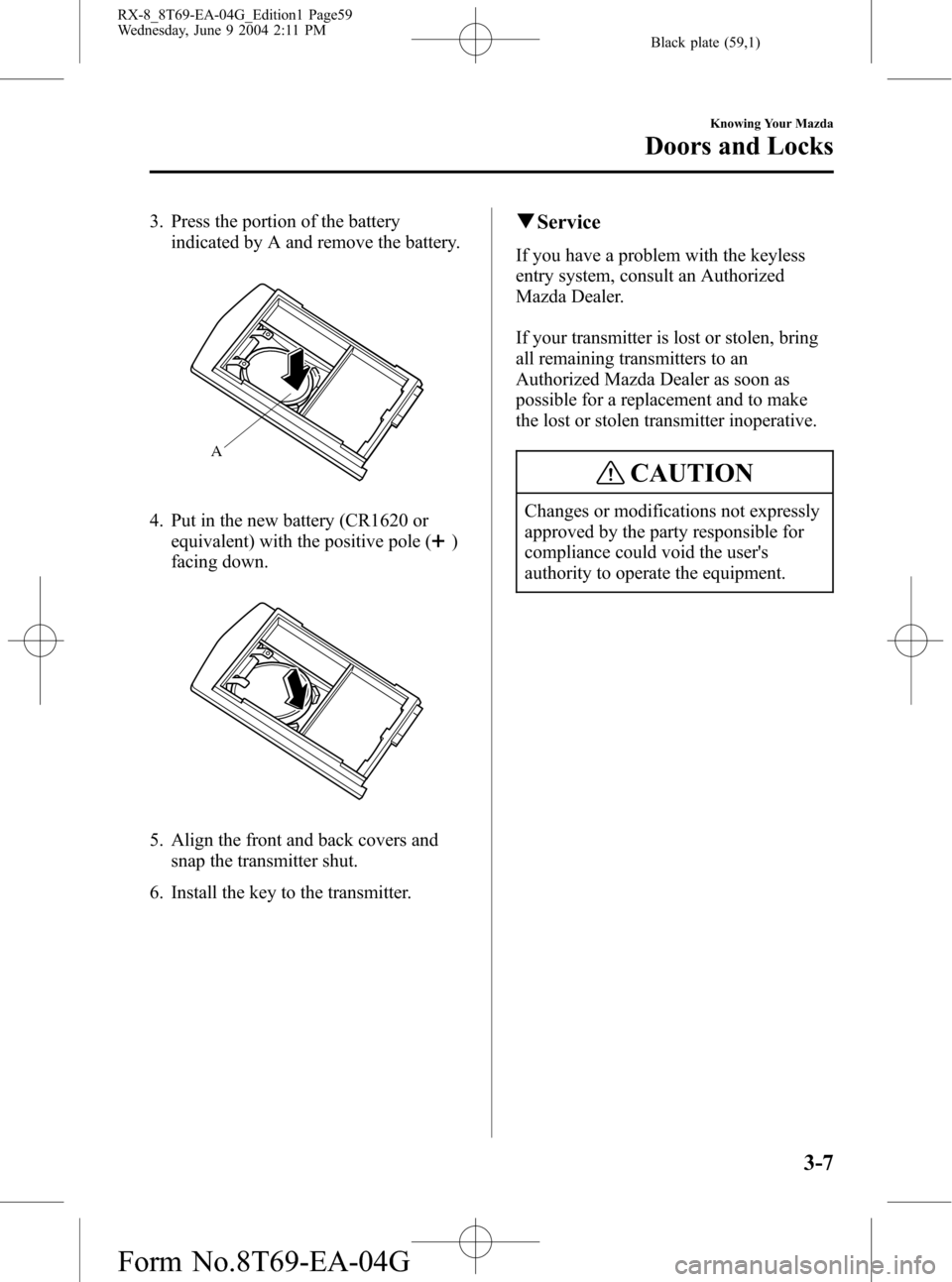

3. Press the portion of the battery
indicated by A and remove the battery.
A
4. Put in the new battery (CR1620 or
equivalent) with the positive pole (
)
facing down.
5. Align the front and back covers and
snap the transmitter shut.
6. Install the key to the transmitter.
qService
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
CAUTION
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
Knowing Your Mazda
Doors and Locks
3-7
RX-8_8T69-EA-04G_Edition1 Page59
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (60,1)
Door Locks
WARNING
Unattended Children and Pets:
Leaving a child or an animal
unattended in a parked vehicle is
dangerous. In hot weather,
temperatures inside a vehicle can
become high enough to cause brain
damage or even death. Always take all
children and animals with you or
leave a responsible person with them.
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don't leave the
keys in your vehicle with children and
keep them in a place where your
children will not find or play with
them.
Unlocked Doors:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall out
if a door is accidentally opened and
can more easily be thrown out in an
accident. So keep all doors locked
when driving.
NOTE
Always remove the key from the
ignition switch, close all windows, and
lock all doors and the trunk lid when
leaving your vehicle unattended. This
discourages intruders and thieves.
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Lock Unlock
qLocking, Unlocking with
Transmitter
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to keyless entry system
(page 3-3).
qLocking, Unlocking with Door-
Lock Knob
To lock either front door from the inside,
push the door-lock knob.
To unlock, pull it out.
Lock
Unlock Door-lock knob
3-8
Knowing Your Mazda
Doors and Locks
RX-8_8T69-EA-04G_Edition1 Page60
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G
